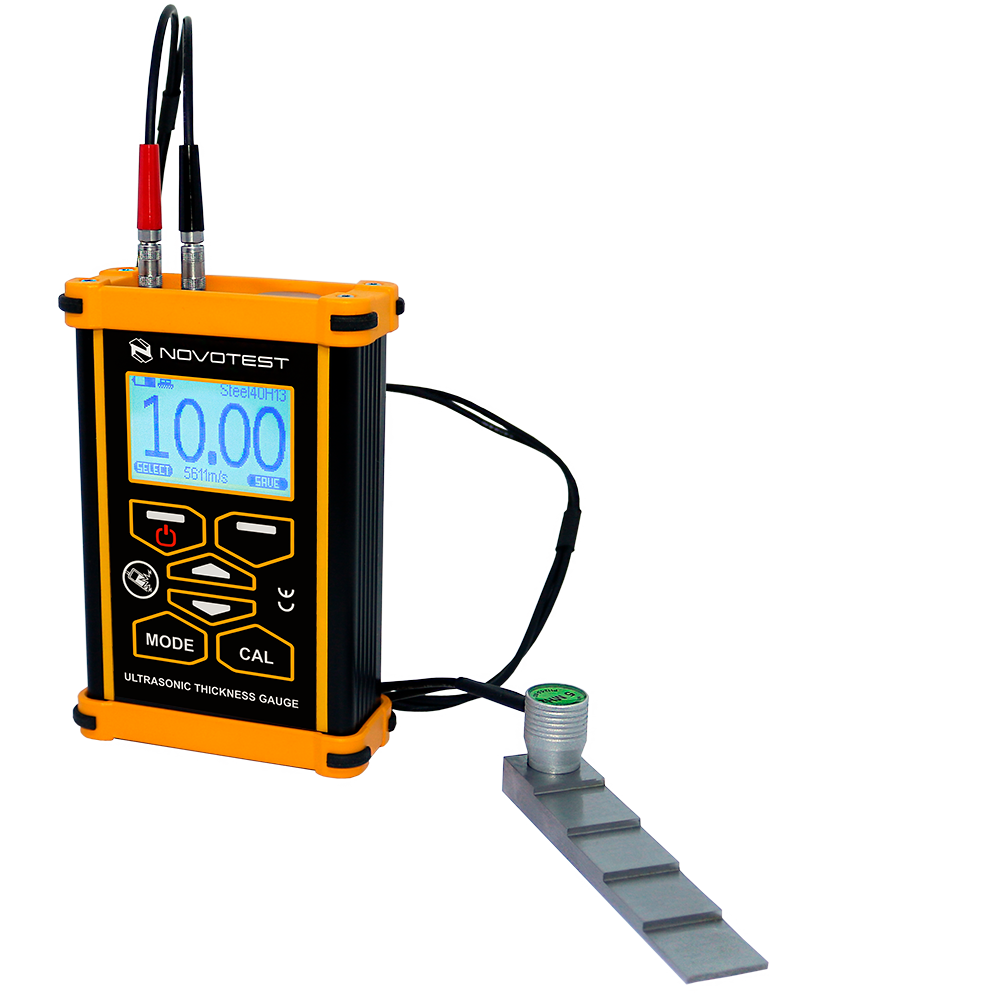

Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST

Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST

Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST is a special version of the thickness gauge in a metal enclosure, which is designed for extreme operating conditions, when there is a possibility of the device dropping or other damage of the unit during operation. The durable aluminum bodie’s profile withstands high static and dynamic compression loads, which allows the operator to use the device “carelessly”.

Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST is designed to measure the thickness of products with low attenuation of ultrasonic vibrations, with one-way access to them during their manufacture and operation.

Some advantages of Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST:

WIDE RANGE OF THICKNESS OF TESTING PRODUCTS

Same as other ultrasonic thickness gauges TM “NOVOTEST”, Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST allows user to measure the thickness of products in a wide range with a minimum set of transducers, this is achieved thanks to the advanced settings of the device (amplification of two stages, V-correction, etc.)

UNIVERSAL TRANSDUCERS

Any dual-element probes can be connected and configured to the device by cables with standard connectors. What makes Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST universal to use, and does not limit users in choosing a probes for operation.

DISPLAY THE PRODUCT PROFILE WHEN SCAN

The device has a scanning mode of the product in the mode of a B-scan, which allows user to visualize thinning and thickening of the wall like a graph on the display of the device. This allows the user to see the product profile, which simplifies the operator’s work. Additionally, there is an alarm function for exceeding the maximum and minimum thickness limits that are pre-set by the operator.

THICKNESS SAMPLE FOR ADJUSTING THE DELAY OF THE TRANSDUCER

Like other ultrasonic thickness gauges TM “NOVOTEST”, the Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST has a thickness sample mounted on the device’s body, which allows the user to quickly set “0” (calculate the delay in the probe) when changing the transducers or the operating conditions of the device.

The device has a memory where the referencebook of the propagation velocities of the most common materials is stored, also the device allows user to save the settings of the transducers and measurement results, which can be stored both in the device and transferred to a PC using special software that is supplied with the standard Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST set.

Advantages

  • Unique additional protection of metal housing
  • Material selection and automatic setting of ultrasound velocity
  • Large graphic display of high contrast and backlight
  • Display of measured thickness in mm and inches
  • Convenient menu in the device
  • Wide choice of UT probes with preset settings in the device
  • Modes of statistical processing of measurements
  • Ability to restore factory calibrations
  • Ability to adjust all parameters of the acoustic path
  • Ability of further adjusting the user gain (±20 Db) directly from the measurement mode
  • Wide measurement range (0.4 to 1500 mm and more)
  • Available probes 1.25-10 MHz:
    – 1.25MHz probe (echo) 20/2 for substantial thicknesses or materials with exceptionally high signal attenuation
    – 2.0MHz probe (echo) 20/2 for large thicknesses or materials with high signal attenuation
    – 2.5MHz probe (echo) 12/2 for thick samples
    – 5MHz probe (echo) 10/2 for a wide range of basic samples
    – 10MHz probe (echo) 6/2 for thin samples
    – 10MHz probe (echo) 2х3 for products of complex shapes, usually turbine blades
    – 5MHz high-temperature probe (echo) 10/2 for heated samples up to 250 °С/482 °F
    – 2.5MHz probe (echo-echo) 12/2 for through coating
    – 5MHz probe (echo-echo) 10/2 for through coating
    – 10MHz probe (echo-echo) 6/2 for through coating
    – 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable
    – 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable
    – 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable
  • B-scan and control modes
  • Through-coating (echo-echo) mode
  • Threshold setting with automatic alarm
  • Saving the settings for different probes
  • Compatibility with probes of other manufacturers
  • V-path correction and TVG adjusting for the user’s probes
  • Measurement storage and PC software
  • PC cable connection:
    – Online – NOVOTEST.INFO/USB-connect
    – Offline – NOVOTEST USB-Connect

Specifications

Measuring thicknesses range on steel, mm:



  • Probe 10MHz – P112-10-2×3
  • Probe 10MHz – P112-10-6 / 2
  • Probe 5MHz – P112-5-10 / 2
  • Probe 2,5MHz – P112-2,5-12 / 2
  • Probe 2MHz – P112-2-20 / 2
  • Probe 1,25MHz – P112-1.25-20 / 2
 0.4 to 1500 mm and more
(depending on material and surfaces)



  • 0.4-15
  • 0.45-300
  • 0.8-500
  • 2.5-1000
  • 3-1200
  • 4-1500
Probe dimensions, mm:



  • Probe 10MHz – P112-10-2×3
  • Probe 10MHz – P112-10-6 / 2
  • Probe 5MHz – P112-5-10 / 2
  • Probe 2,5MHz – P112-2,5-12 / 2
  • Probe 2MHz – P112-2-20 / 2
  • Probe 1,25MHz – P112-1.25-20 / 2
  • 4×9×60
  • D12×15
  • D17×20
  • D20×21
  • D30×28
  • D30×35
Dimensions of probe contact area/crystal, mm:



  • Probe 10MHz – P112-10-2×3
  • Probe 10MHz – P112-10-6 / 2
  • Probe 5MHz – P112-5-10 / 2
  • Probe 2,5MHz – P112-2,5-12 / 2
  • Probe 2MHz – P112-2-20 / 2
  • Probe 1,25MHz – P112-1.25-20 / 2
  • 2×7/2×3
  • D9/D6
  • D14/D10
  • D16/D12
  • D24/D20
  • D24/D20
Optional probes:



  • 5MHz high-temperature probe (echo) 10/2
  • 2,5MHz probe (echo-echo) 12/2 for through coating
  • 5MHz probe (echo-echo) 10/2 for through coating
  • 10MHz probe (echo-echo) 6/2 for through coating
  • 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable
  • 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable
  • 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable
  • range 0,8 – 300 mm,
    surface temperature up to 250 °С/482 °F
  • range 6 – 30 mm,
    coating thickness range – up to 1 mm
  • range 3,5 – 26 mm,
    coating thickness range – up to 1 mm
  • range 2 – 12 mm,
    coating thickness range – up to 0,6 mm
  • range 3,5 – 26 mm,
    coating thickness range – up to 1 mm
  • range 3,5 – 26 mm,
    coating thickness range – up to 1 mm
  • range 3,5 – 26 mm,
    coating thickness range – up to 1 mm
Compatible probe types
  • Ultrasonic, dual-element, longitudinal waves
    (including probes of other manufacturers)
Compatibility with Active EMAT Transducer EMAT-A1 No
Probe calibrations (V-path, TVG, etc.)
  • factory for NOVOTEST probes
  • users for probes of other manufacturers
Probe cable connector type 2 Lemo 00
Probe cable length, m 1,2
Measurement scales
  • mm (m/s)
  • inch (inch/μs)
Measurement resolution, mm/inch 0.01/0.001
(0.01/0.0001 by request)
Basic measurement accuracy, mm ± (0,01 T+0.05)
(*For range 0.8 – 300 mm)
Gain range, dB ± 20
Response time, with no more than, s 1
Setting range of the ultrasonic velocity, m / s 1000-17000
Preset velocities for materials Steel (8 different grades), Aluminum, Iron, Cast Iron, Zinc, Chromium, Copper, Brass, Bronze, Silver, Gold, Nickel, Tungsten, Tin, Lead, Molybdenum, Manganese, Magnesium, Rubber, Polystyrene, Plexiglas, Capron, Caprolon,  ED-5, Ebonite, Porcelain, Teflon, Textolite, Silicate Glass, Acrylic glass, User
Operating modes
  • Normal
  • B-scan
  • Control mode
Standards
  • ASTM E797
  • EN 14127
  • EN15317
Body type /
Dust and moisture protection level
  • Plastic, with shockproof silicone case
  • Standard for shop and field operation
  • IP54
Calibration thickness block on the body 6 mm (Steel/~6080 m/s)
PC cable connection
Wireless connection with Android gadgets via NOVOTEST Lab App No
Storage capacity of measurement results 128
Measurement archives
  • Device menu
  • PDF
  • Excel (CSV)
Menu languages English, Spanish, Ukrainian, Russian (other languages optional)
Operating environment
  • Temperature:-20°C~50°C
  • Humidity: 30%~80%R.H.
Power supply DC 3V (2 pcs standard batteries AA)
Time of continuous work hours, not less, h 25
Charging External charger for 2pcs AA batteries
Weight of electronic unit with batteries, no more, kg 0.25
Overall dimensions, mm 130x90x40
Package weight, kg 1.5
Package dimensions, cm 33*27*10
Documents
Country of origin Made in Ukraine (Europe)
Warranty
  • Basic
    – 12 months for electronic unit
    – 6 months for probes
  • Extended (optional)
    – up to 3 years

General comparative chart of all models NOVOTEST ultrasonic thickness gauges (without UT-3M-EMAT)

 Model name UT-2A UT-1M UT-1M-IP UT-1M-ST
Measuring thicknesses range for steel, mm 0,4 – 1500 (depends on probe) 0,45 – 1500 (depends on probe)
Resolution, mm 0,01
Basic measurement accuracy, mm ± (0,01*T+0,05)
Basic probes / range for steel 2,5 MHz / 2,5 – 1000 mm
5 MHz / 0,8 – 300 mm
10 MHz / 0,45 – 75 mm
Optional probes / range for steel 1,25 MHz / 4 – 1500 mm
2 MHz / 3 – 1200 mm
High-temperature 5MHz (up to 250 °С) / 0,8 – 300 mm
Echo-Echo 5MHz for through-coating measurements / 3,5 – 26 mm
Compatibility with
Active EMAT Transducer EMAT-A1		 Yes No
Compatible probe types Dual-element
Single-element		 Dual-element
Operating modes Normal
A-scan
B-scan
Manual mode
Control mode		 Normal
B-scan
Control mode
Measurement methods Echo
Echo-Echo
Peak-Peak
Zero-crossing		 Echo
Echo-Echo
Measurement units mm
inch
Display Color, 3,5 inch, 480*320 Monochrome, 2,5 inch, 128*64
Menu languages English
Ukrainian
Russian
(other languages optional)		 English
Spanish
Ukrainian
Russian
(other languages optional)
Body type/
Dust and moisture protection level		 Metal, durable /Standard for shop and field operation Plastic, with shockproof silicone case / Standard for shop and field operation Plastic, sealed /High – optionally water immersion up to 1m deep for 30 min Metal, durable /Standard for shop and field operation
Saving of the settings for different probes Yes
Compatibility with probes of other manufacturers Yes
V-path correction and TVG adjusting for the user’s probes Yes
Storage of measurement results 7000 and more
(Limited only by the memory card)		 128 128 128
PC cable connection
(via www.novotest.info)		 Yes
Smartphone Wireless connection
(via NOVOTEST Lab)		 No Optional Optional No
Charger type Any USB socket (charger adapter, PC, power bank, etc.) External charger for batteries Any USB socket
(charger adapter, PC, power bank, etc.)		 External charger for batteries
Battery Built-in Li-ion 2pcs standard
АА batteries		 3pcs standard
АА batteries		 2pcs standard
АА batteries
Electronic unit weight, no more, kg 0,5 0,25 0,35 0,35
Dimensions (L x W x H), mm 165x90x50 122х76х37 160х90х28 130х90х40
Minimum time of continuous work, h 10 25 25 25
Operating temperature range, ° C -20 to +40



Available options

  • Couplant
  • Protective case for electronic unit
  • Calibration certificate issued by the Independent metrology laboratory
  • Certificate of origin issued by the Chamber of Commerce and Industry
  • UT-probes

– 1.25MHz probe for thickness gauge (echo) 20/2
– 2.0MHz probe for thickness gauge (echo) 20/2
– 2.5MHz probe for thickness gauge (echo) 12/2
– 5MHz probe for thickness gauge (echo) 10/2
– 10MHz probe for thickness gauge (echo) 6/2
– 10MHz probe for thickness gauge (echo) 3х2
– 5MHz probe for thickness gauge (echo-echo) 10/2 for through coating
– 10MHz probe for thickness gauge (echo-echo) 6/2 for through coating
– 5MHz high-temperature probe for thickness gauge (echo) 10/2
– 5MHz probe for thickness gauge (echo-echo) 10/2 for through coating, underwater, 10 m cable
– 5MHz probe for thickness gauge (echo-echo) 10/2 for through coating, underwater, 20 m cable
– 5MHz probe for thickness gauge (echo-echo) 10/2 for through coating, underwater, 30 m cable

Thickness nominals Material
1-3-5-7-10-15 mm Steel, SS, Aluminum
1-2-3-4-5-6-7-8-9-10-11-12-13-14-15 mm Steel, SS, Aluminum
2,5-5-7,5-10-12,5 mm Steel, SS, Aluminum
2,5-5-7,5-10-12,5-15-17,5-20 mm Steel, SS, Aluminum
2,5-5-7,5-10-12,5-15-20 mm Steel, SS, Aluminum
2.5-5-10-20 mm Steel, SS, Aluminum
2-3-4-5-6-7-8-9-10 mm Steel, SS, Aluminum
2-3-4-5-6-7-8-9-10-11 mm Steel, SS, Aluminum
2-4-6-8-10 mm Steel, SS, Aluminum
2-4-6-8-10-12 mm Steel, SS, Aluminum
2-5-10-15-20-25 mm Steel, SS, Aluminum
2-5-10-20-30-40 mm Steel, SS, Aluminum
3-4-5-6-7-8-9 mm Steel, SS, Aluminum
4-6-8-10-12-15 mm Steel, SS, Aluminum
5-10-15-20-25-30 mm Steel, SS, Aluminum
5-10-15-20-25 mm Steel, SS, Aluminum
5-10-15-20-30-40 mm Steel, SS, Aluminum
5-10-15 mm Steel, SS, Aluminum
5-10-20 mm, step 0.1 Steel, SS, Aluminum
5-10-20-30-40-50 mm Steel, SS, Aluminum
10-11-12-13-14-15 mm Steel, SS, Aluminum
10-20-30-40-50 mm Steel, SS, Aluminum
10-20-40-60-80-100 mm Steel, SS, Aluminum
  • Reference Thickness Blocks
0,2 mm Steel, SS, Aluminum
0,3 mm Steel, SS, Aluminum
0,4 mm Steel, SS, Aluminum
0,5 mm Steel, SS, Aluminum
0,8 mm Steel, SS, Aluminum
1 mm Steel, SS, Aluminum
1,5 mm Steel, SS, Aluminum
2 mm Steel, SS, Aluminum
3 mm Steel, SS, Aluminum
4 mm Steel, SS, Aluminum
6 mm Steel, SS, Aluminum
10 mm Steel, SS, Aluminum
15 mm Steel, SS, Aluminum
20 mm Steel, SS, Aluminum
25 mm Steel, SS, Aluminum
30 mm Steel, SS, Aluminum
40 mm Steel, SS, Aluminum
50 mm Steel, SS, Aluminum
75 mm Steel, SS, Aluminum
90 mm Steel, SS, Aluminum
100 mm Steel, SS, Aluminum
125 mm Steel, SS, Aluminum
150 mm Steel, SS, Aluminum
175 mm Steel, SS, Aluminum
200 mm Steel, SS, Aluminum
300 mm Steel, SS, Aluminum



Standard package

  • Electronic unit Ultrasonic Thickness Gauge NOVOTEST UT-1M-ST
  • Transducer (ECHO probe) – 1 pc for choice (2.5MHz, 5MHz or 10MHz)
  • AA batteries – 2 pcs
  • Charger
  • Cable for PC
  • Online PC software
  • Operating manual
  • Case

Media



Contact Us for a Quote!
View full details
