STIX - 2 Probe Phased Array Scanner
STIX - 2 Probe Phased Array Scanner

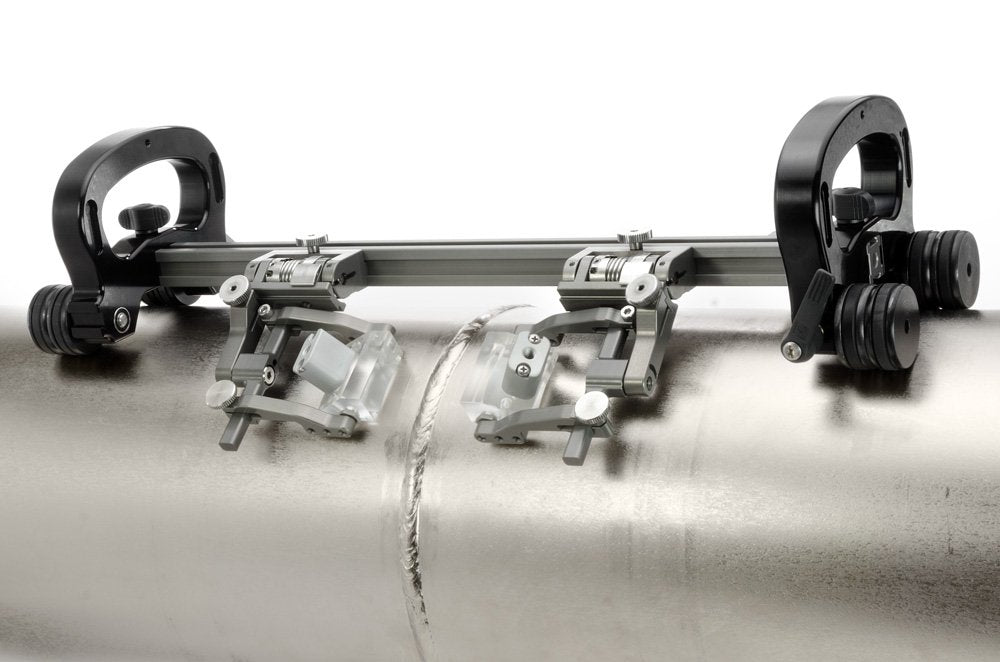

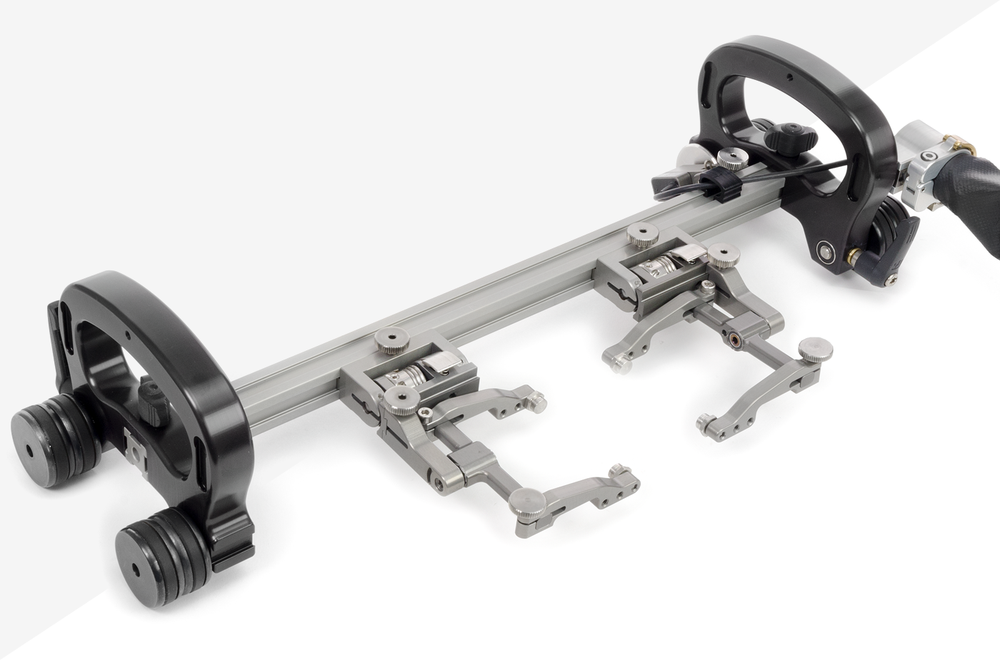

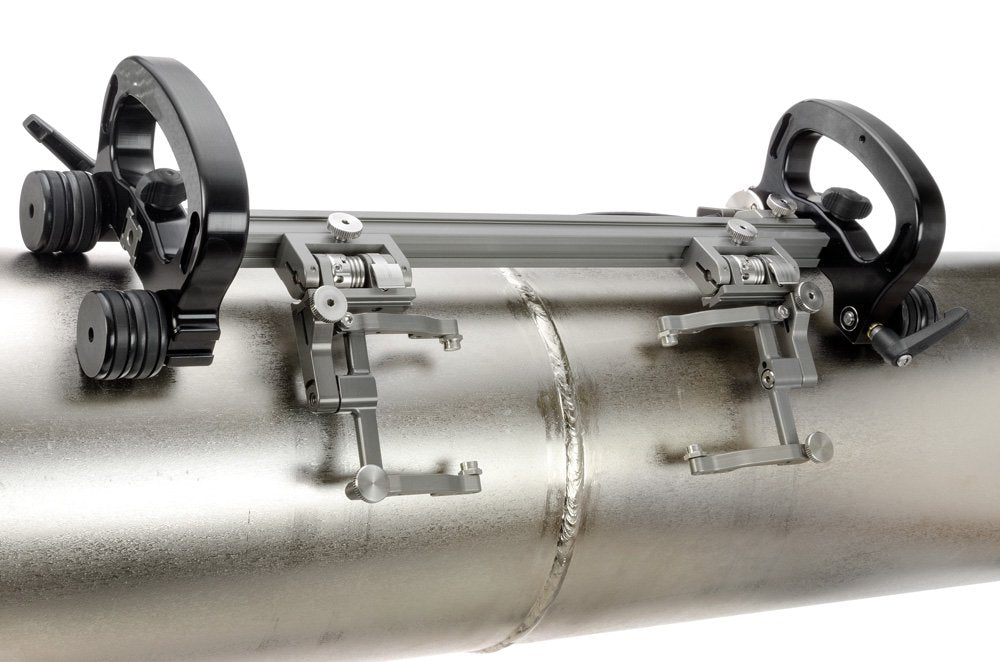

Magnetic wheels, a spring-loaded encoder, and adjustable slip joint probe holders complete the main components of the STIX - 2 Probe Phased Array Scanner. Add a frame bar, brakes, required tools and a rugged carrying case to complete this extremely functional, yet easy to operate the manual magnetic scanner. Translate two phased array probes around ferrous piping and vessels with minimal adjustment between scan setups.
Part ID: BGG002

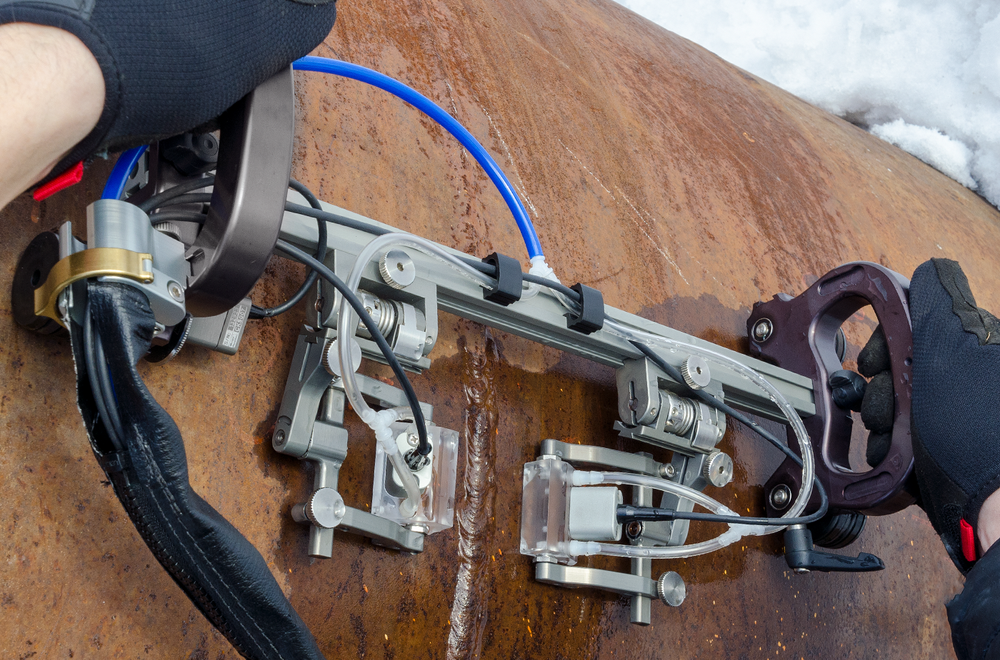

Phased Array Weld Inspection
FEATURES
STIX FRAME
The STIX frame includes convenient handles for scanner handling as well as mounting points for accessories.
SPRING-LOADED ENCODER
A spring-loaded encoder ensures accurate scanner positioning. The 5V DC TTL encoder is fully compatible with all standard instruments.
BRAKES
Brakes are provided to lock the location of the scanner in a required position.
MAGNETIC WHEELS
The magnetic wheels are coated with urethane to reduce the effects of foreign debris obstructing the rolling of the scanner. To further increase the flexibility of the system, the wheels are also stackable to increase the magnetic attraction when required.
SLIP JOINT PROBE HOLDERS
The extremely adjustable slip joint probe holders accommodate most of phased array wedges.
WARRANTY
3-year limited warranty on all JIREH products
KIT CONTENTS
SCANNER
STIX Frame with 40 cm (15.7 in) frame bar
PARTS & ACCESSORIES
Spring-Loaded Encoder, 5 m (16.4 ft) encoder cable length
Slip joint phased array probe holders with standard, drop arms x2
Probe holder arm set – long, drop arm x2
Magnetic wheels x8
Probe holder spare parts kit
4 mm ID irrigation kit (7/16 in Quick Connect)
Cable clips x2
User manual
Rugged carrying case
TOOLS
3 mm hex driver
Wrench for pivot button adjustment

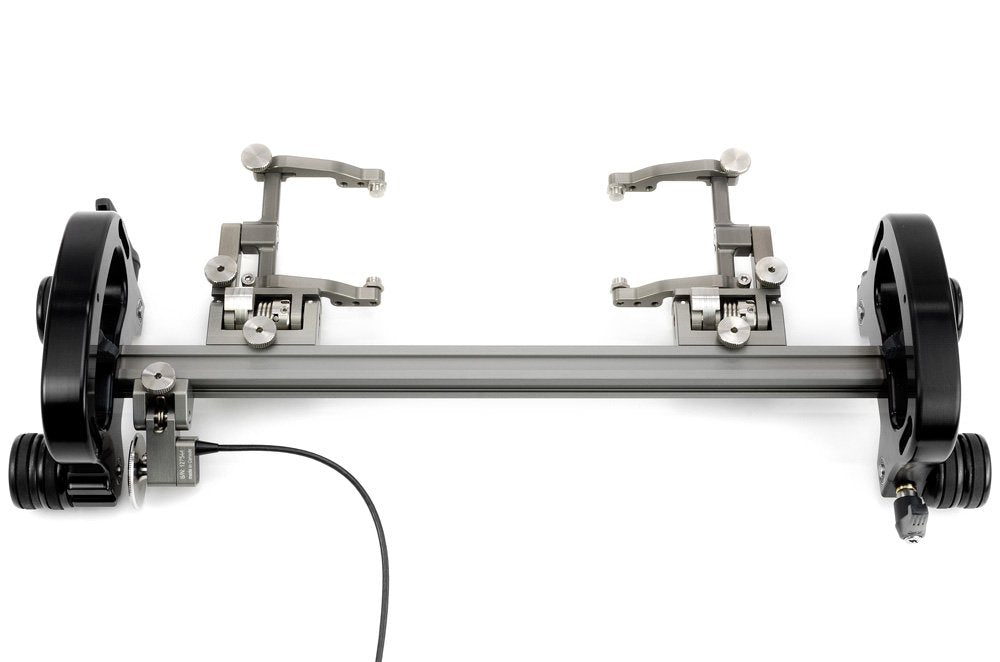

COMPONENT IDENTIFICATION
STIX FRAME
Build with custom frame bar lengths, the wheel blocks of the STIX frame offer mounting points for accessories and the magnetic wheels.
SPRING-LOADED ENCODER
Precise encoder tracks scanner position on the scan surface.
PHASED ARRAY PROBE HOLDER
Carry phased array probes and wedges with near infinite adjustment with the use of the probe holder.
BRAKES
Brakes on either side of the scanner prevent unwanted scanner movement.
MAGNETIC WHEELS
Maintain contact with ferrous scan surfaces.
SPECIFICATIONS
GENERAL
Pipe Range, Circumferential: 10.2 cm (4 in) to flat Pipe Range, Internal Flat to 152.4 cm (60 in)
Encoder Resolution: 9.05 counts/mm (230.0 counts/inch)
Probe Holding Capacity: 2 phased array wedges
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous materials
RADIAL SCANNER CLEARANCE
Radial Clearance: 8.9 cm (3.5 in)
SIZE & WEIGHT
Frame Height: 10.5 cm (4.1 in)
Frame Width: 17.5 cm (6.9 in)
Frame Length: 45.5 cm (17.9 in)
Frame Weight: 1.3 kg (2.8 lb)
Shipping weight: TBA kg (TBA)2
ENVIRONMENTAL SPECIFICATIONS
Environmental Sealing: Watertight (submersible), Contact JIREH for details
Operating Environment: -20°C (-4°F) to 50°C (122°F)
PHASED ARRAY PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 57.6 mm (2.3 in)3
PROBE HOLDER PIVOT BUTTONS
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
