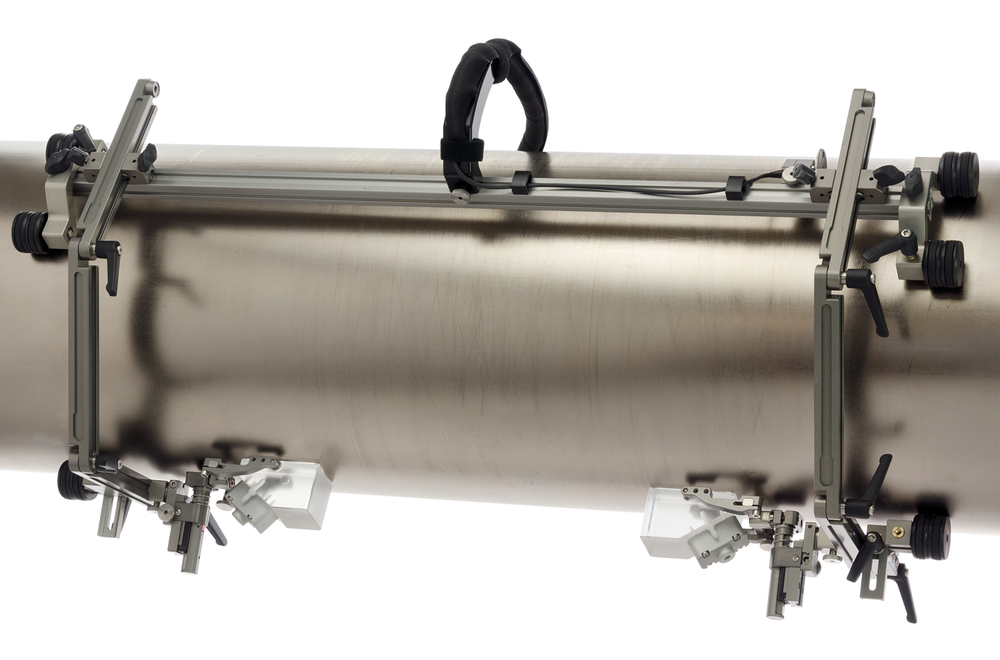

STIX - 2 Probe PA-CAT Scanner

STIX - 2 Probe PA-CAT Scanner

The STIX - 2 Probe PA-CAT Scanner provides a complete AOD (axial, outside diameter) and COD (circumferential, outer diameter) solution for the implementation of pitch-catch techniques like PA-CAT for phased array inspection of contact point corrosion (corrosion under pipe support - CUPS). Capable of operation on pipes 7.6 cm (3 in) and up, the STIX can convert to either axial or circumferential direction.

Part ID: BGG017

Contact Point Corrosion Inspection at its finest

FEATURES

AXIAL, OUTSIDE DIAMETER

Perform AOD inspection of contact point corrosion at pipe supports in the axial direction.

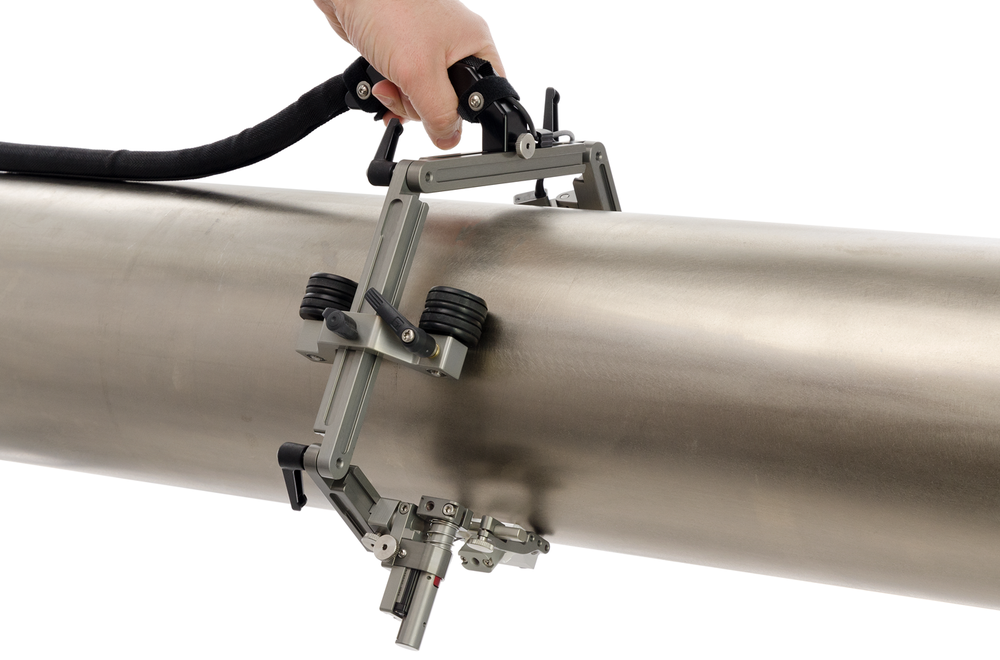

CIRCUMFERENTIAL, OUTSIDE DIAMETER

COD allows the user to detect and measure contact point corrosion in the circumferential direction.

MAGNETIC WHEELS

Strong magnetic wheels keep the scanner in place on any ferrous surface.

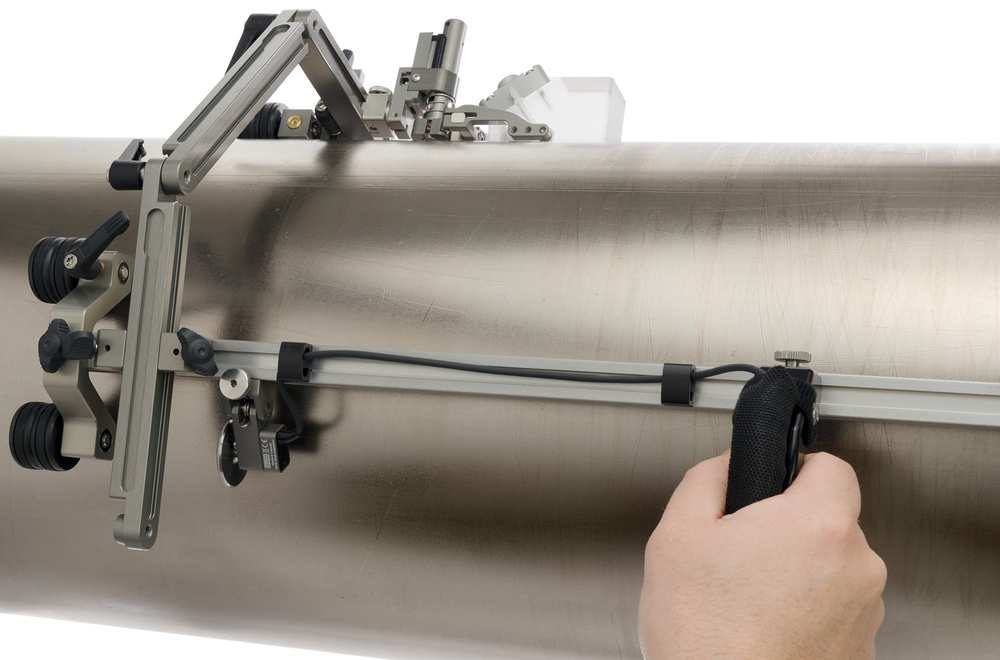

HANDLE

The convenient handle also doubles as a cable management solution.

SPRING-LOADED ENCODER

The spring-loaded encoder provides precise encoded positional feedback to any model of instrument the client chooses.

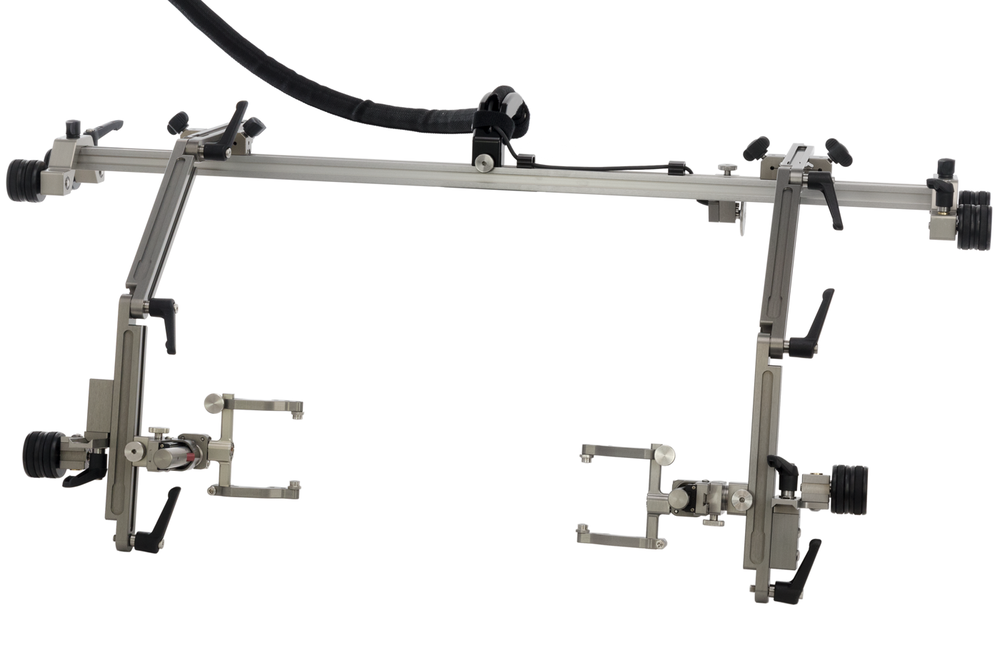

VERTICAL PROBE HOLDER

The versatility of the vertical probe holder is on full display when using the STIX - 2 probe PA-CAT scanner. Transverse adjustment, height adjustment, and angle adjustment are just a few of the capabilities needed for this probe holder.

ADJUSTABILITY

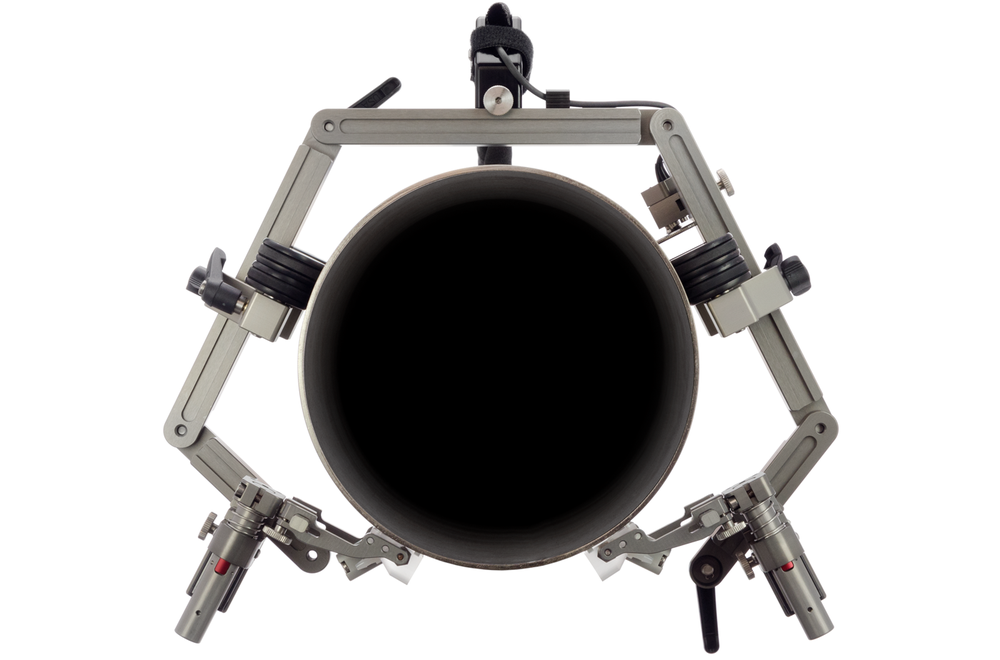

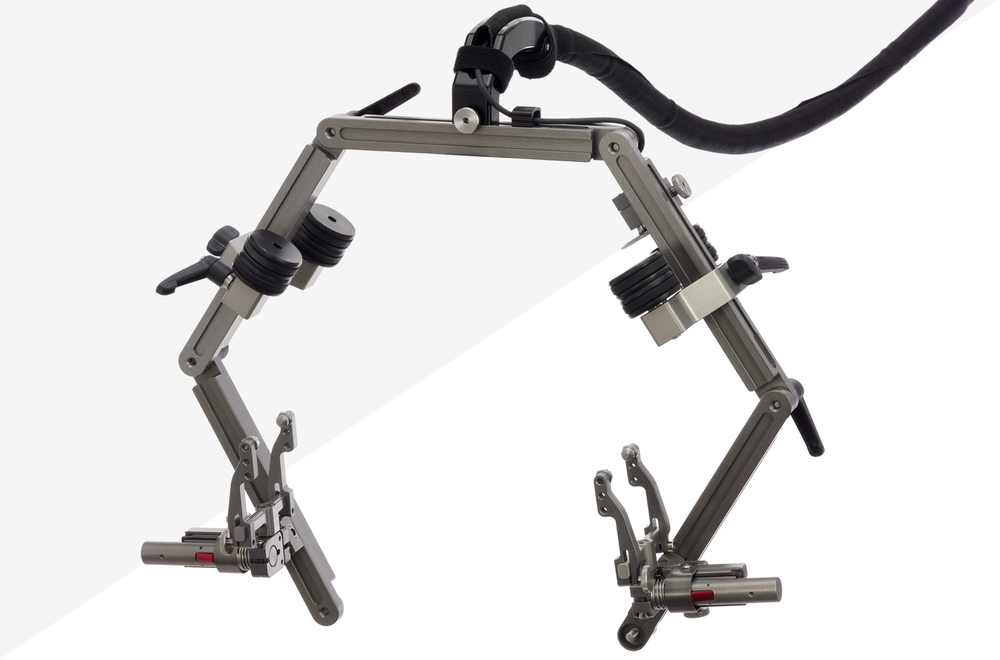

The scanner features pivoting frame bars which allow for seemingly limitless possibilities.

WARRANTY

A three-year limited warranty is included with all JIREH products.

AXIAL AND CIRCUMFERENTIAL

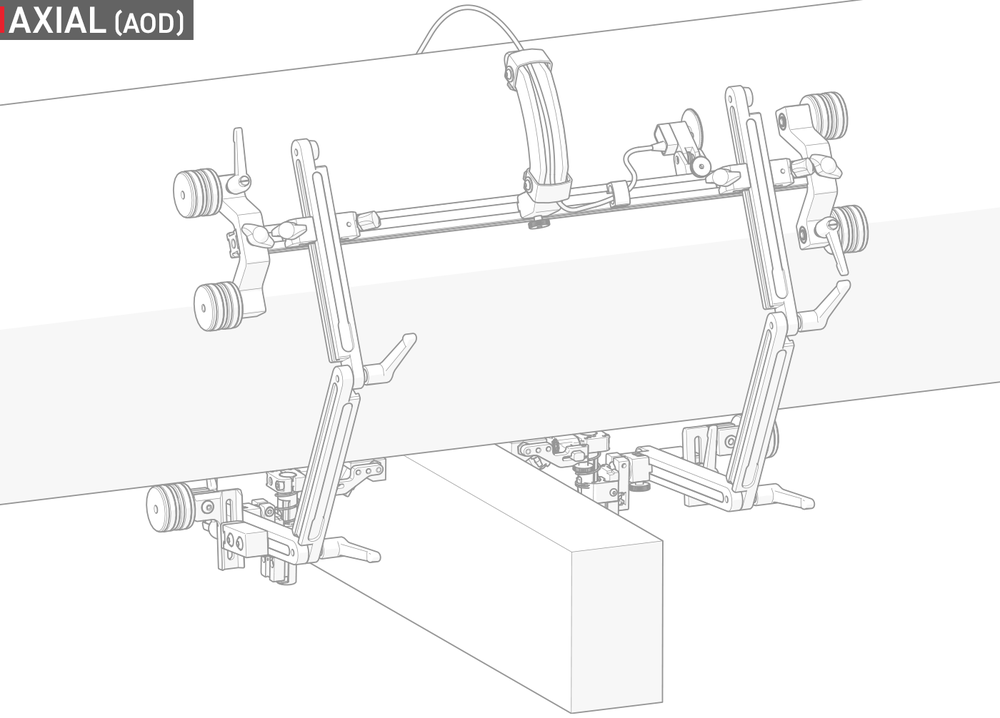

Axial (AOD)

Axial, outside diameter (Longitudinal)
Minimum pipe diameter: 7.6 cm (3 in)
Maximum pipe diameter: 60.1 cm (24 in)

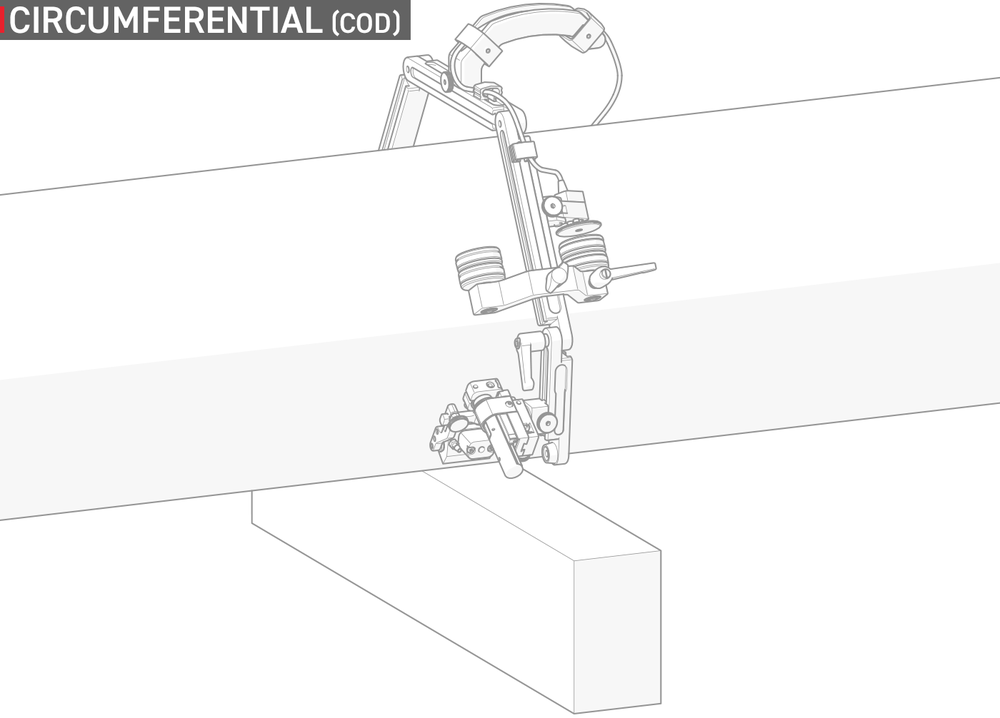

Circumferential (COD)

Circumferential, outside diameter
Minimum pipe diameter: 7.6 cm (3 in)
Maximum pipe diameter: 60.1 cm (24 in)

KIT CONTENTS

SCANNER

STIX - PA-CAT 2 probe scanner

PARTS & ACCESSORIES

Spring-loaded encoder, 5 m (16.4 ft) cable length
Vertical probe holders with standard, drop arms x2
Magnetic wheels x8
Cable clips x2
Probe holder spare parts kit
4 mm ID irrigation kit (7/16 in quick connect)
Protective sleeving 5m (16.4 ft)
User manual
Quick-reference guide

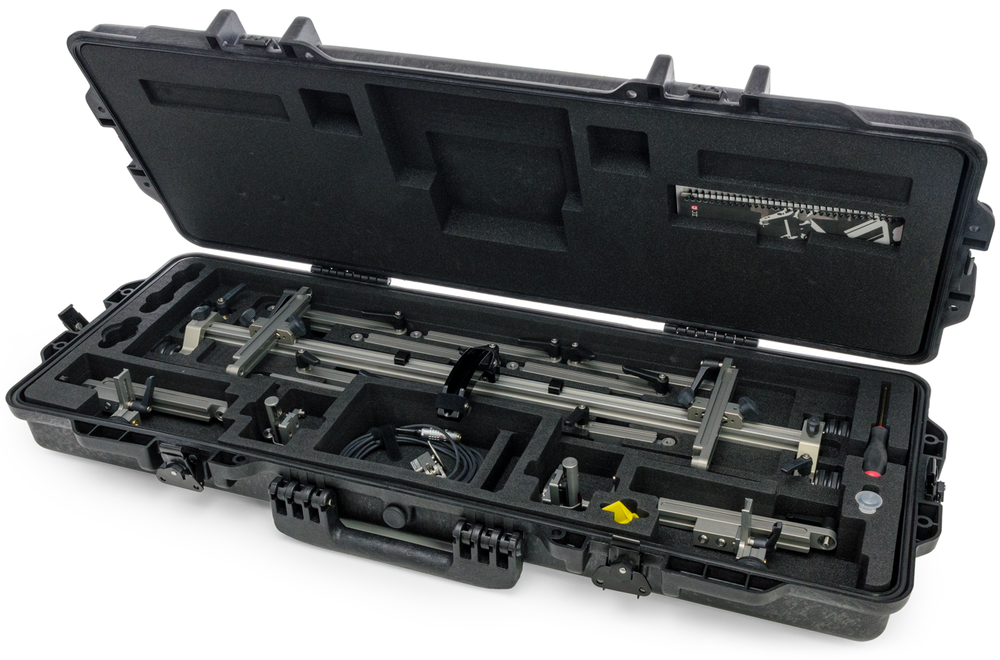

Rugged carrying case

TOOLS

Loom installation tool
Wrench for pivot button adjustment
3 mm hex driver

SPECIFICATIONS

GENERAL

Pipe Range, Circumferential: 7.6 cm (3 in) to 60.1 cm (24 in)
Pipe Range, Axial (Longitudinal): 7.6 cm (3 in) to 60.1 cm (24 in)
Encoder Resolution: 9.05 counts/mm (230.0 counts/inch)
Probe Holding Capacity: 2 phased array wedges
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous materials

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details

PHASED ARRAY PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 57.6 mm (2.3 in)2

PROBE HOLDER PIVOT BUTTONS


01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
