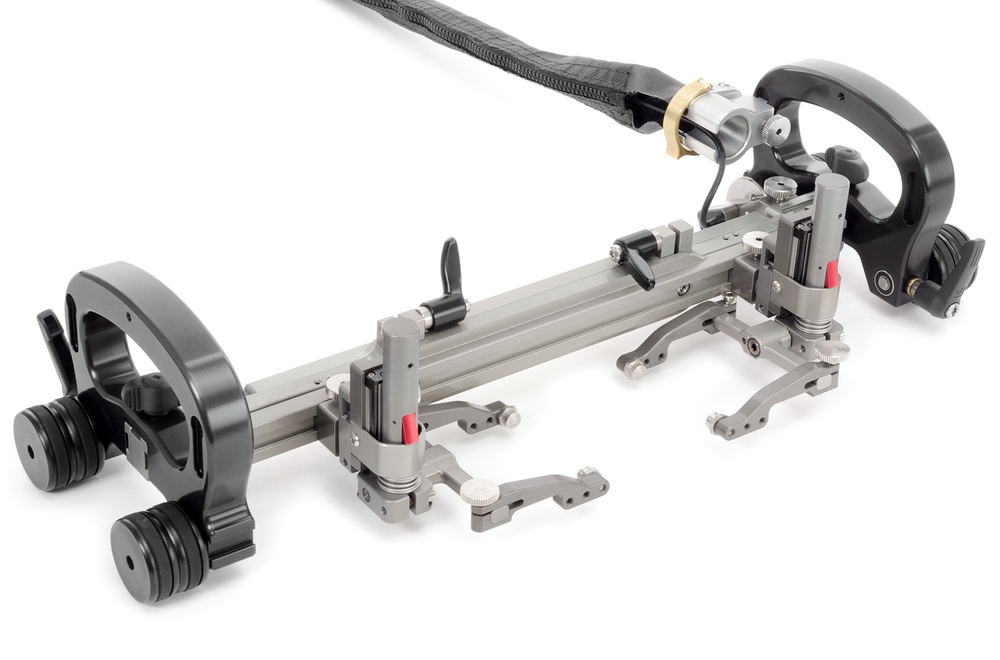

STIX - 2 Probe Long Seam Scanner
STIX - 2 Probe Long Seam Scanner
Get the job done right with STIX - Long Seam Scanner. This two-probe magnetic scanner provides an innovative solution for longitudinal weld inspection. Get complete coverage on pipes and tubes with our dual pivoting frame bar, achieving axial scanning down to 15.2 cm (6 in). The outstanding features include convenient handles, encoded positional feedback to the instrument of your choice, and circumferential scanning capability, all in one unit!
Custom encoder cable lengths are available.
Part ID: BGG010
Long Seam Welds no LONGer a problem.
FEATURES
AXIAL SCANNING
A dual pivot frame bar accommodates two probe, longitudinal scans. Perform manual long seam scans on pipes as small as 15.24 cm (6 in).
CIRCUMFERENTIAL SCANNING
Conversion between circumferential and longitudinal capabilities is quick and simple. Scan circumferentially on pipes and tubes as small as 25.4 cm (10 in). Scan circumferentially as small as 10.2 cm (4 in) using slip-joint probe holders (sold separately).
EASE OF USE
Comfortable handles provide excellent scanner control as well as mounting points for accessories.
SPRING-LOADED ENCODER
The spring-loaded encoder maintains constant surface contact to ensure accurate scanner positioning.
PHASED ARRAY PROBE HOLDERS
Numerous setup variations and finely tuned adjustment options are the hallmarks of the vertical probe holders.
BRAKES
Hold the scanner position when required.
MAGNETIC WHEELS
Translate two phased array probes across magnetic material with this manual scanner.
WARRANTY
A three-year limited warranty backs all JIREH products
KIT CONTENTS
SCANNER
STIX long seam frame with eight magnetic wheels
PARTS & ACCESSORIES
Spring-loaded encoder
Vertical phased array probe holder
Probe holder arm set – long, drop arm
4 mm ID irrigation kit (7/16 in Quick Connect)
Probe holder spare parts kit
User manual
Rugged carrying case
TOOLS
3 mm hex driver
Wrench for pivot button adjustment
COMPONENT IDENTIFICATION

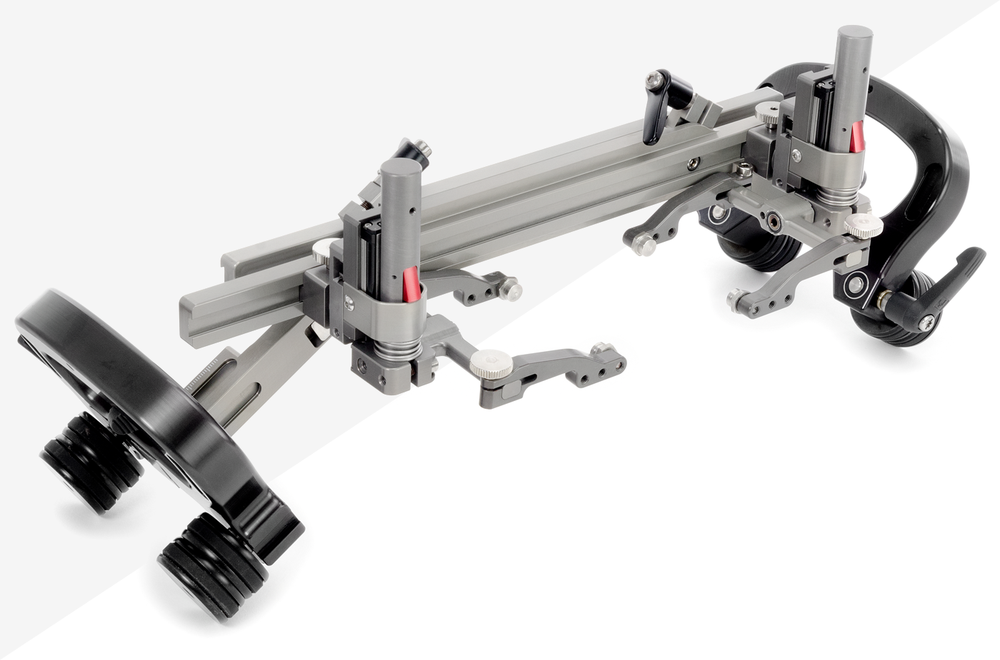

LONG SEAM FRAME
The dual pivot frame bar accommodates longitudinal scanning applications. The synchronized dual pivot frame bar ensures precise scanner setup while complete control is provided with convenient handles.
SPRING-LOADED ENCODER
A spring-loaded encoder maintains constant surface contact to ensure accurate scanner positioning. The spring-loaded encoder is fully compatible with all standard instruments.
WHEEL BLOCKS
Ergonomic handles provide comfortable scanner control while also providing mounting points for accessories.
BRAKES
Brakes are provided to lock the scanner in the required position.
WHEELS
The magnetic wheels are coated with urethane to reduce the effects of foreign debris obstructing the scanner motion. The system includes two sets of 4 magnetic wheels to provide optimal magnetic attraction during scanning operations.
VERTICAL PROBE HOLDERS
Countless setup variations and adjustment options are the hallmarks of the vertical probe holder. Fine-tune probe and wedge setup with these probe holders also offer transverse scanning.
SPECIFICATIONS
GENERAL
Pipe Range, Circumferential: 25.4 cm (10 in) to flat1
Pipe Range, Longitudinal: 15.2 cm (6 in) to flat
Encoder Resolution: 9.05 counts/mm (230.0 counts/inch)
Probe Holding Capacity: 2 phased array wedges
Encoder Cable Length: 5 m (16.4 ft)2
Inspection Surface: Ferrous materials
RADIAL CLEARANCE
Long Seam Clearance: 14 cm (5.5 in)
Circumferential Clearance: 8.9 cm (3.5 in)
SIZE & WEIGHT
Frame Height: 10.5 cm (4.1 in)
Frame Height (Pivot): 19 cm (4.5 in)
Frame Depth: 17.5 cm (6.9 in)
Frame Length: 45.4 cm (17.9 in)
Frame Length (Pivot): 35 cm (13.8 in)
Frame Weight: 1.9 kg (4.25 lb)
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details
PHASED ARRAY PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 57.6 mm (2.3 in)3
PROBE HOLDER PIVOT BUTTONS
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
