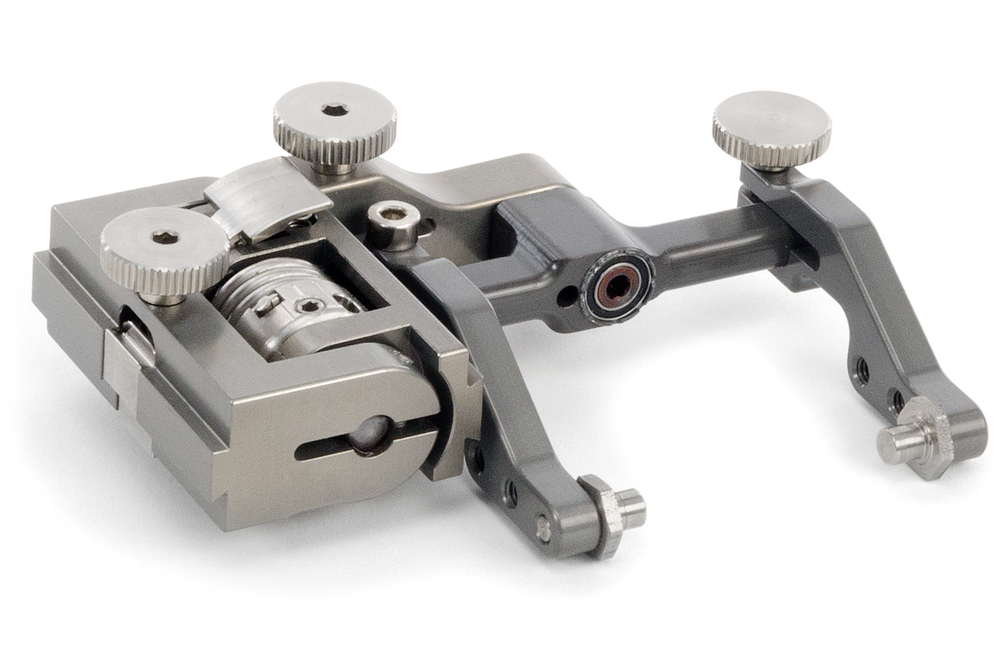

Slip Joint Probe Holder

Slip Joint Probe Holder

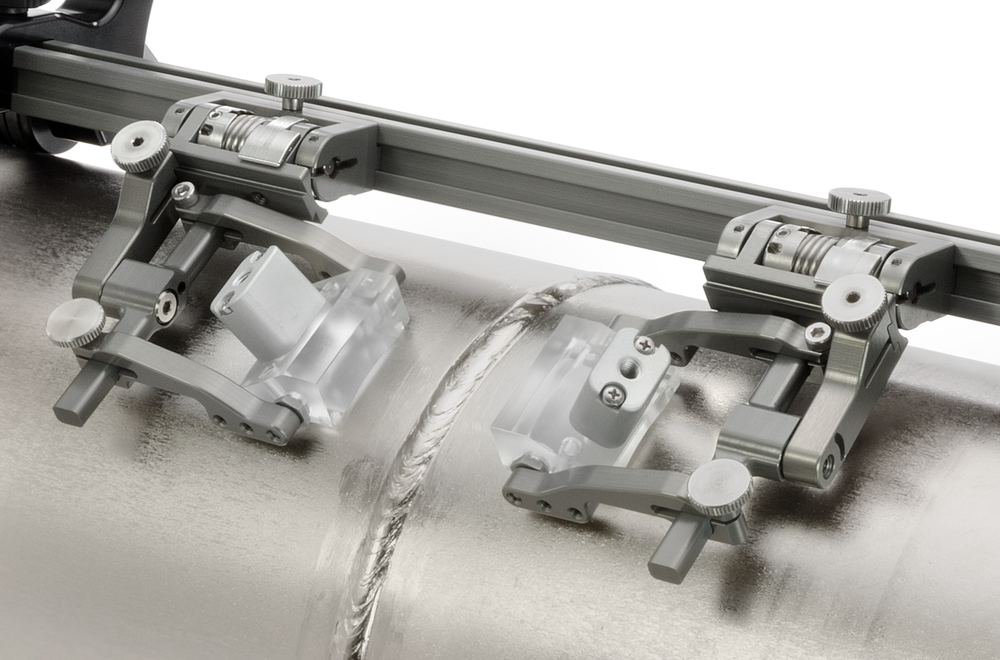

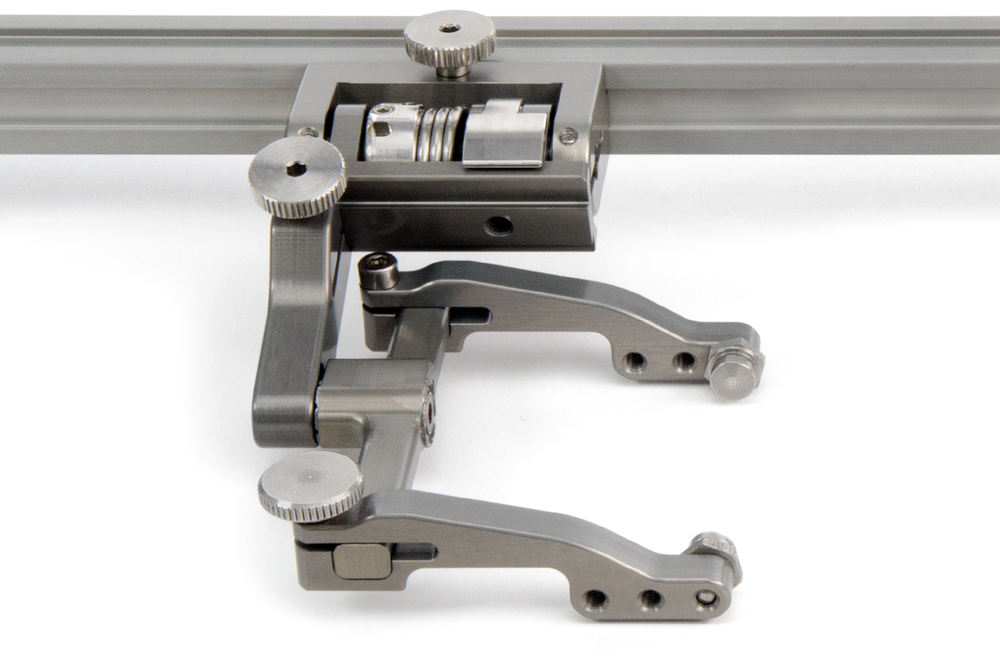

The Slip Joint Probe Holder has an adjustable position when mounted to a slide bar. Multiple configuration options are available, allowing the PHA012 probe holder to clamp to most wedges.

TOFD Probe Holders use the standard yoke style. Phased array probe holders use the wide yoke style.
The slip joint probe holder may be used in either left or right configuration.

ARM STYLE SPECIFICATIONS













A - Standard, Flat

B - Short, Flat

C - Long, Flat

D - Standard, Drop

E - Short, Drop

F - Long, Drop

G - Standard, Extra-Drop

H - Short, Extra-Drop

I - Extra-Short, Flat

J - Extra-Short, Drop

PROBE HOLDER SPECIFICATIONS





PHASED ARRAY PROBE HOLDER (WIDE YOKE)

Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 57.6 mm (2.3 in)1

TOFD PROBE HOLDER (STANDARD YOKE)

Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 45 mm (1.8 in)1

PROBE HOLDER PIVOT BUTTONS


01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
