Slider PPS Encoder

Slider PPS Encoder

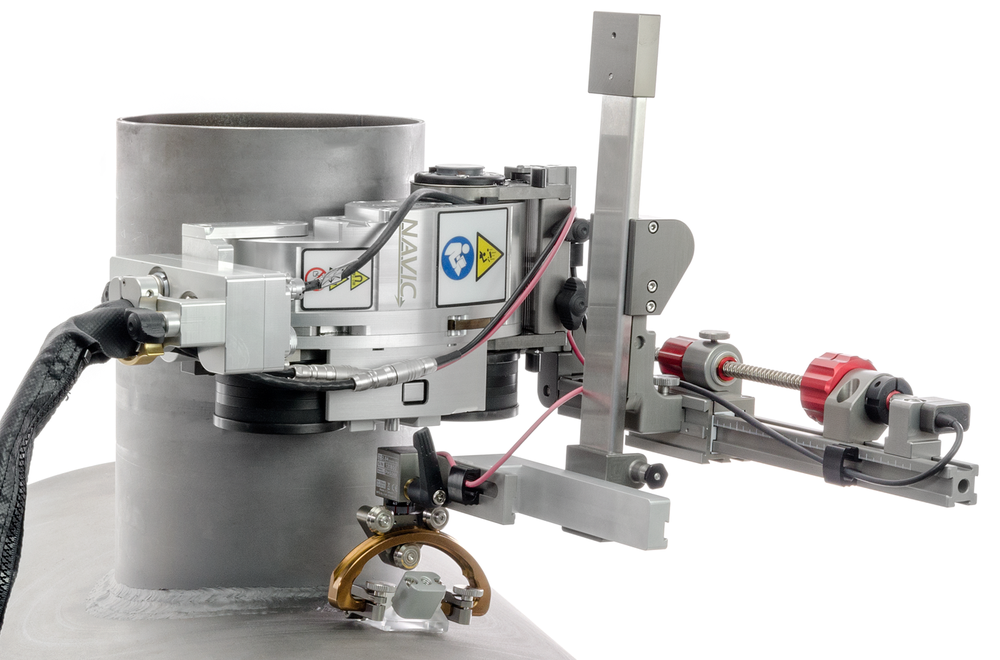

The Slider PPS (Probe Positioning System) Encoder mounts to the frame bar of a slider probe positioning system. The Slider PPS Encoder engages with the encoded lead screw to provide lateral positional feedback of the probe(s).

30 cm (11.8 in) suitable for ROTIX - Weld scanner operations
60 cm (23.6 in) suitable for 2-Axis Nozzle operations

SPECIFICATIONS






GENERAL

Encoder Resolution: 161.3 counts/mm (4096.0 counts/inch)
Power Requirements: 4.5 - 5.5VDC 25ma

COMPATIBILITY

ROTIX - Weld Frame Scanner: Cable Length: 30 cm (11.8 in)

ROTIX - 3-Axis Nozzle Scanner: Cable Length: 60 cm (23.6 in)

NAVIC - 3-Axis Nozzle Scanner: Cable Length: 60 cm (23.6 in)
