SKOOT - Weld Scanner
SKOOT - Weld Scanner
An impressive motorized scanning package for circumferential or axial weld inspection, the SKOOT - Weld Scanner can carry 2 to 6 probes on ferrous materials. Powerful magnetic wheels allow inverted inspection, while the built-in encoder provides positional feedback to a user's instrument. Follow welds easily due to the small form factor of the SKOOT crawler, which is controlled remotely via the rugged handheld controller. The SKOOT is compatible with several types of probe holder frames that cover many different types of inspection applications.

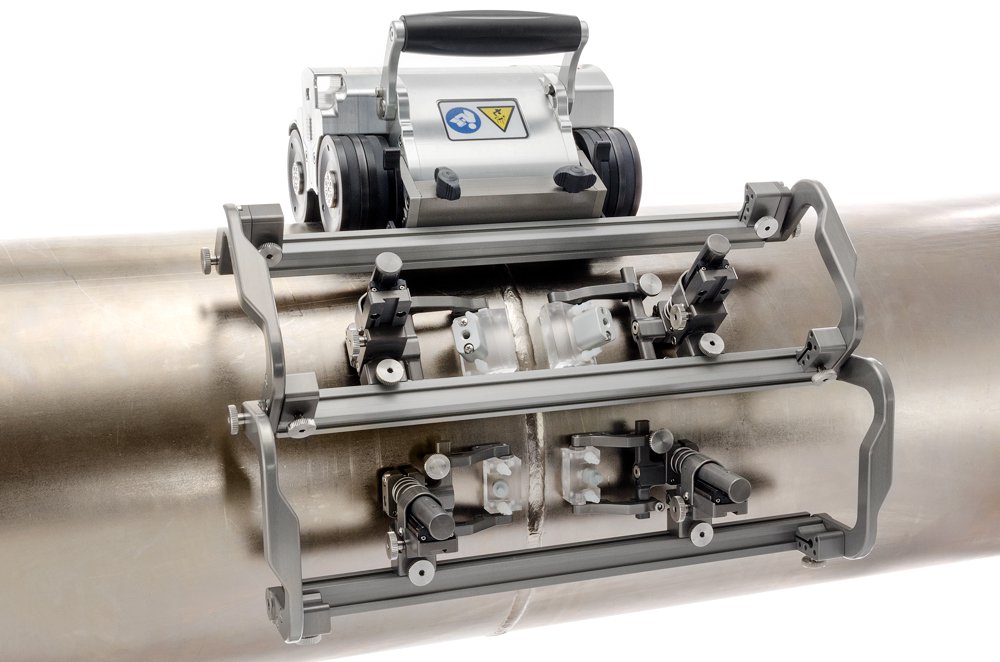

Motorized circumferential and longitudinal weld scanning with up to 6 probes.
FEATURES
LOW PROFILE DESIGN
The SKOOT requires a radial clearance of 11.4 cm (4.5 in), which allows for inspection in limited-access applications.
MAGNETIC WHEELS
The SKOOT can operate on vertical, horizontal and inverted surfaces using rare-earth magnets.
SCAN VERSATILITY

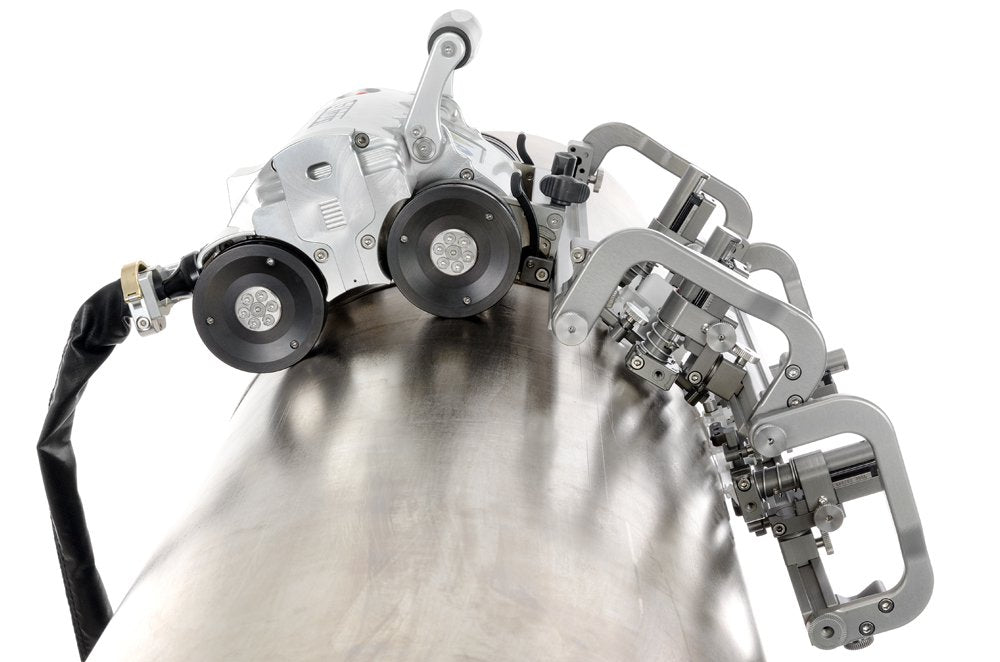

The SKOOT can facilitate circumferential scans on pipes as small as 6.4 cm (2.5 in) OD and 68.6 cm (27 in) ID. In addition, flat surface scans and longitudinal scanning on pipes as small as 76.2 cm (30 in) OD are available.
BACKPACK
The optional backpack conveniently carries ultrasonic accessories with the unit.
UP TO 6 PROBES

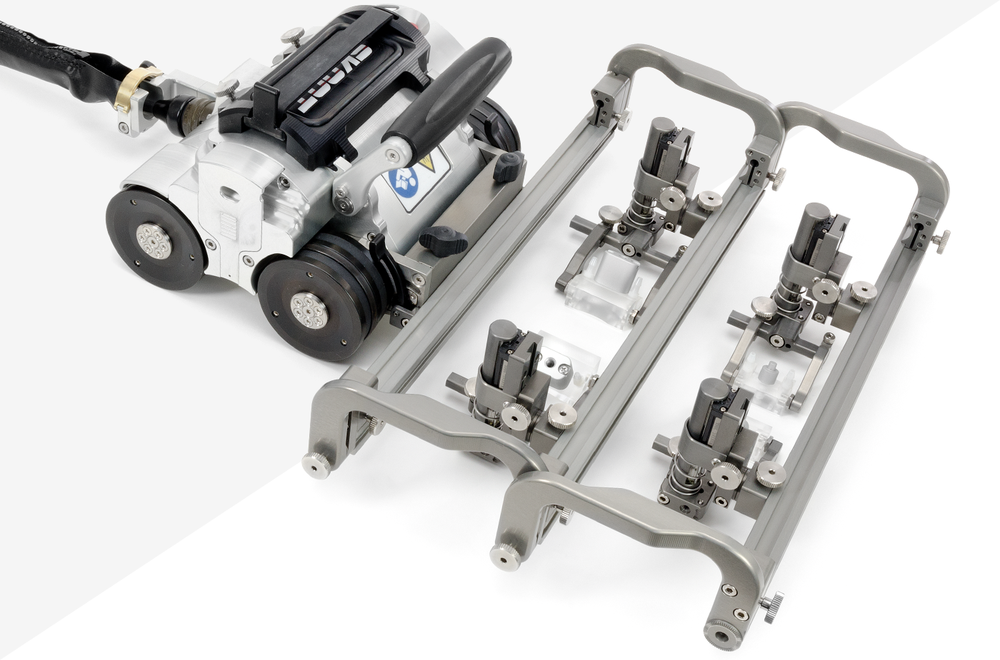

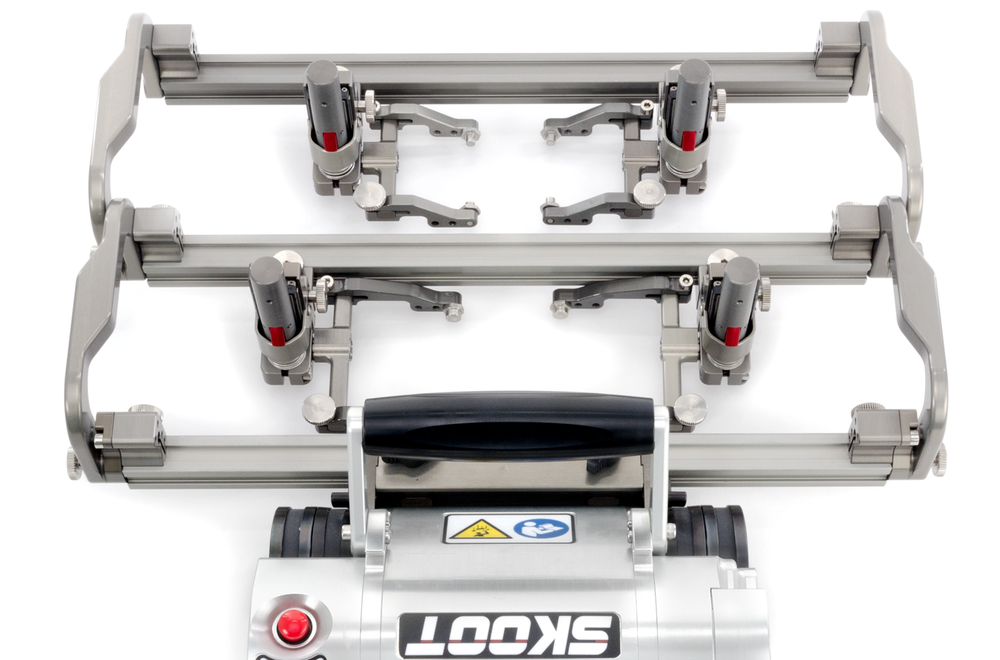

Various probe holder frames are available for use with the SKOOT. Carry up to 6 probes during circumferential or longitudinal scanning.
HANDHELD CONTROLLER
Program single-axis paths from up to 30 m (100 ft) away using the intuitive handheld remote control. The ergonomic handheld controls speed and so much more.
BATTERY POWER
Order the SKOOT with the battery kit and avoid using heavy, cumbersome generators. These rechargeable batteries can power the SKOOT system and accessories for hours at a time.
WARRANTY
3-year limited warranty on all JIREH products.
KIT CONTENTS
SCANNER
SKOOT base crawler
PARTS & ACCESSORIES
Power controller
Power supply (North American, European or UK plugs available)
Umbilical, 7.5 m (25 ft) or 30 m (100 ft) lengths available
Handheld controller
Auxiliary cable, 6 m (20 ft)
Manipulation handle
Cable management, threaded mount, (length dependent on umbilical length)
J300 encoder cable, 5 m (15 ft)
Installation/Removal mat
6 mm ID irrigation kit (7/16 in quick connect)
Lifting sling (safety tether)
User manual
Rugged carrying cases (various types based on chosen accessories)
TOOLS
3 mm hex driver
3 mm flat driver
Wrench for pivot button adjustment
COMPONENT IDENTIFICATION
BASE CRAWLER
Four highly magnetic wheels propel the SKOOT crawler along ferrous surfaces. Attach many different weld and corrosion scanning accessories to the crawler, which features cable management and an integrated encoder.
BACKPACK
A flexible strap securely holds any pre-amp, splitters or scan accessories to the SKOOT crawler.

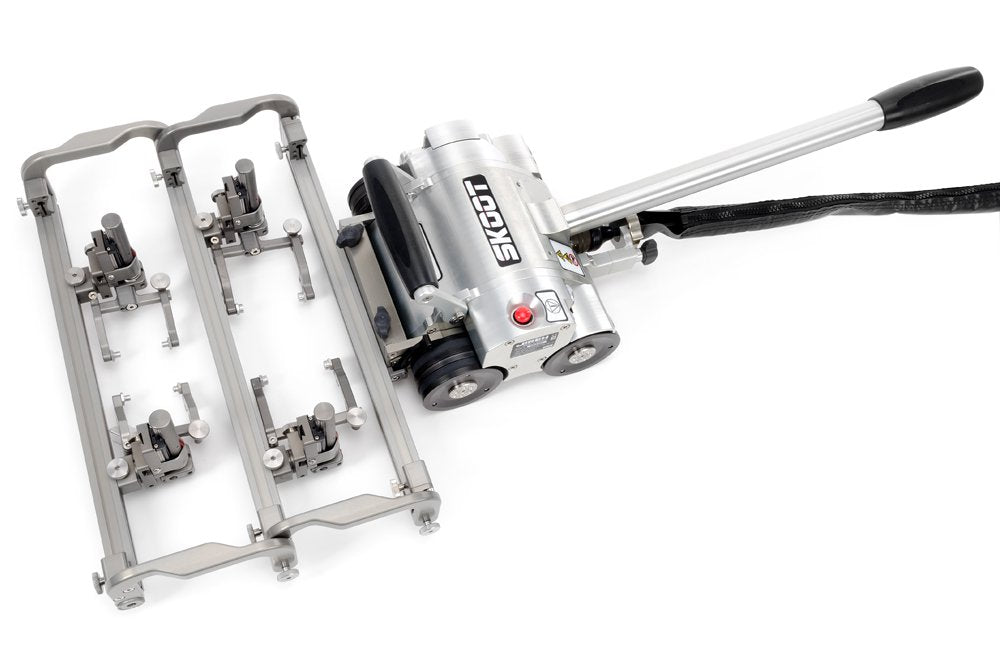

MANIPULATION HANDLE
Slight steering adjustments and crawler manipulation are achieved using the manipulation handle.
POWER CONTROLLER
Configurable for North American, European or UK electrical standards, the power controller is a sophisticated operating platform and connection point for instrumentation and handheld controllers.
HANDHELD CONTROLLER
Precision forward and reverse drive control, programmable y-axis control, and system diagnostics are all accessed using the handheld controller's touchscreen and joysticks.
UMBILICAL
The backbone of communication between the power controller and the base crawler.
SPECIFICATIONS
GENERAL
Encoder Resolution: 1354 counts/mm (34394 counts/inch)
Maximum Vertical Payload: 9 kg (20 lb)1
Maximum Speed: 14.2 cm/sec (5.6 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 1.4 Amps
Umbilical Length: 7.5 m (25 ft)2
Inspection Surface: Ferrous
Maximum Backpack Payload: 1.36 kg (3 lb)
PIPE RANGE
Circumferential, Outer Diameter (OD): 6.4 cm (2.5 in) to flat
Circumferential, Inner Diameter (ID): 68.6 cm (27 in) to flat
Longitudinal: 76.2 cm (30 in) to flat
RADIAL CLEARANCE
Pipes under 200 mm (8 in): 10.4 cm (4 in)3
Pipes over 200 mm (8 in): 11.03 cm (4.34 in)3
REGULATIONS
CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.4
FCC: Compliance with Part 15 of FCC rules.4
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.4
UKCA: United Kingdom Conformity Assessed – Compliance with relevant UK statutory requirements and legislation.4
SIZE & WEIGHT
Base Crawler Height: 11.21 cm (4.41 in)5
Base Crawler Height, including handle: 14.86 cm (5.85 in)
Base Crawler Height with manipulation handle: 16.10 cm (6.34 in)
Base Crawler Width: 20.78 cm (8.18 in)
Base Crawler Length: 21.77 cm (8.57 in)
Base Crawler Length with manipulation handle: 55.97 cm (22.04 in)
Base Crawler Weight: 7.3 kg (5.4 lb)
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
Maximum Inspection Surface Temperature: 150°C (302°F)6
PHASED ARRAY PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 57.6 mm (2.3 in)7
TOFD PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 45 mm (1.8 in)7
PROBE HOLDER PIVOT BUTTONS
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
