SKOOT • HT

Name: SKOOT • HT
Brand: Alliance Solutions Group
Availability: InStock

Product variants

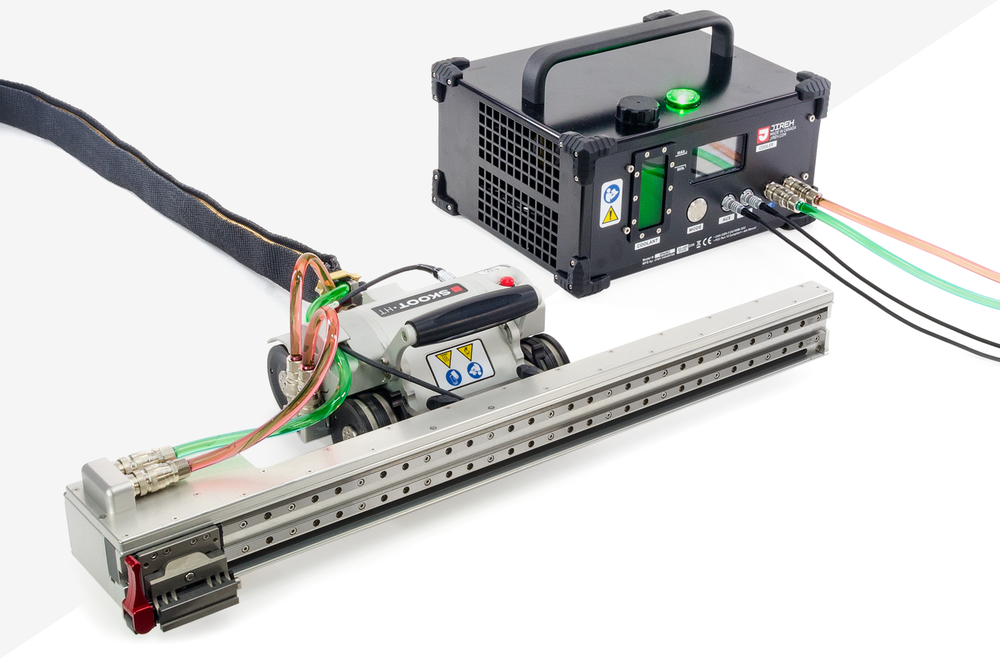

Perform precision corrosion inspection on materials with a surface temperature of up to 350°C (662°F). The SKOOT • HT harnesses the great features of the SKOOT crawler while adding the ability of high temperature inspection without the need for duty cycling. A powerful cooling system protects the precision components of the crawler, while specialized cable management protects the cables and hoses.

Motorized Raster Arm HT is sold separately.

Part ID: DPG001-

Keep high temperature pipes online during an inspection.

FEATURES

HIGH TEMPERATURE

Coolant flows through the raster arm and crawler to protect the equipment from the heated inspection surface. Constant cooling means no duty cycling is required.

HANDHELD CONTROLLER

Control all aspects of the crawler, raster arm and cooler remotely with the handheld controller.

CORROSION INSPECTION

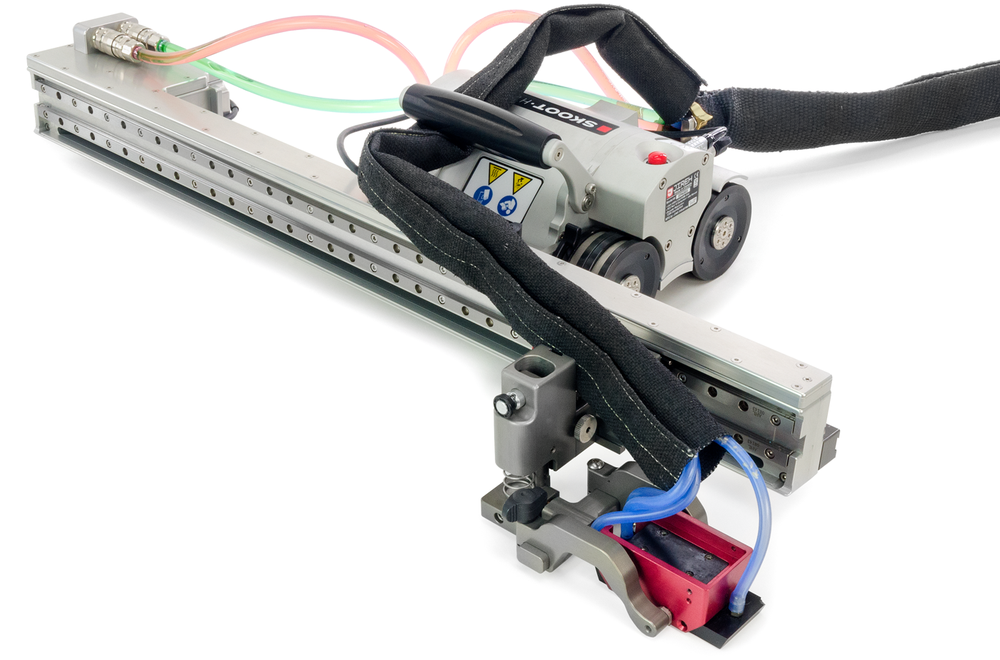

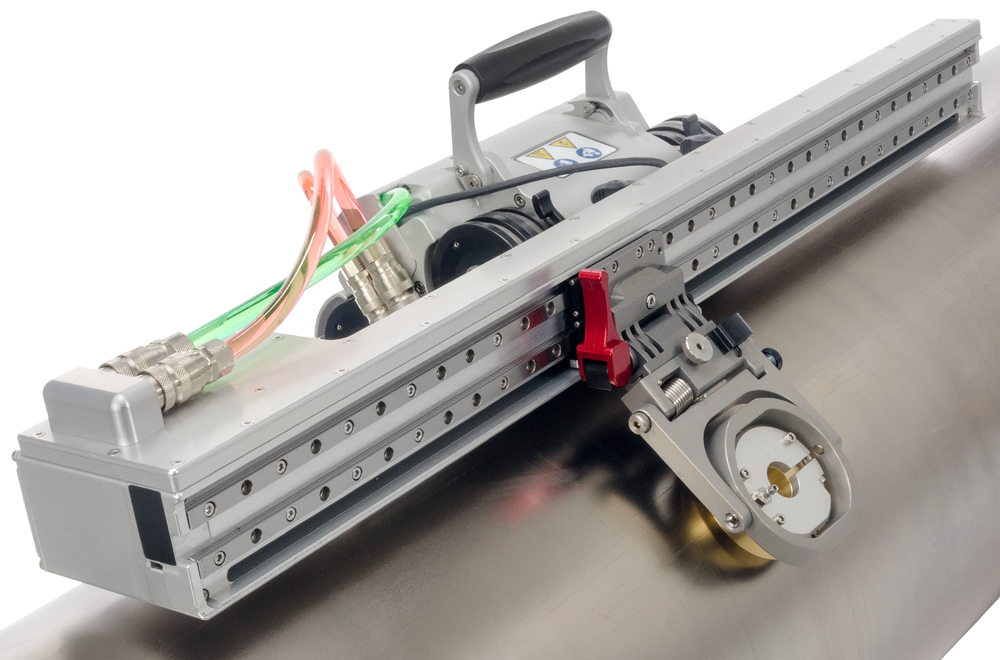

A high temperature capable raster arm is programmable for any number of corrosion mapping tasks. Available in 600 mm (24 in) or 300 mm (12 in) lengths, various probe holders can attach to carry any number of probe and wedge combinations.

CABLE MANAGEMENT

Specialized tubing protects the instrument cables, irrigation tubes and coolant hoses.

MAGNETIC WHEELS

High Temperature magnetic wheels are specifically designed to dissipate heat and maintain integrity on a heated surface.

HANDLES

The handle and manipulation handle assist with crawler placement on the scan surface and steering adjustment.

QUICK CONNECT

The hoses are outfitted with an ingenious quick connect system that prevents any dripping or leaking when connecting or disconnecting hoses from the system.

RUGGED CARRYING CASES

Strong cases protect the equipment during transport to and from projects. Heavy-duty wheels are provided to assist with heavy cases.

BATTERY POWER

Order the SKOOT with the battery kit and avoid using heavy, cumbersome generators. These rechargeable batteries can power the SKOOT system and accessories for hours at a time.

THREE YEAR LIMITED WARRANTY

Our 3-year warranty covers all repairs not caused by physical damage.

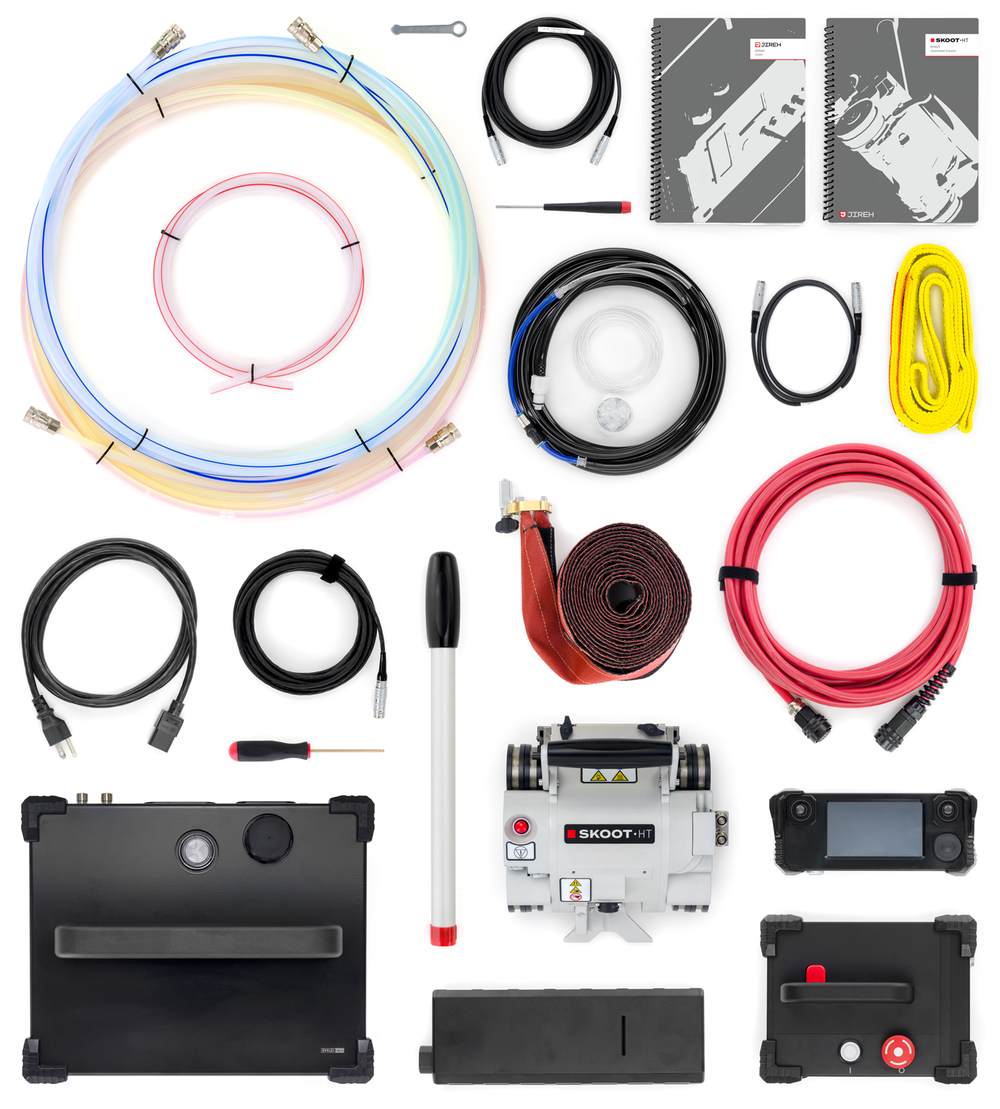

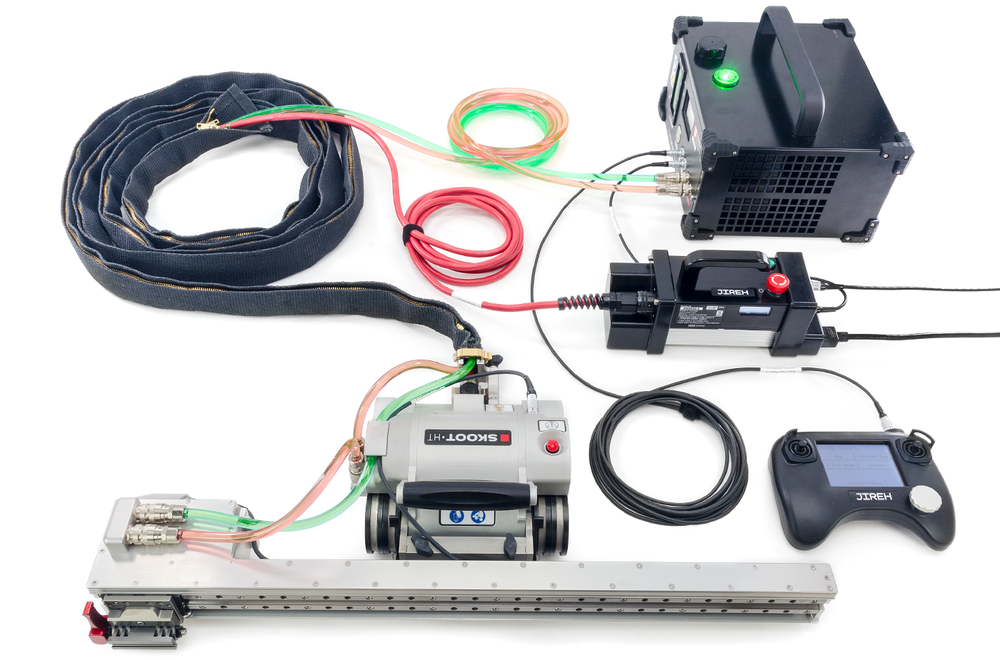

KIT CONTENTS

SCANNER

SKOOT • HT base crawler

COOLER

Cooler
Auxiliary cable, 1 m (3.3 ft)
Hose, Blue
Hose, Red
Hose, Spare Red
User manual, Cooler

PARTS & ACCESSORIES

Power controller
Power supply (North American, European or UK plugs available)
Umbilical, 7.5 m (25 ft) or 30 m (100 ft) lengths available
Handheld controller
Auxiliary cable, 6 m (20 ft)
Manipulation handle
High Temperature Cable management, threaded mount, (length dependent on umbilical length)
J300 encoder cable, 5 m (15 ft)
6 mm ID irrigation kit (7/16 in quick connect)
User manual, SKOOT • HT
Rugged carrying cases (various types based on chosen accessories)

TOOLS

3 mm hex driver
3 mm flat driver
Wrench for pivot button adjustment

COMPONENT IDENTIFICATION

SKOOT HT CRAWLER

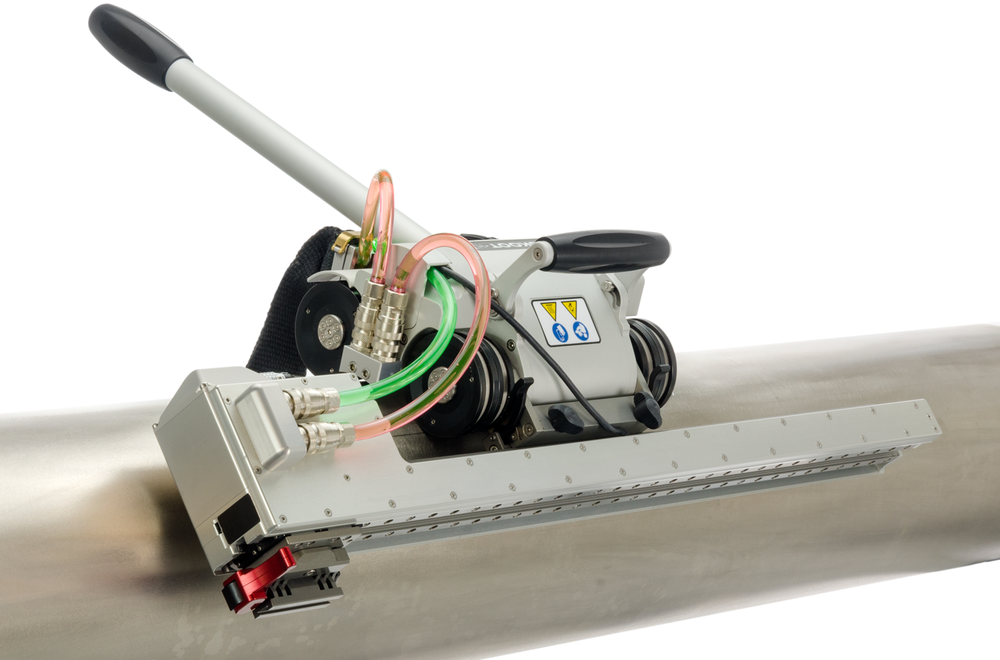

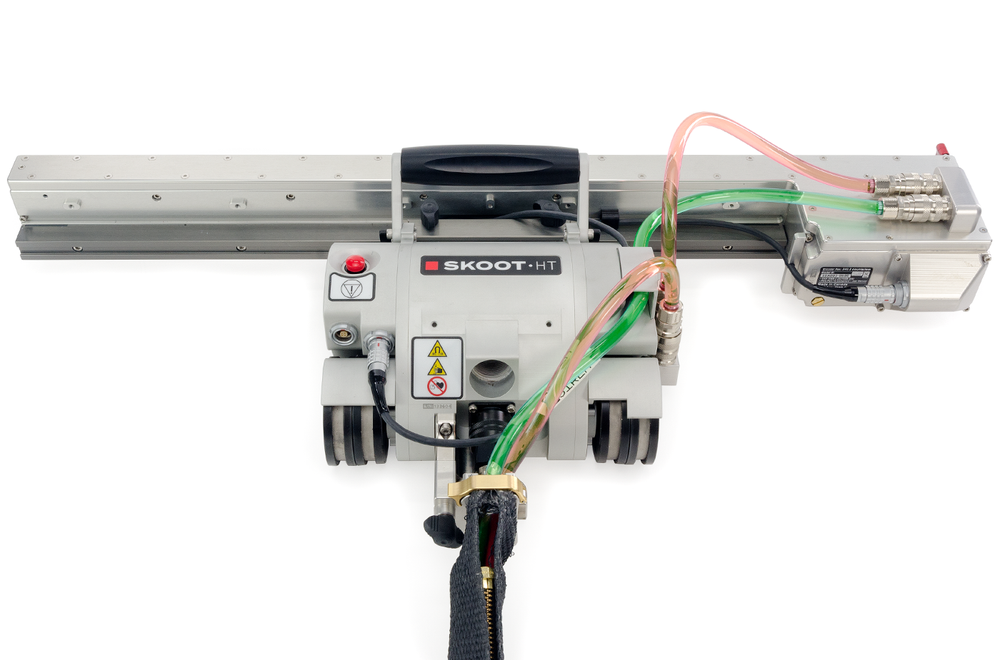

The powerful crawler has been fitted with a cooling apparatus to protect the internals during high temperature scanning. The cable retainer provides cable management, and the swivel mount is the attachment point for accessories.

MANIPULATION HANDLE

The manipulation handle mounts the crawler on the scan surface and makes steering adjustments during an inspection.

HIGH TEMPERATURE UMBILICAL

The umbilical is uniquely designed to withstand high heat but must always be used with the high temperature cable management included with this system.

POWER CONTROLLER

Compatible with various plug styles, the power controller activates and powers the entire system. Compatible with battery power, the power controller connects to the user instrument and handheld controller.

HANDHELD CONTROLLER

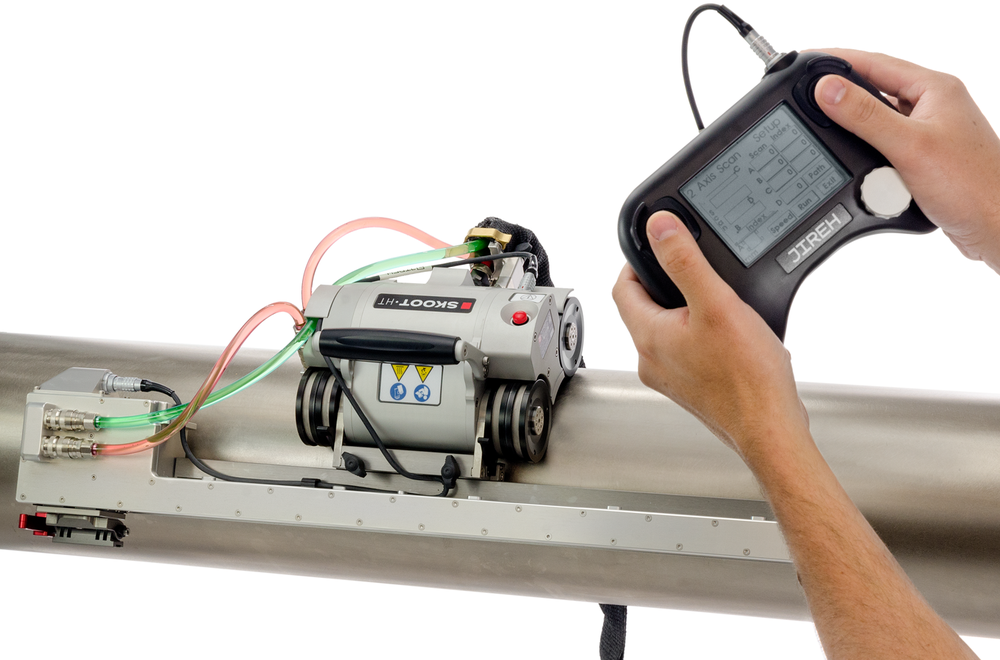

Control crawler speed and distance with the handheld controller. Alternate menus allow the programming of raster paths and system settings. Activation of the cooler is also available using the multifaceted handheld controller.

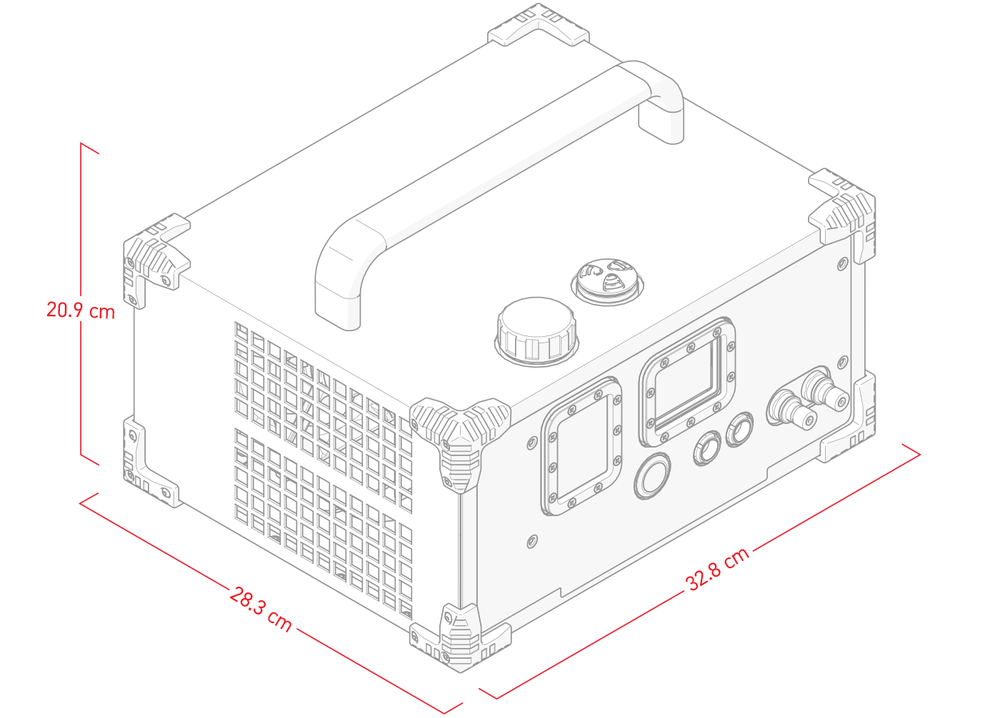

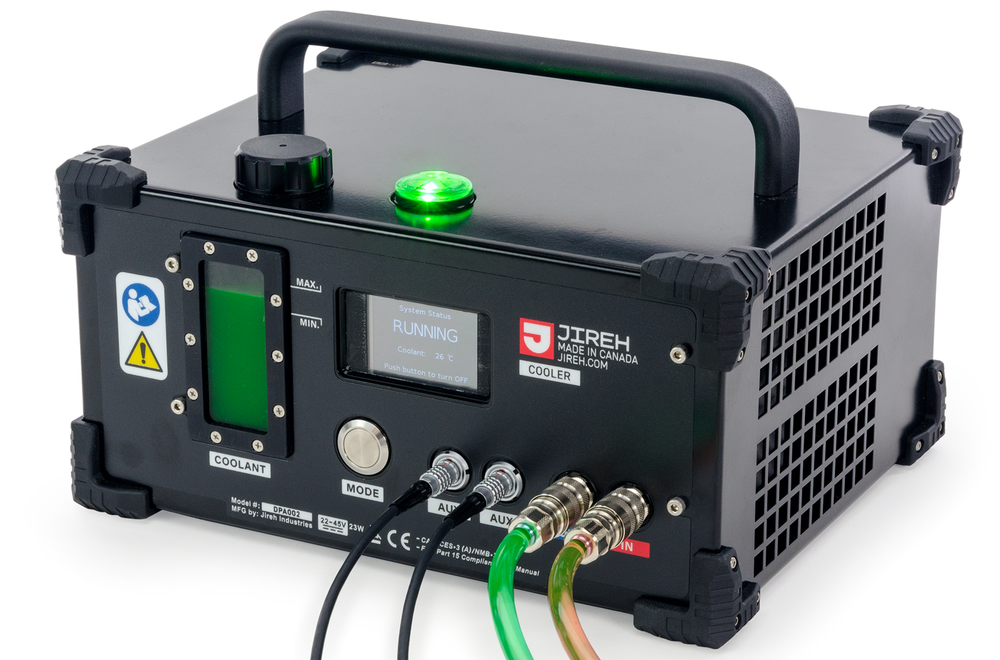

COOLER

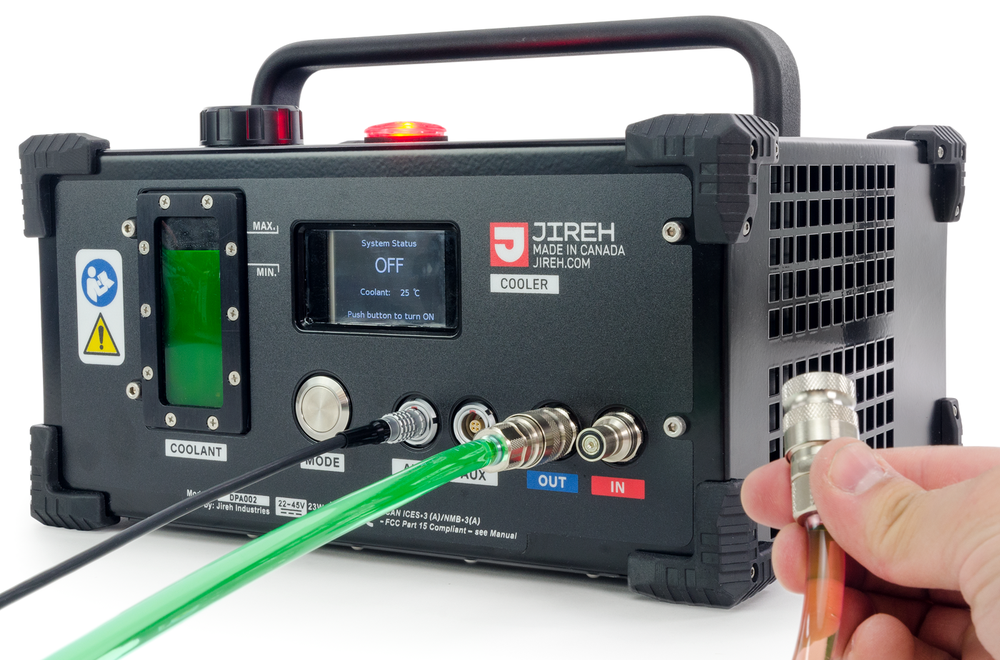

A high-performance cooling system which cycles coolant through the crawler and raster arm.

SPECIFICATIONS

GENERAL

Encoder Resolution: 1354 counts/mm (34394 counts/inch)
Maximum Vertical Payload: 9 kg (20 lb)¹
Maximum Speed: 14.2 cm/sec (5.6 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 1.4 Amps
Umbilical Length: 7.5 m (25 ft)²
Inspection Surface: Ferrous

PIPE RANGE

Circumferential, Outer Diameter (OD): 10.2 cm (4 in) to flat
Circumferential, Inner Diameter (ID): 68.6 cm (27 in) to flat
Longitudinal: 76.2 cm (30 in) to flat

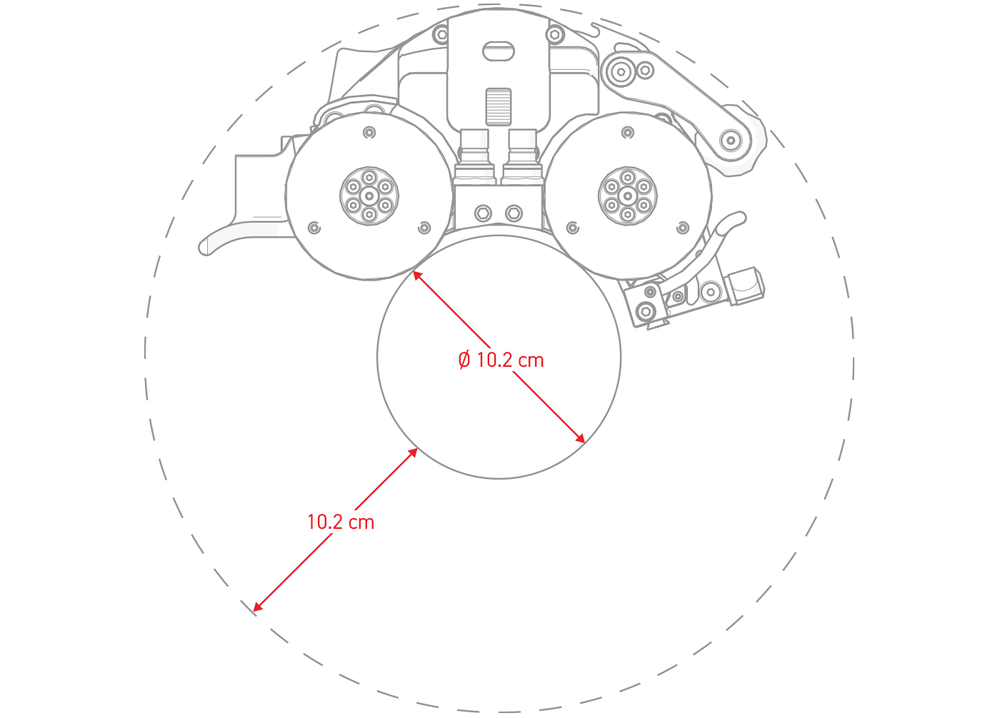

RADIAL CLEARANCE

Pipes under 200 mm (8 in): 10.2 cm (4 in)³

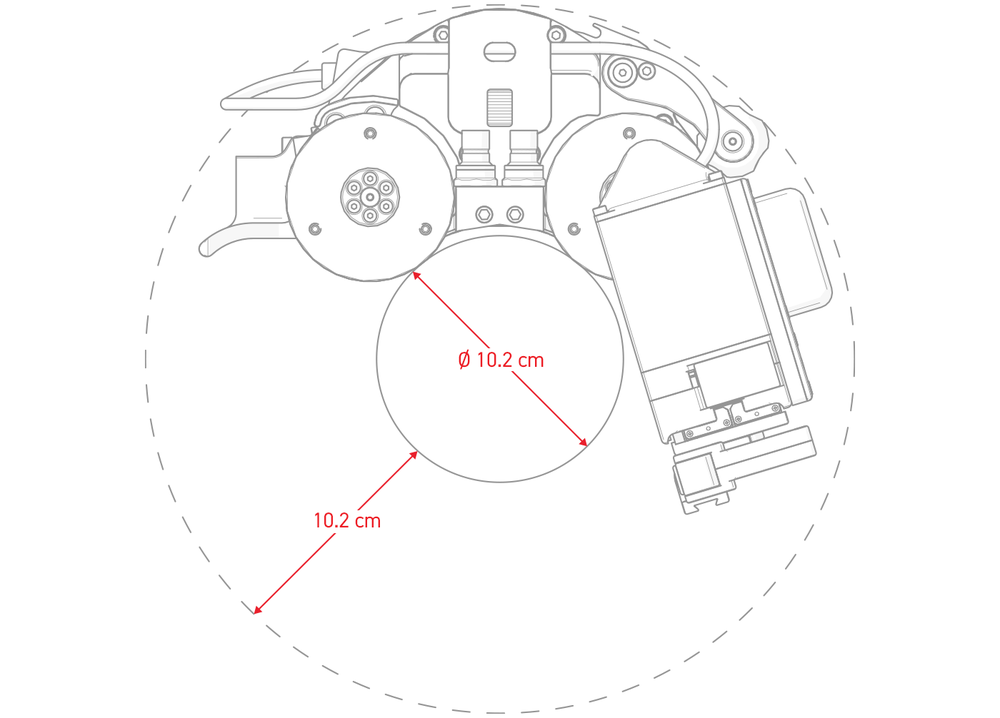

Pipes over 200 mm (8 in): 11.3 cm (4.3 in)³With Motorized Raster Arm HT: 10.2 cm (4 in)

REGULATIONS

CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.⁴
FCC: Compliance with Part 15 of FCC rules.⁴
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.⁴
UKCA: United Kingdom Conformity Assessed – Compliance with relevant UK statutory requirements and legislation.⁴

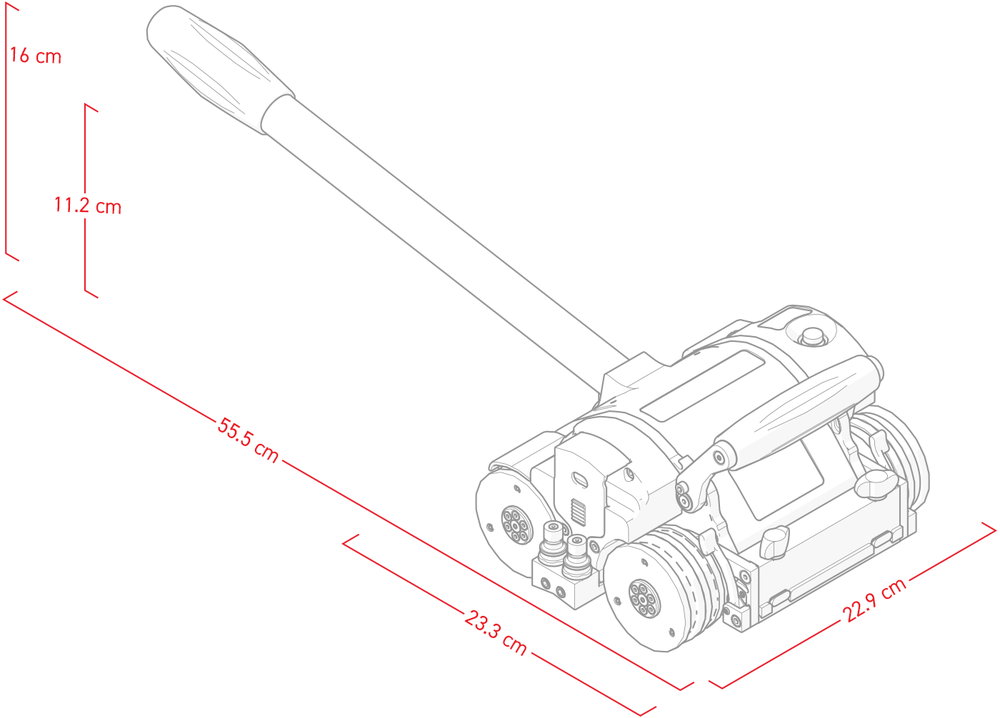

SIZE & WEIGHT

Base Crawler Height: 11.2 cm (4.4 in)
Base Crawler Height with manipulation handle: 16 cm (6.3 in)
Base Crawler Length: 22.9 cm (9 in)
Base Crawler Depth: 23.3 cm (9.1 in)
Base Crawler Depth with manipulation handle: 55.5 cm (21.8 in)
Base Crawler Weight: 7.7 kg (16.9 lb)

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
Maximum Inspection Surface Temperature: 350°C (662°F)⁵
