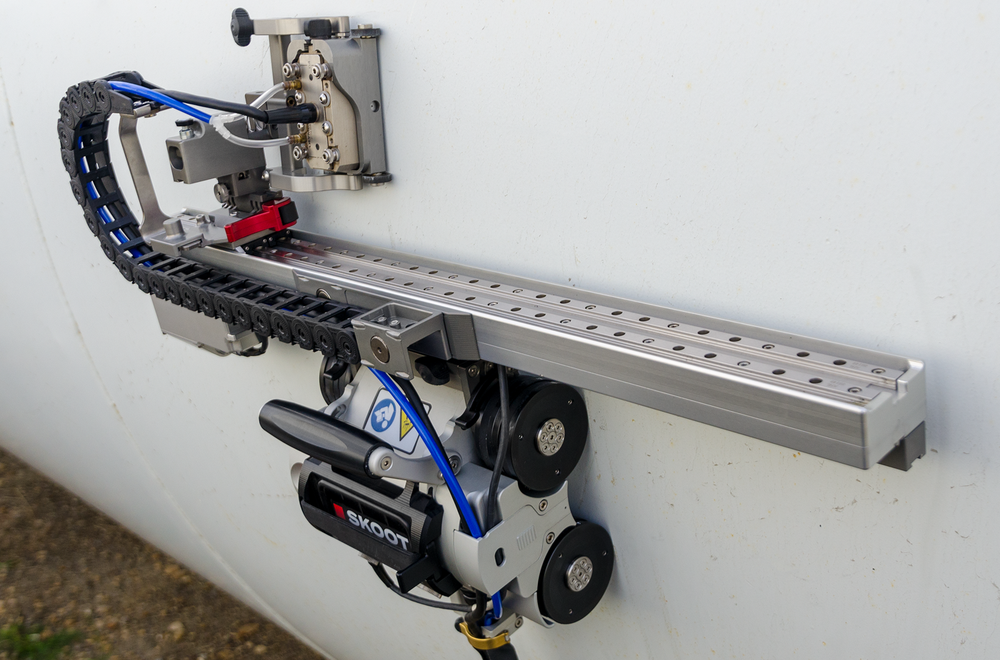

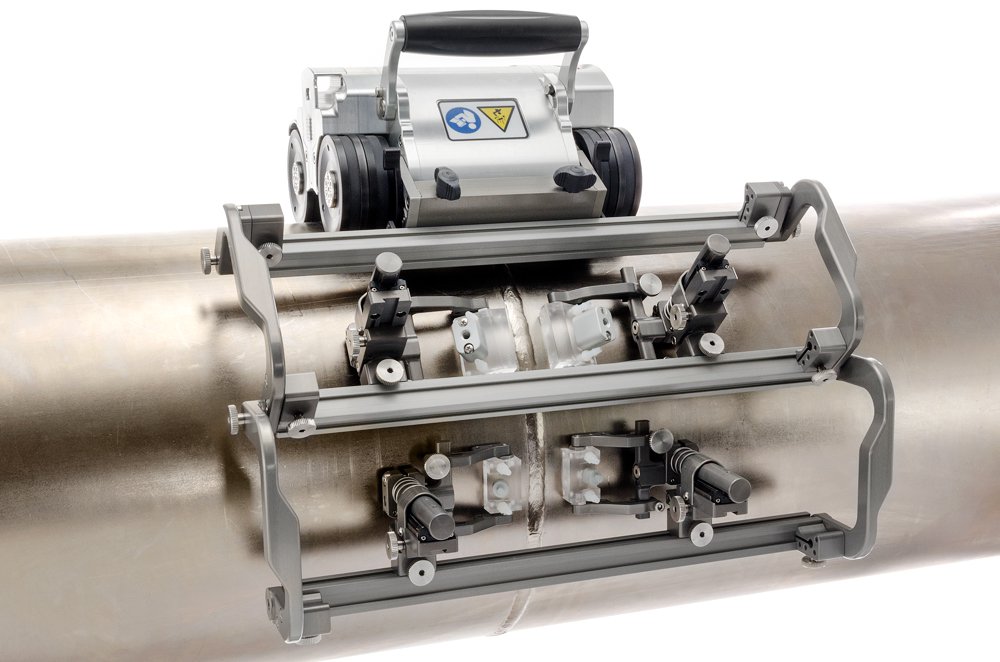

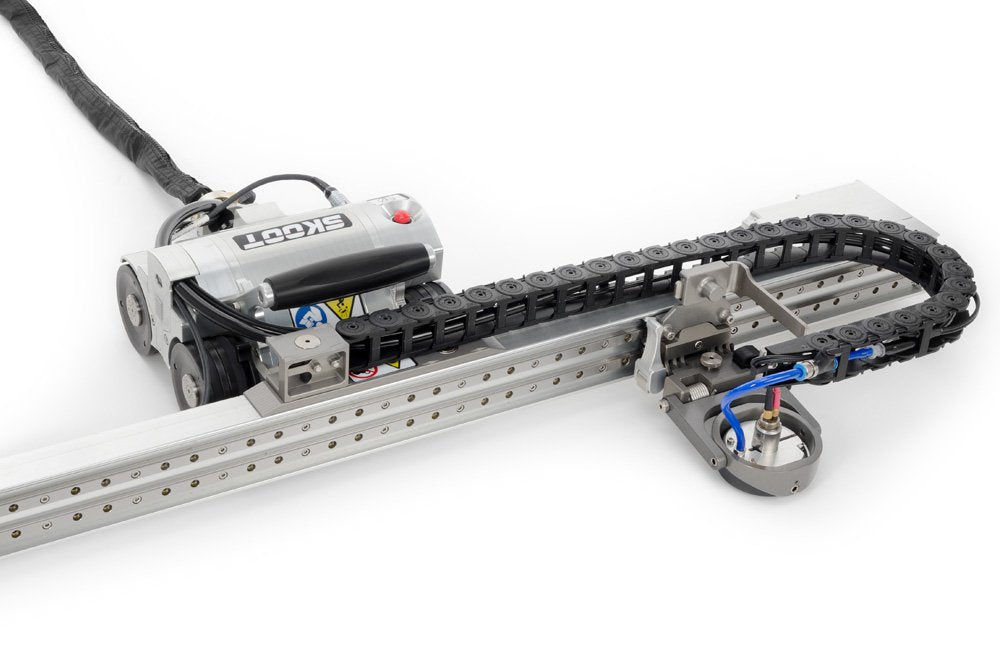

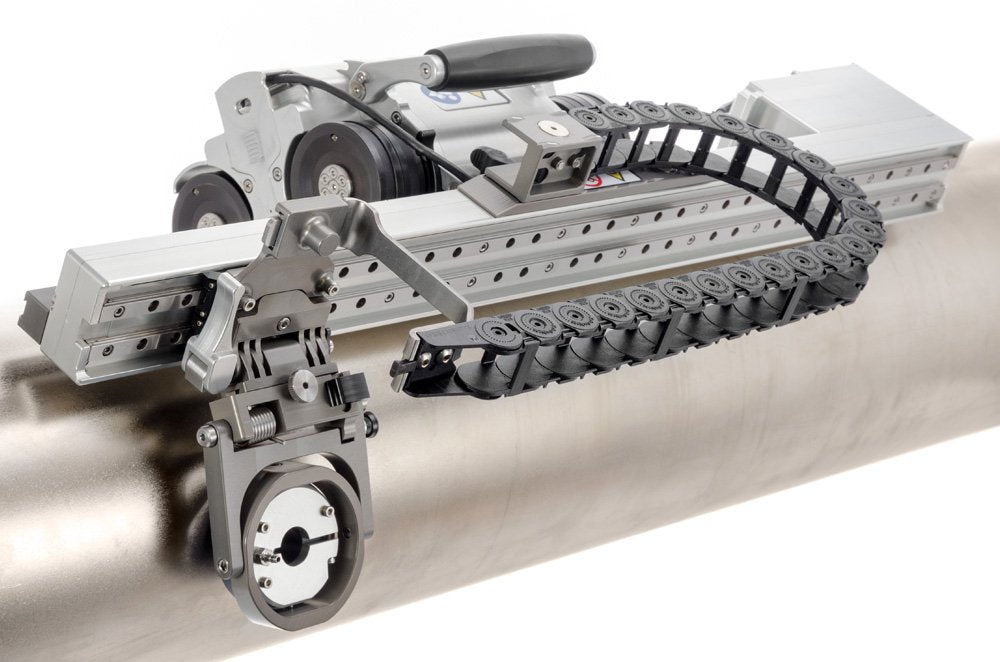

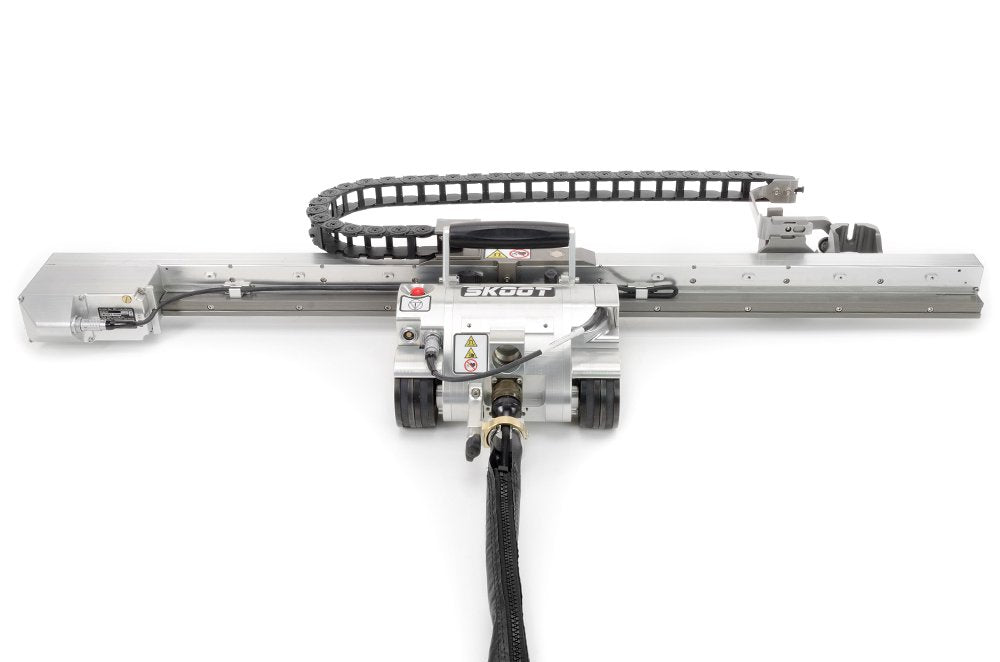

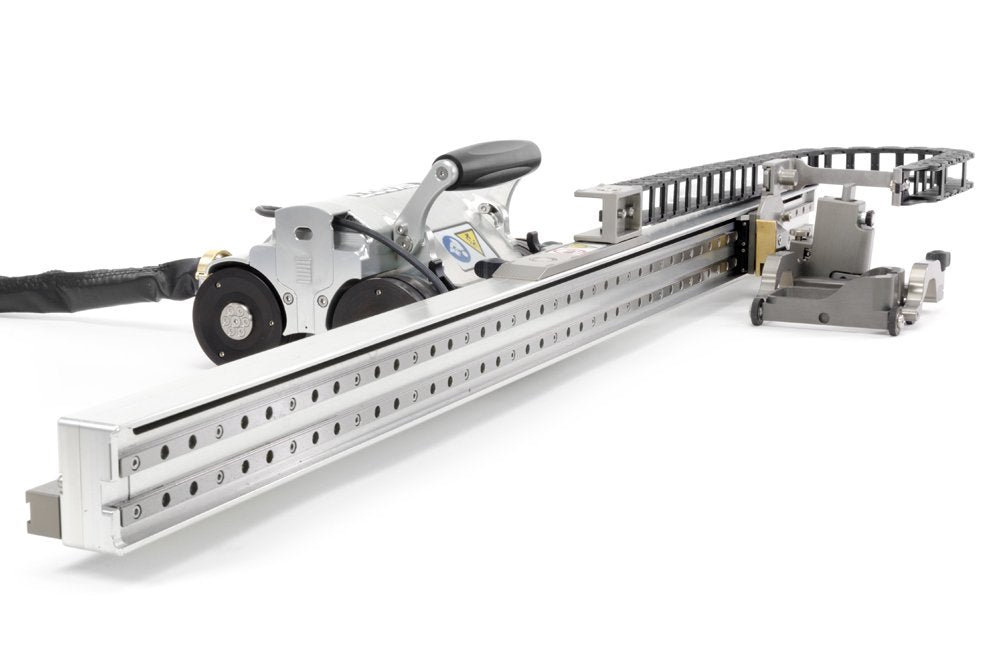

The SKOOT - Base Crawler is a powerful automated scanner. The ability to carry multiple attachments and various accessories while traversing all magnetic surfaces makes the SKOOT an extremely versatile scanning device. This remotely operated scanning platform can be outfitted with probe holder frames for weld inspection or a raster arm for automated two-axis corrosion scans.
Part ID: DNG001
A powerful, remotely operated, automated scanner. Perform a multitude of complex weld and corrosion scans using any number of accessories.
FEATURES
LOW PROFILE DESIGN
The SKOOT requires a radial clearance of 11.4 cm (4.5 in), which allows for inspection in limited-access applications.
MAGNETIC WHEELS

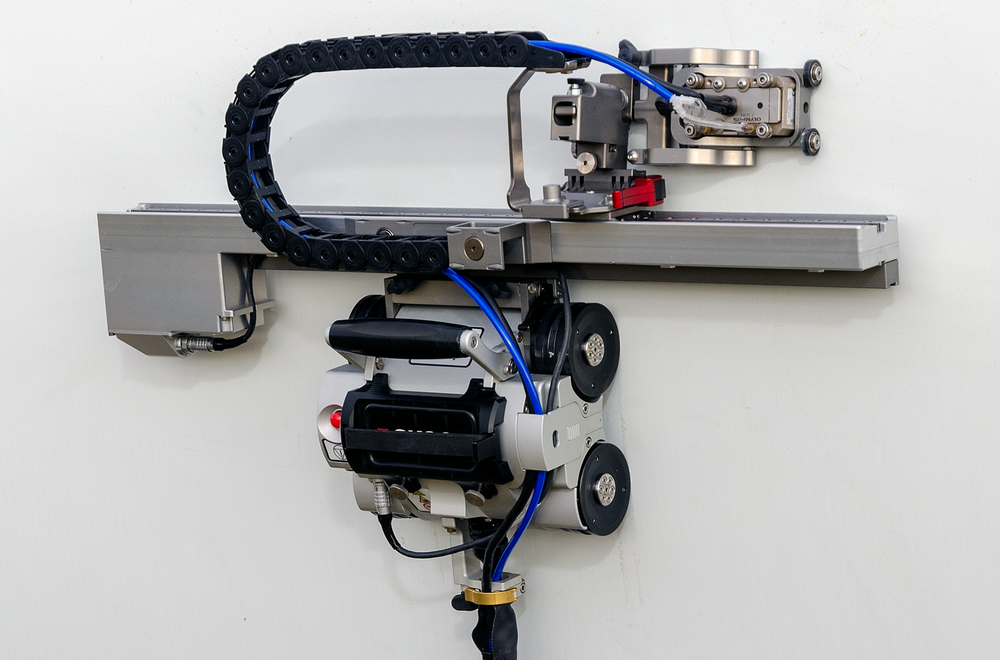

The SKOOT can operate on vertical, horizontal and inverted surfaces using rare-earth magnets.
SCAN VERSATILITY

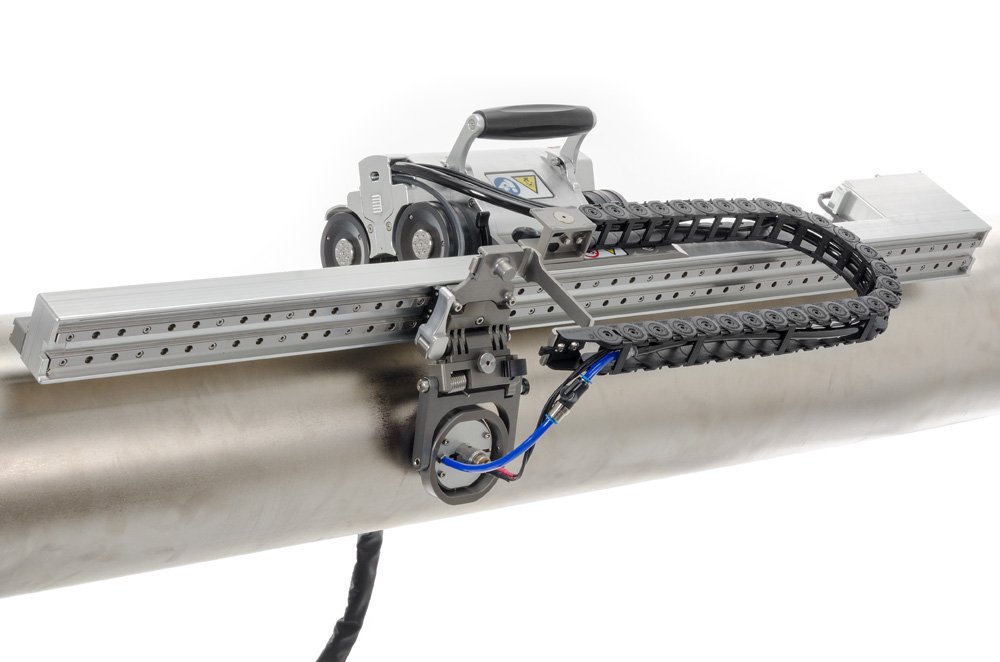

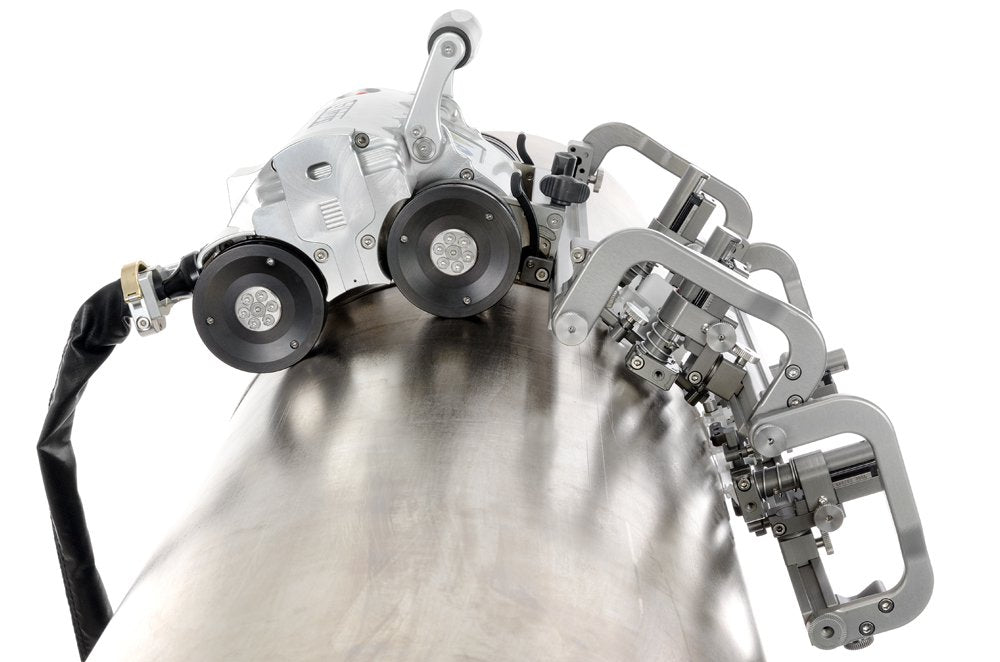

The SKOOT can facilitate circumferential scans on pipes as small as 6.4 cm (2.5 in) OD and 68.6 cm (27 in) ID. In addition, flat surface scans and longitudinal scanning on pipes as small as 76.2 cm (30 in) OD are available.
BACKPACK
The optional backpack conveniently carries ultrasonic accessories with the unit.
MODULAR DESIGN

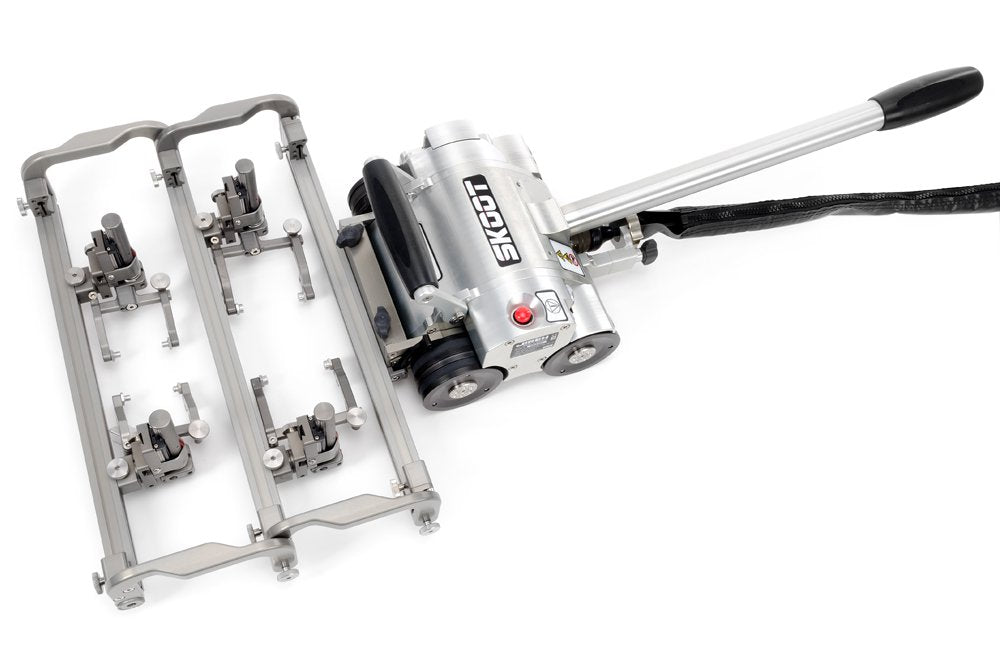

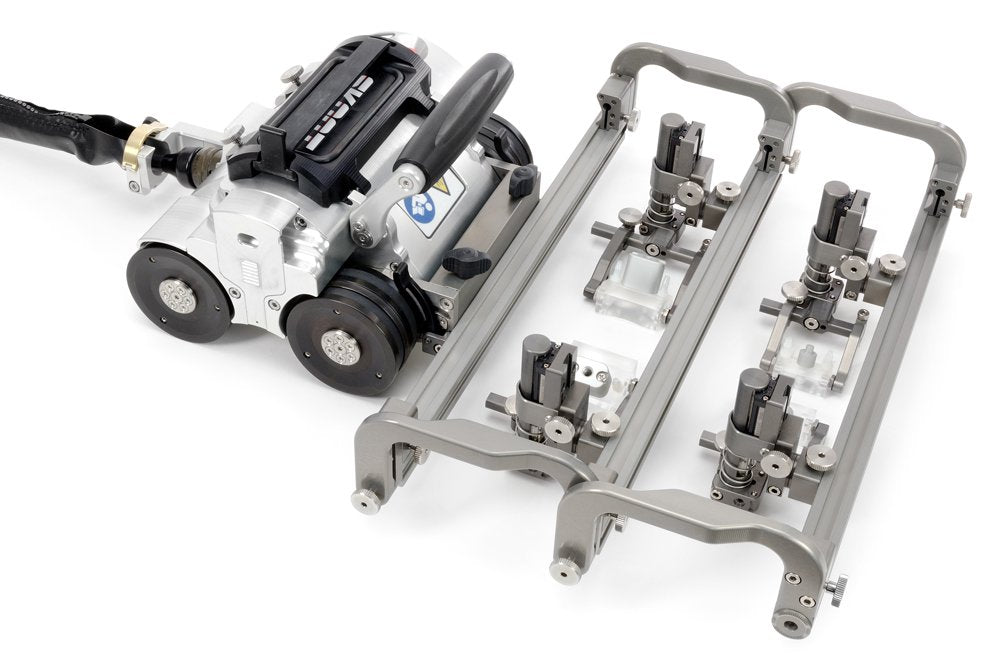

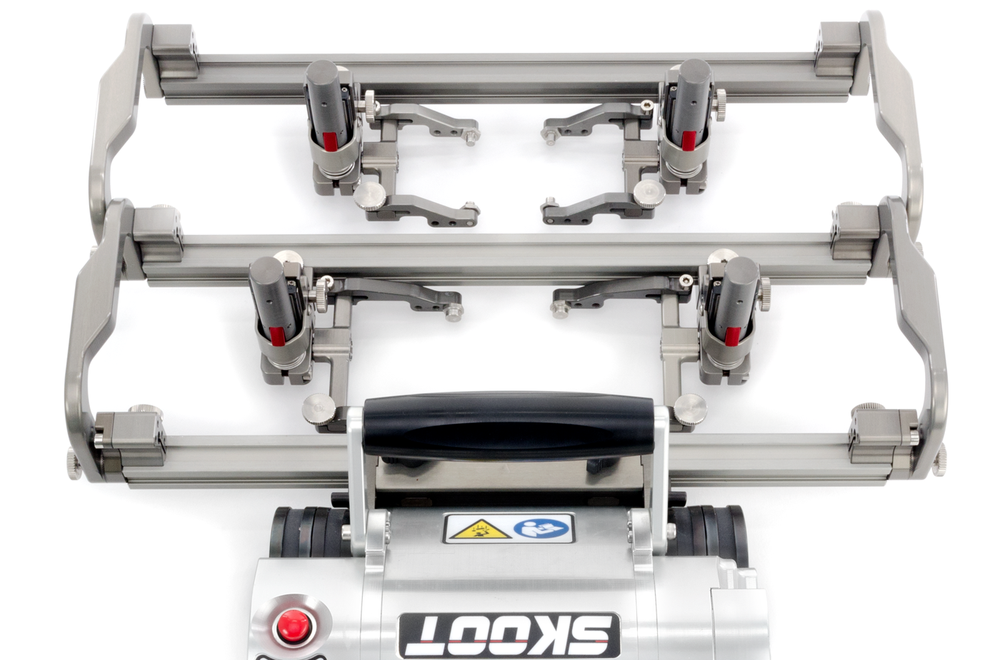

Various probe holder frames and raster arm lengths are available with the SKOOT.
REMOTE OPERATION
Remote control of speed and functions is available through a colour handheld controller.
BUILT-IN ENCODER
An encoder is integrated into the body of the SKOOT. The encoder output is fully compatible with all standard instruments.
BATTERY POWER
Order the SKOOT with the battery kit and avoid using heavy, cumbersome generators. These rechargeable batteries can power the SKOOT system and accessories for hours at a time.
WARRANTY
3-year limited warranty on all products.

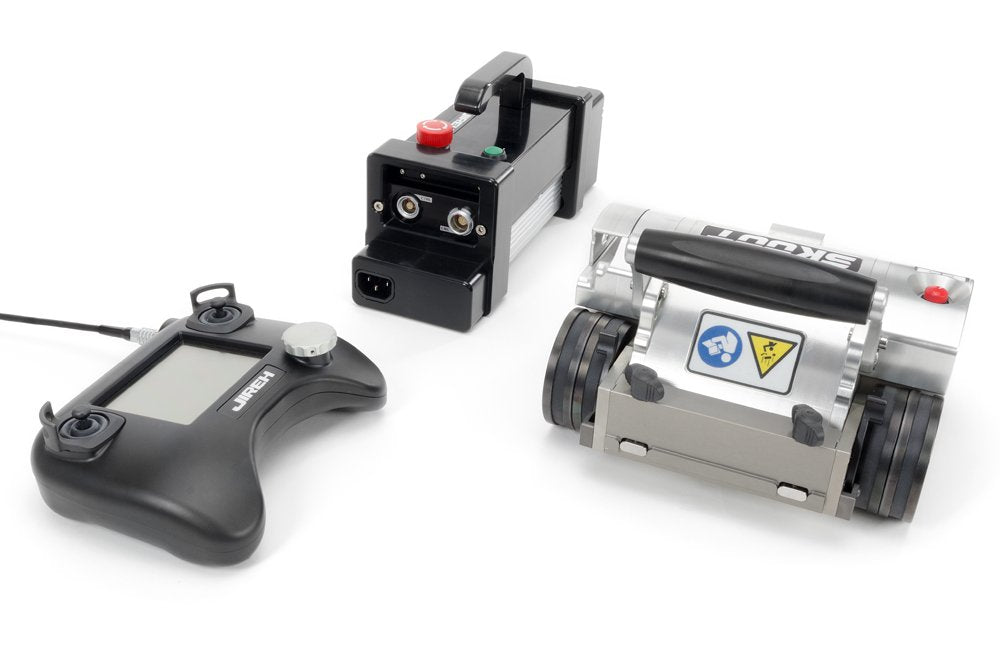

KIT CONTENTS
SCANNER
SKOOT base crawler
PARTS & ACCESSORIES
Power controller
Power supply
Power cord (North American, European or UK plugs available)
Umbilical, 7.5 m (25 ft) or 30 m (100 ft) lengths available
Handheld controller
Auxiliary cable, 6 m (20 ft)
Manipulation handle
Cable management, threaded mount, (length dependent on umbilical length)
J300 encoder cable, 5 m (15 ft)
Installation/Removal mat
6 mm ID irrigation kit (7/16 in quick connect)
Lifting sling (safety tether)
User manual
Rugged carrying cases (various types based on chosen accessories)
TOOLS
3 mm hex driver
3 mm flat driver
Wrench for pivot button adjustment
COMPONENT IDENTIFICATION

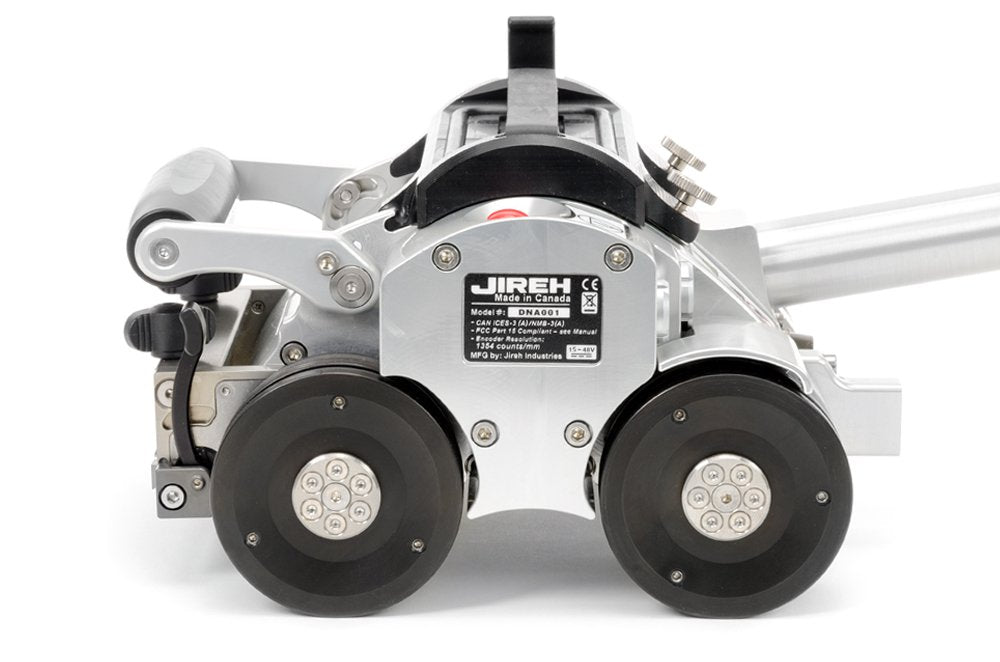

BASE CRAWLER

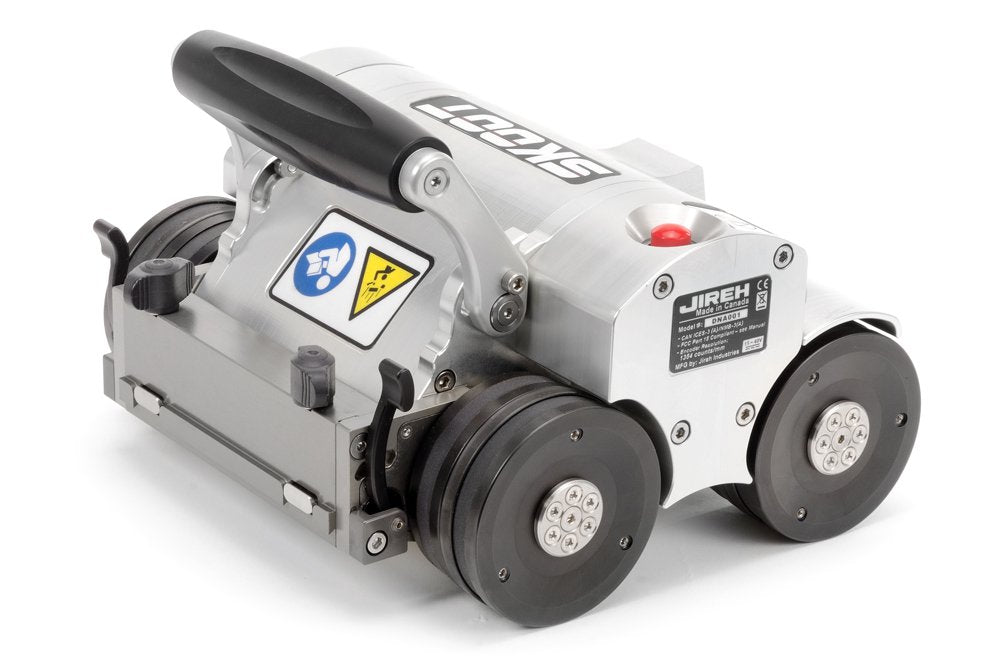

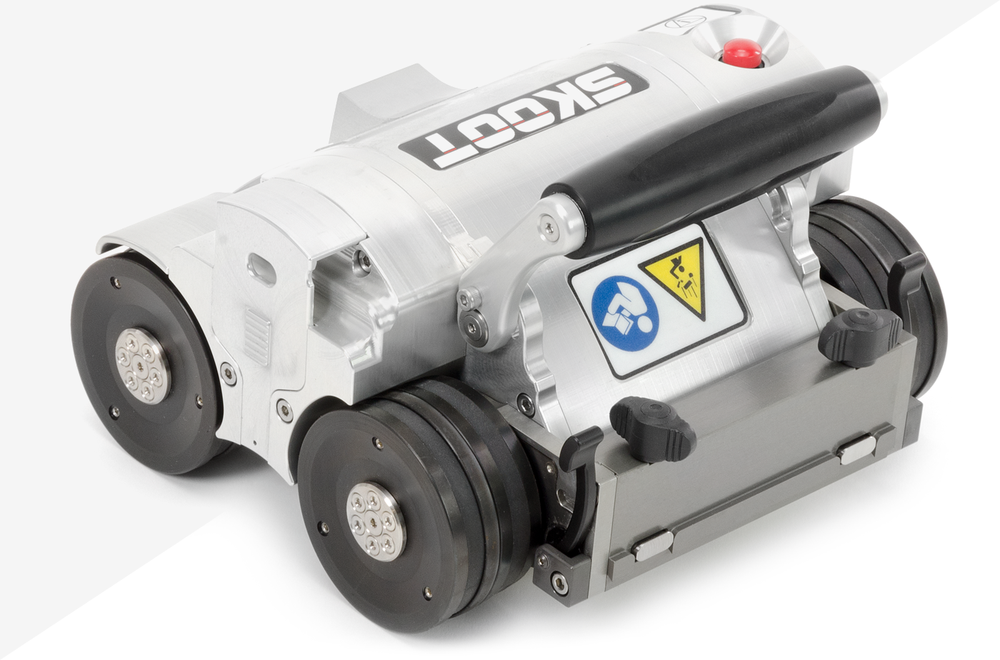

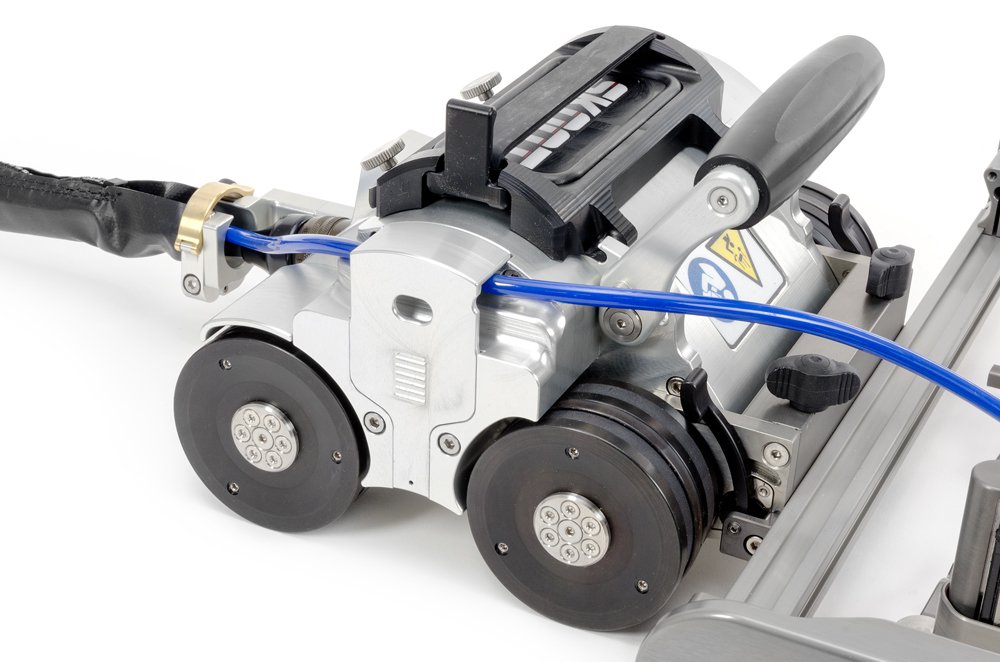

Four highly magnetic wheels propel the SKOOT crawler along ferrous surfaces. Attach many weld and corrosion scanning accessories to the crawler, which features cable management and an integrated encoder.
BACKPACK
A flexible strap securely holds any pre-amp, splitters or scan accessories to the SKOOT crawler.
MANIPULATION HANDLE

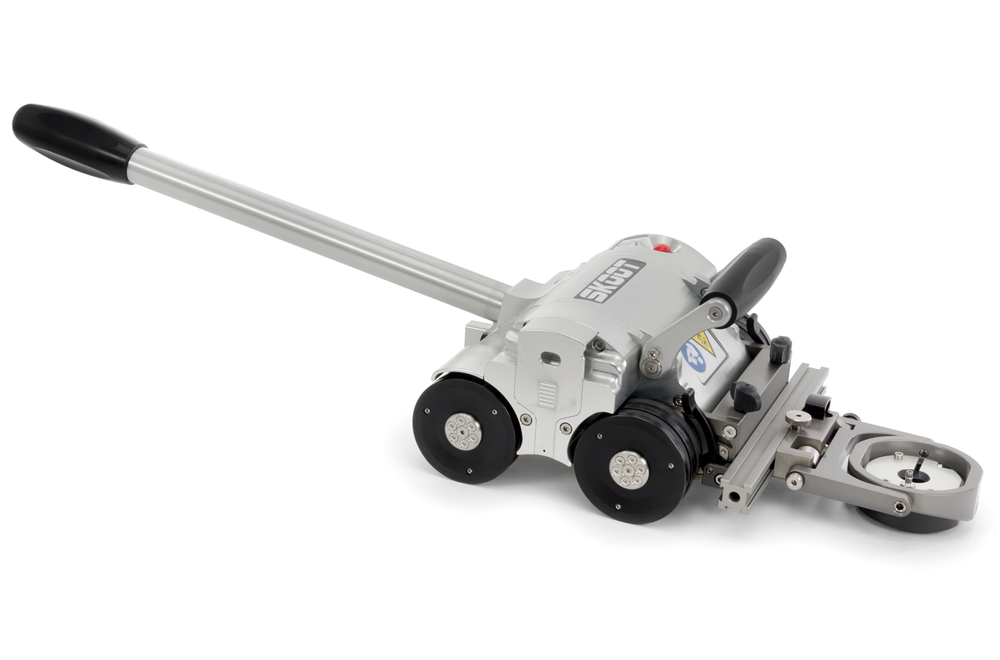

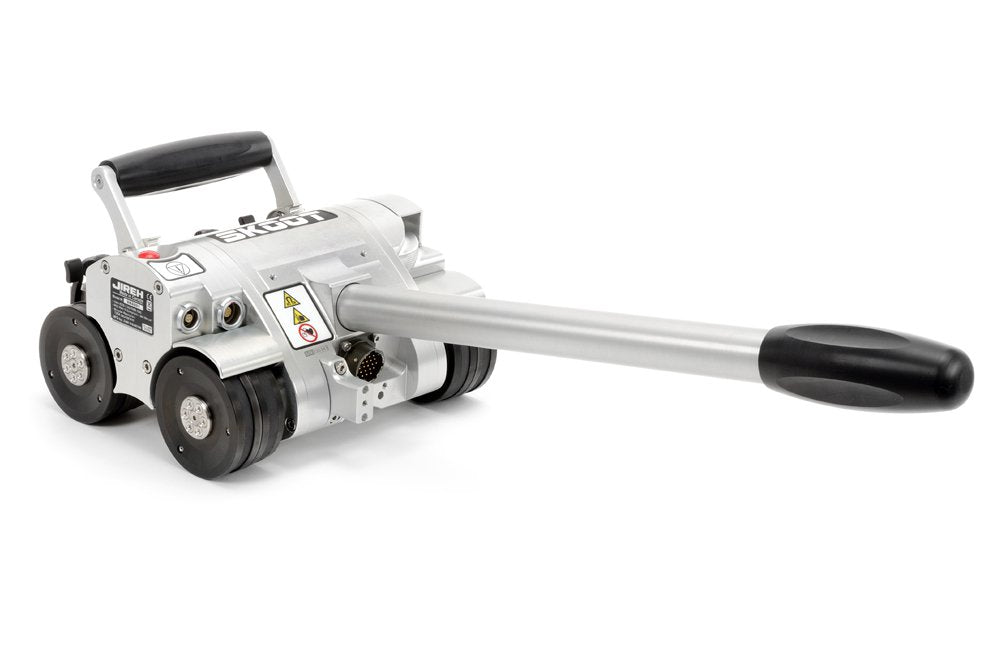

Slight steering adjustments and crawler manipulation is achieved using the manipulation handle.
POWER CONTROLLER
Configurable for North American or European electrical standards, the power controller is a sophisticated operating platform and connection point for instrumentation and handheld controllers.
HANDHELD CONTROLLER
Precision forward and reverse drive control, programmable y-axis control, and system diagnostics are all accessed using the handheld controller's touchscreen and joysticks.
UMBILICAL
The backbone of communication between the power controller and the base crawler.
SPECIFICATIONS
GENERAL
Encoder Resolution: 1354 counts/mm (34394 counts/inch)
Maximum Vertical Payload: 9 kg (20 lb)1
Maximum Speed: 14.2 cm/sec (5.6 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 1.4 Amps
Umbilical Length: 7.5 m (25 ft)2
Inspection Surface: Ferrous
Maximum Backpack Payload: 1.36 kg (3 lb)
PIPE RANGE
Circumferential, Outer Diameter (OD): 6.4 cm (2.5 in) to flat
Circumferential, Inner Diameter (ID): 68.6 cm (27 in) to flat
Longitudinal: 76.2 cm (30 in) to flat
RADIAL CLEARANCE
Pipes under 200 mm (8 in): 10.2 cm (4 in)3
Pipes over 200 mm (8 in): 11.03 cm (4.34 in)3
REGULATIONS
CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.4
FCC: Compliance with Part 15 of FCC rules.4
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.4
UKCA: United Kingdom Conformity Assessed – Compliance with relevant UK statutory requirements and legislation.4
SIZE & WEIGHT
Base Crawler Height: 11.2 cm (4.4 in)5
Base Crawler Height, including handle: 14.9 cm (5.9 in)
Base Crawler Height with manipulation handle: 16.10 cm (6.3 in)
Base Crawler Width: 20.8 cm (8.2 in)
Base Crawler Depth: 21.8 cm (8.6 in)
Base Crawler Depth with manipulation handle: 56 cm (22 in)
Base Crawler Weight: 7.3 kg (16 lb)
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
Maximum Inspection Surface Temperature: 150°C (302°F)6
POWER CORDS
POWER REQUIREMENTS
100-240VAC, 50/60Hz, 3.5 Amps
PLUG DESIGNATION
North America
NEMA 5-15P
Europe
CEE7/7
UK
BS1363A
