ROTIX - Reduced Width Scanner

Name: ROTIX - Reduced Width Scanner
Brand: Alliance Solutions Group
Availability: InStock

Product variants

Designed to reduce the amount of insulation/coating required to be removed from a pipe for inspection. The ROTIX - Reduced Width Scanner may operate in as little as 10 cm (3.94 in) of width during single probe scanning, while dual-probe scanning may be achieved with a width of only 25 (9.84 in) necessary. With integrated positional encoding and a chain system that permits scanning on both ferrous and non-ferrous surfaces, the reduced width scanner is the optimal choice when a minimal footprint is required (i.e. coating/insulation removal near a girth weld, elbows, flanges, etc.).

Part ID: CEG017

Facilitate inspection when a minimal scanner footprint is required.

FEATURES

MINIMAL FOOTPRINT

Single probe scanning requires a width of only 10 cm (3.94 in), while dual-probe scanning can be achieved with a width of only 25 cm (9.84 in).

ADJUSTABLE CHAIN

Inspect pipe diameters of 10.2 cm - 96.5 cm (4 in - 38 in) with the chain system. The quick-release links are designed to be added or removed with ease.

DOUBLE WHEEL CHAIN

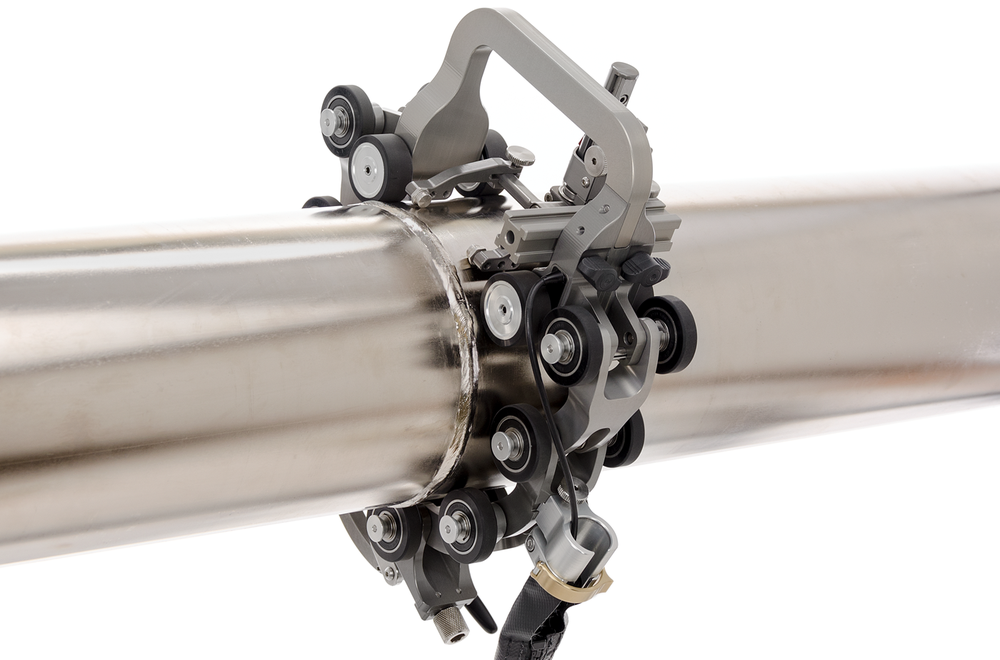

A double-wheel chain straddles the weld during scan operations, allowing the scanner to be centred on the weld, which reduces wandering and the width of the scanner.

FOUR PROBE SCANNING

With the addition of a ROTIX - two probe reduced width add-on kit. The scanner will accommodate four probes.

WHEELS

The wheels of the ROTIX are coated with urethane to reduce the effects of foreign debris obstructing the scanner's motion. Magnetic wheels may also be used (purchased separately) to convert the scanner to a magnetic system for use on ferrous surfaces.

INTEGRATED ENCODER

A positional X-Axis encoder is integrated into the reduced width link. The encoder output is fully compatible with all standard instruments.

PROBE HOLDERS

Extremely versatile vertical probe holders affix the probes to the scan surface. Near infinitely adjustable, the included vertical probe holders are compatible with most significant types of phased array wedges.

WARRANTY

Reliability and craftsmanship are hallmarks of the JIREH brand, but should you have trouble, we back our products with a 3-year warranty.

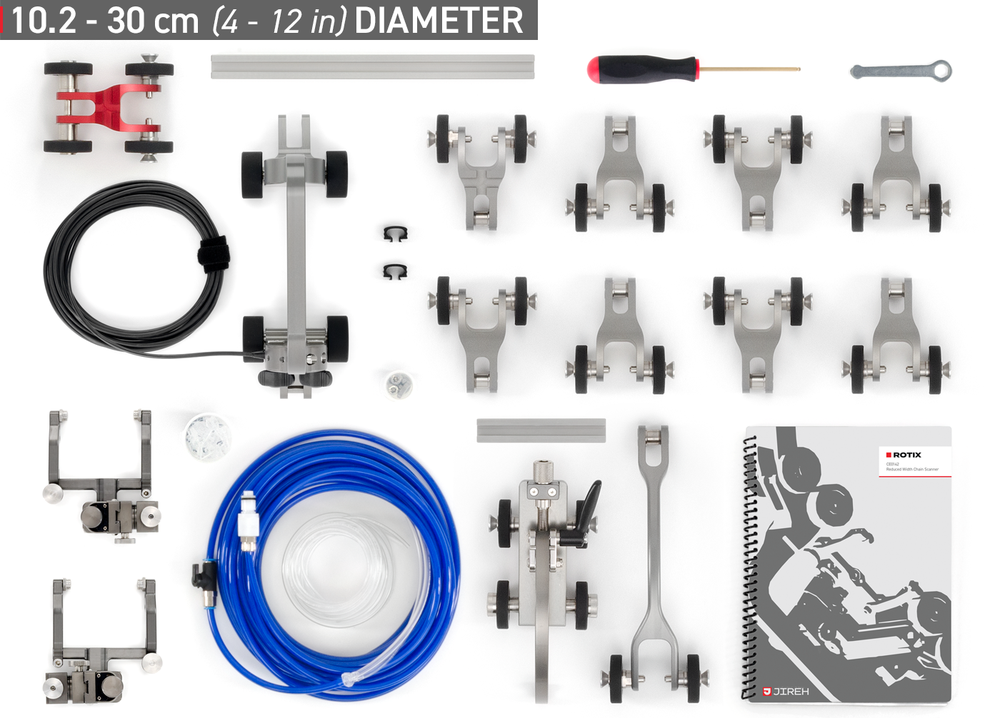

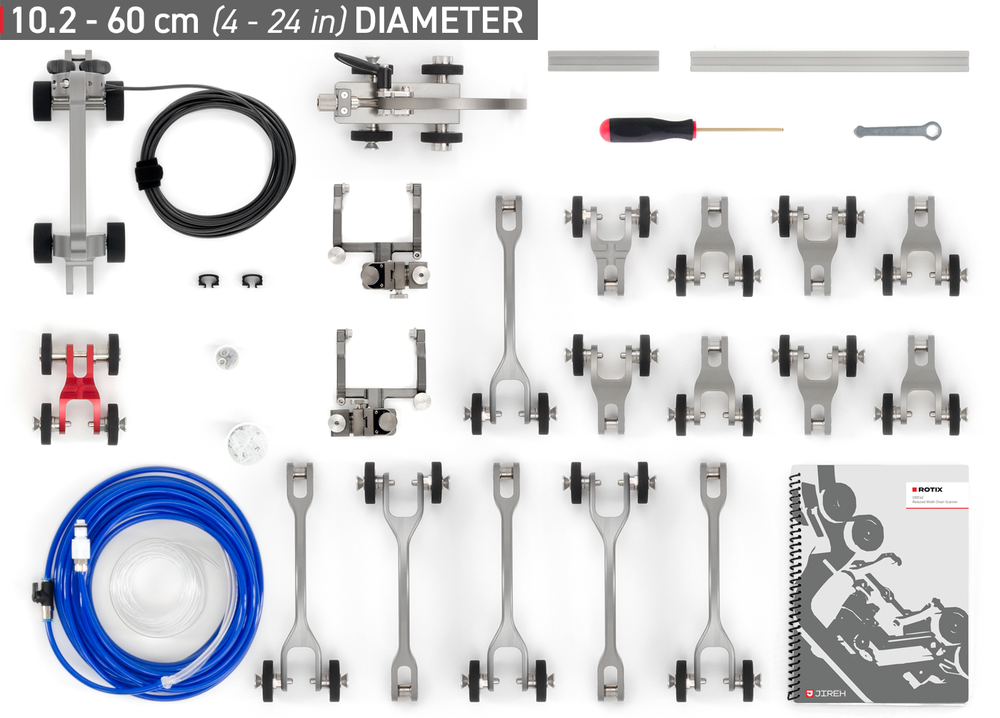

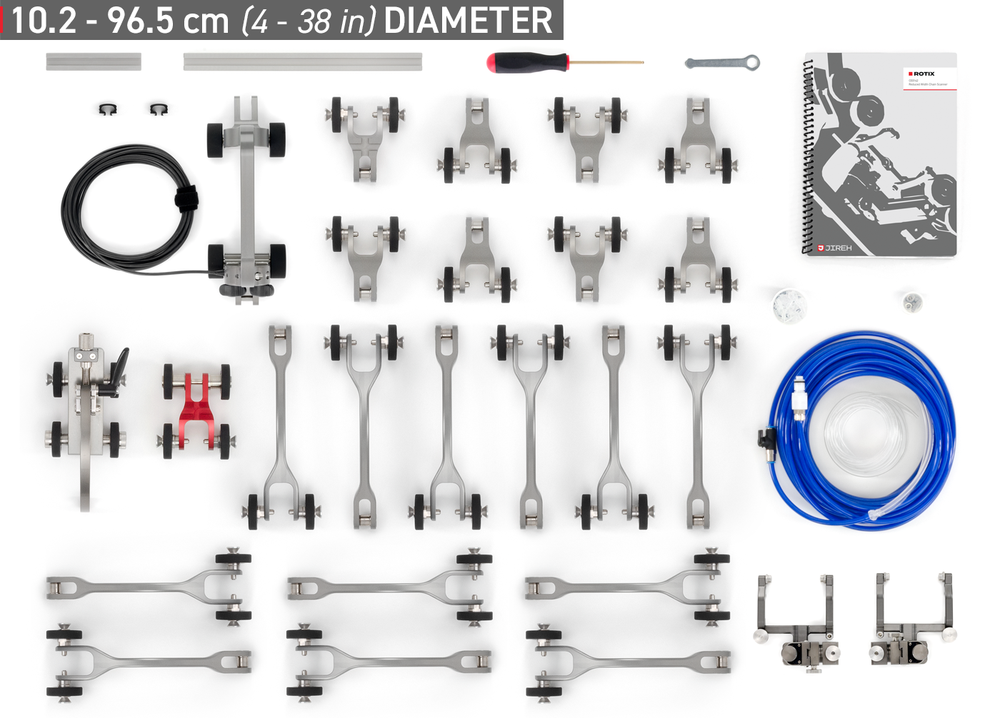

KIT CONTENTS

SCANNER

Reduced width link with integrated encoder, 5 m (16.4 ft) encoder cable

PARTS & ACCESSORIES

Double wheel chain links (Long, short, buckle, etc.)
10 cm (3.9 in) frame bar
25 cm (9.8in) frame bar
Vertical phased array probe holders x2
Probe holder spare parts kit
4 mm ID irrigation kit (7/16 in quick connect)
ROTIX sizing chart
User manual

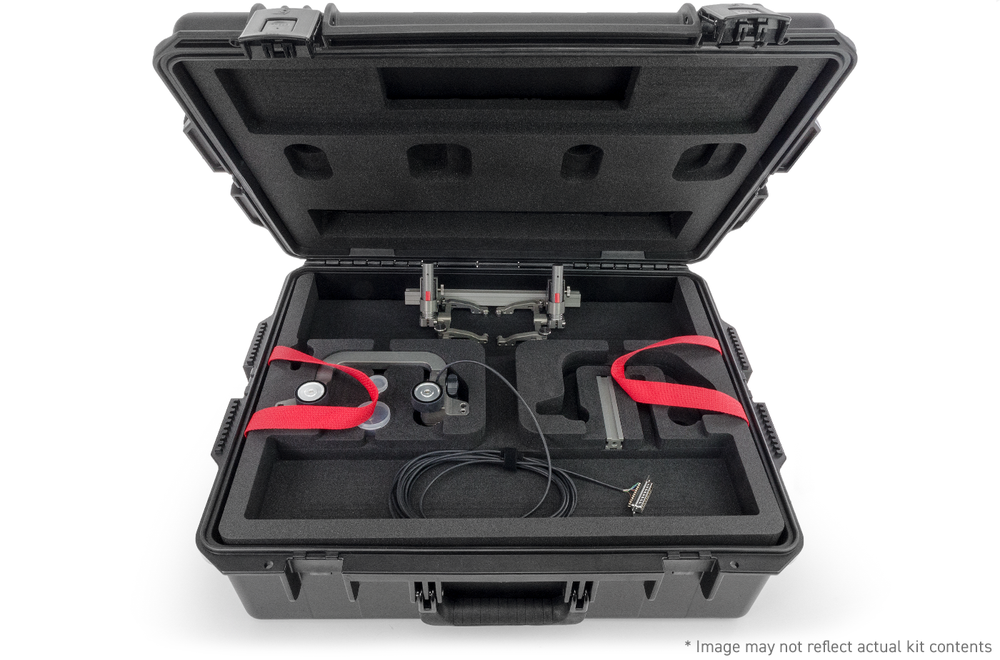

Rugged carrying case

TOOLS

3 mm hex driver
Wrench for pivot button adjustment

COMPONENT IDENTIFICATION

VERTICAL PROBE HOLDERS

The vertical probe holder has multiple adjustment options for various scanning applications.

REDUCED WIDTH LINK

The reduced width link offers a means of non-ferrous scanning, requiring a minimal footprint and an integrated encoder.

CATCH LINK

Connect the buckle to the catch link and complete the chain configuration.

SHORT LINK WITH DOVETAIL

Mount various accessories such as cable management.

SHORT LINK

Assemble the required amount of links to complete a scanner configuration.

LONG LINK

Roughly equivalent to 3 short links, the long link is useful during large diameter scans.

BUCKLE

The buckle connects to the catch link and can adjust the chain's tension around the scan surface.

SPECIFICATIONS

GENERAL

Pipe Range, Circumferential: 10.2 cm (4 in) to 96.5 cm (38 in)
Encoder Resolution: 16.3 counts/mm (414.5 counts/inch)
Probe Holding Capacity: 2 Phased Array Wedges
Encoder Cable Length: 5 m (16.4 ft)¹
Inspection Surface: Ferrous or non-ferrous material

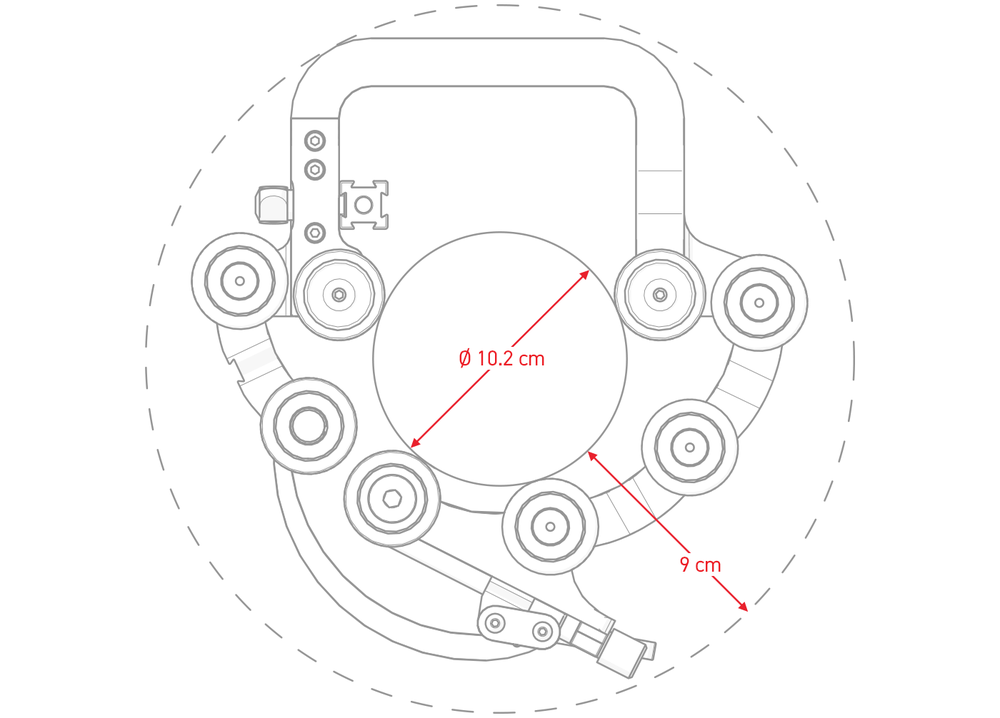

RADIAL SCANNER CLEARANCE

Radial Clearance: 9 cm (3.54 in)

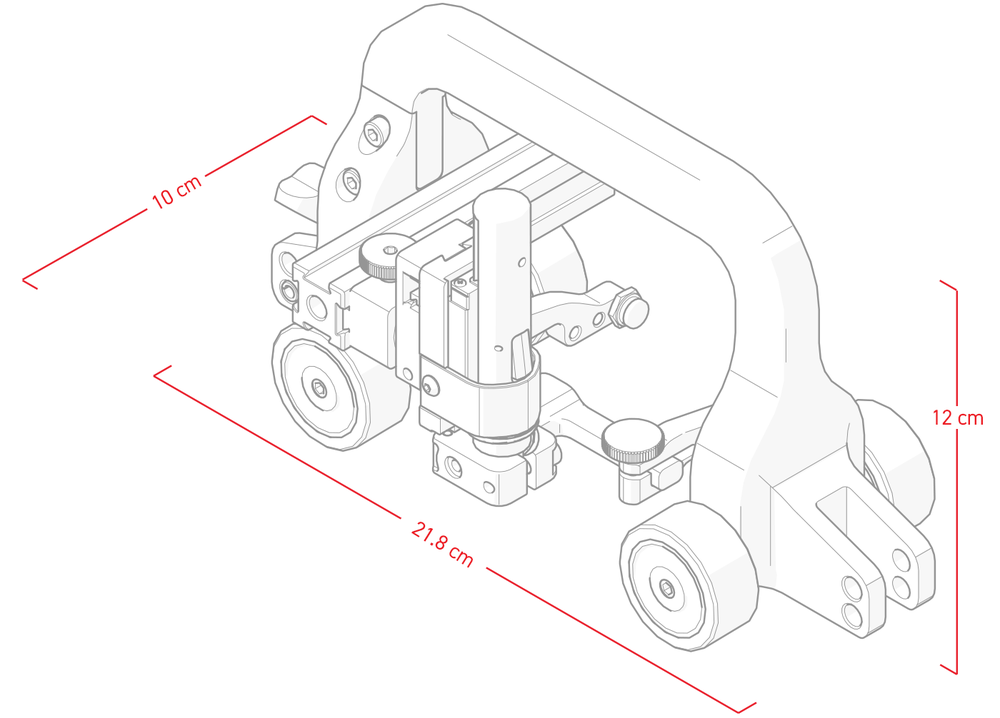

SIZE & WEIGHT

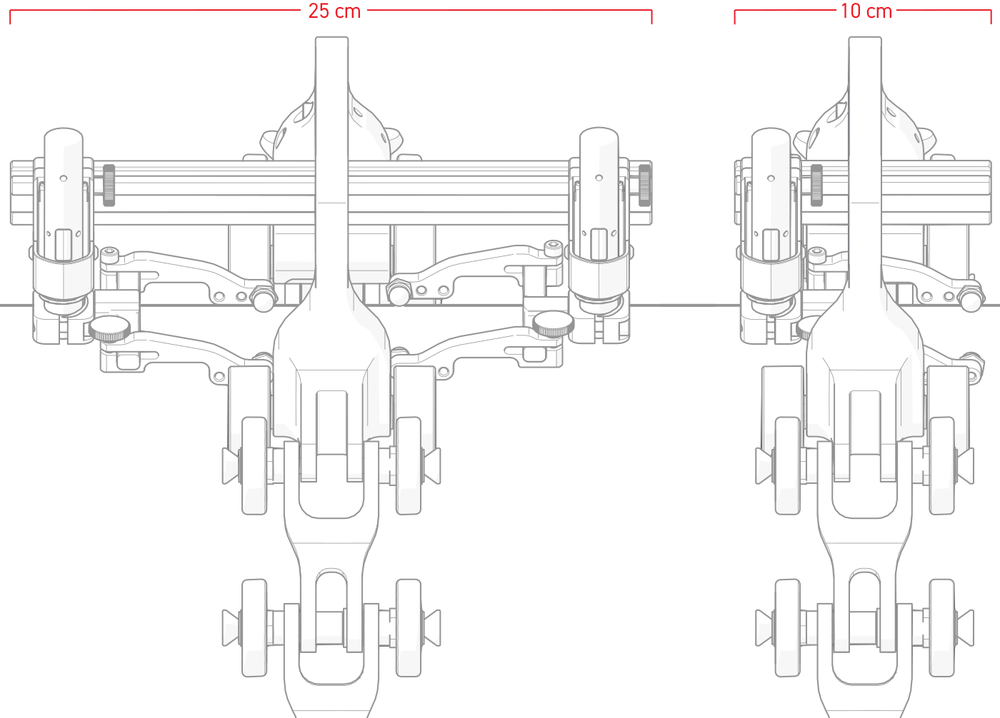

Link Width (Single Probe): 10 cm (3.9 in)
Link Width (Two Probe): 25 cm (9.8 in)
Link Depth: 21.8 cm (8.6 in)
Link Height: 12 cm (4.7 in)
Link Weight: 0.64 kg (1.4 lb)²
Shipping weight: 6.62 kg (14.6 lb)³
