ROTIX - High Temperature 3-Axis Nozzle Scanner
ROTIX - High Temperature 3-Axis Nozzle Scanner

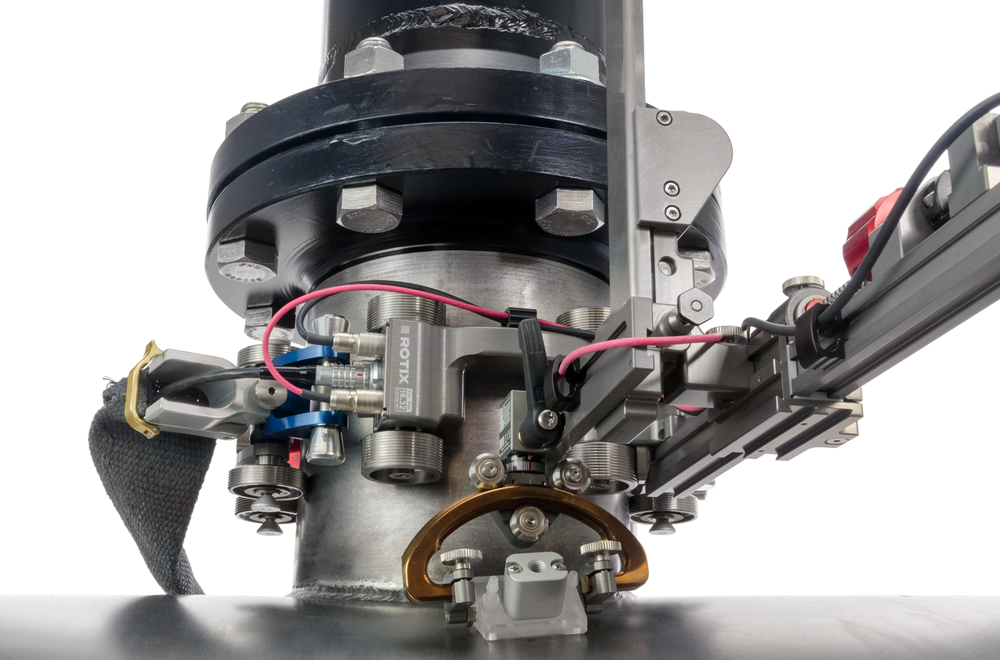

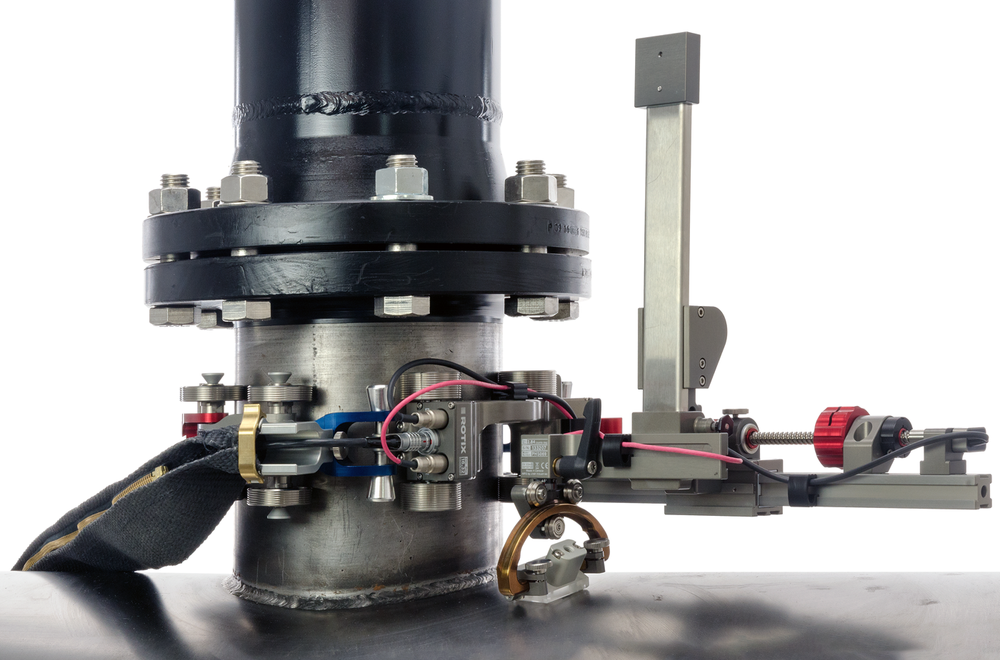

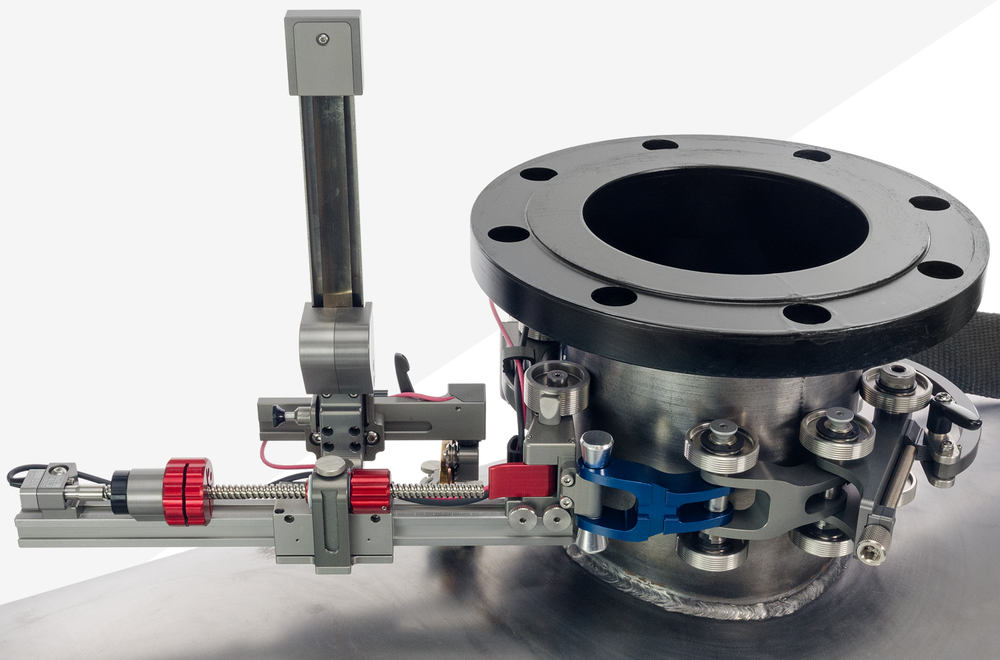

Inspect materials with a temperature of up to 350°C (662°F) with confidence using the ROTIX - High Temperature 3-Axis Nozzle Scanner. A specialized long-stroke probe holder includes encoded skew angle measurement, while the scanner employs a chain system for stable inspection on both ferrous and non-ferrous surfaces. The scanner is also capable of limited clearance inspection, requiring just 12.7 cm (5.0 in) between the vessel and flange.
Part ID: CEG041
FEATURES
HIGH TEMPERATURE INSPECTION
Perform UT scans while pipes and tubes remain on-line with surface temperatures up to 350°C (662°F).
ADJUSTABLE CHAIN
Configure chain links to scan diameters of 7.6 cm - 60 cm (3 in - 24 in) with our exclusive chain design.
ENCODED SKEW VERTICAL PROBE HOLDER
This inventive probe holder offers 12.2 cm (4.8 in) of vertical travel as well as an encoded skew measurement.
HIGH TEMPERATURE DOUBLE WHEEL CHAIN
The chain links have been designed to minimize heat transfer through minimal contact with the heated surface and stainless steel materials. Double wheel chains straddle the weld which alleviates scanner wandering and reduces scanner width.
ROTIX LOW PROFILE LINK
In addition to containing the scanner's positional encoder, the low profile link transmits all three encoder signals to the user's instrument. Utilize the low profile link's dovetail grooves to organize cables and tubes.

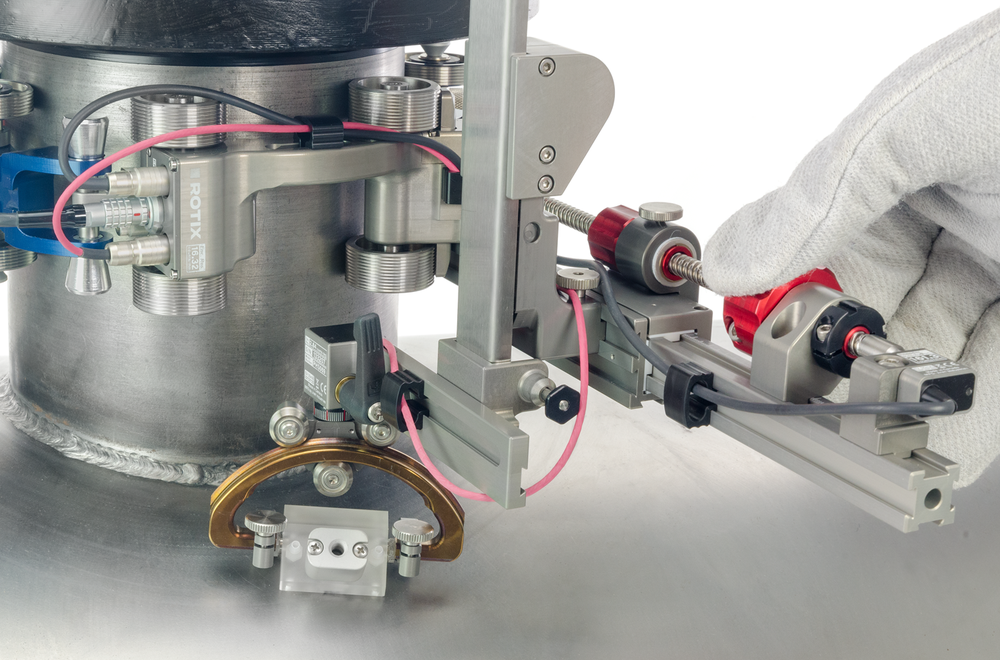

SLIDER PROBE POSITIONING SYSTEM
Make quick adjustment to the probe's distance to the weld without requiring scanner removal. The included encoder ensures precise measurement along the frame bar.
Y-AXIS ENCODING
Measure probe distance from the weld.
HIGH TEMPERATURE CABLE MANAGEMENT
Protective sleeving organizes and protects cables and hoses connected to the equipment.
CABLE MANAGEMENT
Cable clips mount to various locations on the scanner, probe holder and frame bar. These simple clips facilitate cable management on the equipment.
WARRANTY
A three-year limited warranty backs all products. Contact JIREH for more information.

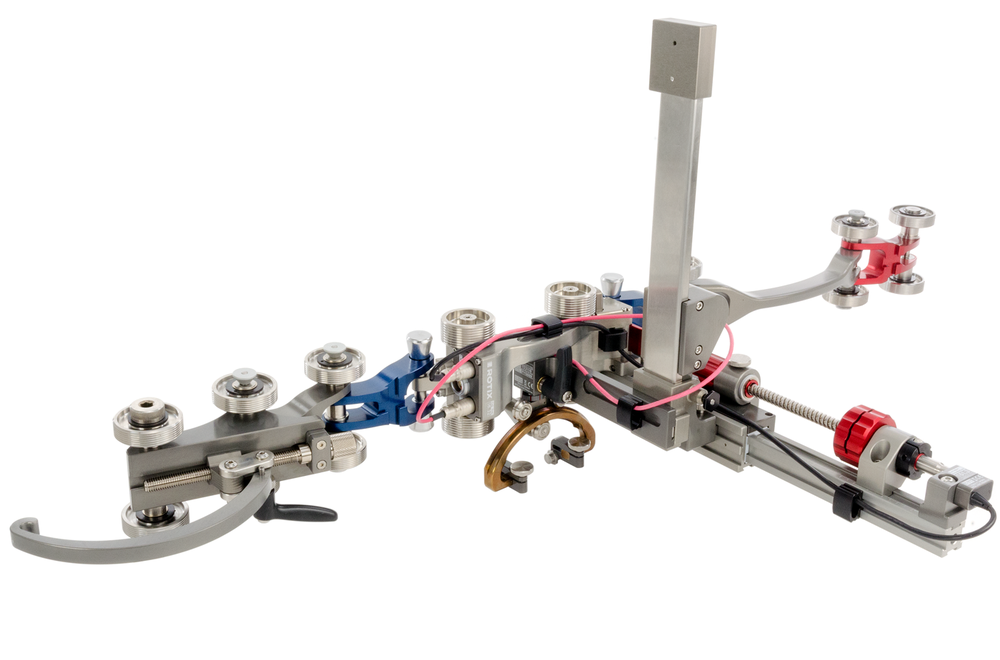

COMPONENT IDENTIFICATION
CATCH LINK
The catch link connects with the buckle to complete the chain system.
SHORT LINK
Short links form the chain needed for various pipe and tube diameters.
SHORT LINK WITH DOVETAIL
The addition of the dovetail allows for the mounting of accessories such as cable management.
SHORT TRANSITION LINK
This link connects both ends of the low profile link to facilitate the high temperature chain links.
ROTIX LOW PROFILE LINK
The low profile link contains the system's positional encoder as well as cable management mounts, the brake, connection point for the frame bar and inputs for additional encoder signals. The encoder output is compatible with most industry-standard instruments.
LONG LINK
Roughly equivalent to 3 short links, the long link is useful for larger diameters.
BUCKLE
The buckle fastens to the catch link and allows control of chain tension.

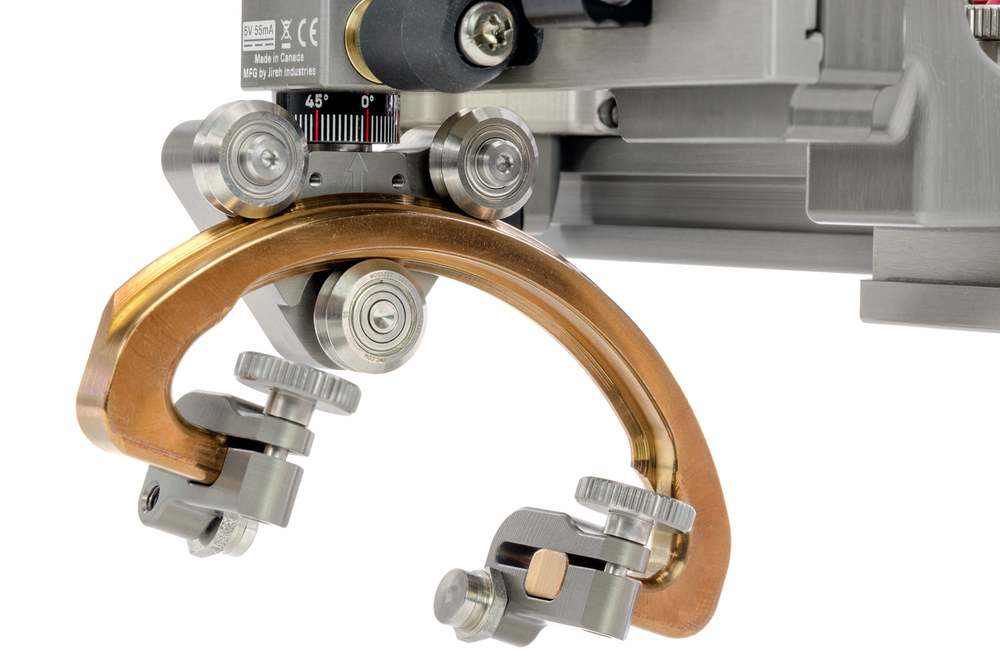

SKEW ENCODER
Probe skew angle is recorded using the skew encoder.
LONG STROKE PROBE HOLDER
The long-stroke vertical probe holder offers immense travel over various scan surfaces.
SLIDER PPS
Position the probe holder closer or farther from the weld with ease using the slider probe positioning system.
SLIDER PPS ENCODER
Offset position is recorded using the slider PPS encoder.
SPECIFICATIONS
GENERAL
Pipe Range: 7.6 cm - 60 cm (3 in 24 in)
Encoder Resolution: 16.3 counts/mm (414.5 counts/inch)
Y-Axis Encoder Resolution: 161.3 counts/mm (4096.0 counts/inch)
Skew Axis Encoder Resolution: 2.84 counts/deg.
Probe Holding Capacity: 1 wedge
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Non-ferrous or ferrous materials
PIPE CLEARANCE
Radial Clearance: 38 cm (15 in)2
Vertical Clearance: 12.5 (4.9 in)
SIZE & WEIGHT

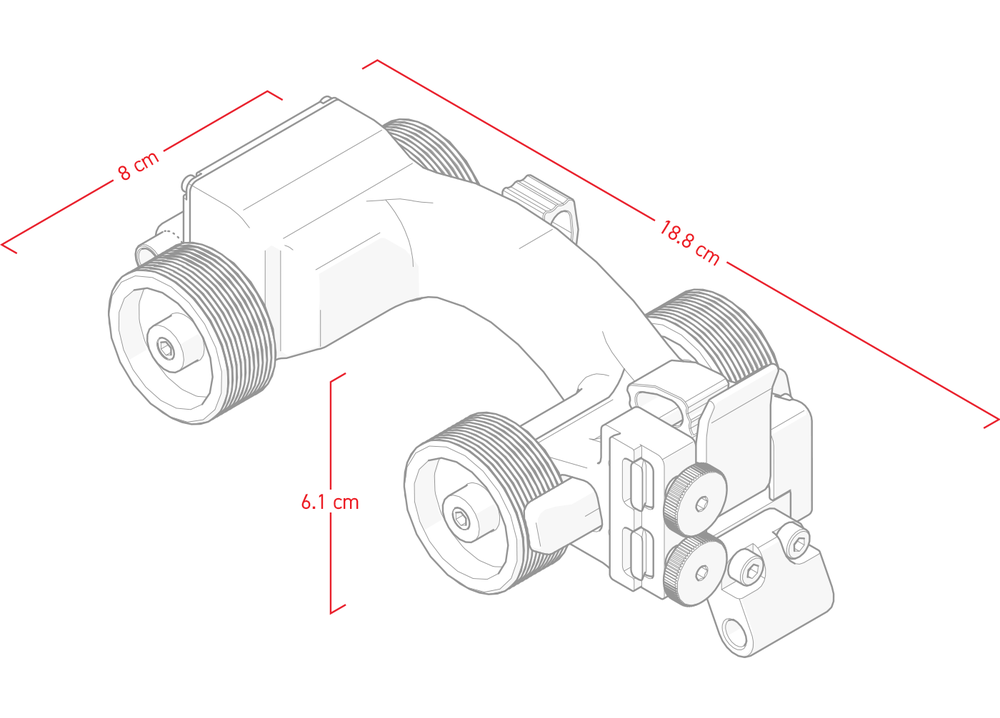

Low Profile Link Height: 6.1 cm (2.4 in)
Low Profile Link Length: 8 cm (3.2 in)
Low Profile Link Depth: 18.8 cm (7.4 in)
Low Profile Link Weight: 0.53 kg (1.2 lb)
Encoded Skew Vertical Probe Holder Height: 32.2 cm (12.7 in)
Encoded Skew Vertical Probe Holder Length: 10.4 cm (4.1 in)
Encoded Skew Vertical Probe Holder Depth: 14.2 cm (5.6 in)
Encoded Skew Vertical Probe Holder Weight: 0.75 kg (1.7 lb)
Shipping Weight: TBA kg (TBA lb)3
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Maximum Surface Temperature: 350°C (662°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
ENCODED SKEW PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 36 mm (1.4 in)4
Maximum Wedge Width: 44 mm (1.7 in)4
PROBE HOLDER PIVOT BUTTONS
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
