ROTIX - Corrosion Chain Scanner
ROTIX - Corrosion Chain Scanner
A host of valuable features make the ROTIX - Corrosion Chain Scanner an excellent choice for manual non-ferrous corrosion inspection. Built-in positional and index encoders ensure precise measurement while the versatile chain system allows for pipe sizes of 10.2 cm - 96.5 cm (4 in - 38 in).
The HydroFORM Cart (PHS044) manufactured by JIREH requires 8 mm (0.315 in) probe holder pivot buttons.
Part ID: CEG027
Enhance corrosion scanning with versatility, functionality, and simplicity.
FEATURES
CORROSION SCANNING

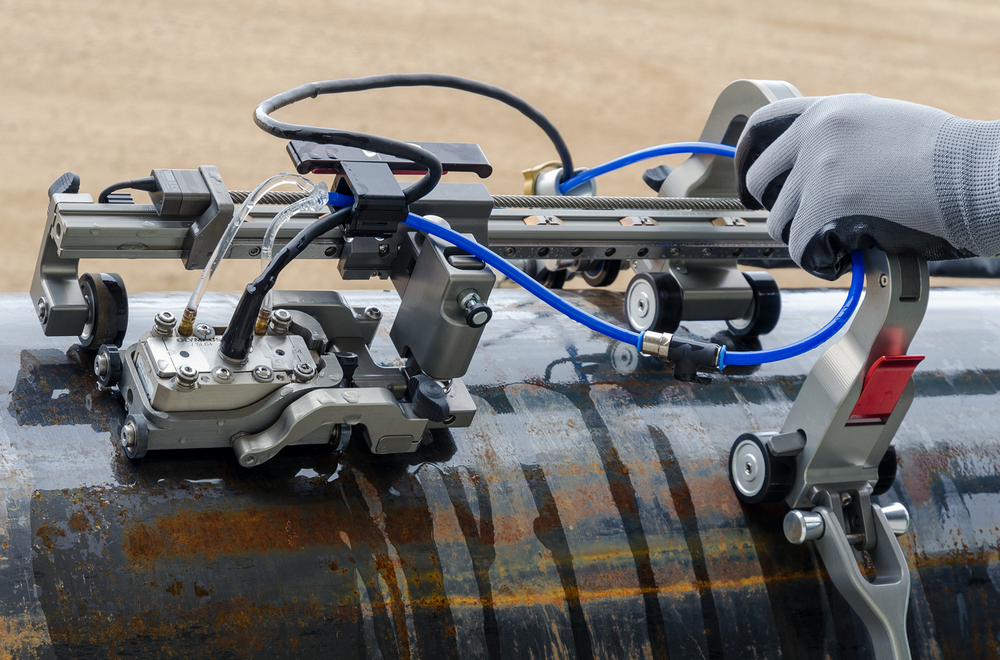

Perform precision corrosion scans with ease. Manually operated, this chain scanner provides encoded probe positioning on non-ferrous inspection surfaces.
SCAN CONTROL

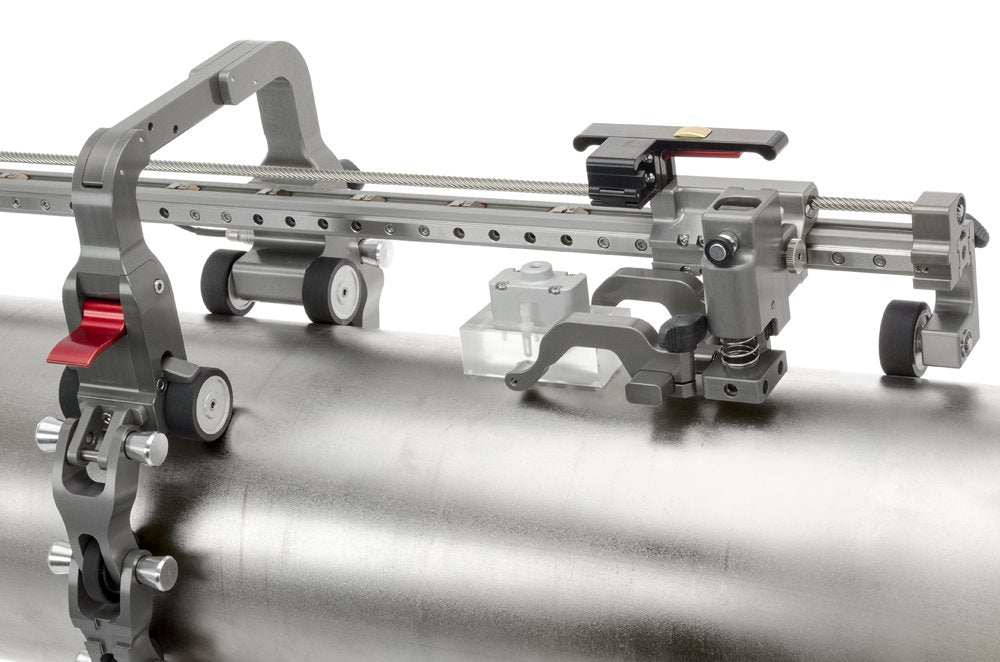

The carrier, to which the heavy duty vertical probe holder connects, includes a locking handle which aligns the probes scan path. Simply lift the handle and slide the carrier to the next index position (which is configurable depending on the size of the probe used) to align to the following scan path.

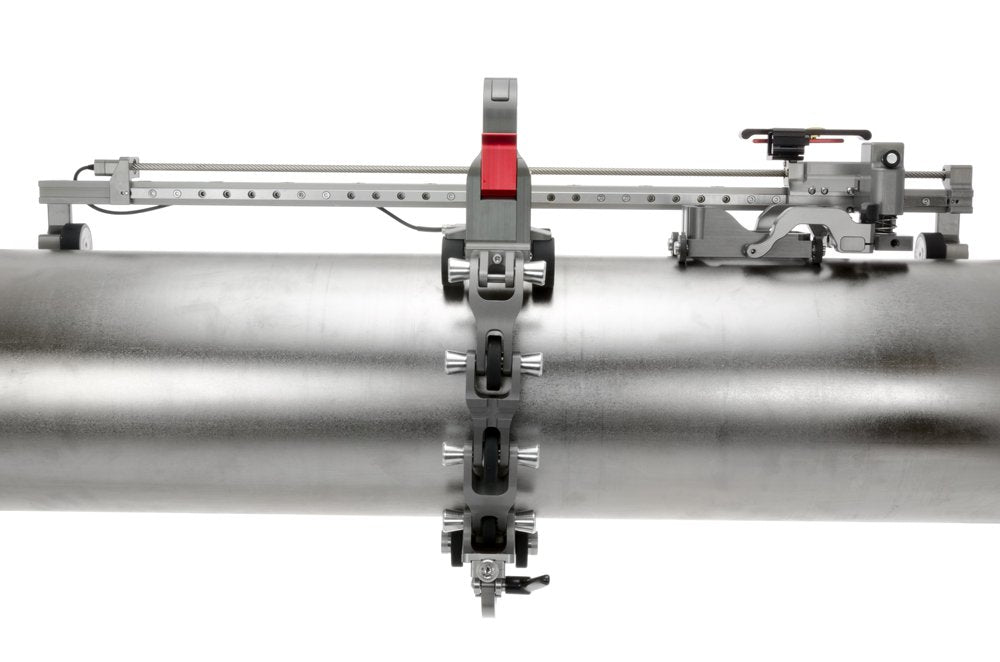

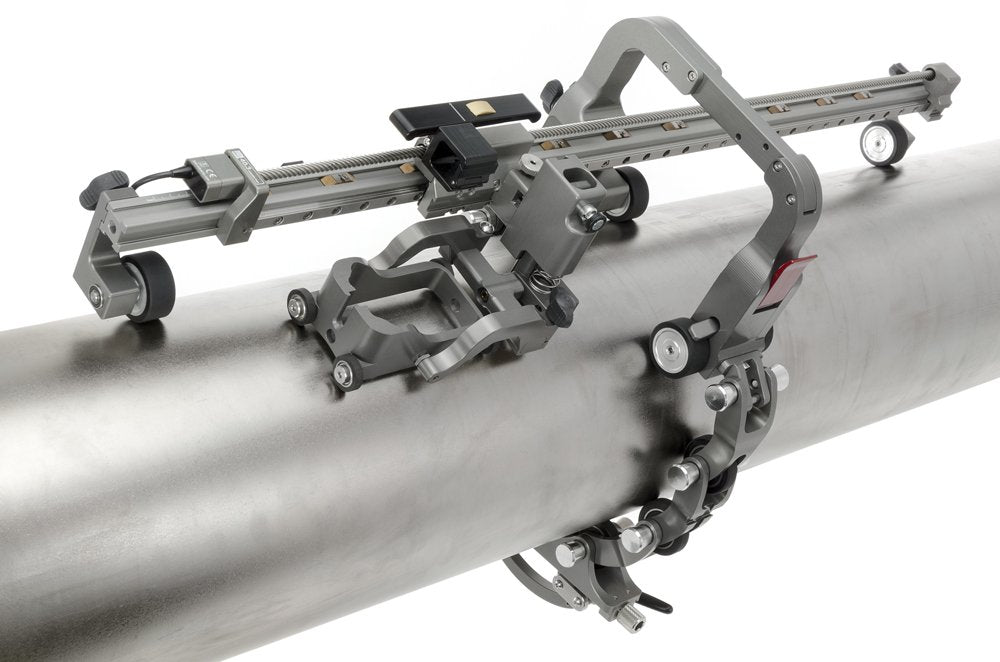

ADJUSTABLE CHAIN
Using various links, and an adjustable buckle, any size of pipe diameter from 10.2 - 96.5 cm (4 - 38 in) may be inspected. The quick release links are designed for simple and efficient setup of the scanner.
ENCODING
Providing encoded positioning for both the X and Y-axis. The built-in encoder output is fully compatible with all standard instruments.
WHEELS
Coated with urethane to reduce the effects of foreign debris to the scanner's motion, Urethane also eliminates slippage of the scanner during vertical applications
BRAKE
Control scanner movement with the scanners brake system.
HEAVY DUTY VERTICAL PROBE HOLDER
Designed to carry large probes, the heavy-duty vertical probe holder is compatible with the Olympus HydroFORM when used in conjunction with the HydroFORM Cart.

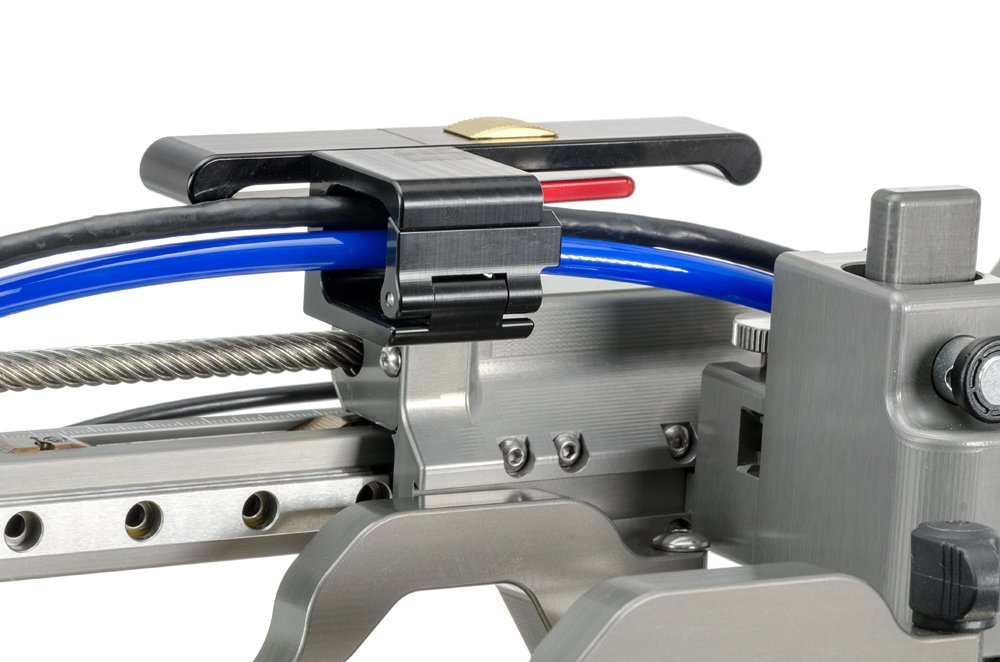

CABLE MANAGMENT
Cable Clips allow for routing probe cables and irrigation tubes in an organized, efficient manner on the scanner. This is in addition to the cable management which protects tubes and cables to the instruments.
THREE YEAR LIMITED WARRANTY
JIREH warrants product against defects in materials and workmanship for three years from the original date of purchase.
KIT CONTENTS

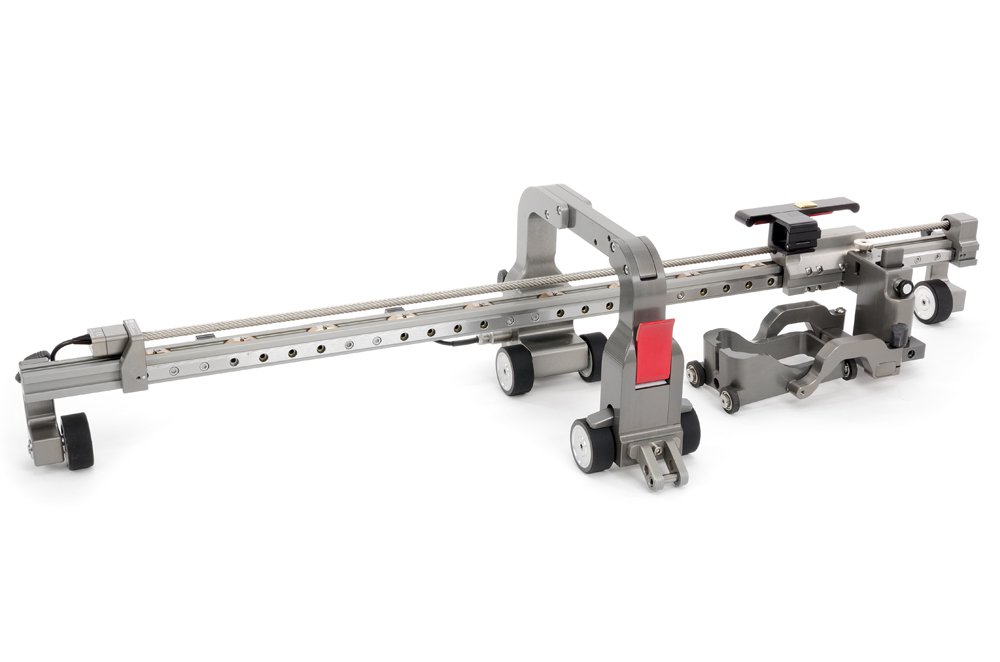

SCANNER
ROTIX frame, 75 cm (29.5 in) frame bar with ruler
PARTS & ACCESSORIES
Single wheel chain links (long, short, buckle, etc)
Heavy duty vertical probe holder
Index encoder
Encoder cable, 7.5 m (24.6 ft)
4 mm ID irrigation kit (7/16 in quick connect)
Cable management, dovetail mount, 7 m (22.9 ft)
Corrosion scanner spare parts kit
Cable clips x2
User manual
Setup chart
Rugged carrying case
TOOLS
3 mm hex driver
2 mm hex driver
Wrench for pivot button adjustment

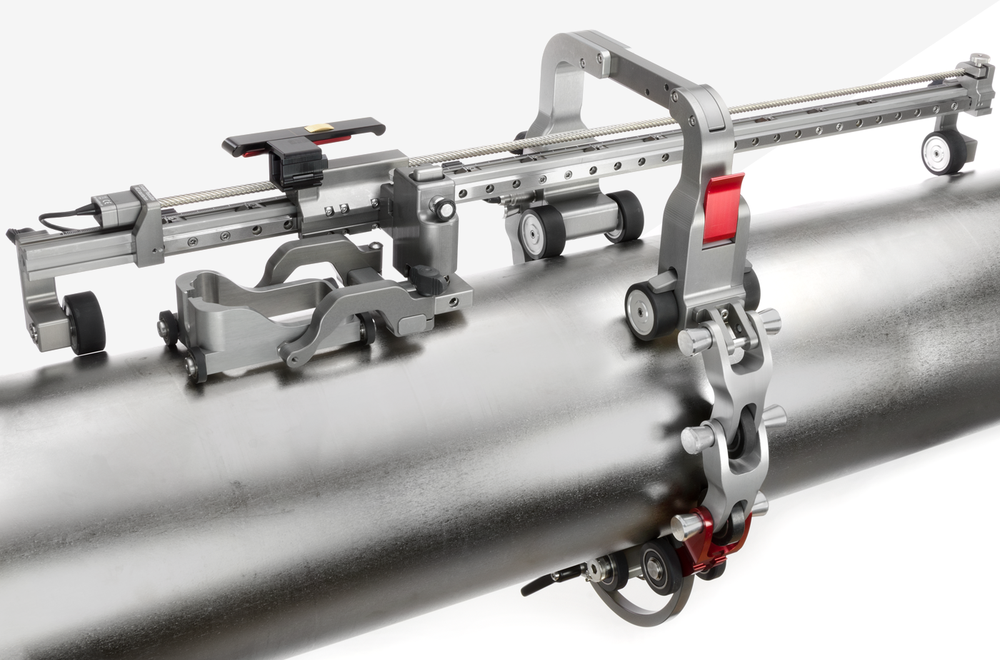

COMPONENT IDENTIFICATION
OVER-THE-TOP LINK
Contains the positional encoder and operates as the backbone of the scanner. Tall enough that the carrier and probe holder can pass through underneath.

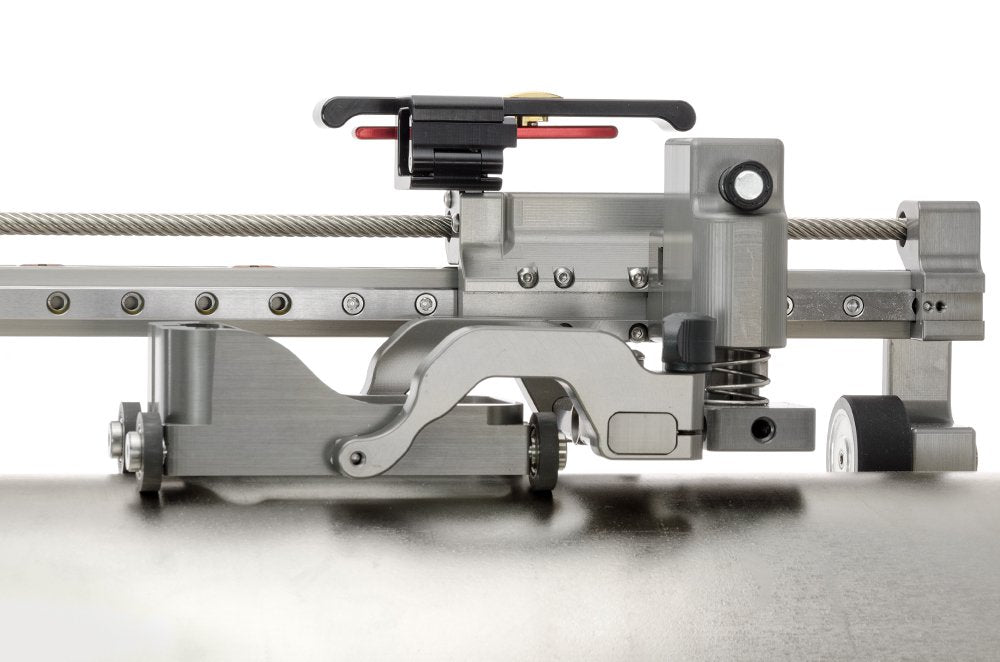

CARRIER
With locking options and cable management, the carrier slides effortlessly along the stroke of the scanner carrying the heavy duty vertical probe holder.
HEAVY DUTY VERTICAL PROBE HOLDER
Incredibly adjustable to accommodate infinite scan surfaces, probe and wedge sizes as well as scan directions of travel.
DOVE-TAIL LINK
Attach various accessories, such as the cable management to the dove-tail attachment of this short link.
SHORT LINK
A short connecting link.
LONG LINK
Roughly the size of 3 short links, the long link is useful for large diameter scan surfaces.
BUCKLE
When connected to the catch link, the chain scanner is mounted firmly to the pipe/tube. Chain tension is adjusted using the buckle.
CATCH LINK
It is used in conjunction with the buckle to secure the scanner to the inspection surface. A dove-tail link is included for attaching optional accessories.
ENCODER
The y-axis encoder tracks the probe position along the stroke.
SPECIFICATIONS
GENERAL
Pipe Range, Circumferential: 10.2 cm (4 in) to 96.5 cm (38 in)
Stroke Length: 61 cm (24 in)
Encoder Resolution: 16.3 counts/mm (414.5 counts/inch)
Index Resolution: 40.3 counts/mm (1023.9 counts/inch)
Probe Holding Capacity: One heavy duty probe holder
Encoder Cable Length: 7.5 m (24.6 ft)1
Inspection Surface: Ferrous and non-ferrous
RADIAL CLEARANCE
Radial Scanner Clearance: 13.1 cm (5.14 in)
SIZE & WEIGHT
Scanner Height: 15.1 cm (5.9 in)
Scanner Width: 75 cm (29.5 in)
Scanner Depth: 24.3 cm (9.6 in)
Scanner Weight: 2.8 kg (6.2 lb)2
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
HEAVY DUTY VERTICAL PROBE HOLDER SPECIFICATIONS
Standard Yoke
Minimum Wedge Width: 17.4 mm (0.69 in)
Maximum Wedge Width: 55 mm (2.17 in)
Standard Length: 63.5 mm (2.5 in)
Wide Yoke
Minimum Wedge Width: 17.4 mm (0.69 in)
Maximum Wedge Width: 93.8 mm (3.69 in)
Wide Length: 63.5 mm (2.5 in)
PROBE HOLDER PIVOT BUTTONS
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
