ROTIX - 4 Probe Weld Frame Scanner

ROTIX - 4 Probe Weld Frame Scanner

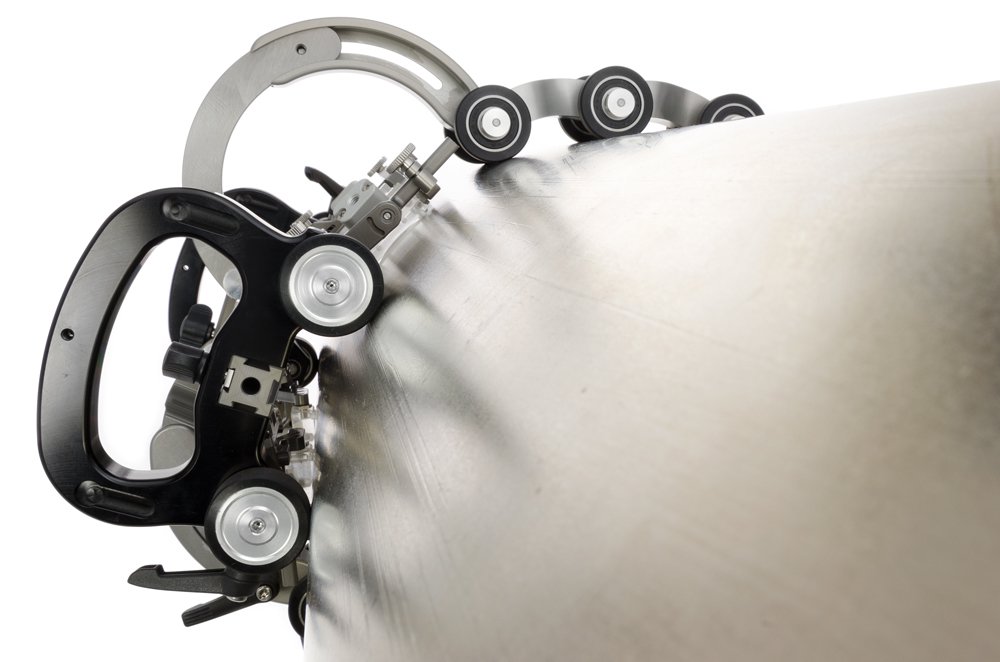

The ROTIX - 4 Probe Weld Frame Scanner provides the encoded probe position of four probes circumferentially around tubes and pipes. Manually operated, this double-wheel chain scanner straddles the weld, allowing the scanner frame to be centred on the weld, thus reducing wandering and scanner width. Adapt this chain scanner for outer diameter scan surfaces of 10.2 cm - 96.5 cm (4 in to 38 in) using short and long links combinations.

Part ID: CEG013

Scan both ferrous and non-ferrous materials with a flexible four probe chain scanner.

FEATURES

ADJUSTABLE CHAIN

Using two link lengths and an adjustable buckle, pipes and tubes ranging from 10.2 cm – 96.5 cm (4 in – 38 in) diameter may be easily scanned. The quick-release links are designed for a simple and efficient chain setup.

DOUBLE WHEEL CHAIN

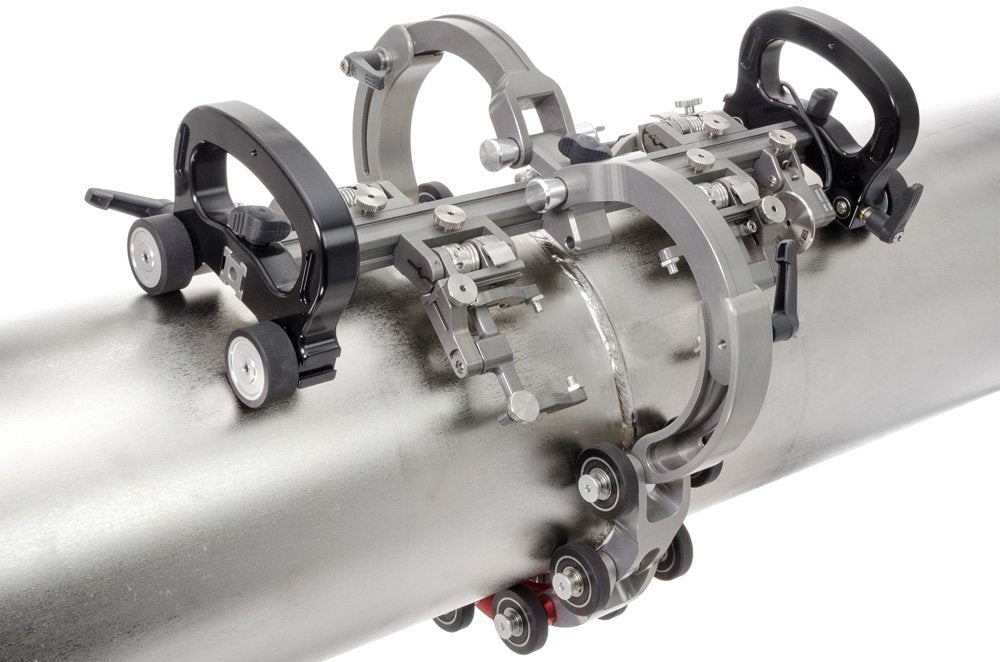

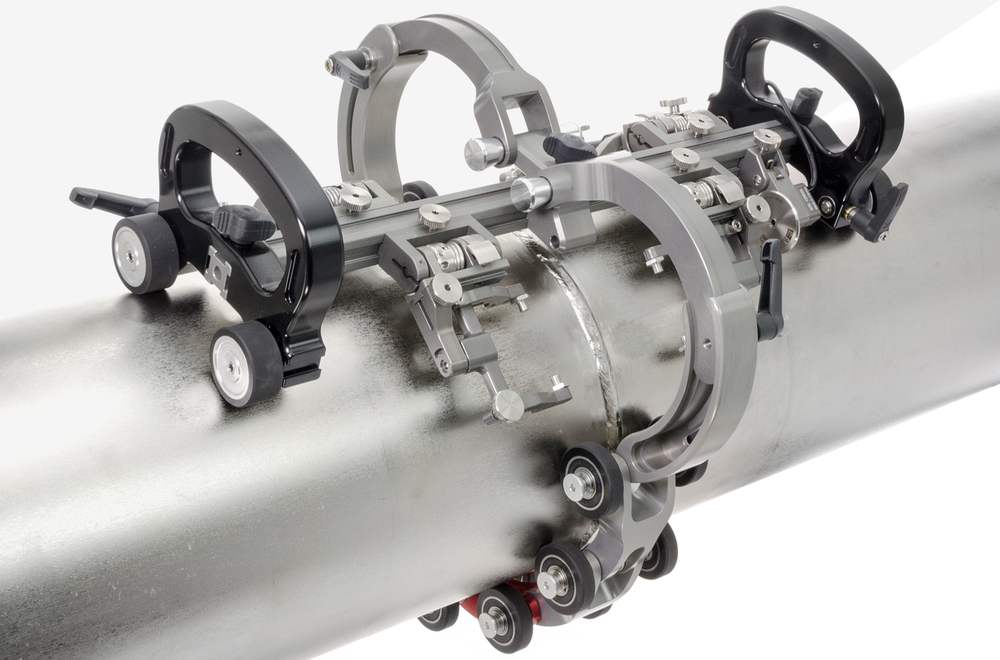

The double-wheel chain straddles the weld to allow the scanner to be centred on the weld. This alleviates scanner wandering and reduces the width of the scanner.

BRAKES

Prevent scanner movement when required.

WHEELS

Urethane wheels reduce the effects of debris on scanner travel and eliminate slippage during vertical applications.

SPRING-LOADED ENCODER

The spring-loaded encoder maintains encoder contact with the scan surface, ensuring accuracy. The encoder's output is fully compatible with most standard instruments.

ADJUSTABLE OVERTOP LINK

Raise the adjustable overtop link to provide space for large probes to operate. Lower the adjustable overtop link when low-profile scanning is required.

SLIP JOINT PROBE HOLDERS

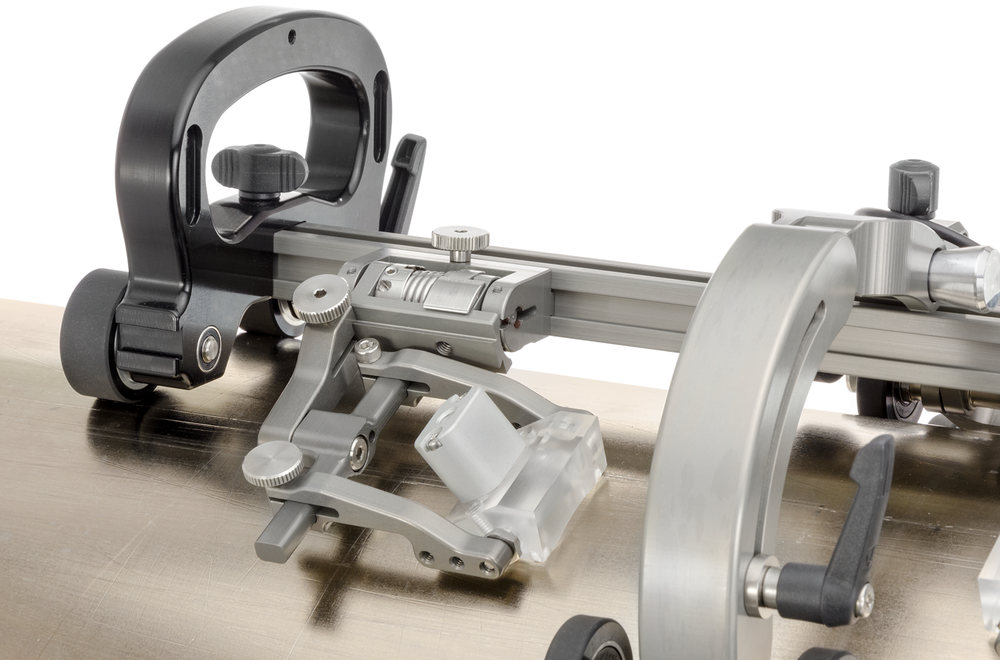

Easily adjust probe centre spacing and probe alignment with these probe holders designed to accommodate most major phased array wedge types.

HANDLES

Convenient handles offer control of the scanner and mounting points for accessories such as cable management.

MODULAR DESIGN

Convert the ROTIX to a magnetic STIX scanner with a conversion kit allowing for one tool to be used for many applications.

WARRANTY

JIREH backs this product with a 3-year warranty

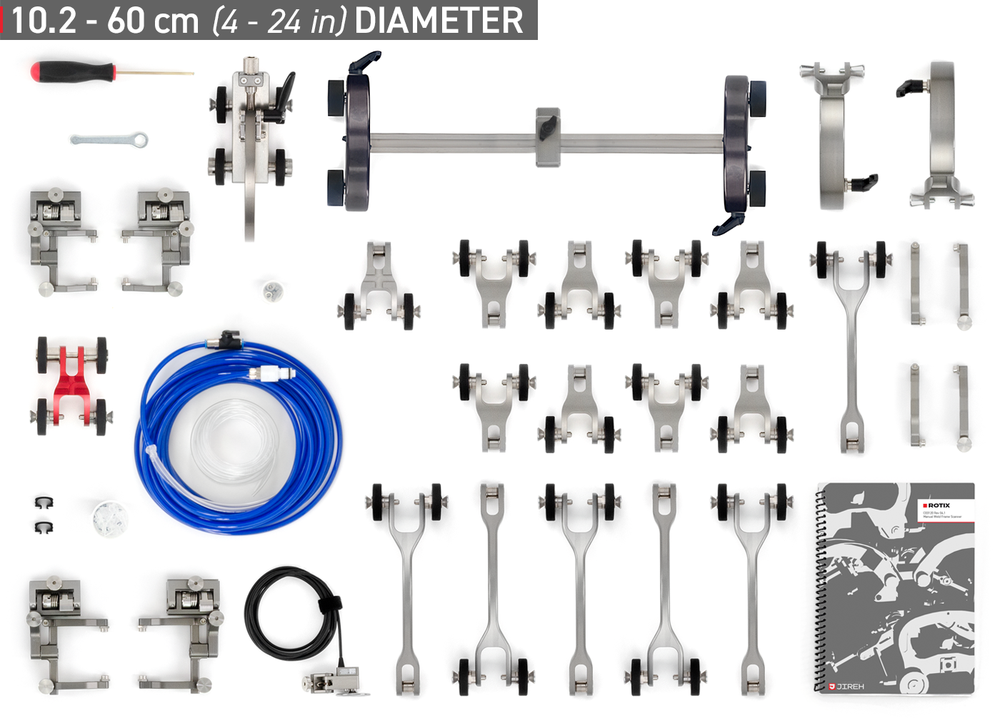

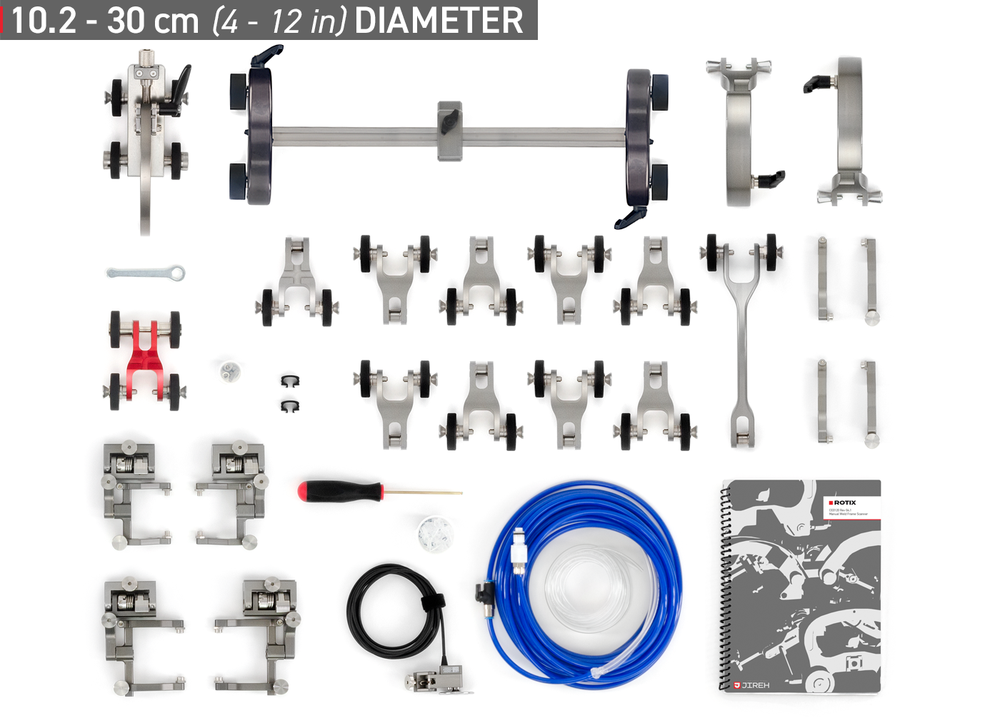

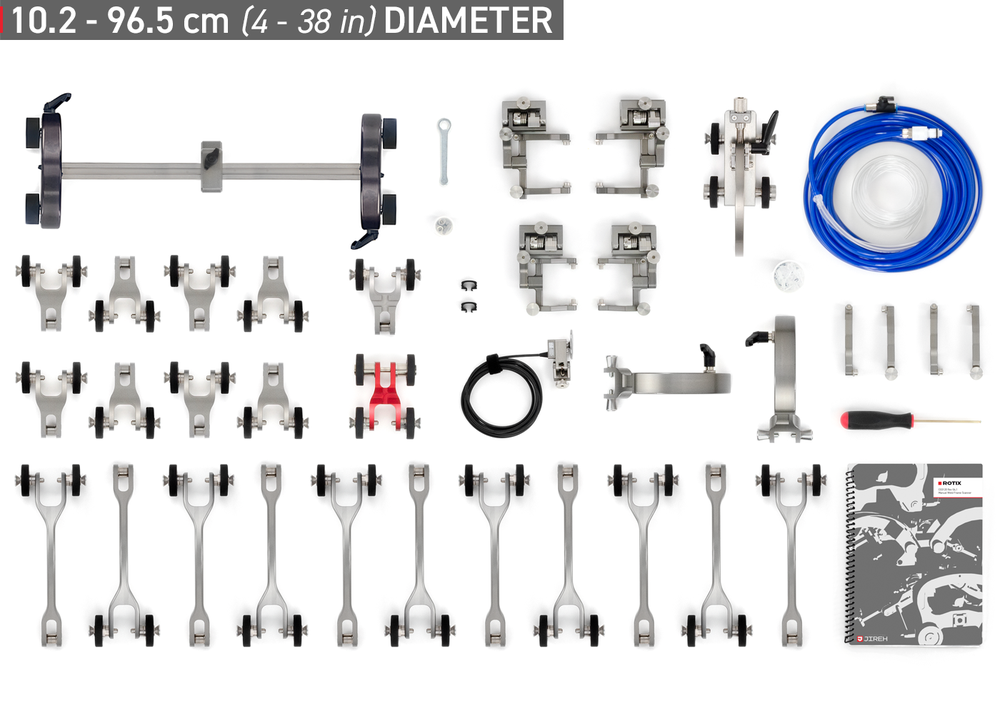

KIT CONTENTS







GENERAL

ROTIX frame with 40 cm (15.7 in) frame bar

PARTS & ACCESSORIES

Double wheel chain links (Long, short, buckle, etc.)
Adjustable overtop link x2
Spring-loaded encoder, 5 m (16.4 ft)
Slip joint phased array probe holders x2
Slip joint TOFD probe holders x2
Long probe holder arm set x2
4 mm ID irrigation kit (7/16 in quick connect)
Probe holder spare parts kit
Cable clips x2
User manual
Setup chart

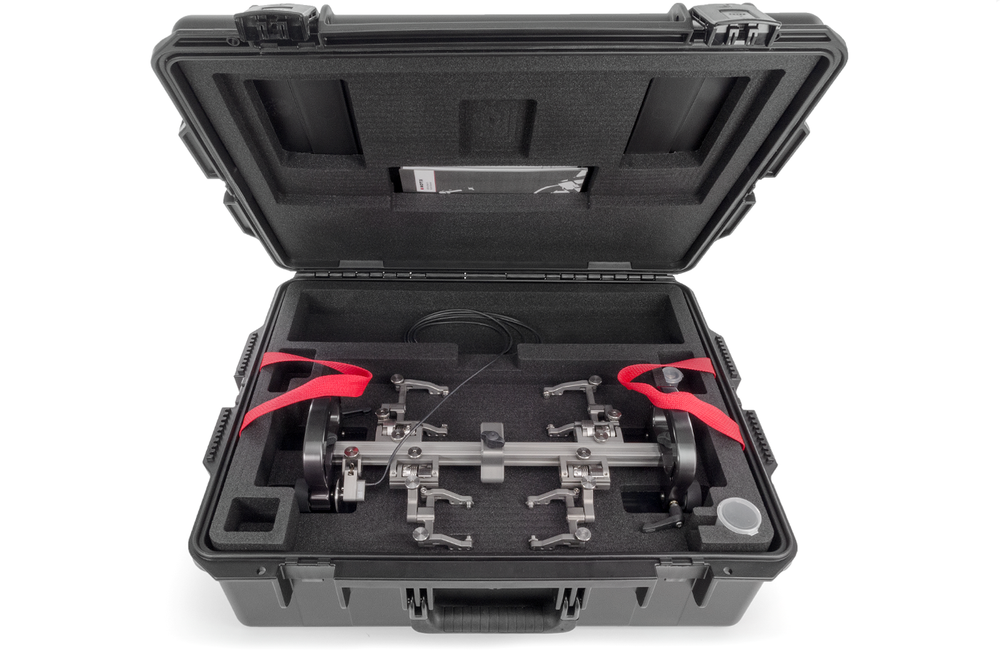

Rugged carrying case

TOOLS

3 mm hex driver
Wrench for pivot button adjustment

COMPONENT IDENTIFICATION


ADJUSTABLE OVERTOP LINK

The adjustable overtop link adjusts to accommodate oversized probes. When low-profile scanning is required, the link may be contracted.

FRAME BAR

The kit includes a 40 cm (15.7 in) frame bar. However, various lengths of frame bars are available for various scan applications.

SLIP JOINT PROBE HOLDERS

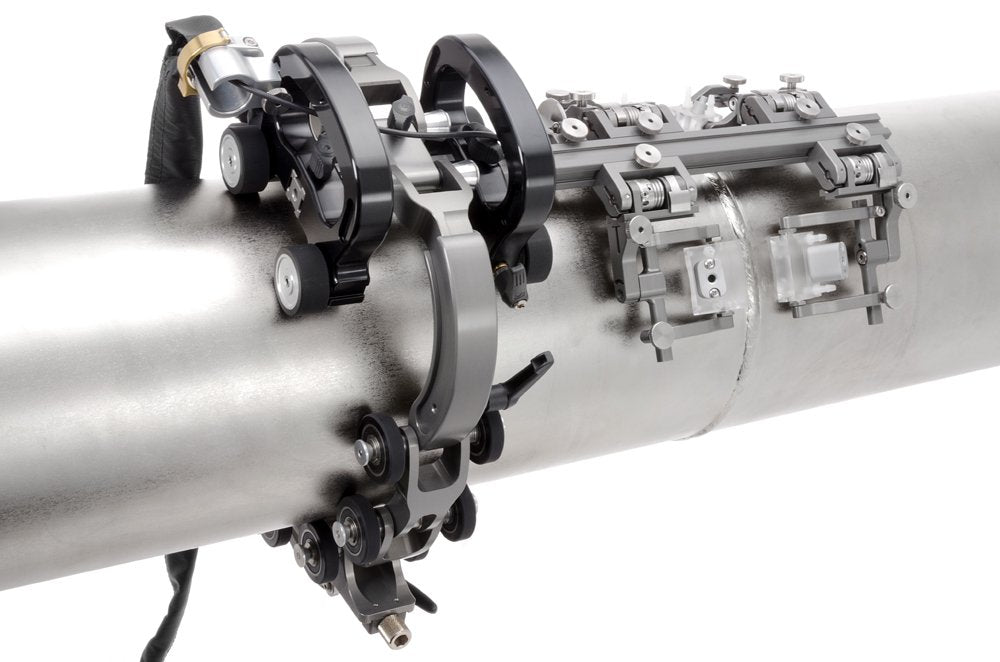

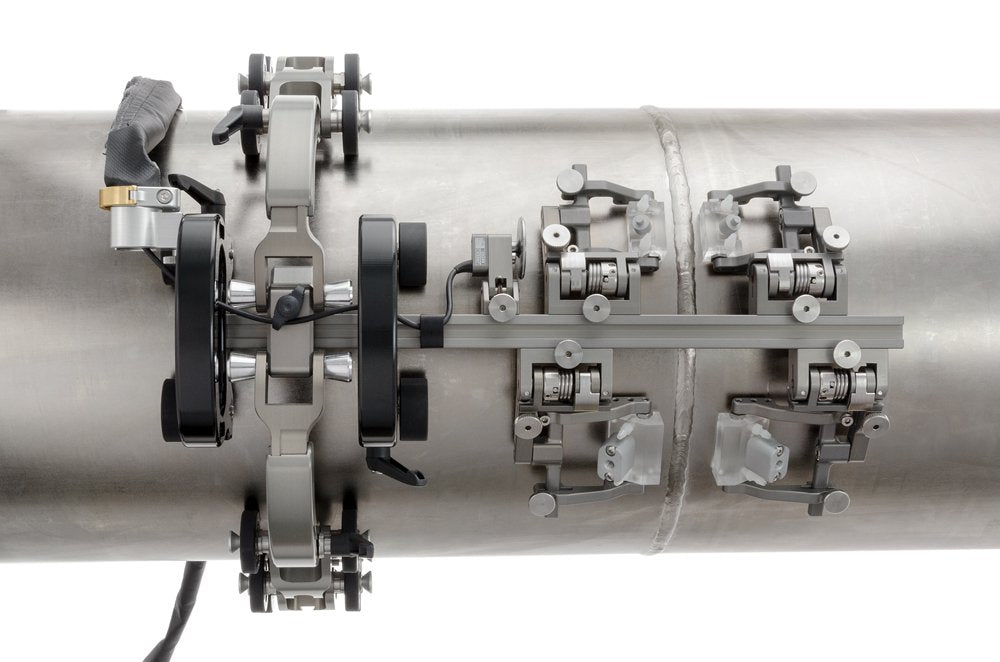

Four slip joint probe holders carry two phased array and two TOFD wedges.

HANDLES

Handles allow a grip point for the scanner and a mounting point for various accessories.

SHORT LINK

Multiple short links complete the chain configuration around pipes and tubes.

CATCH LINK

The catch link completes the chain connection around the scan surface. Use the dovetail mount to carry accessories when required.

SHORT LINK WITH DOVETAIL

Utilize the dovetail mount to add accessories to the scanner, such as cable management.

LONG LINK

Equivalent to (approx.) 3 short links, the long link is helpful during large-diameter scan setups.

BUCKLE

The buckle connects to the catch link to form the chain system, which mounts the scanner to the inspection surface.

SPECIFICATIONS







GENERAL

Pipe Range, Circumferential: 10.2 cm - 96.5 cm (4 in 38 in)
Encoder Resolution: 9.05 counts/mm (230.0 counts/inch)
Probe Holding Capacity: 2 TOFD wedges, 2 phased array wedges
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous and non-ferrous materials

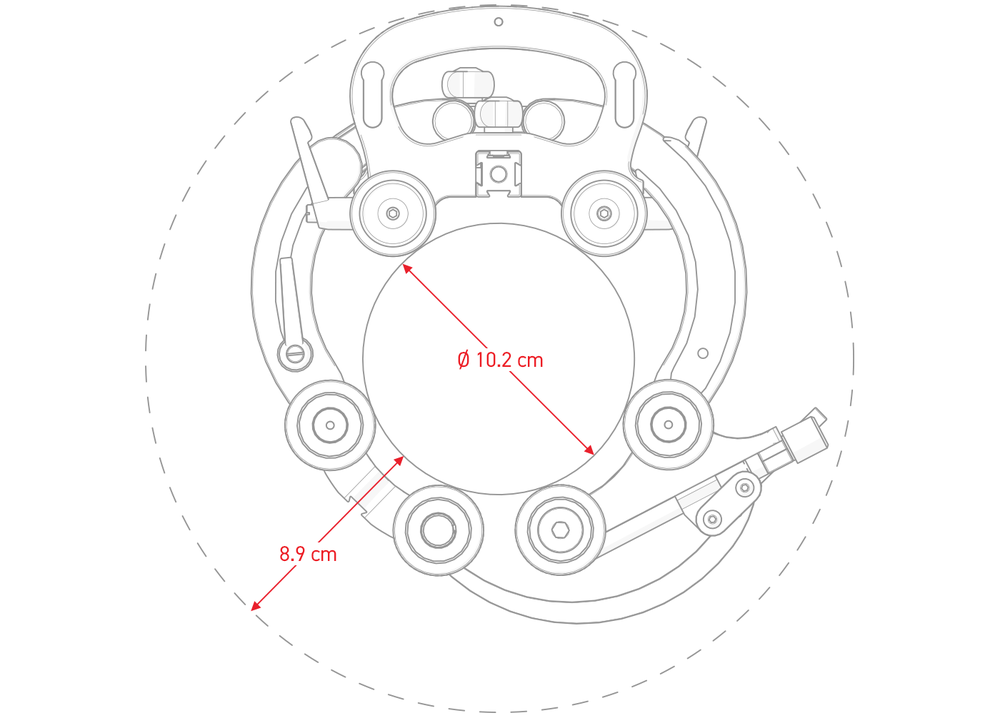

RADIAL CLEARANCE

Scanner Radial Clearance: 8.9 cm (3.5 in)

SIZE & WEIGHT

Scanner Height: 10.5 cm (4.1 in)
Scanner Depth: 17.5 cm (6.9 in)
Scanner Length: 38.5 cm (15.2 in)
Scanner Weight: 1.27 kg (2.8 lb)
Shipping weight: 16.5 kg (36.4 lb)2

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details

PHASED ARRAY PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 57.6 mm (2.3 in)3

TOFD PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 45 mm (1.8 in)3

PROBE HOLDER PIVOT BUTTONS


01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
