ROTIX - 2 Probe Phased Array Scanner
ROTIX - 2 Probe Phased Array Scanner

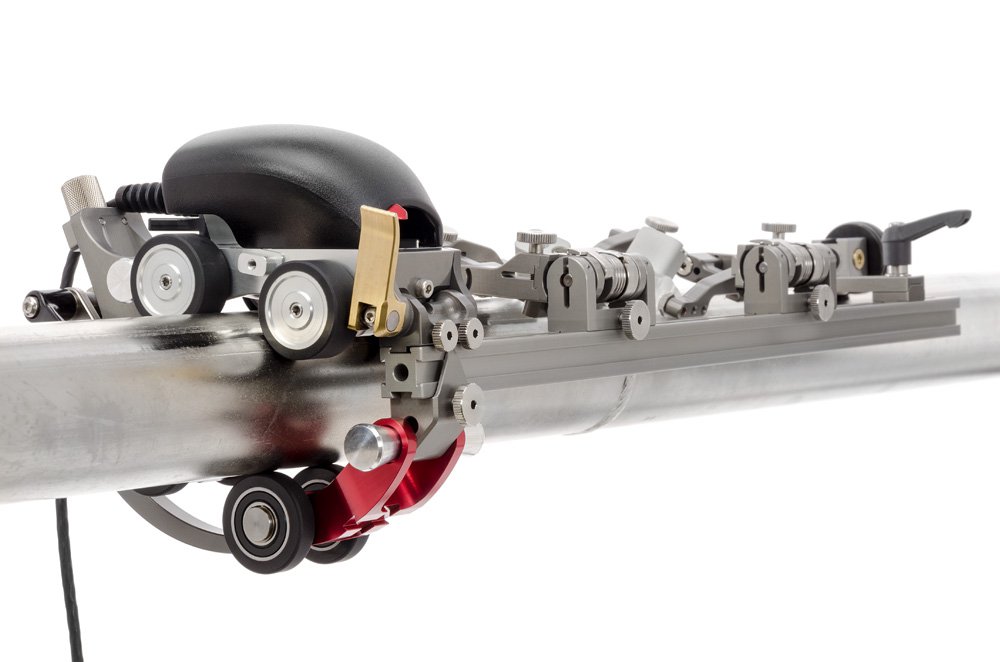

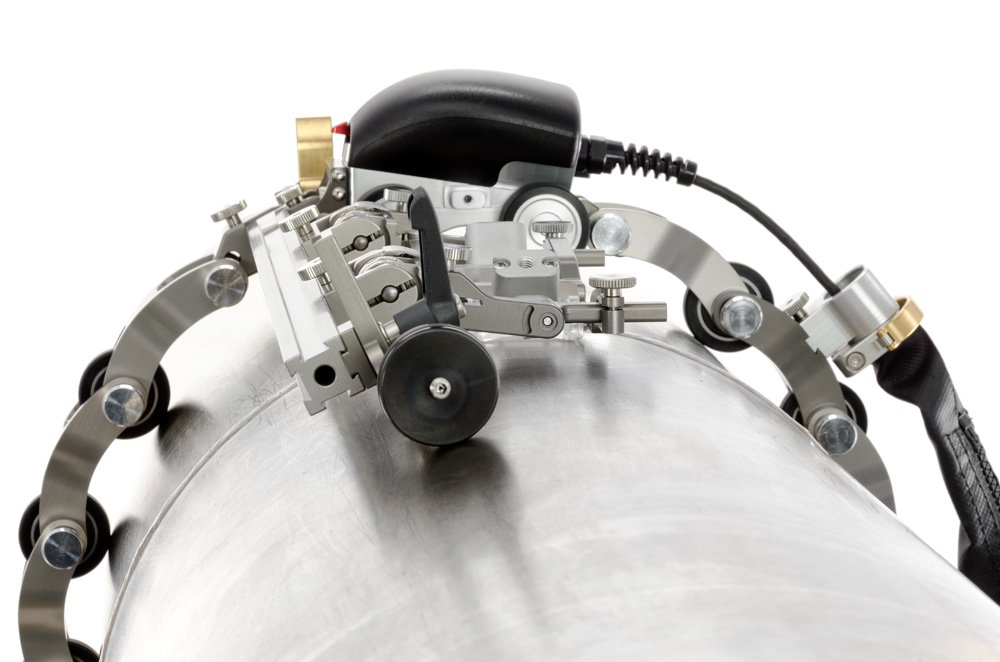

The ROTIX is a manual chain scanner designed to provide encoded probe position of probes circumferentially around tubes and pipes. The ROTIX - 2 Probe Phased Array Scanner is completely configurable for both phased array and traditional UT (Ultrasonic Testing) with single or multiple probes.
Part ID: CEG002
Two probe cantilever scanning which provides quick probe adjustment.
FEATURES
ADJUSTABLE CHAIN
Our exclusive chain design grants the ability to scan pipe/tube diameters of 3.8 cm to 96.5 cm while using quick release, easy to use chain system.
FRAME BARS
45 cm (17.7 in) and 20 cm (7.8 in) frame bars provide setup options for dual and single probe scanning.
BRAKE SYSTEM
A brake is provided to lock the scanner in a required position.
UMBILICAL
The umbilical is modular and can be removed from the scanner. It can be used for one-axis and two-axis scans when used with optional accessories.
REMOVABLE HANDLE
The ROTIX includes a removable cover which allows easy access to protected connections while also providing a means of cable management.
BUILT-IN ENCODER
An encoder is integrated into the body of the ROTIX cart. The encoder output is fully compatible with all standard instruments
WHEELS
All wheels are coated with urethane to reduce the effects of foreign debris obstructing the rolling of the scanner. Urethane also eliminates the sideways sliding of the scanner when used in vertical applications.
PROBE HOLDERS
An integrated latch allows easy probe center spacing adjustment and scanner installation. Due to its modular design, most major types of phased array wedges can be accommodated.
WARRANTY
Three-year limited warranty on all products.

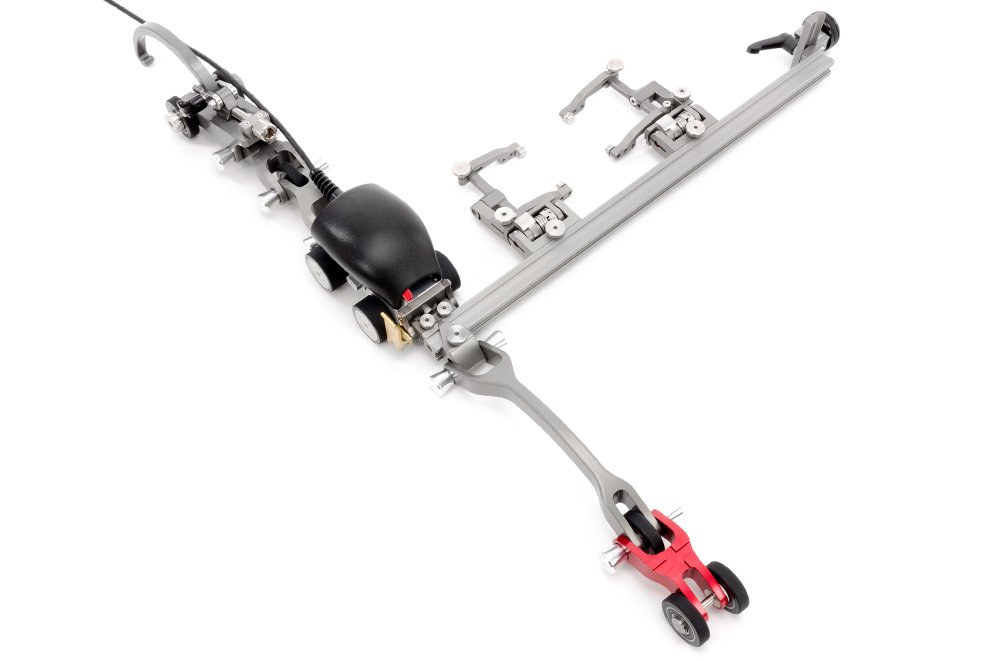

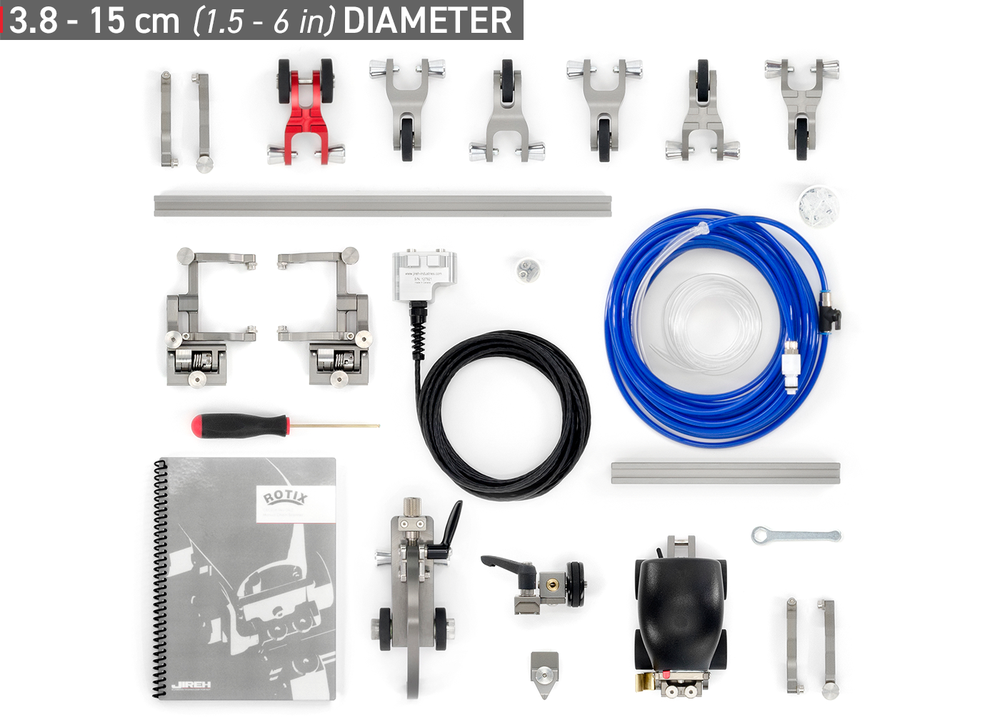

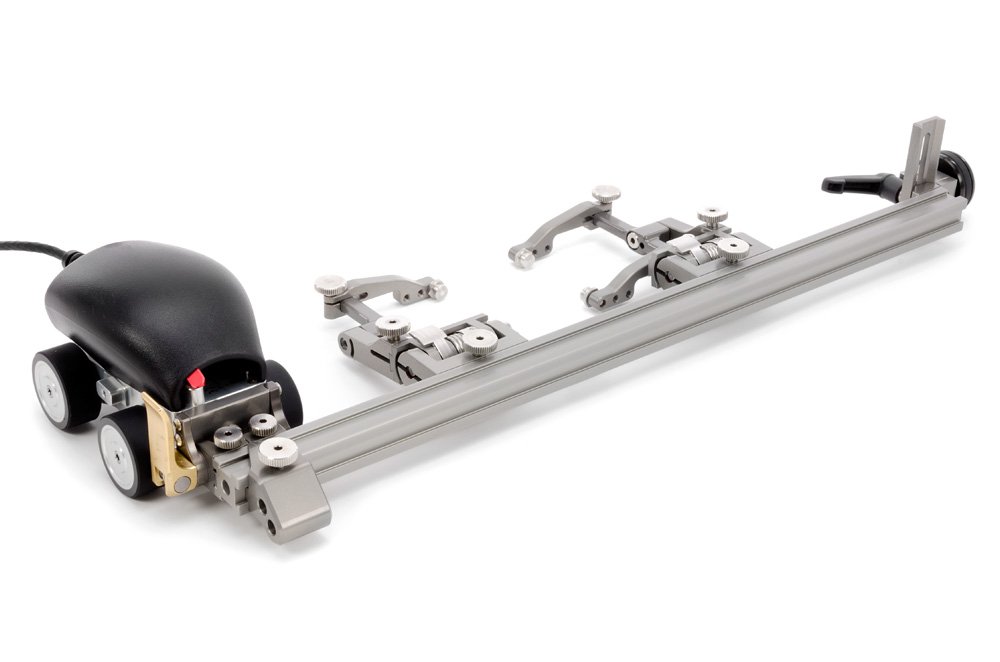

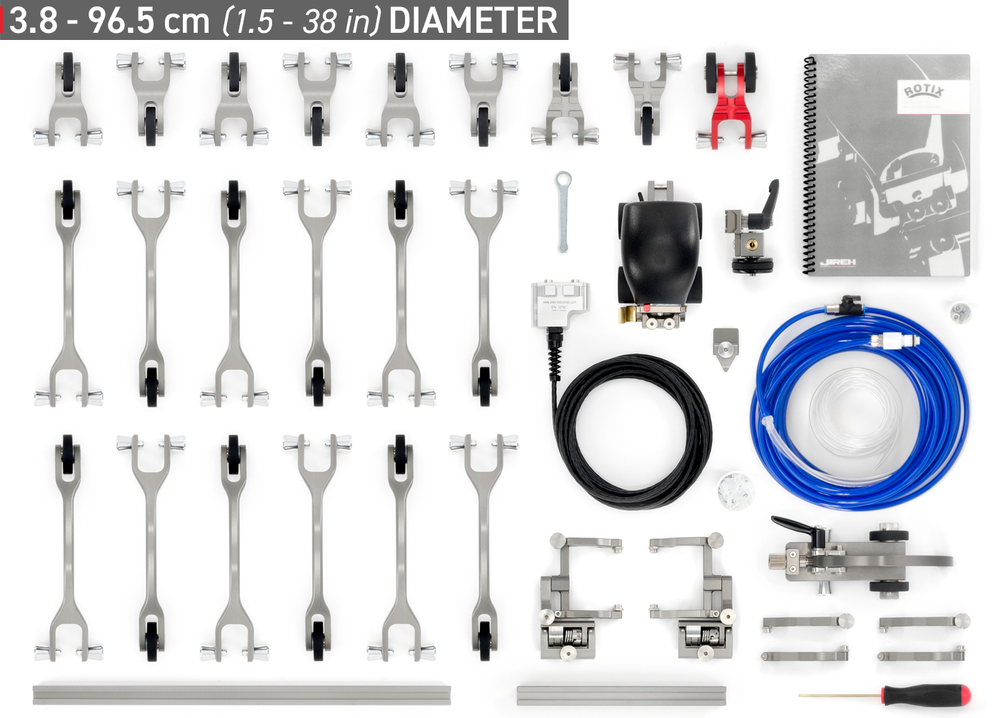

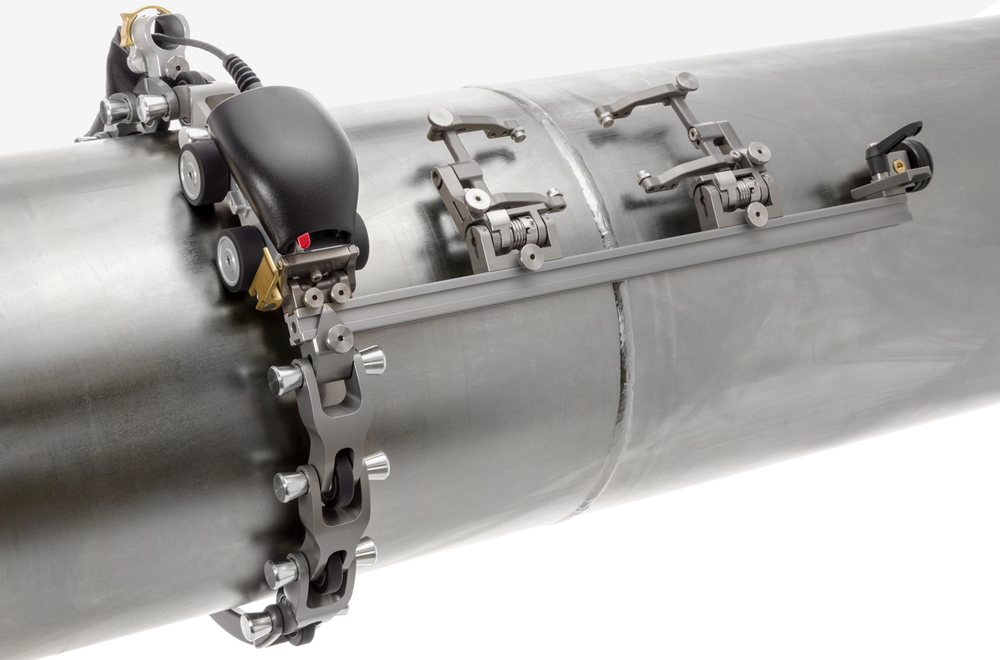

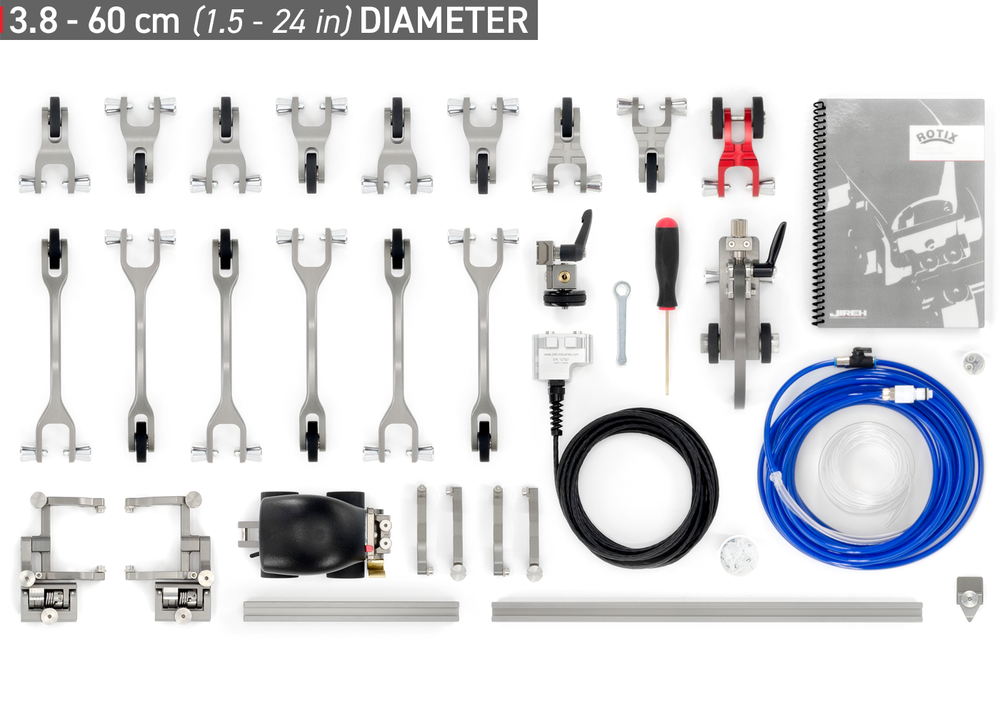

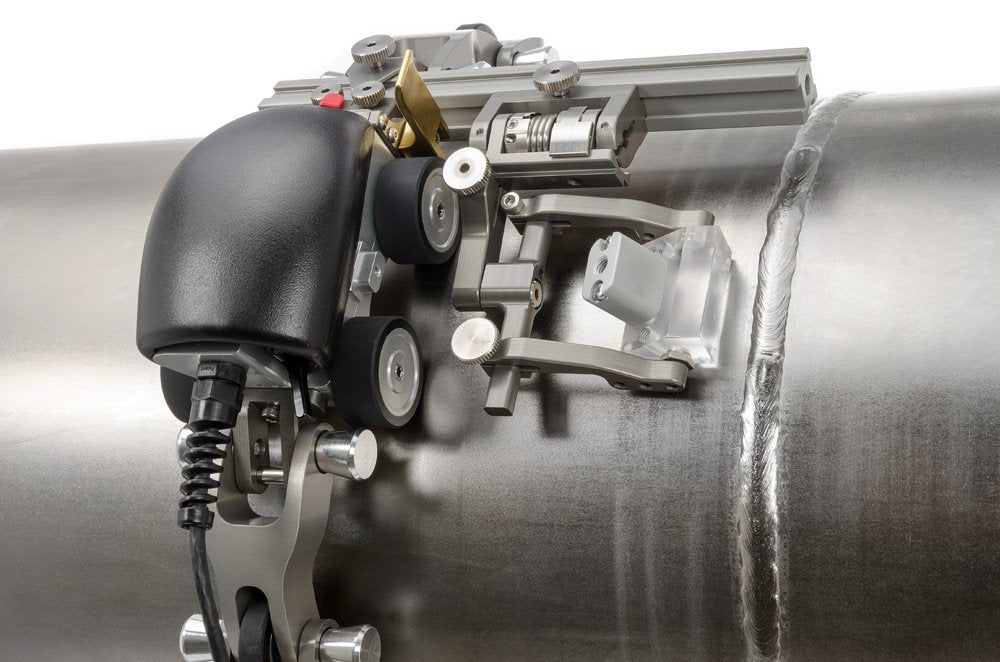

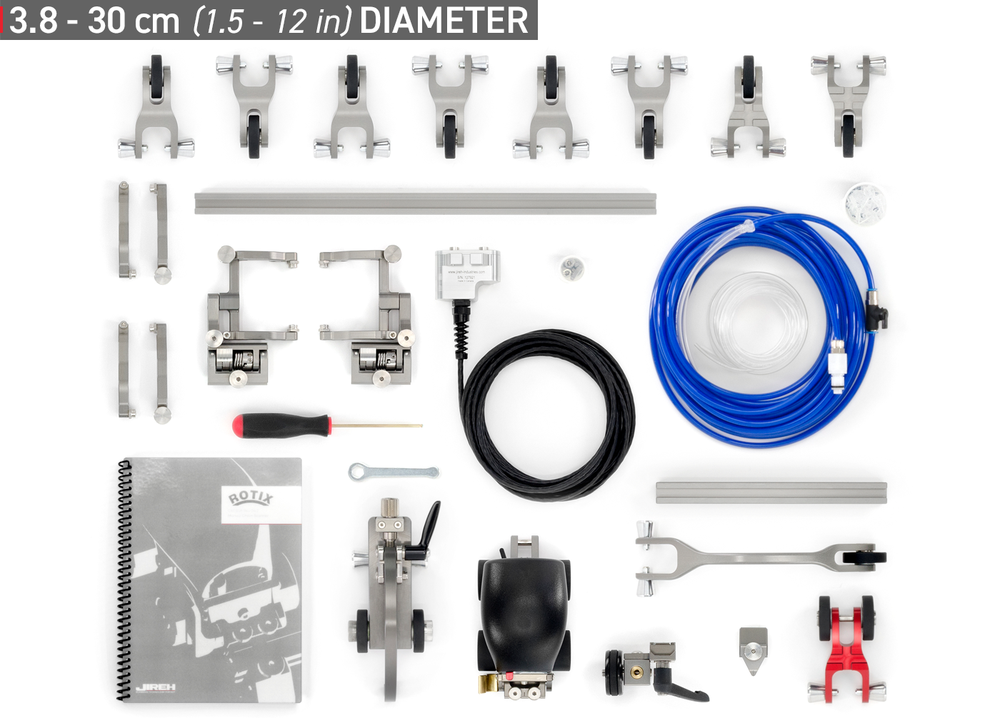

KIT CONTENTS

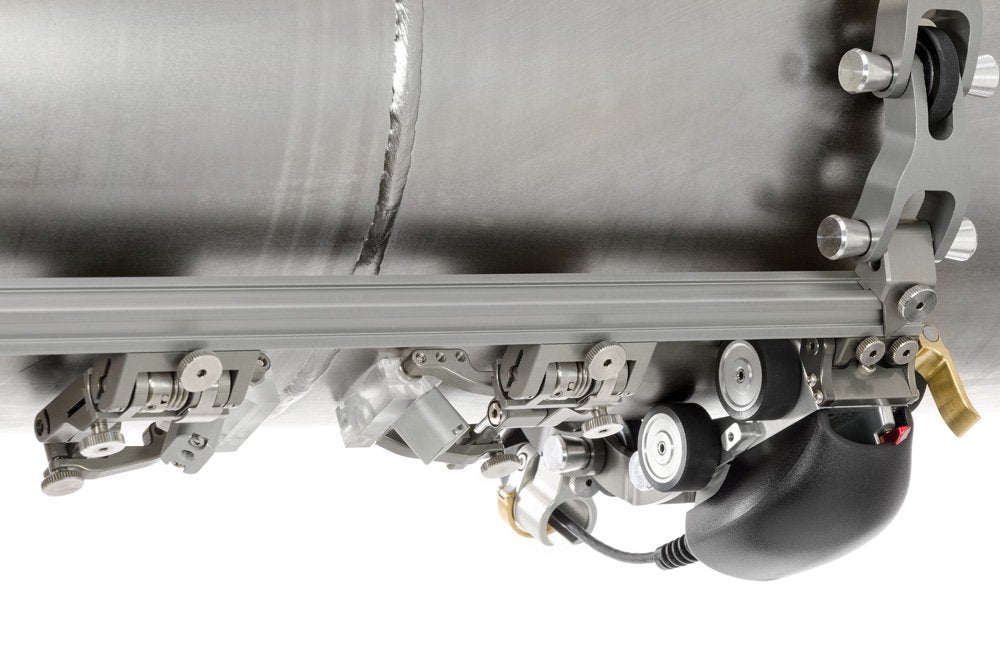

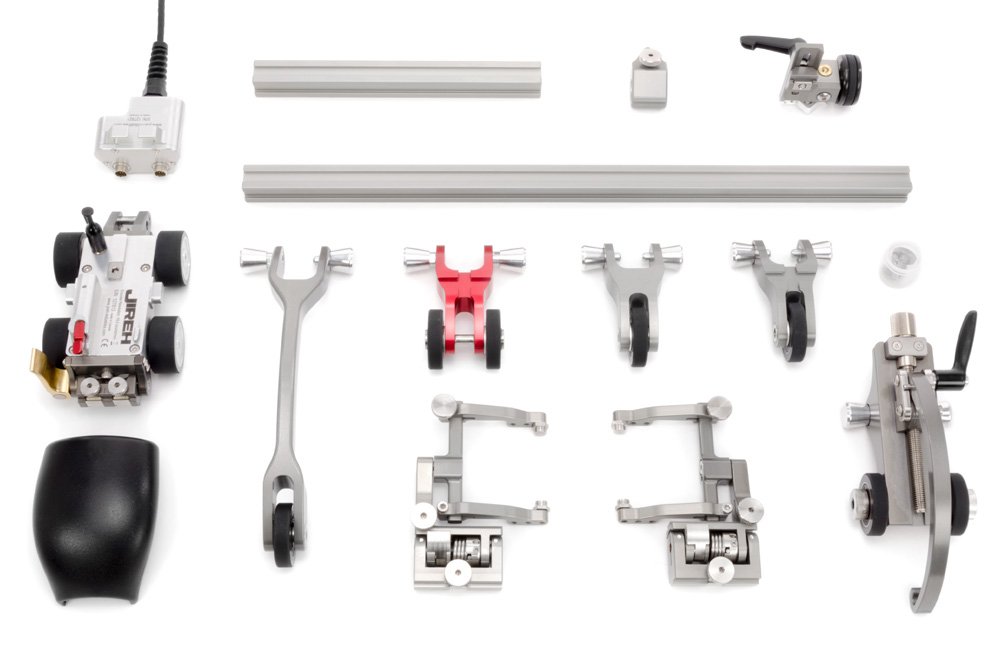

SCANNER
Cart with built-in encoder and tail
PARTS & ACCESSORIES
Single wheel chain links (Long, short, buckle, etc)
Stabilizer wheel
Umbilical, 5 m (16.4 ft) cable length
Slip joint phased array probe holder x2
45 cm (17.7 in) frame bar
20 cm (7.9 in) frame bar
Long probe holder arm set x2
4 mm ID irrigation kit (7/16 in quick connect)
Probe holder spare parts kit
User manual
Setup chart

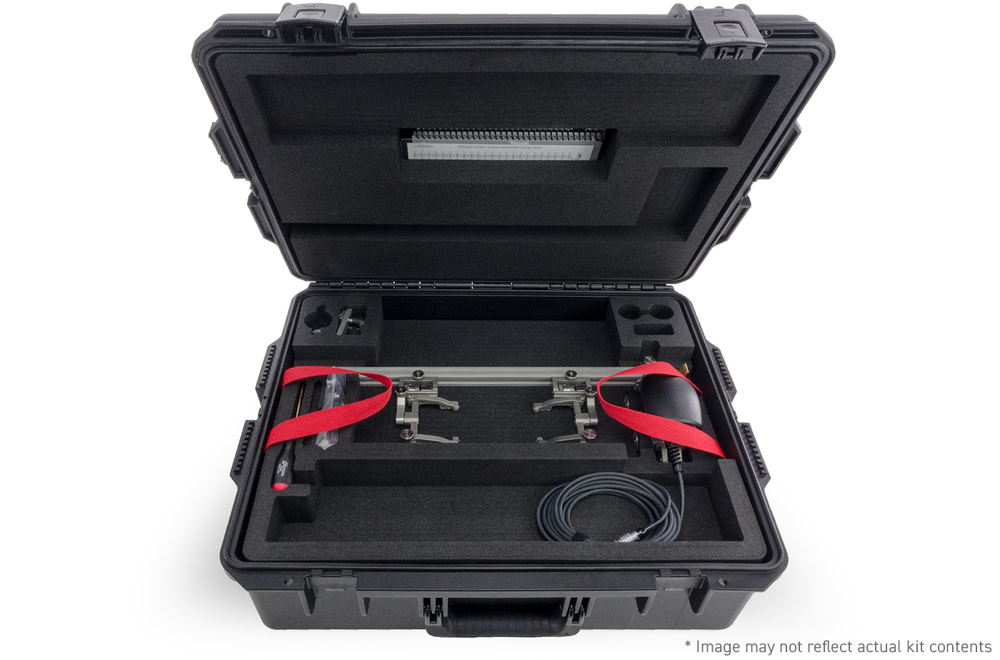

Rugged carrying case
TOOLS
3 mm hex driver
Wrench for pivot button adjustment
*Kit contents may vary depending on the configuration selected.

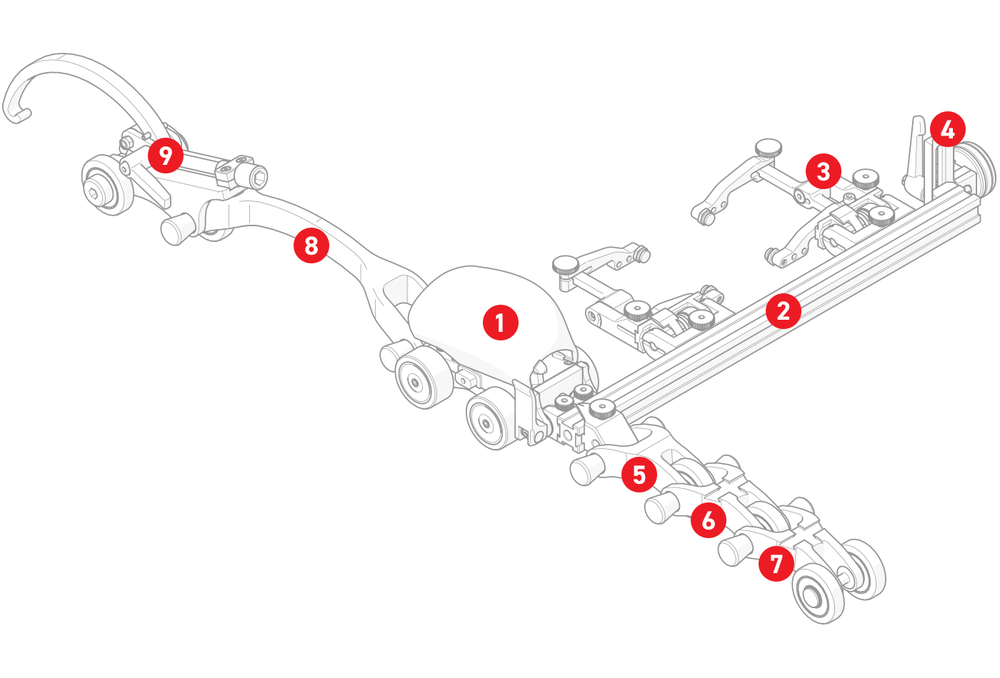

COMPONENT IDENTIFICATION
CART
The ROTIX cart is paired with urethane wheels for smooth, unobstructed motion upon scan surfaces.
FRAME BAR
45 cm (17.7 in) and 20 cm (7.9 in) frame bar lengths are included with this kit to facilitate various scanner configurations.
SLIP JOINT PROBE HOLDERS

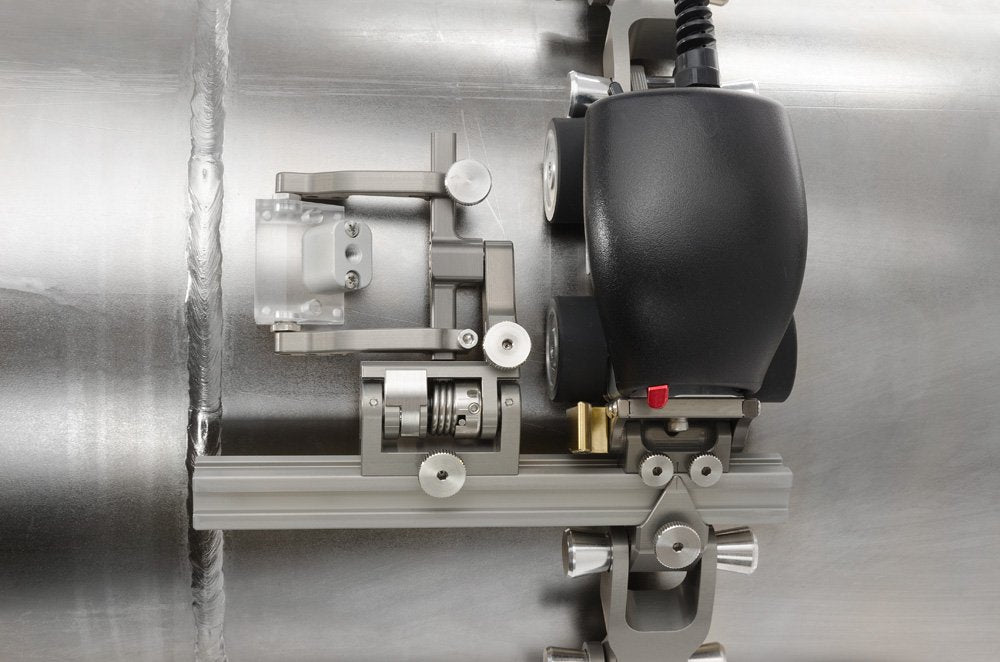

Maintain constant contact between the inspection surface and the probe with low profile, spring-loaded probe holders.
STABILIZER WHEEL
Maintain level and balance of the scanner with a magnetized stabilizer wheel.
SHORT LINK
Various amounts of single wheel short links are included in each kit configuration.
SHORT LINK WITH DOVETAIL
Utilize the short link with dovetail to mount accessories such as cable management to the chain system.
CATCH LINK
Works in conjunction with the buckle to mount the scanner to the pipe/tube.
LONG LINK
Equivalent to (approx.) 3 short links, the long link is used for larger diameter scans.
BUCKLE
The buckle connects to the catch link to complete the chain system. Adjust the buckle to control the chain's tension around the pipe/tube exterior.
SPECIFICATIONS
GENERAL
Pipe Range, Circumferential: 3.8 cm - 96.5 cm (1.5 in - 38 in)
Encoder Resolution: 19.1 counts/mm (485.1 counts/inch)
Probe Holding Capacity: 2 Phased Array Wedges
Umbilical Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous and non-ferrous
RADIAL CLEARANCE
Clearance: 10.2 cm (4 in)
SIZE & WEIGHT
Cart Height: 8.1 cm (3.2 in)
Cart Width: 8 cm (3.15 in)
Cart Length: 17.1 cm (6.8 in)2
Cart Weight: 0.77 kg (1.7 lb)3
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
PHASED ARRAY PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 57.6 mm (2.3 in)4
PROBE HOLDER PIVOT BUTTONS
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
