RECON - Fixed Camera Kit

RECON - Fixed Camera Kit

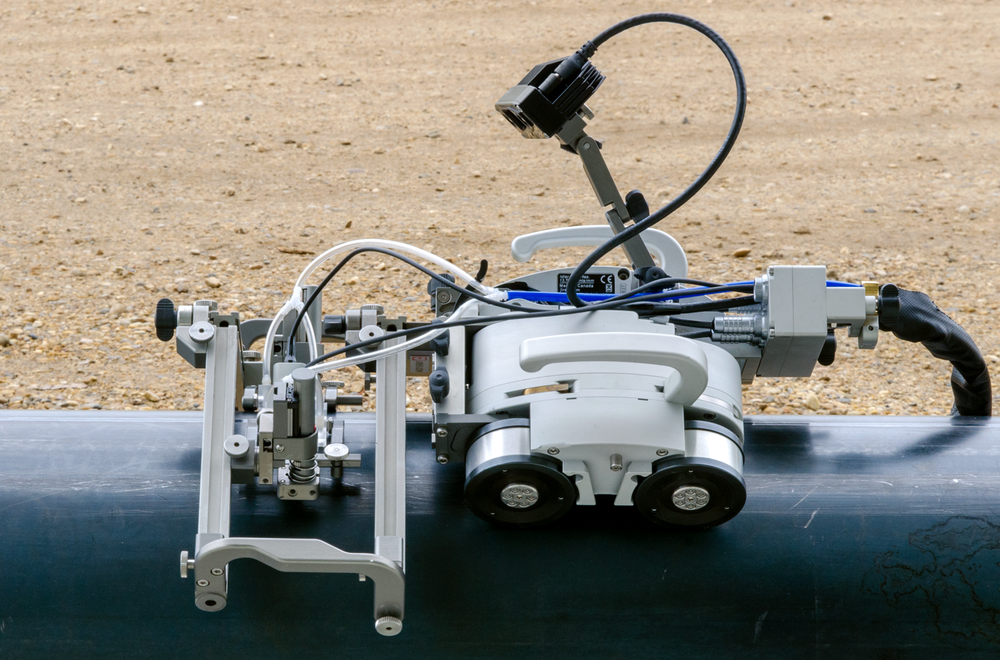

Bring video capabilities to the NAVIC with the RECON - Fixed Camera Kit. Monitor your crawler with real-time HD video, record inspections for later review, catalogue and share notable clips. All this and more are made possible with the included RECON • Studio software.

Contact Jireh Industries to ensure this product is compatible with your NAVIC system

High Definition Visual Inspection

FEATURES

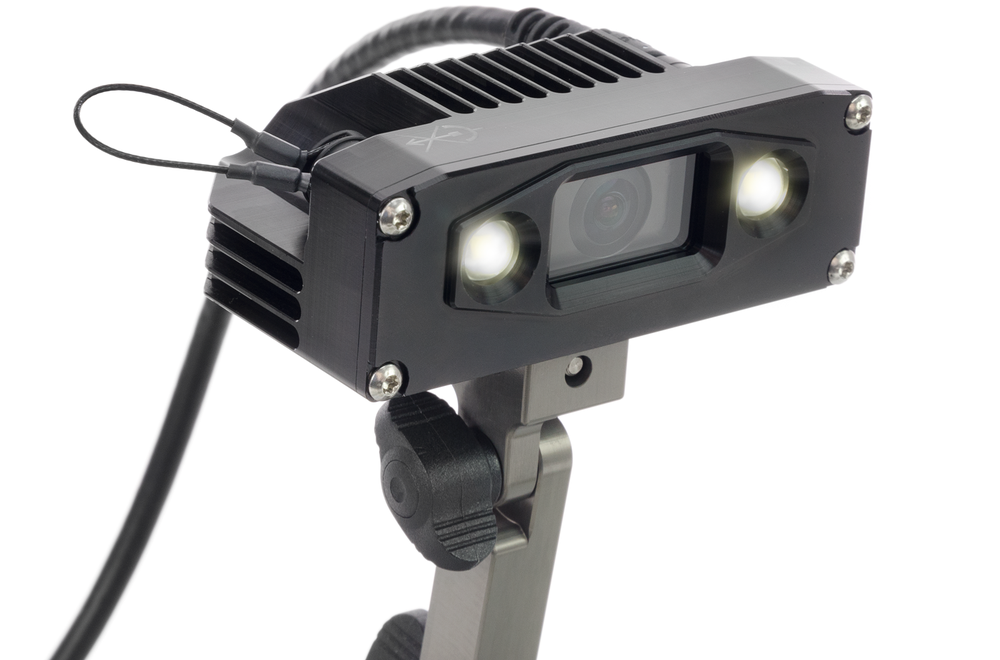

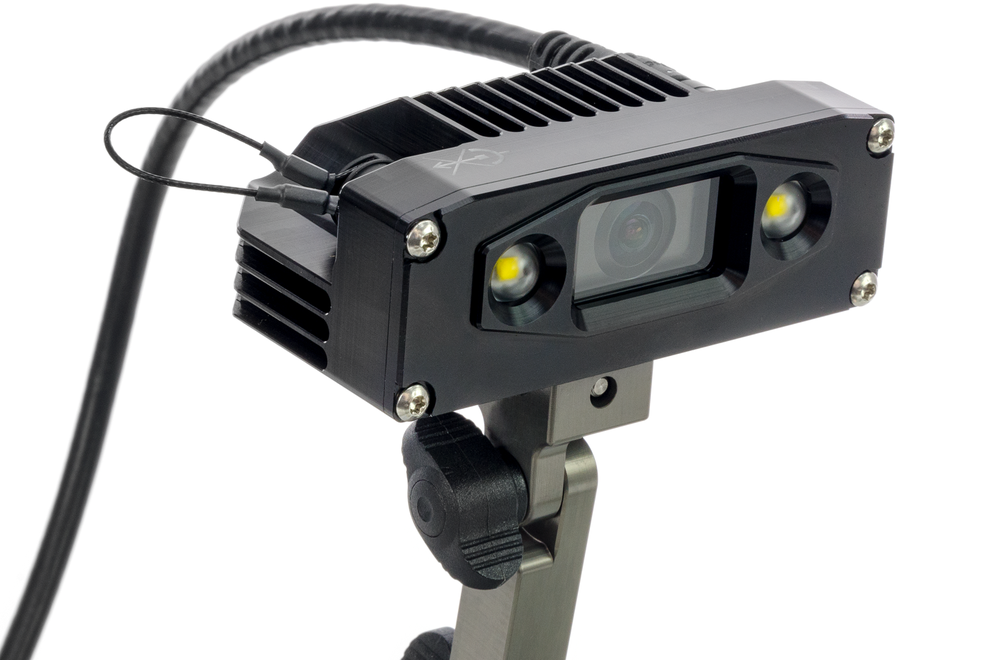

CAMERA

The camera captures video in 1080p high definition at 30 fps. Capture high-quality still images at the same time that the camera is recording video using the included RECON • Studio software. The cameras have very low latency, which means virtually no delays in video recording and viewing. (no audio)

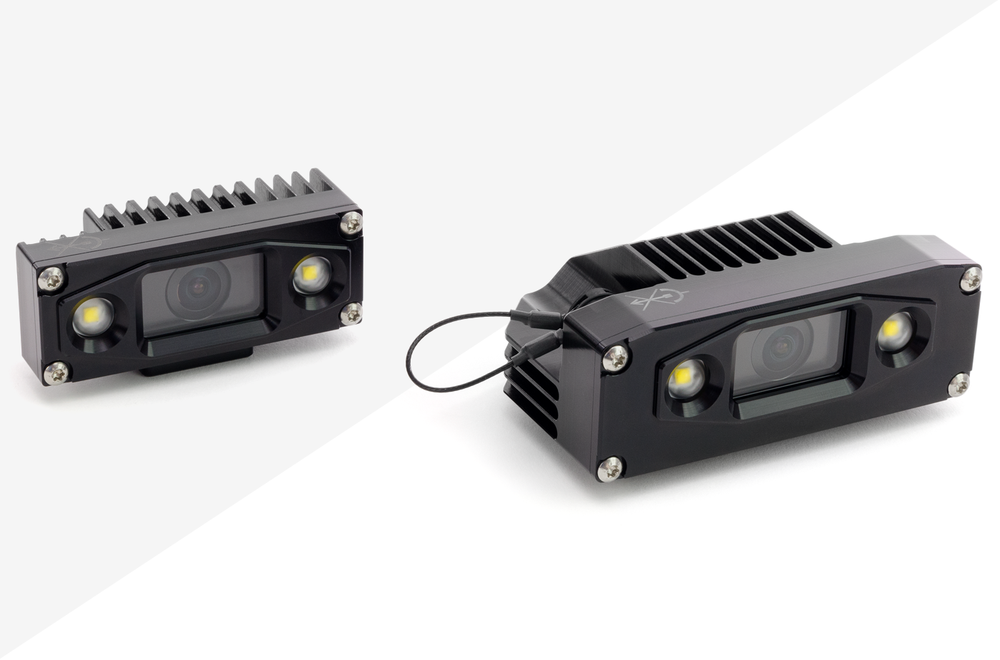

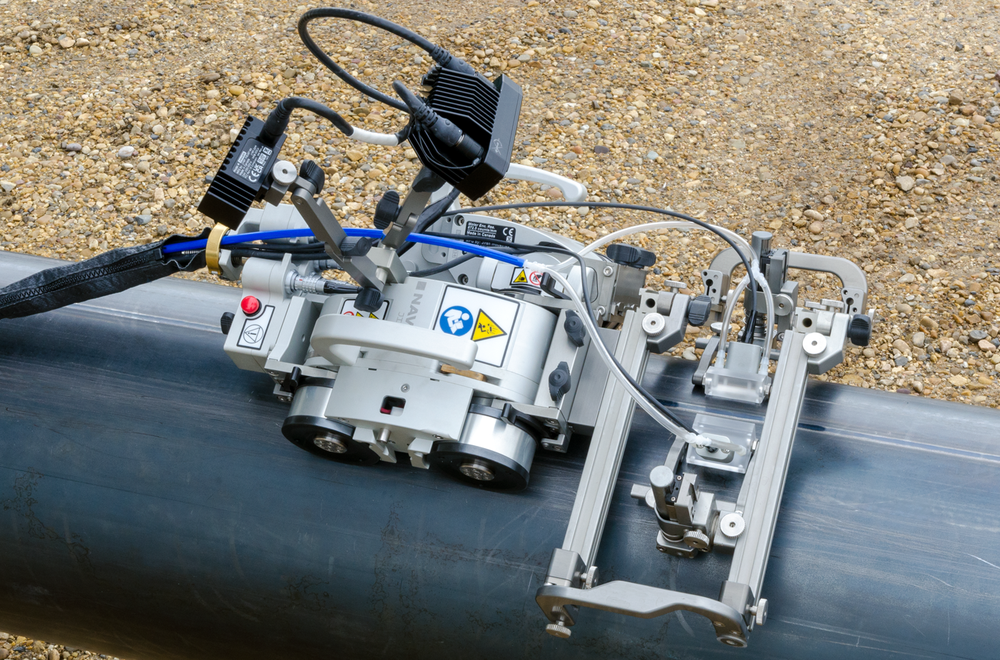

SATELLITE CAMERA

The satellite camera provides a 2nd viewing angle when required. Capable of recording 1080p HD video as well as capturing high-quality stills, the satellite camera can be viewed simultaneously using the RECON • Studio software. (no audio)

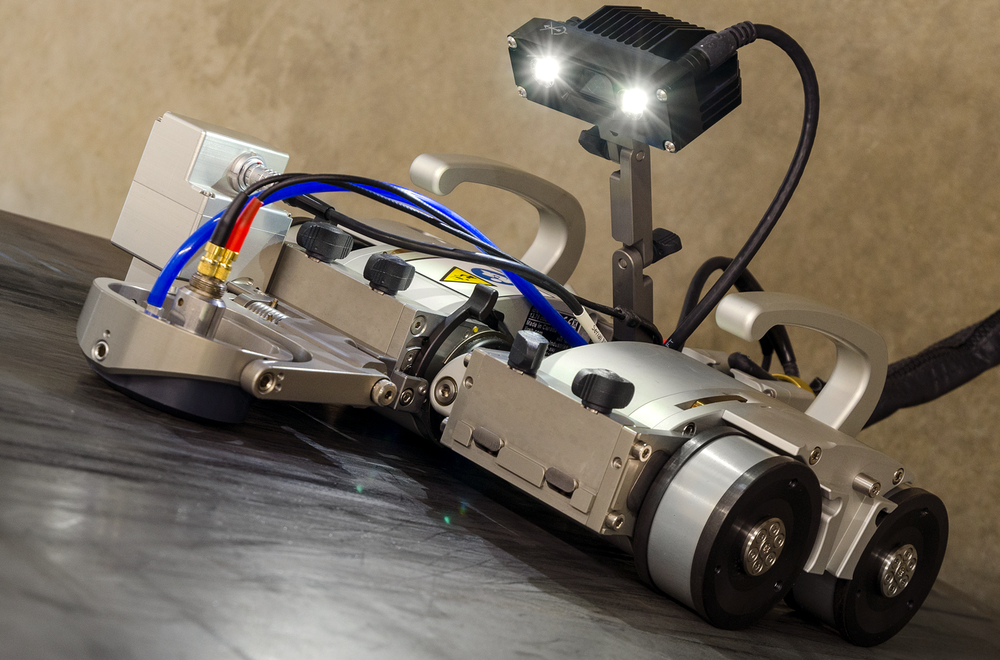

LED LIGHTS

LED lights are built into the cameras to illuminate the foreground. The brightness of the LEDs may be adjusted using the RECON • Studio software.

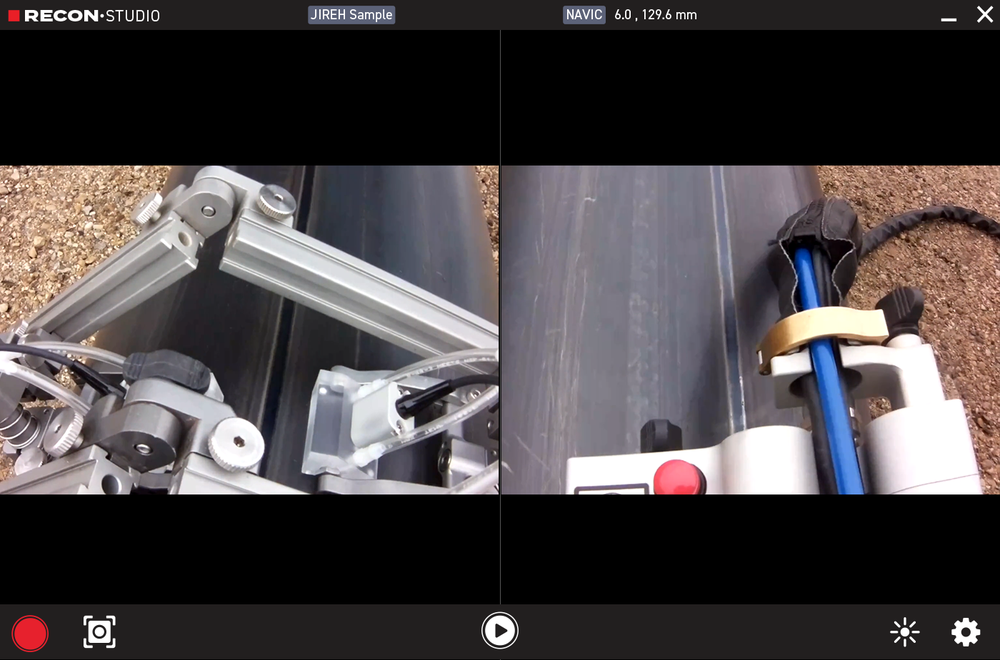

RECON • STUDIO

This powerful video software offers many features.

  • View live video from one or two cameras simultaneously
  • Control LED brightness
  • Record video, capture still photos
  • Activate and adjust guides on the video screen
  • Playback, organize and share videos and photos

These are just a few of the capabilities of the RECON • Studio software

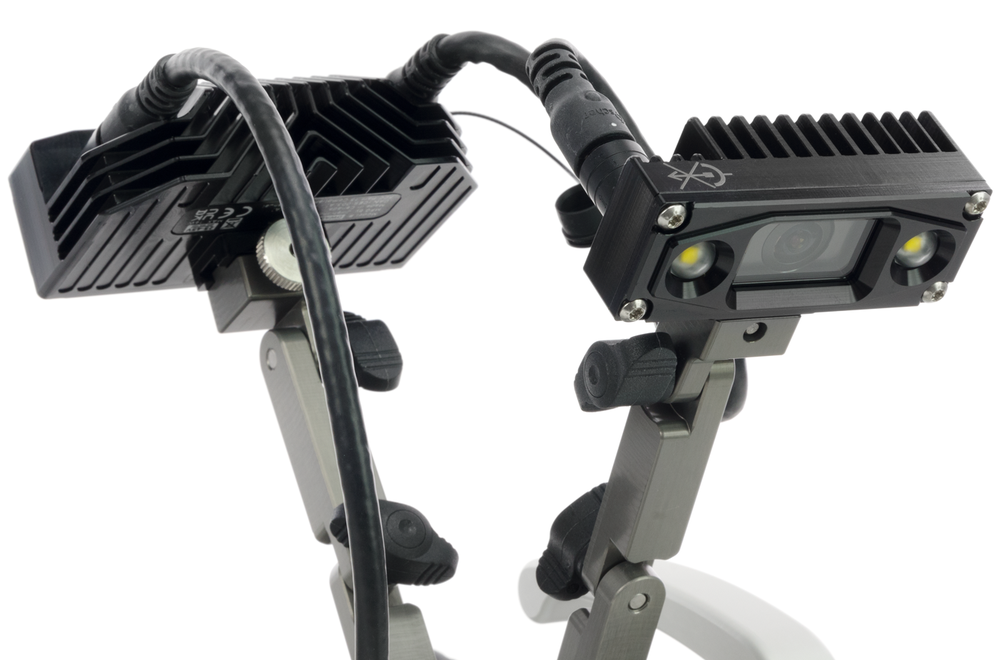

ADJUSTABLE CAMERA ANGLES

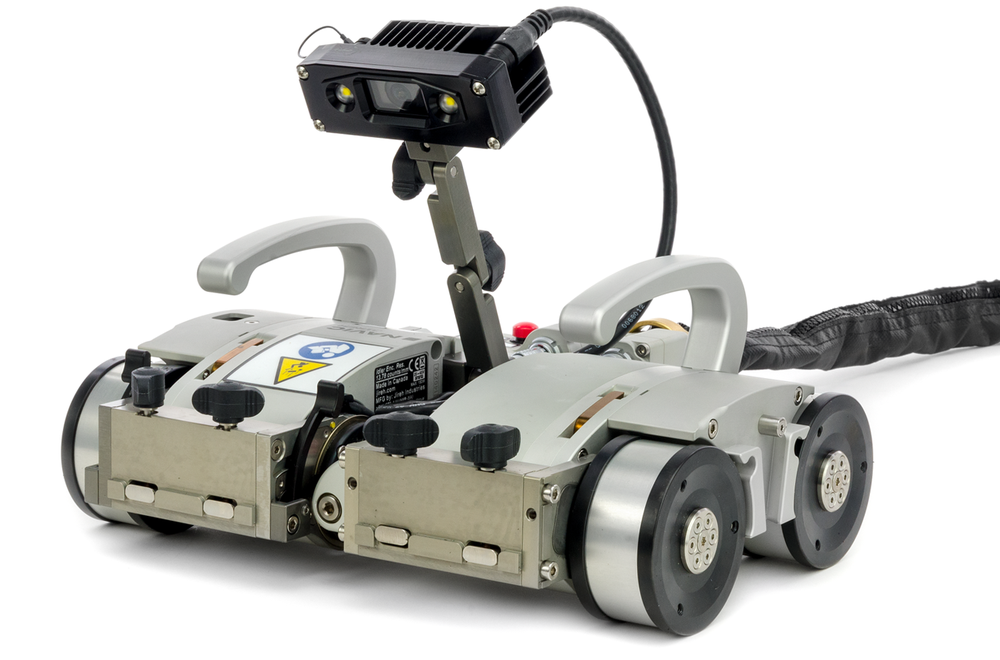

Point the camera where you want using the adjustable camera bracket. Single or dual camera brackets are included with the system and mount the camera quickly and easily to the crawler.

LONG CABLE LENGTH

Drive the crawler as far as 30 m (98.4 ft) while maintaining clear video monitoring and control.

WARRANTY

The RECON is backed by our industry-leading 3-year warranty.

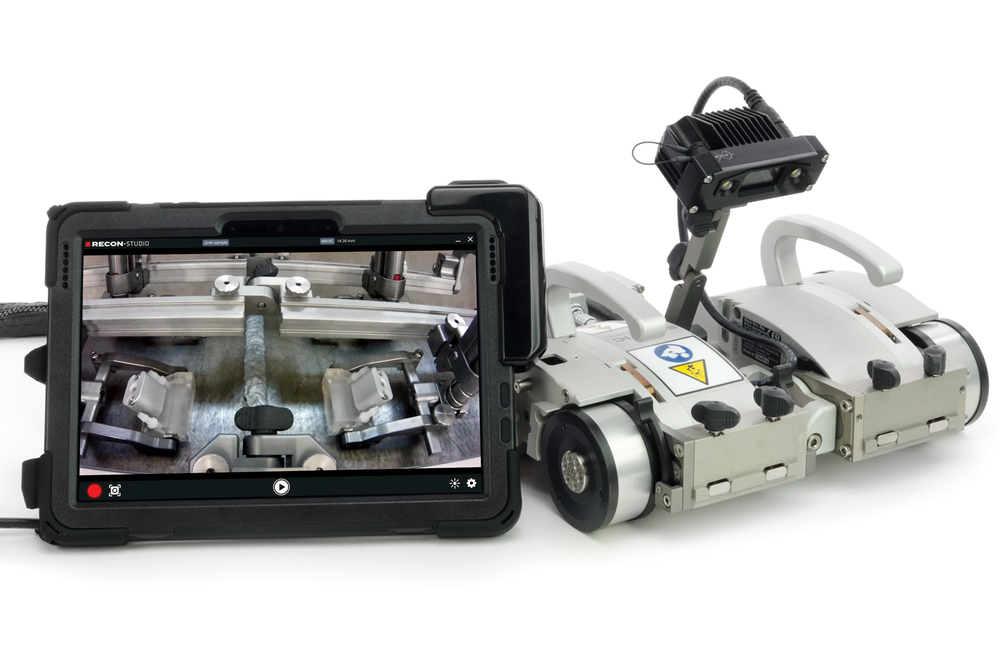

TABLET

The tablet is encased in a protective cover and features a convenient stand and hand strap. The tablet also has clips to attach a neck strap to prevent drops and assist with holding the tablet. The HD view screen is visible under direct sunlight.

KIT CONTENTS






SINGLE CAMERA

Camera
Camera bracket
Camera bracket, arm x2
Tablet
Tablet, power supply
Tablet, strap
Camera cable
User manual

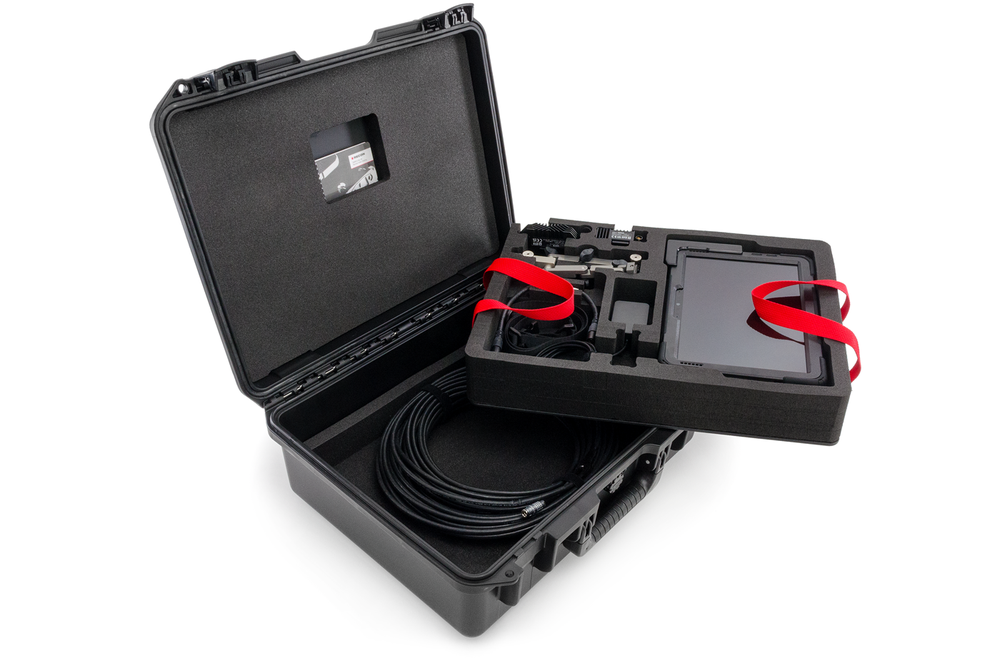

Rugged carrying case

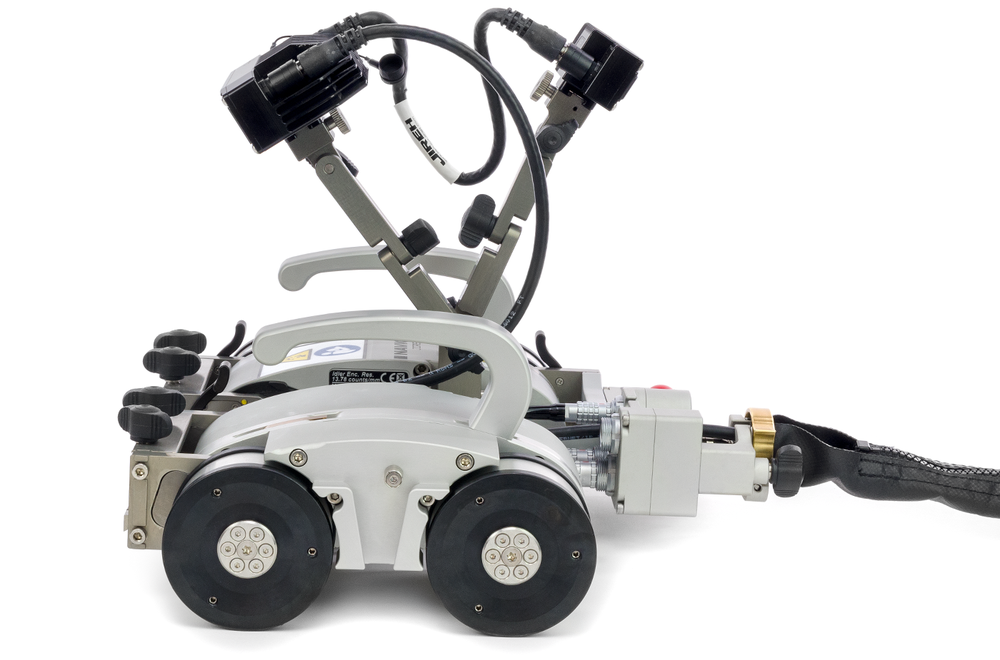

DOUBLE CAMERA

Camera
Dual camera bracket
Camera bracket, arm x2
Tablet
Tablet, power supply
Tablet, strap
Camera cable
Satellite camera cable
User manual

SPECIFICATIONS


CAMERAS

Resolution: 1080p
Frame Rate: 30 fps
LED lights: 800-lumen
Power: Supplied by crawler connection
Environmental Sealing: Dust-tight, watertight (not submersible)
Operating Environment: -20°C (-4°F) to 50°C (122°F)

TABLET

Software: RECON • Studio from JIREH
Operating System: Windows-based
Touchscreen: Yes
Connection to the camera:
 Wired ethernet
Dual camera support: Yes
Battery Life: Up to 10 hours of typical device usage
