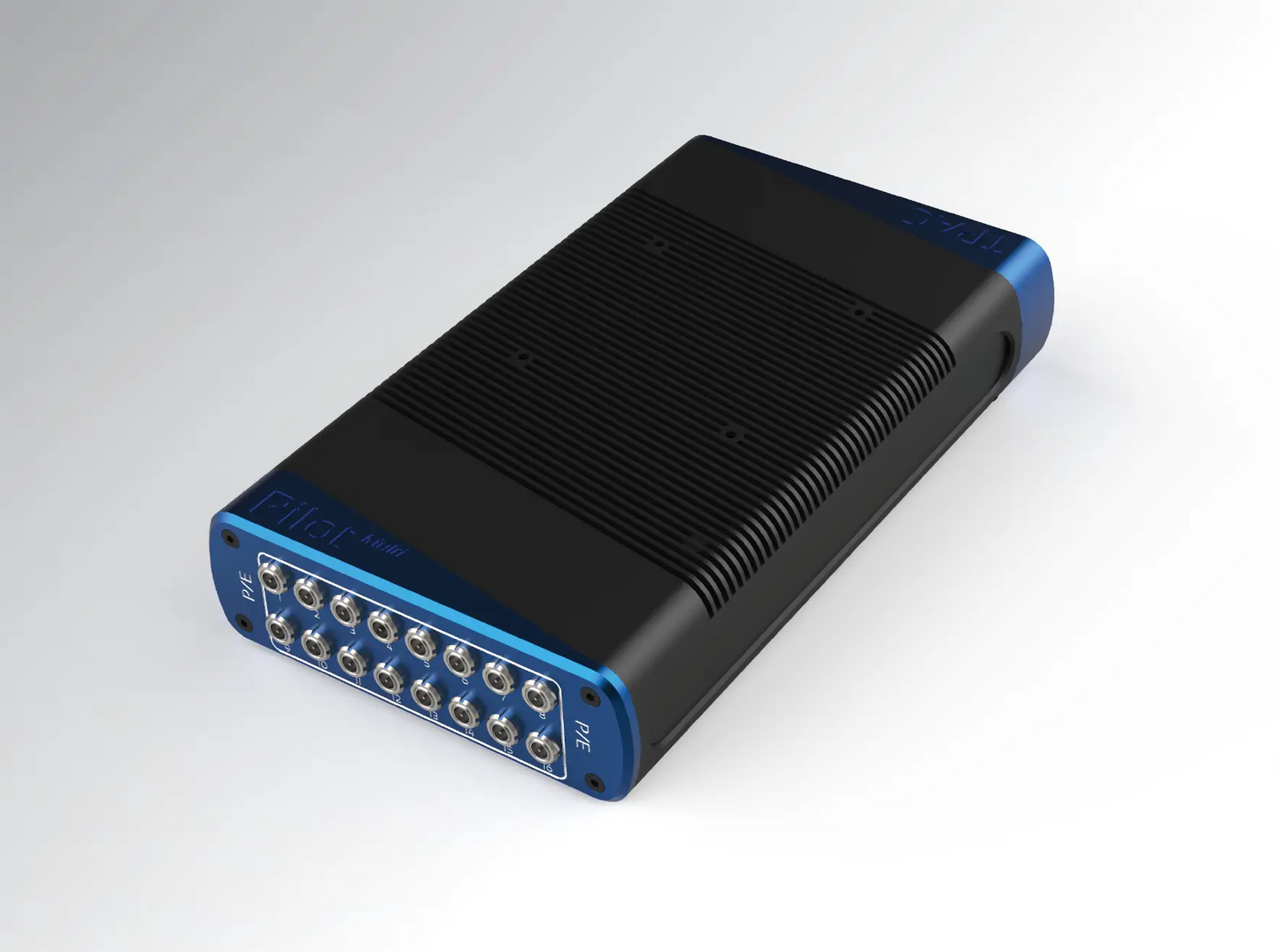

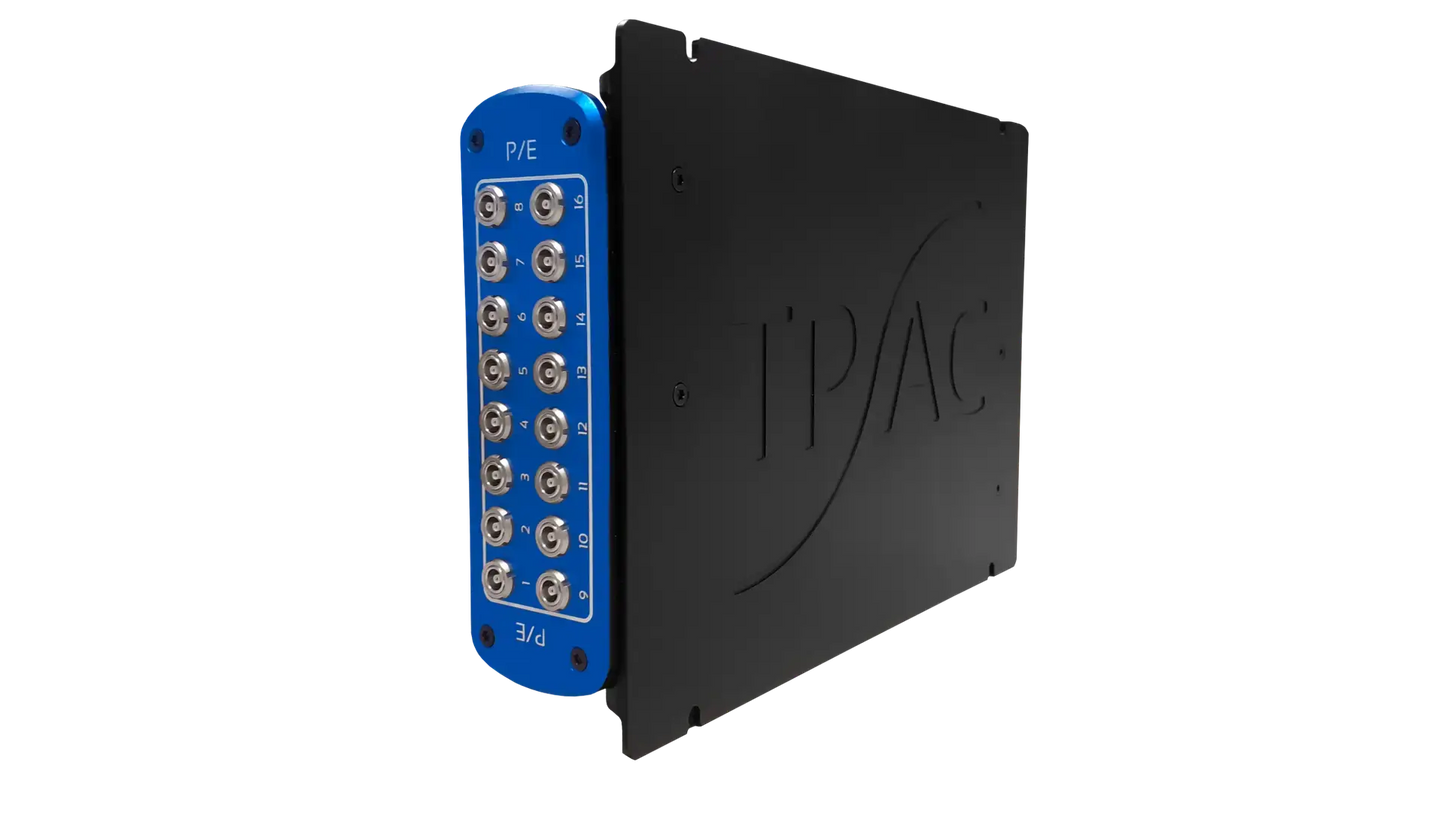

Pilot Multi

Pilot Multi

Benefit from high channel density that enables swift inspections through an innovative open platform

MAIN CHARACTERISTICS

Application Realm: corrosion mapping, inspection of pipe, tube and plate

Receiver Gain Range: 110 dB
Configuration: 16 channels per unit / 32 channels / up to 64!
Acquisition Resolution: 14 bits

PERFORMANCE

The Pilot Multi stands out with its impressive channel density, offering up to 64 multiplexed channels! This groundbreaking open platform device allows you to develop custom solutions for efficient inspections. Its super compact design, combined with an IP 67 rating, makes it easy to integrate into robots and scanners.

Enjoy the flexibility of a platform specifically designed for multi-channel ultrasonic testing.

PERFECT FOR INDUSTRIAL APPLICATIONS

Technologies

  • Air-Coupled Ultrasonic Testing

  • Multi-channel

Applications

  • Corrosion Mapping

  • Pipe, Tube and Plate Inspection

  • Composite Inspection

  • Aerospace

  • Robot Application

  • Research

Industries

  • Power generation

  • Oil & gas

  • Metallurgy

  • Automotive

  • Robotics

  • Railways

  • Aerospace

SPECIFICATIONS

Compact yet powerful, this unit offers 8-channel full parallel operation or can expand to 64 multiplexed channels, setting a new benchmark in ultrasonic testing.

  • High Data Throughput: up to 100 MB/s

  • Receiver Bandwidth: 0.3 to 20MHz (50kHz in option)

  • Number of Channels: 16 channels per unit (32, 64 in option)

  • Receiver Resolution: 14 bits

  • Receiver Gain Range: 110dB

  • Channel mode: Multiplexed

  • High PRF: 20kHz

  • Pulser: Up to 100V (200V in option)

  • Designed for: IP 67
