Pilot +
Pilot +

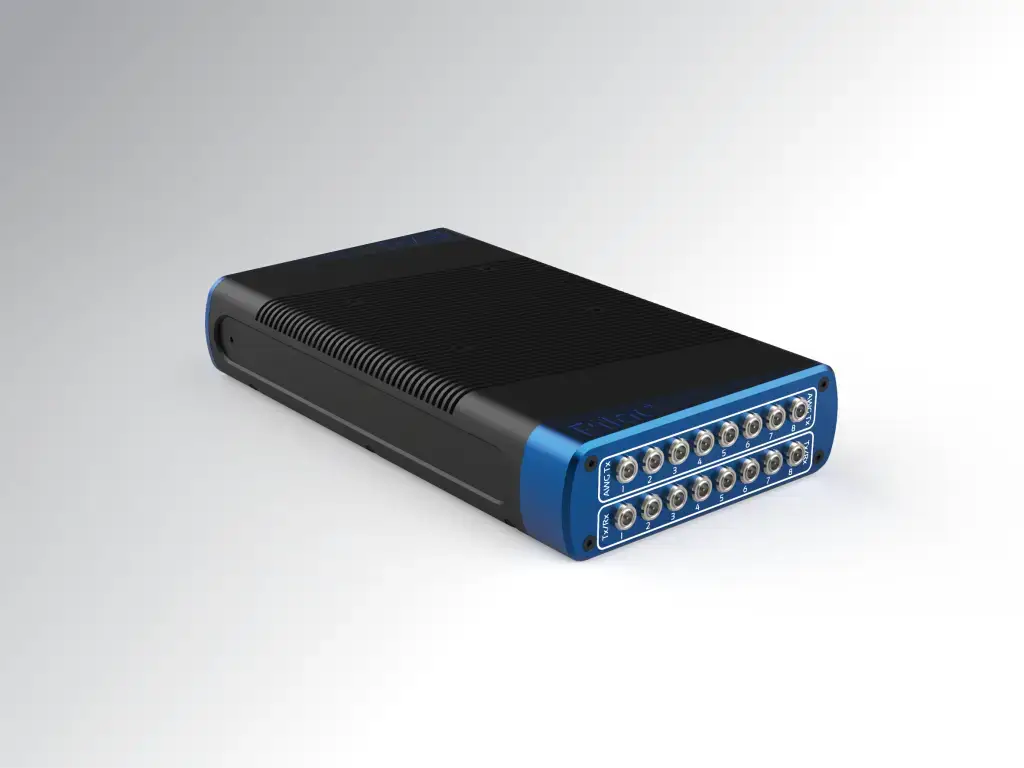

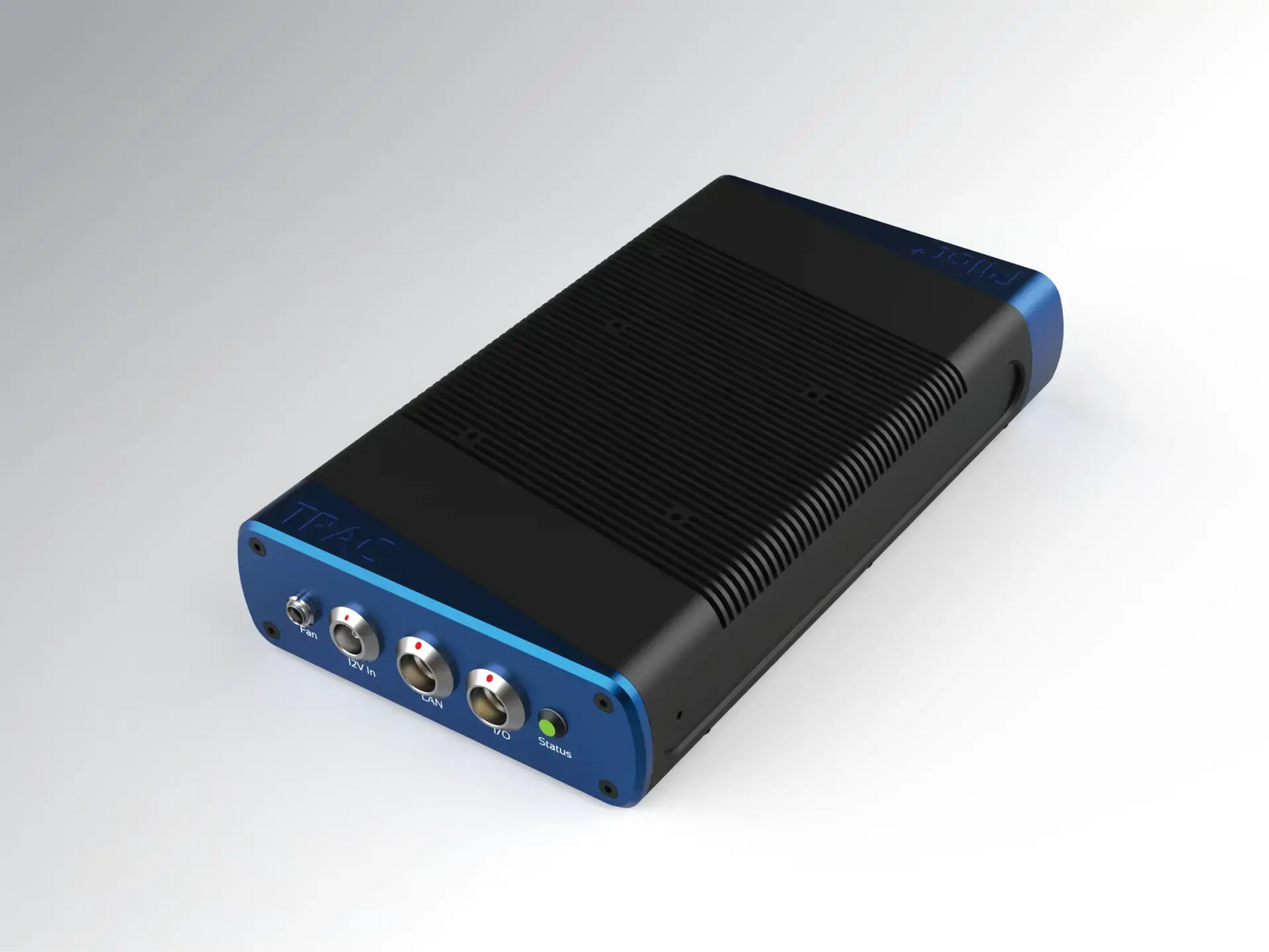

Introducing the next generation multi-channel UT device, engineered for an IP 67 rating, with options for Bipolar, Burst, and AWG functionalities.
MAIN CHARACTERISTICS
Application Realm: composites (gantries), forging, R&D
Receiver Gain Range: 162 dB acquired at once
Configuration: 8 channels per unit
Acquisition Resolution: 27 bits
PERFORMANCE
Experience the top-of-the-line multi-channel UT with the Pilot +, designed to satisfy your most demanding requirements across various industries, including aeronautics (composite and honeycomb structures) and in-line inspections, as well as TOFD applications.
Equipped with high-voltage transmitters and bipolar tone burst capabilities, this device excels in inspecting thick, noisy, or complex materials like sandwich, honeycomb, or composite structures. Its powerful and ultra-compact design features 8-channel full parallel operation, with the option to expand to 64 multiplexed channels, setting a new standard in ultrasonic testing.
Enjoy the flexibility of a platform specifically designed for multi-channel UT, complemented by a remarkable digital dynamic range of 162 dB, eliminating the need for analog gain!
PERFECT FOR INDUSTRIAL APPLICATIONS
Technologies
-
Air-Coupled Ultrasonic Testing
-
Multi-channel
-
On scanner ability
-
Rack for in-line
-
PoE option available
Applications
-
Aircraft Gantries
-
R&D
-
Scanner / Robot
-
Metallurgy gantries
-
Immersion Tank
-
Inline Inspection
-
Forging
Industries
-
Power generation
-
Oil & gas
-
Metallurgy
-
Automotive
-
Robotics
-
Railways
-
Aerospace
SPECIFICATIONS
-
High Data Throughput: up to 100 MB/s
-
Receiver Bandwidth: 0.3 to 20MHz (50kHz in option)
-
Number of Channels: 8 parallel channels per unit
-
Receiver Resolution: 27 bits (no analog gain required)
-
Receiver Gain Range: 162dB acquired at once
-
Channel mode: Full parallel & Multiplexed
-
High PRF: 20kHz
-
Pulser: 8 pulsers up to 400V
-
Designed for: IP 67
