PED+
PED+
Stock Code: NCD0091

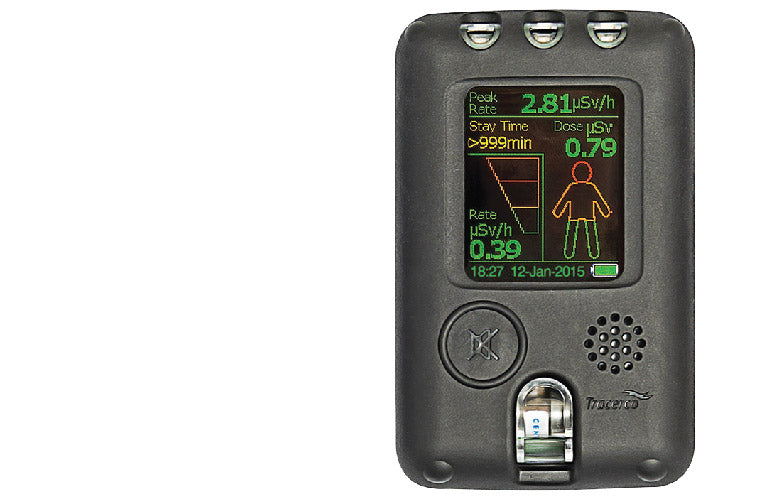

The PED+ Can Be Used As Both A Personal Dosimeter And A Handheld Dose Rate Survey Meter. It Has A Number Of Additional Features, Such As Bluetooth, GPS And Pop-Up Message Alarms.
OVERVIEW
The capabilities of the PED+ include:
- Handheld mode allows the device to be used as a handheld survey meter
- Shows readings in dose rate (Sv or rem) and displays a live trend graph to show activity in real time
- Measurement is corrected for use off-body, so personal accumulated dose is not recorded
- Dose rate data is logged in off-body mode, allowing data review with DoseVisionTM
- Pop-up alert messages display clear instructions at alarm threshold
- Allows location data to be logged to the device alongside dose and dose rate data, that can be viewed using DoseVision™
FEATURES
- Sv or Rem display units
- Alarm – vibration, LED, audible
- Low battery warning
- Rechargable battery
- Simple to navigate menu
- Customisable on-screen messages for alarms
- FOC DoseVision Software
SPECIFICATIONS
Detector: Single energy compensated Geiger Muller tube
Dose Rate Range: Bar graph 0-100mSv/h & digital numeric display 0-100mSv/h
Peak Radiation Dose Rate: 0-100mSv/h
Battery:Rechargable Lithium Ion, 300 hours run time typical, Recharge via PC
Dimensions: 104mm x 64mm x 24mm
Weight:190g – Including belt clip
Units:Sieverts or Rem (may be selected in DoseVision software)
which is supplied FOC
Operating Temperature:-20°C To 50°C
Ingress Protection Rating:IP67 (dust tight & can withstand immersion in water at depth of 1 meter)
Low Battery Indicator:On 8 hours available life left
Case Material:Shock, vibration & drop resistant polymers
Alarms:LED, vibration & audio alerts
On-screen Messages:Customisable on-screen messages for alarms
