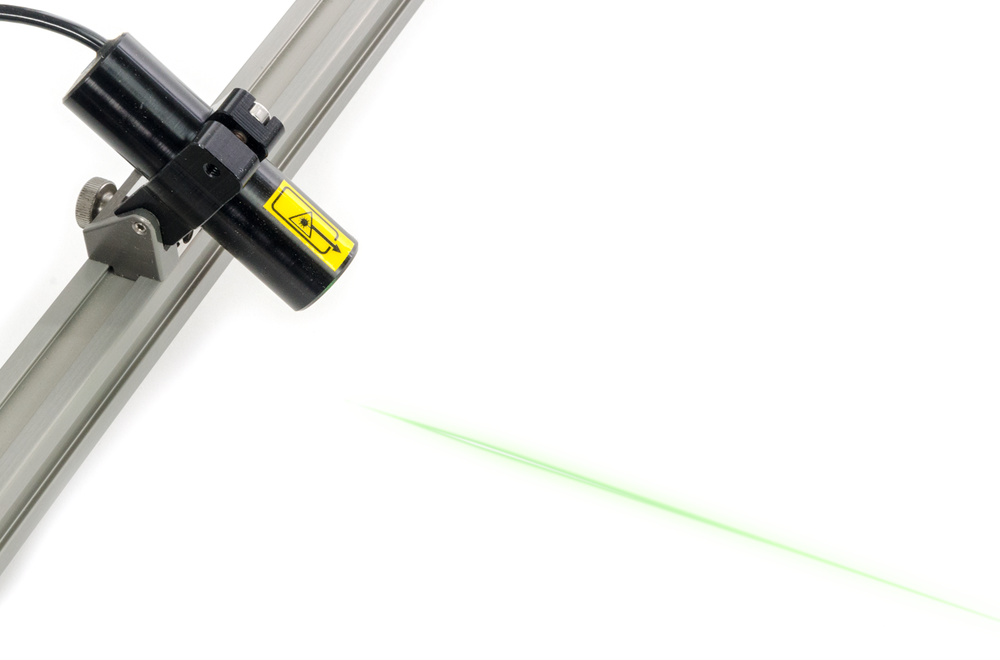

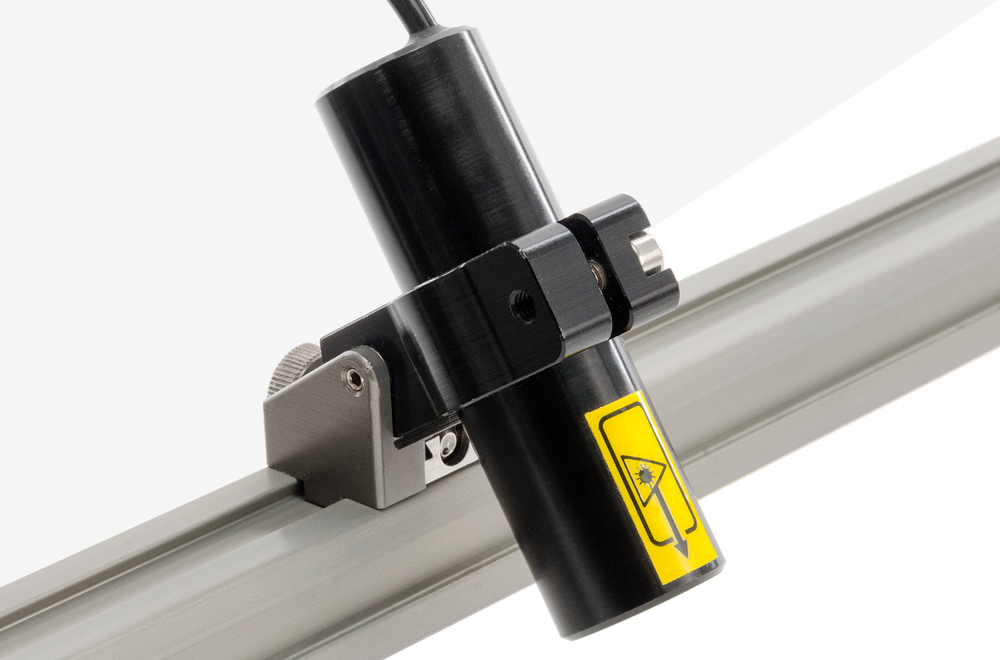

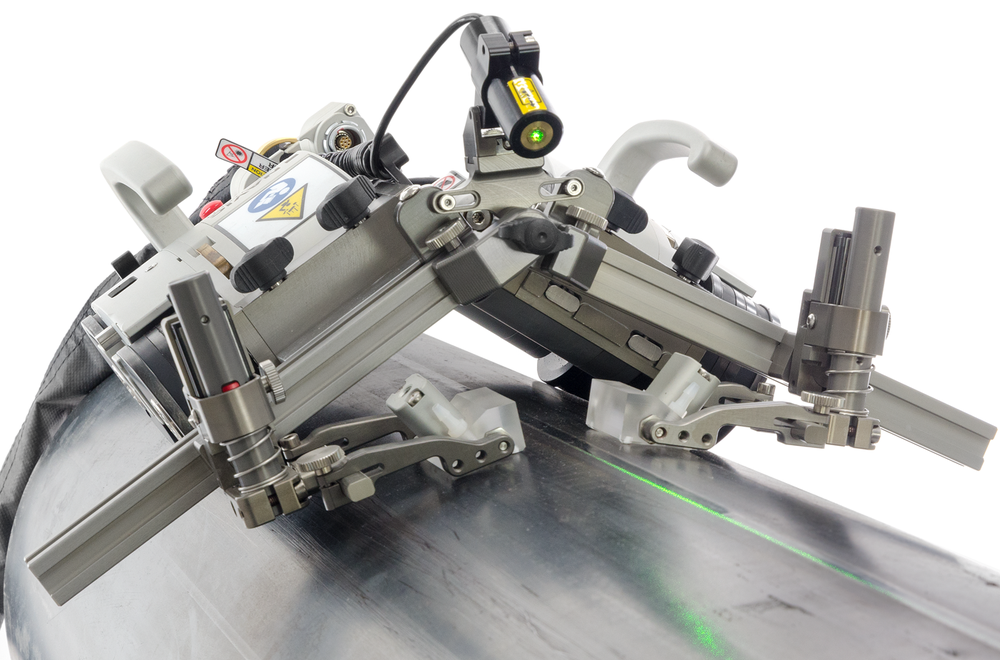

Easily mounted to any motorized crawler's dovetail, the Optical Guide provides a green colour point of reference for guiding scanners along a given path (i.e. a weld). The projection angle may be adjusted as required, and the plug-in power means never running out of battery.

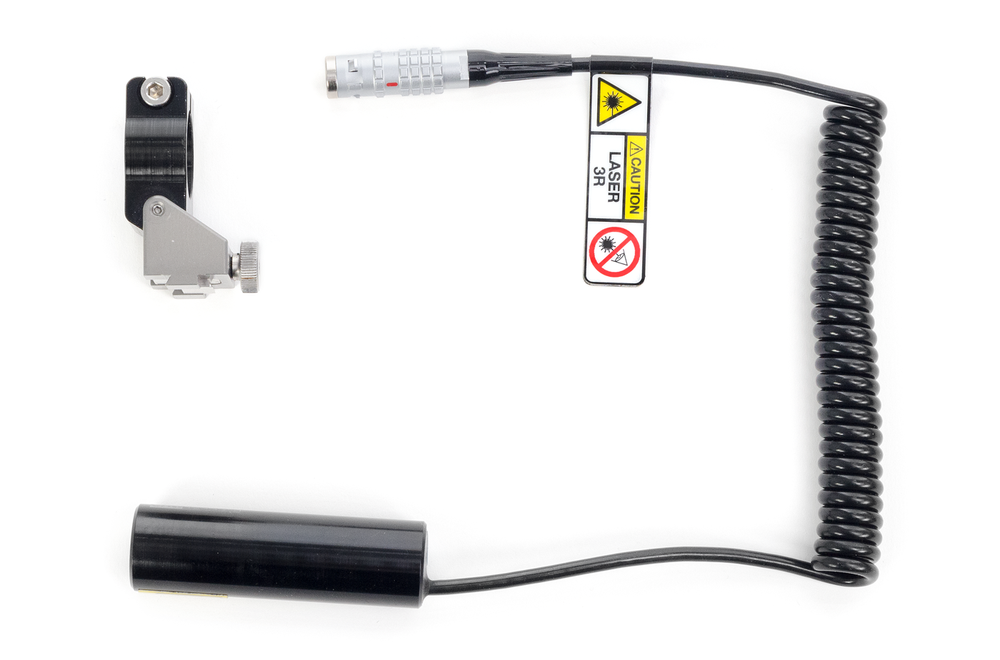

KIT CONTENTS

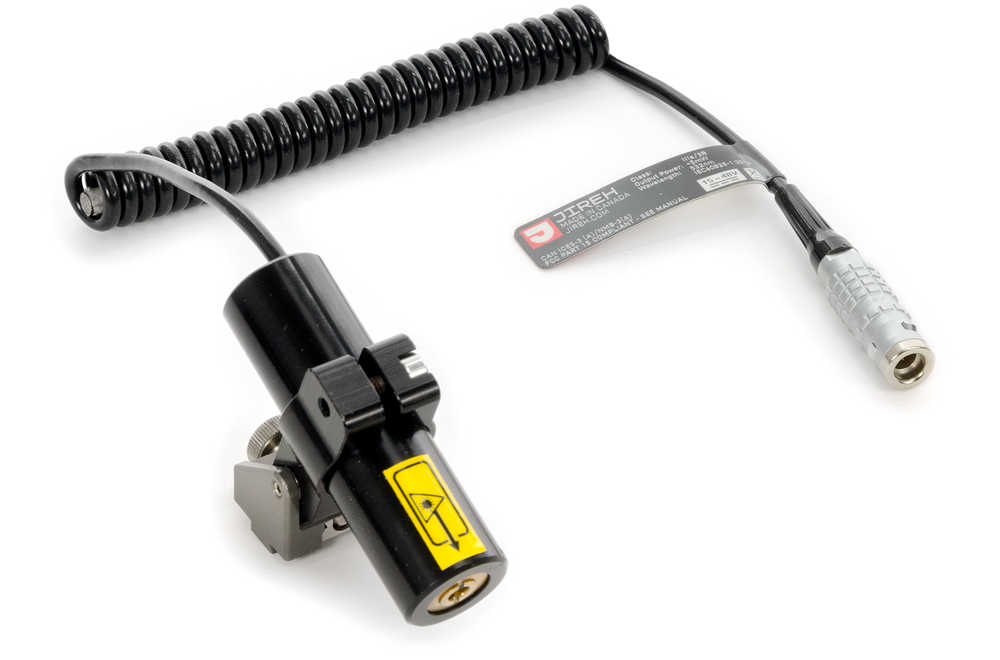

Optical Guide
Optical Guide Clamp

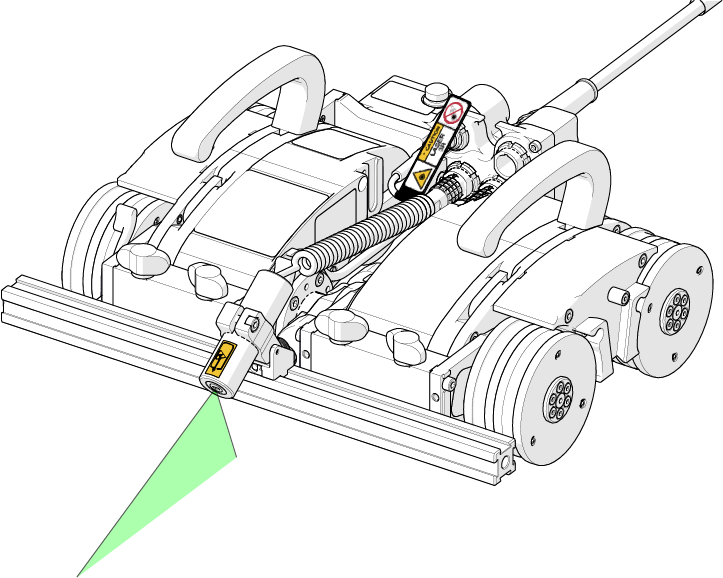

SPECIFICATIONS
OPTICAL GUIDE SPECIFICATIONS
Beam Divergence: 60°
Laser Wavelength: 532nm
Laser Output Power: <5mw
Laser Class: IIIa/3R
Laser Colour: Green
POWER REQUIREMENTS
Input Voltage: 15V-48V
Input Current: 14mA-40mA
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)

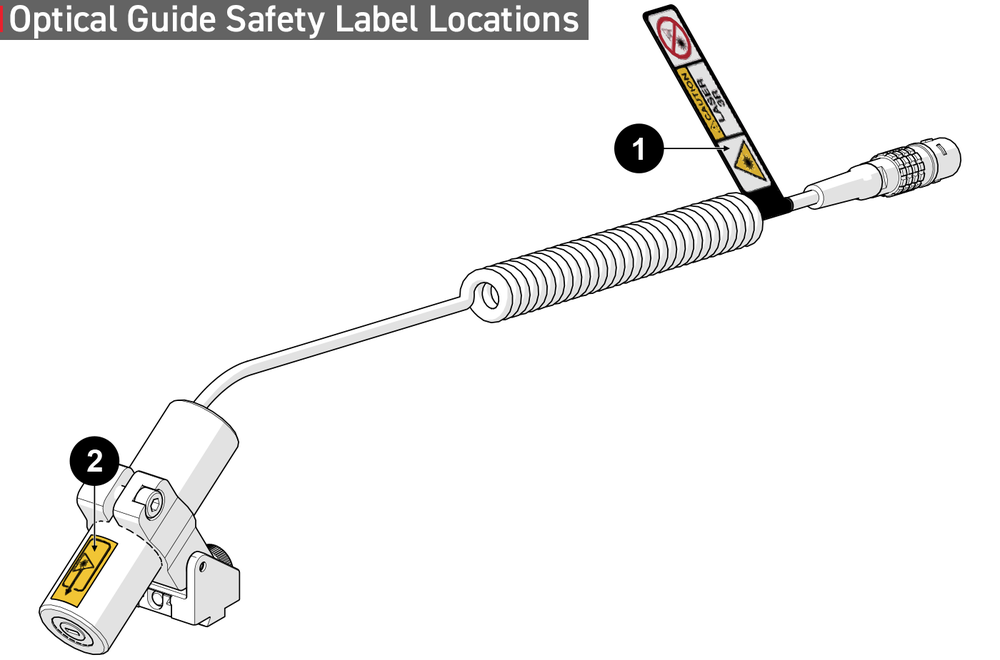

OPTICAL GUIDE SAFETY LABEL LOCATIONS
The optical guide utilizes a class 3R laser which is potentially hazardous. Please read and understand the following warnings prior to use. Class 3R Lasers have the potential to harm eyesight, observe all safety precautions listed within the user manual.
