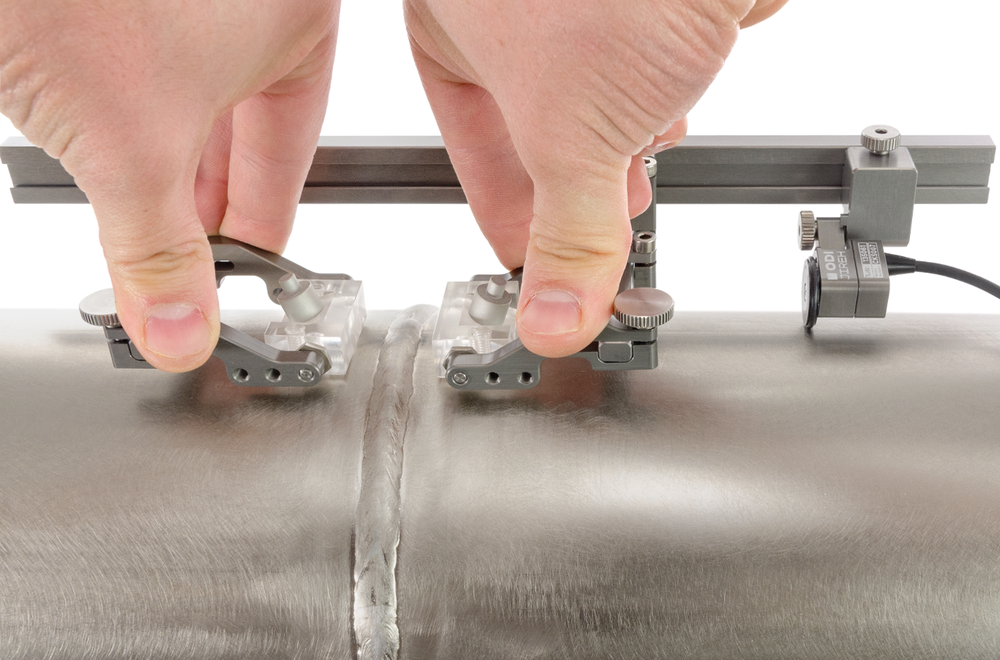

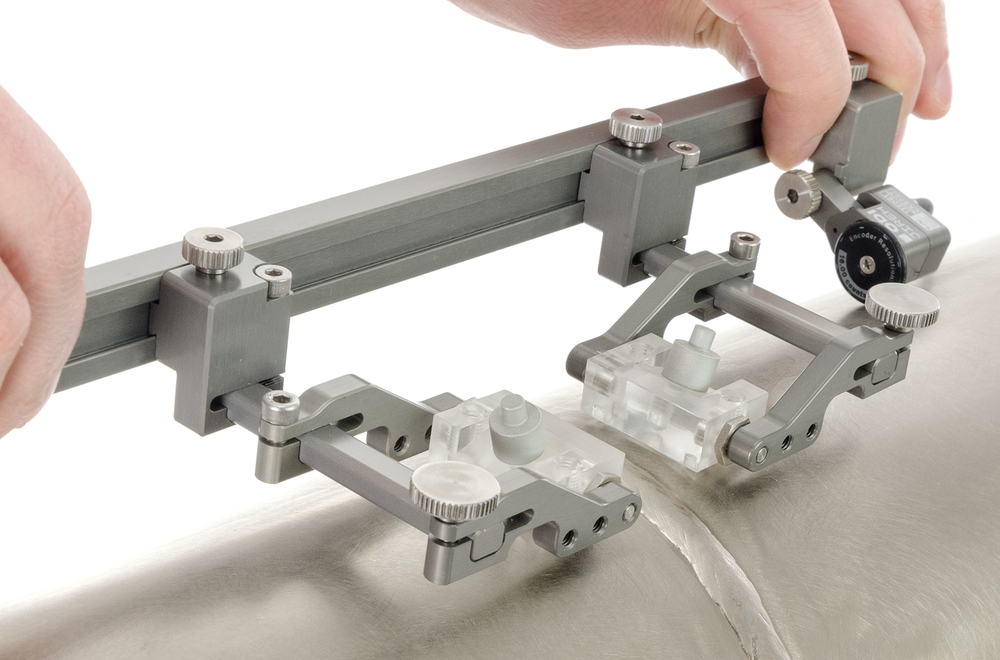

Enjoy expanded probe capacity with two TOFD probes to conduct weld inspection with this simple, no-tools-required scanner. The ODI II's handheld operation offers maneuverability, while the spring-loaded encoder maintains constant encoder contact.
Part ID: CKG007
Simple and sophisticated. Streamlined for speed.
COMPONENT IDENTIFICATION

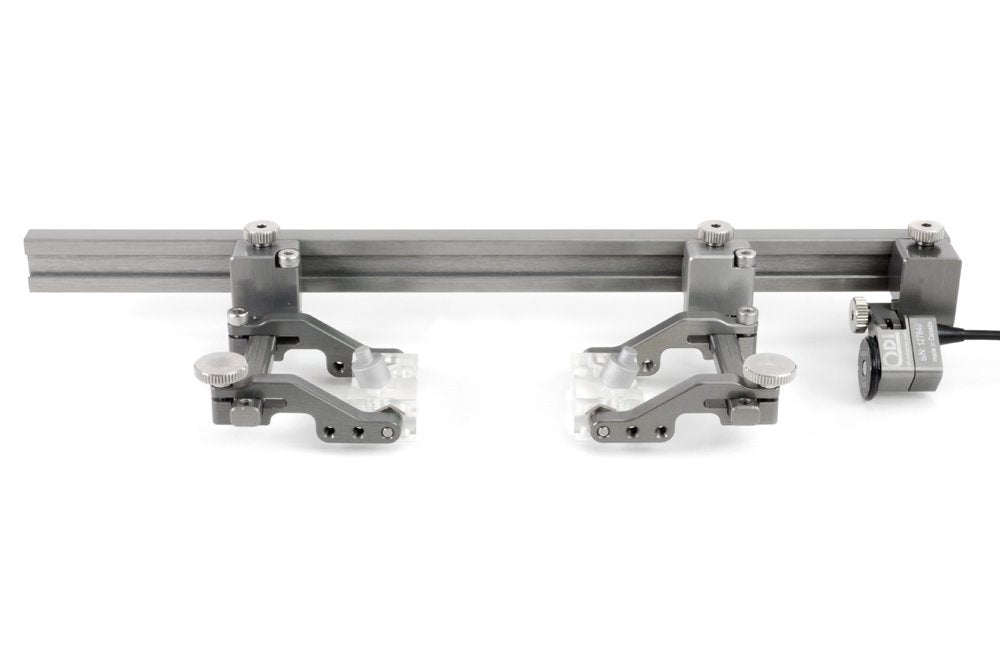

FRAME BAR
Connect the components of the scanner using the frame bar.

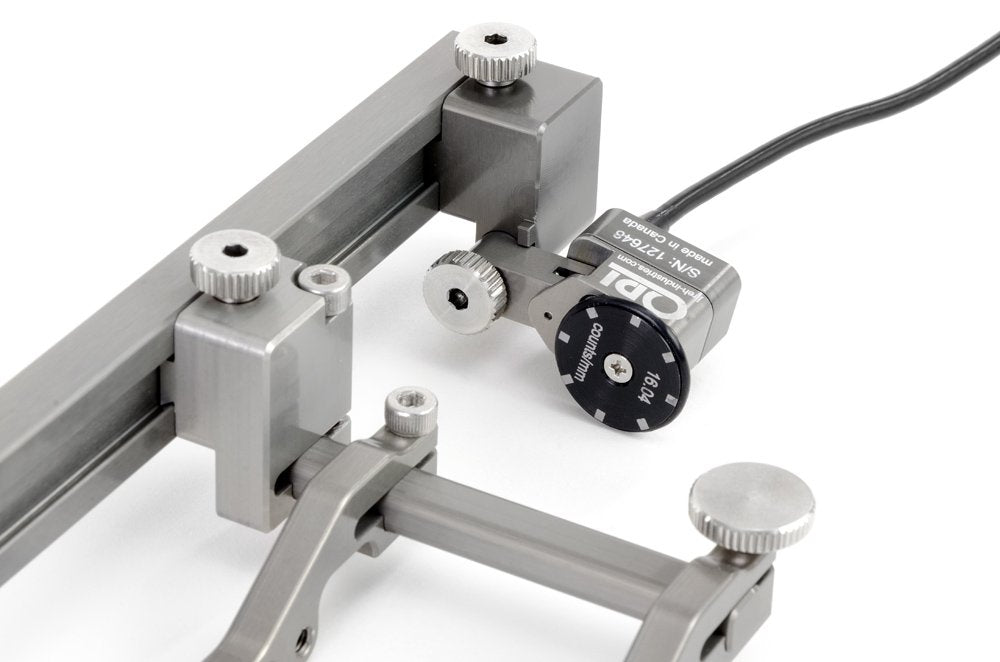

ENCODER
The spring-loaded encoder translates positional data to the user instrument.

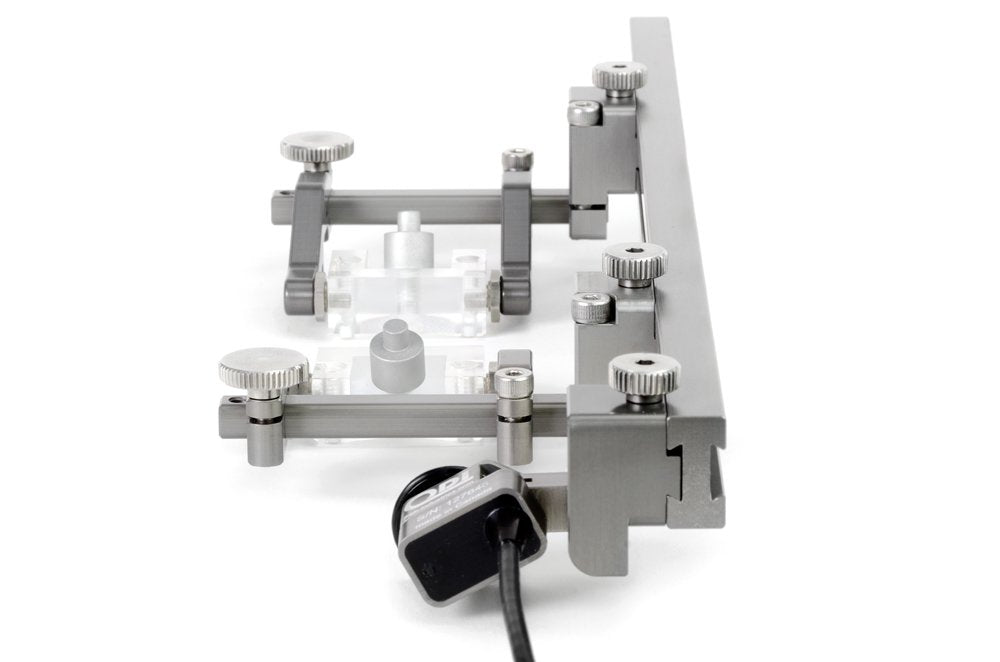

TOFD PROBE HOLDERS
Carry TOFD probes and wedges with the ODI II.
KIT CONTENTS
Spring-loaded encoder with 2.5 m (8.2 ft) encoder cable
ODI two probe system with 30 cm (11.8 in) frame bar
Heat-treated stainless steel encoder wheel
User manual
Warranty card
Rugged carrying case
SPECIFICATIONS
GENERAL
Encoder Wheel Diameter: 20.37 mm (0.8 in)
Encoder Resolution: 16.0 counts/mm (406.4 counts/inch)
Probe Holding Capacity: 2 TOFD wedges
Encoder Cable Length: 2.5 m (8.2 ft)1
Inspection Surface: Ferrous and non-ferrous
SIZE & WEIGHT
ODI II Height: 4.3 cm (1.7 in)
ODI II Length: 30 cm (11.8 in)2
ODI II Depth: 8.7 cm (3.4 in)
ODI II Weight: 0.36 kg (0.8lb)3, 4
Shipping Weight: TBD kg (lb)5
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details
CLAMP PROBE HOLDER SPECIFICATIONS
Maximum Wedge Width: 45 mm ( 1.75 in)
PROBE HOLDER PIVOT BUTTONS
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
