NAVIC - Tank Scanner

NAVIC - Tank Scanner

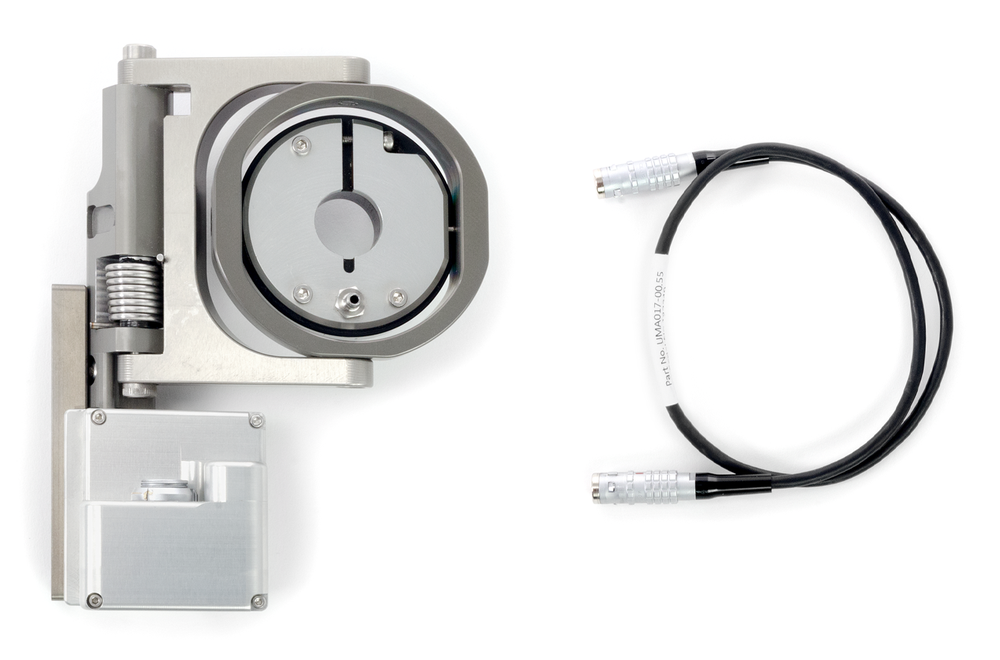

Deliver state-of-the-art thickness inspection results with the NAVIC - Tank Scanner. Paired with the actuated probe lift, the NAVIC operates remotely at a distance of up to 30 m (100 ft) while offering steering control and the ability to raise and lower the probe. Powerful, magnetic wheels drive vertically (and inverted) along the ferrous surfaces of tanks and vessels.

Ensure storage tank integrity and safety with the NAVIC

FEATURES

MOTORIZED DRIVING AND STEERING

The handheld controller controls variable drive speed and steering.

RUGGED

Designed to handle intense tasks and challenging environments (dust-tight, watertight)

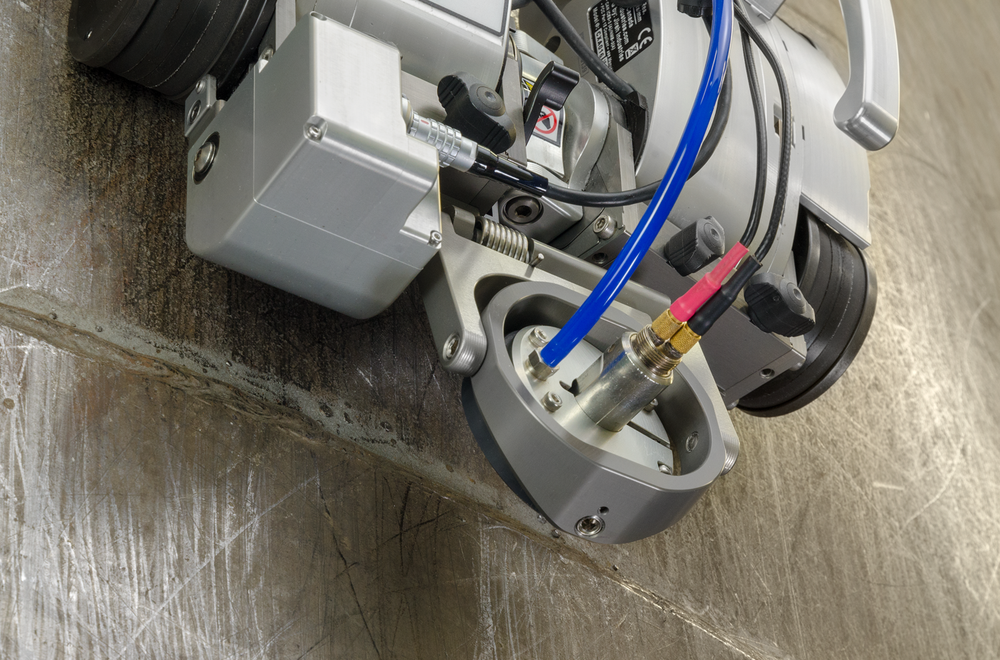

CORROSION THICKNESS PROBE HOLDER

Measure the material thickness with a probe holder, which may hold various probe types.

MAGNETIC WHEELS

Magnetic wheels provide the foundation for scan operations on ferrous surfaces.

REMOTE CONTROL

Navigate the crawler from up to 30 m (100 ft) away using the intuitive handheld remote control. The ergonomic handheld controller includes programming of raster patterns, drive paths and system diagnostics.

BATTERY POWER

Order the NAVIC with the battery kit and avoid using heavy, cumbersome generators. These rechargeable batteries can power the NAVIC system and accessories for hours at a time.

MANY ACCESSORIES

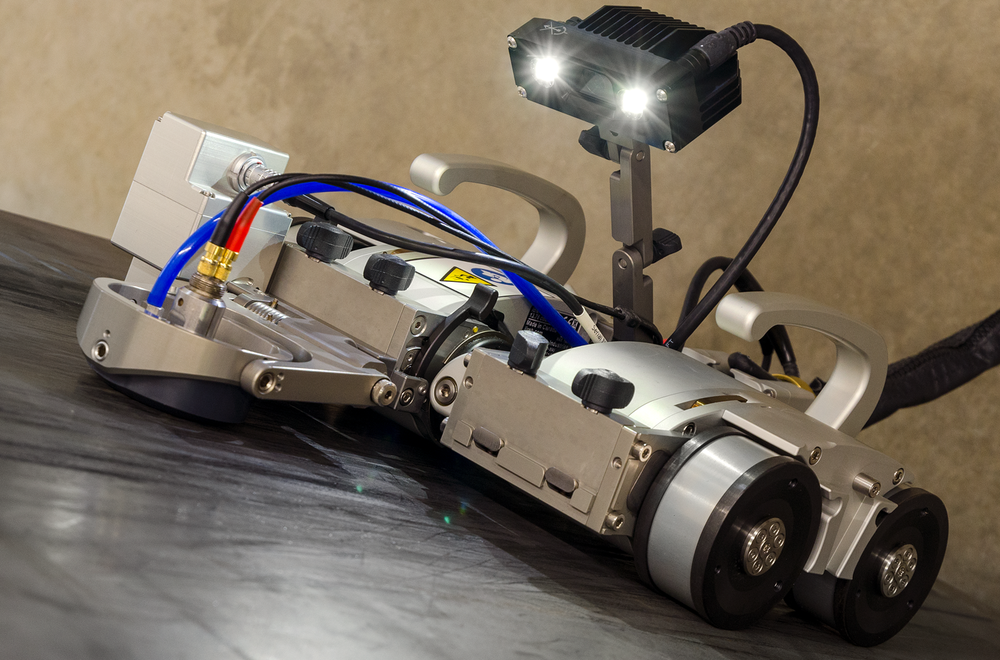

Enhance the NAVIC's capability with optional accessories: battery-powered optical guide, onboard camera, backpack, cable management, preamp and motorized couplant pump.

WARRANTY

JIREH backs this product with a limited 3-year warranty

KIT CONTENTS







SCANNER

NAVIC base crawler

PARTS & ACCESSORIES

Power controller
Power supply (North American, European or UK plugs available)
Umbilical, 5 m (15 ft), 10 m (30 ft), 15 m (50 ft) or 30 m (100 ft) lengths available
Handheld controller
Auxiliary cable, 6 m (20 ft)
Cable management, threaded mount, (length dependent on umbilical length)
J300 encoder cable, 5 m (15 ft)
Installation/Removal mat
6 mm ID irrigation kit (7/16 in quick connect)

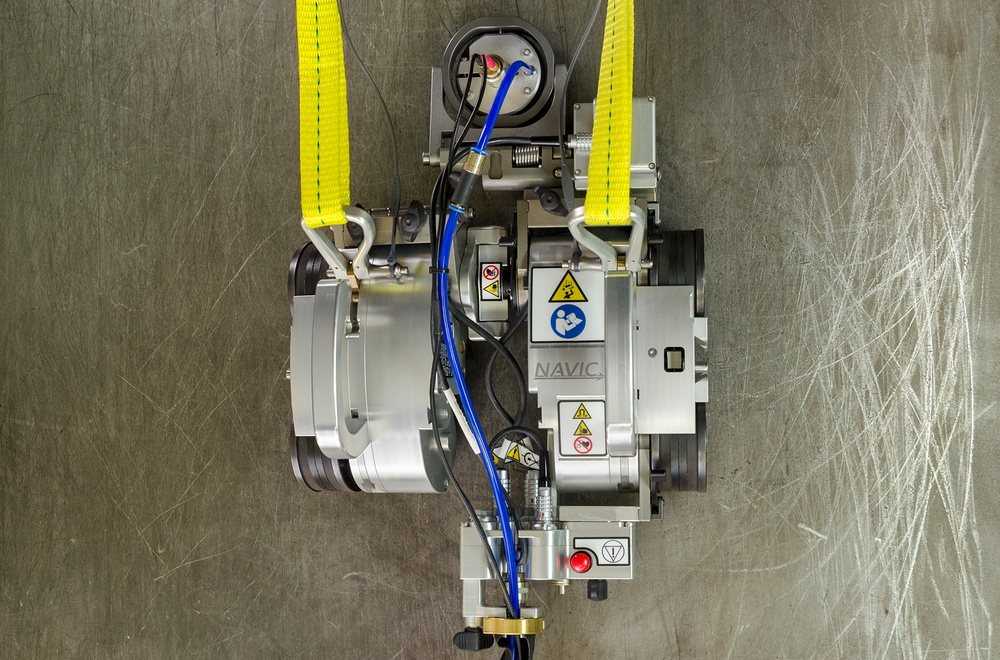

Lifting sling (safety tether)
User manual
Cap: NAVIC hinge cover
Plug
Rugged carrying cases (various types based on chosen accessories)  x2 – x3

TOOLS

3 mm hex driver
3 mm flat driver
Wrench for pivot button adjustment

COMPONENT IDENTIFICATION

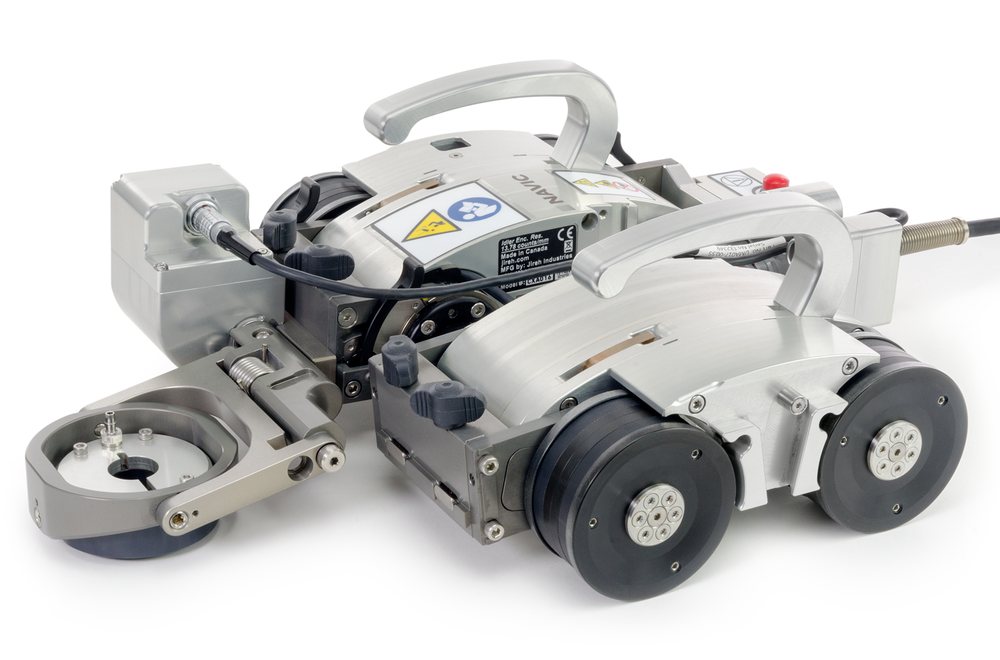

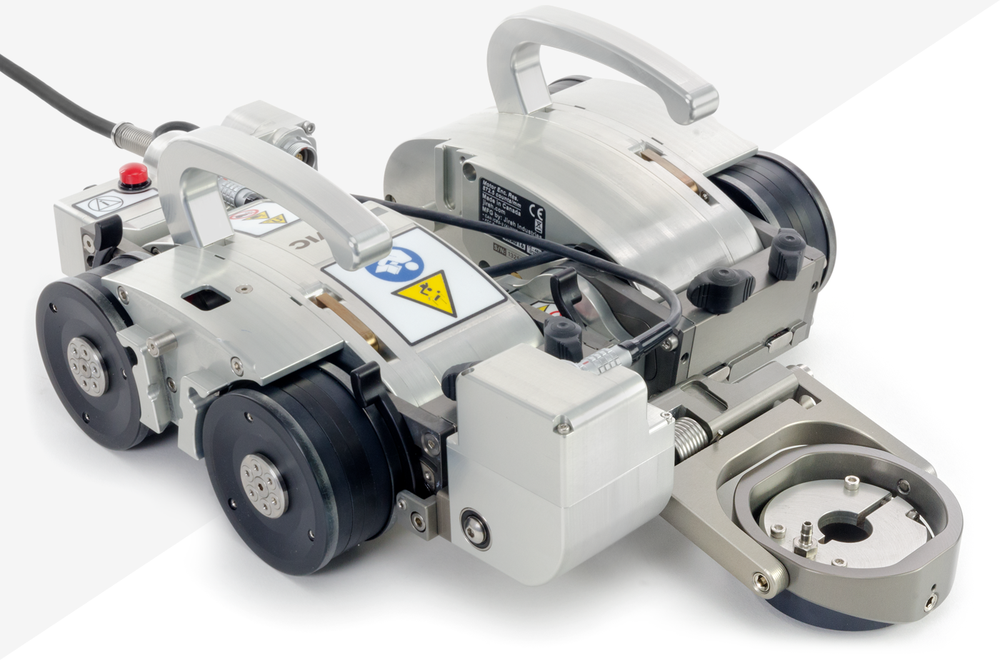

BASE CRAWLER

The powerful base crawler carries probe holder frames, raster arms and many accessories for weld and corrosion inspection.

INTEGRATED ENCODER

A spring-loaded encoder maintains surface contact on all various scan surface diameters.

MAGNETIC WHEELS

Powerful magnetic wheels ensure the crawler remains fixed to any ferrous surface.

POWER CONTROLLER

The power controller connects the user instrument and handheld controller to the base crawler and is compatible with North American, European and UK power sources.

UMBILICAL

The backbone of communication between the power controller and the base crawler.

HANDHELD CONTROLLER

Containing the NAVIC operating system, the handheld controller joysticks control the speed and steering of the base crawler. At the same time, the intuitive touchscreen allows for more intricate raster path and drive programming.
