NAVIC - 3-Axis Nozzle Scanner

Name: NAVIC - 3-Axis Nozzle Scanner
Brand: Alliance Solutions Group
Availability: InStock

Product variants

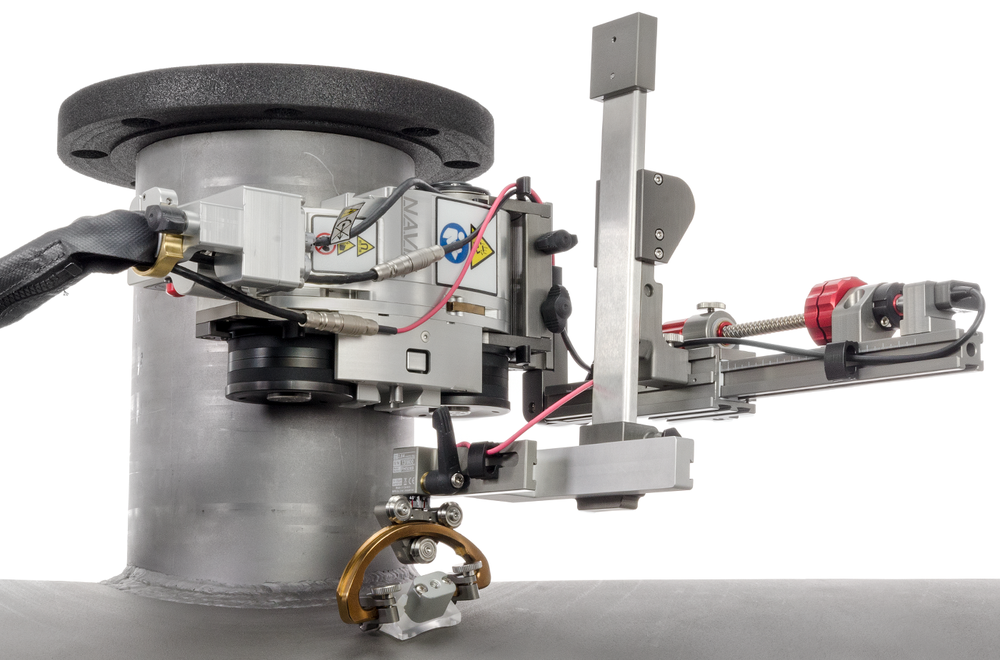

The NAVIC - 3-Axis Nozzle Scanner utilizes a single pod of the NAVIC system to carry a specialized probe holder on nozzles and fitting welds. Incredible precision and accuracy are obtained with three different encoders measuring scanner position, probe position and probe skew.

The NDT industry's first motorized nozzle scanner

FEATURES

MOTORIZED DRIVING AND STEERING

Variable drive speed and steering control.

ENCODED SKEW VERTICAL PROBE HOLDER

An inventive probe holder offers 12.2 cm (4.8 in) of vertical travel and an encoded skew measurement. As the probe travels around a weld, constant probe contact with the scan surface is maintained thanks to this unique vertical probe holder. It also features an encoded skew which measures the degrees to which the probe has been rotated horizontally.

REMOTE CONTROL

Program scan and raster paths from up to 30 m (100 ft) away using the intuitive handheld remote control. The ergonomic handheld controller includes programming of raster patterns, drive paths and system diagnostics.

SLIDER PROBE POSITIONING SYSTEM

Make quick adjustments to the probe distance from the weld without requiring scanner removal. The included encoder ensures precise measurement along the frame bar.

Y-AXIS ENCODING

Measure the probe distance from the weld.

MANY ACCESSORIES

Enhance the NAVIC's capability with optional accessories: battery-powered optical guide, onboard camera, backpack, cable management, preamp and motorized couplant pump.

BATTERY POWER

Order the NAVIC with the battery kit and avoid using heavy, cumbersome generators. These rechargeable batteries can power the NAVIC system and accessories for hours at a time.

WARRANTY

A three-year warranty backs it all JIREH products. Contact us for more information.

COMPONENT IDENTIFICATION

BASE CRAWLER

The powerful base crawler carries probe holder frames, raster arms and a multitude of accessories for the purposes of weld and corrosion inspection.

INTEGRATED ENCODER

A spring-loaded encoder maintains surface contact on all various scan surface diameters.

MAGNETIC WHEELS

Powerful magnetic wheels ensure the crawler remains fixed to any ferrous surface.

POWER CONTROLLER

Compatible with North American, European and UK power sources, the power controller connects the user instrument and handheld controller to the base crawler.

UMBILICAL

The backbone of communication between the power controller and the base crawler.

HANDHELD CONTROLLER

Containing the NAVIC operating system, the handheld controller joysticks control the speed and steering of the base crawler. At the same time, the intuitive touchscreen allows for more intricate raster path and drive programming.

KIT CONTENTS

SCANNER

NAVIC base crawler

PARTS & ACCESSORIES

Power controller
Power supply (North American, European or UK plugs available)
Umbilical, 5 m (15 ft), 10 m (30 ft), 15 m (50 ft) or 30 m (100 ft) lengths available
Handheld controller
Auxiliary cable, 6 m (20 ft)
Cable management, threaded mount, (length dependent on umbilical length)
J300 encoder cable, 5 m (15 ft)
Installation/Removal mat
6 mm ID irrigation kit (7/16 in quick connect)
Lifting sling (safety tether)
User manual
Cap: NAVIC hinge cover
Plug
Rugged carrying cases (various types based on chosen accessories) x2 – x3

TOOLS

3 mm hex driver
3 mm flat driver
Wrench for pivot button adjustment

SPECIFICATIONS

GENERAL

Idler Encoder (Right Module): 13.78 counts/mm (349.9 counts/inch)
Motor Encoder (Left Module): 872.5 counts/mm (22162.8 counts/inch)
Y-Axis Encoder Resolution: 161.3 counts/mm (4096.0 counts/inch)
Skew Axis Encoder Resolution: 2.84 counts/deg.
Probe Holding Capacity: 1 wedge
Crawler’s Vertical Payload: 10 kg (22 lb)¹
Driving Speed: Variable 0 – 25 cm/sec (0 – 10 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 3.5 Amps
Umbilical Lengths: 5 m (15 ft), 10 m (30 ft), 15 m (50 ft) to 30 m (100 ft)²
Inspection Surface: Ferrous
Maximum Backpack payload: 1.36 kg (3 lb)³

PIPE RANGE

Nozzle Size Range: 7 cm (2.75 in) to flat pipe
Range, Internal Circumferential: 61 cm (24 in) to flat
Pipe Range, Longitudinal: 30.5 cm (12 in) to flat

CLEARANCE

Radial Clearance, Pipes under 20 cm (8 in): 7 cm (2.75 in)⁴
Radial Clearance, Pipes over 20 cm (8 in): 8.15 cm (3.2 in)⁴

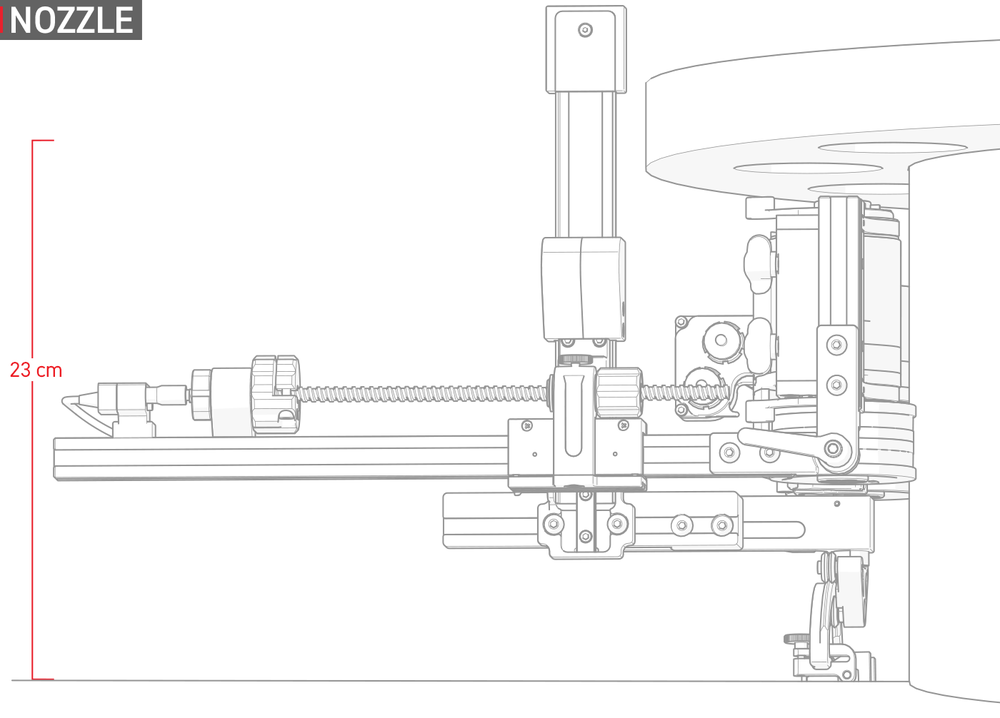

Vertical Nozzle Clearance: 23 cm (9 in)

REGULATIONS

CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.⁵
FCC: Compliance with Part 15 of FCC rules.⁵
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.⁵
UKCA: United Kingdom Conformity Assessed – Compliance with relevant UK statutory requirements and legislation.⁵

SIZE & WEIGHT

Base Crawler Height (including handles): 12.5 cm (4.9 in)
Base Crawler Height (handles removed): 8.1 cm (3.2 in)
Base Crawler Width (Dual Pod): 28.2 cm (11.1 in)
Base Crawler Length: 30.8 cm (12.1 in)⁶
Base Crawler Width (Single Pod): 16.1 cm (6.3 in)
Base Crawler Weight: 7.7 kg (17 lb)⁷

Encoded Skew Vertical Probe Holder Height: 32.2 cm (12.7 in)
Encoded Skew Vertical Probe Holder Width: 11.6 cm (4.6 in)
Encoded Skew Vertical Probe Holder Length: 14.2 cm (5.6 in)
Encoded Skew Vertical Probe Holder Weight: 0.75 kg (1.7 lb)

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, water-tight (not submersible)
Maximum Inspection Surface Temperature: 150°C (302°F)⁸
