NAVIC 2 - Base Crawler
NAVIC 2 - Base Crawler
The NAVIC 2 - Base Crawler is a modular, motorized, steerable scanner that carries various attachments for scanning and inspection applications. The list of possibilities is seemingly endless with this industry-leading crawler. The NAVIC can perform circumferential and longitudinal inspections on ferrous tanks, pipes, and vessels.
Part ID: CXG023
The industry-leading NAVIC is JIREH's most powerful, all-encompassing, weld and corrosion scanning solution.
FEATURES
MOTORIZED DRIVING AND STEERING
Variable drive speed and steering control.
RUGGED
Designed to handle intense tasks and challenging environments (dust-tight, watertight).
CORROSION MAPPING

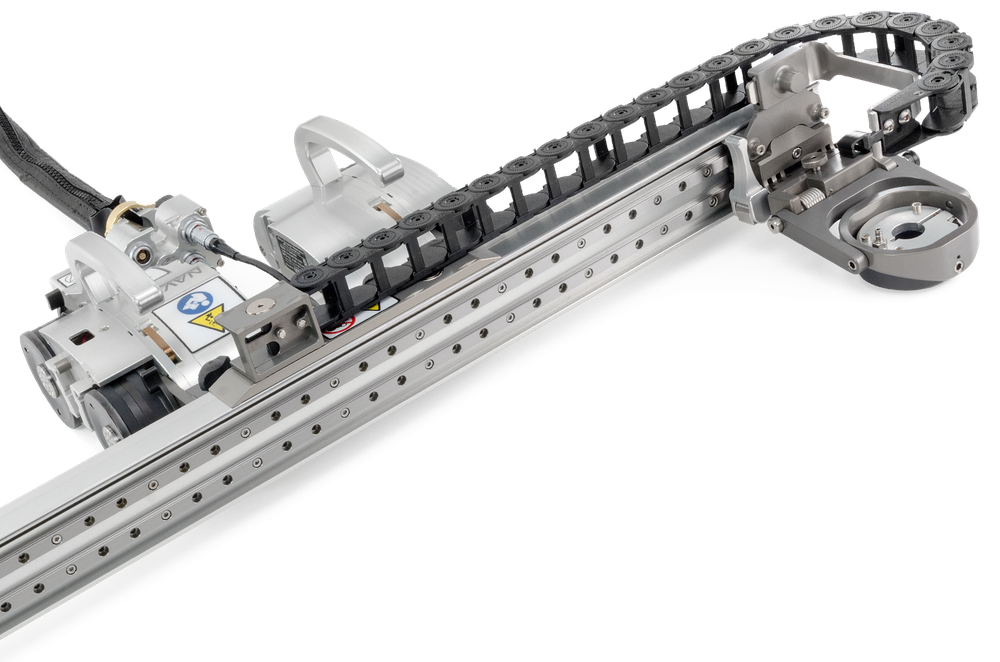

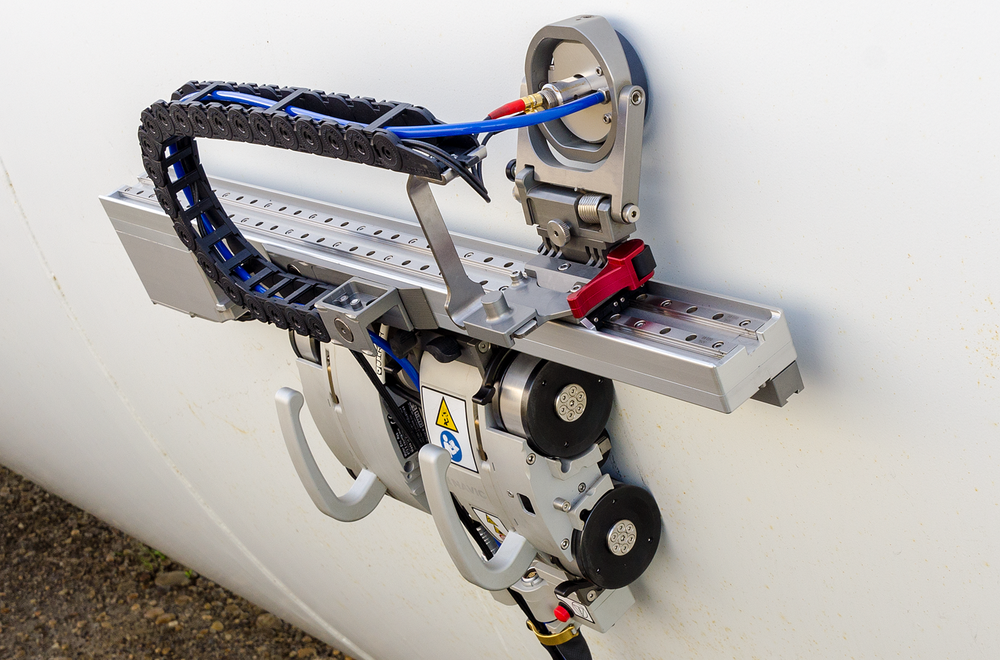

Effortlessly perform corrosion mapping with a variety of automated raster arms.
WELD SCANNING

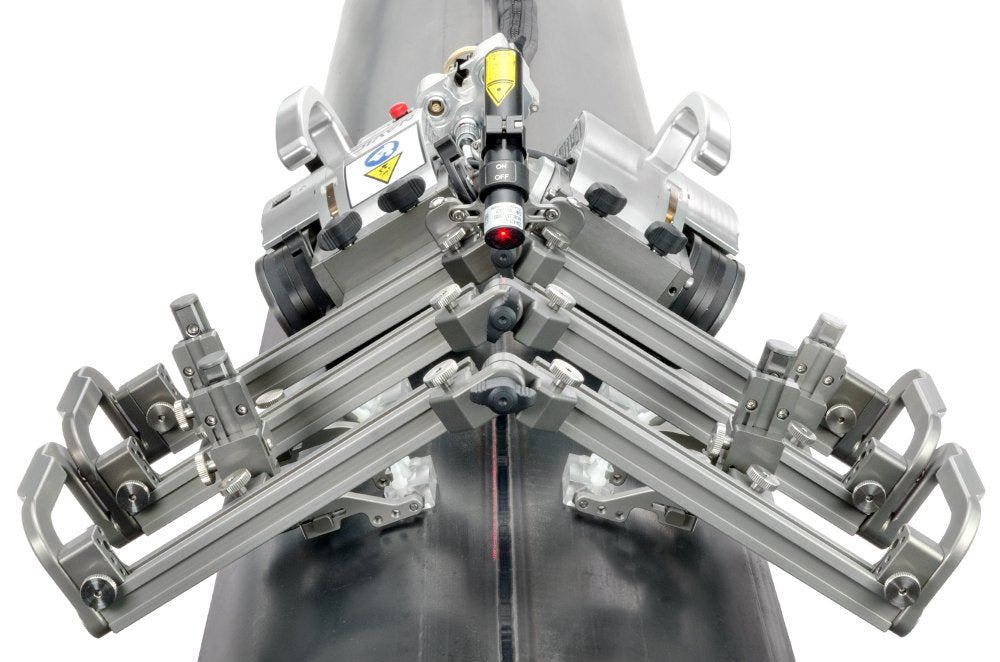

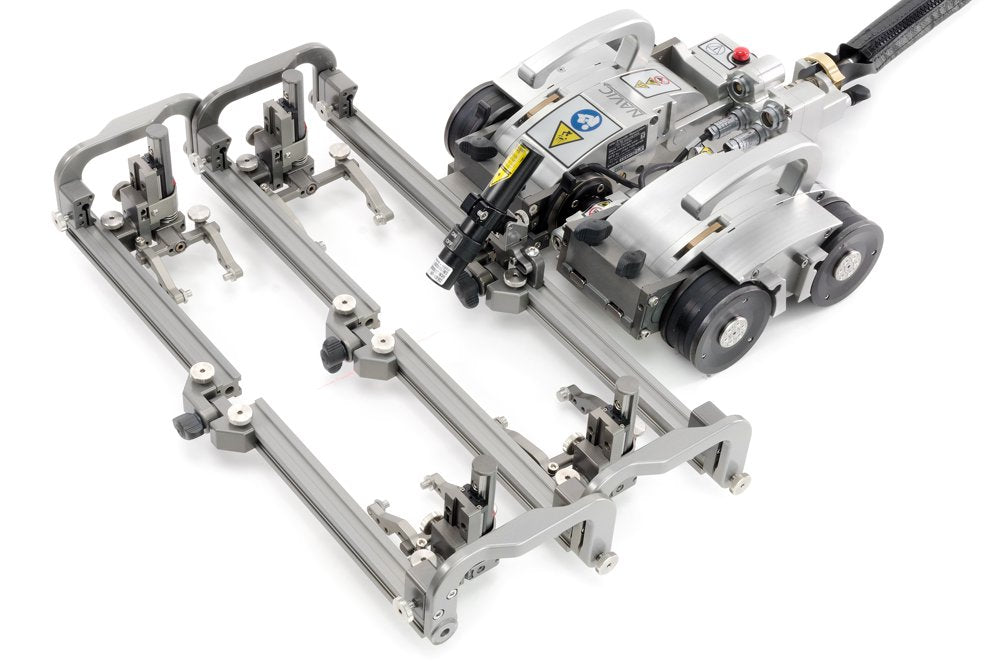

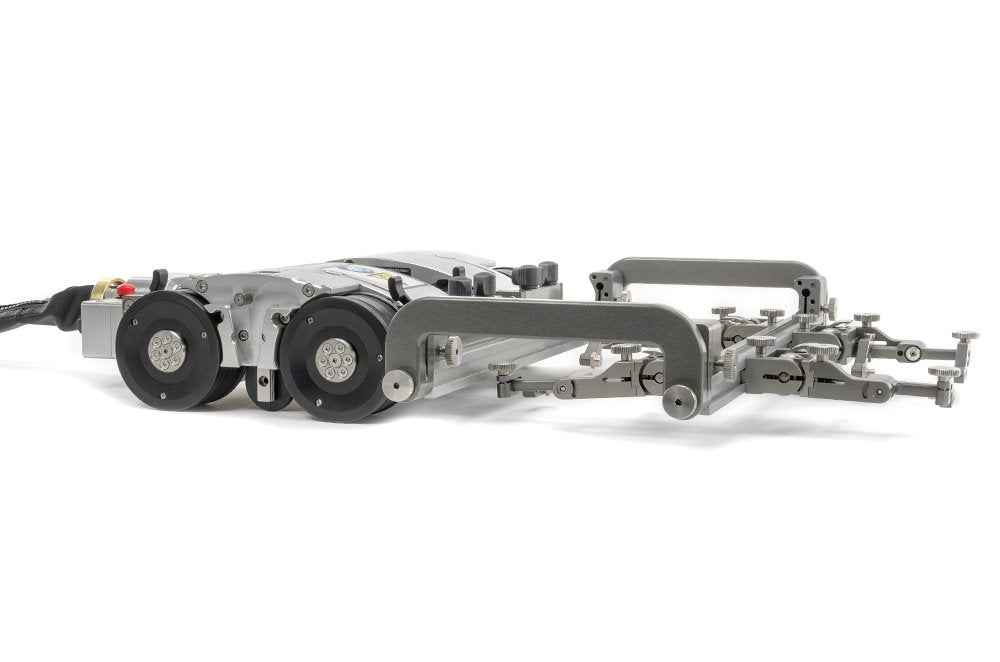

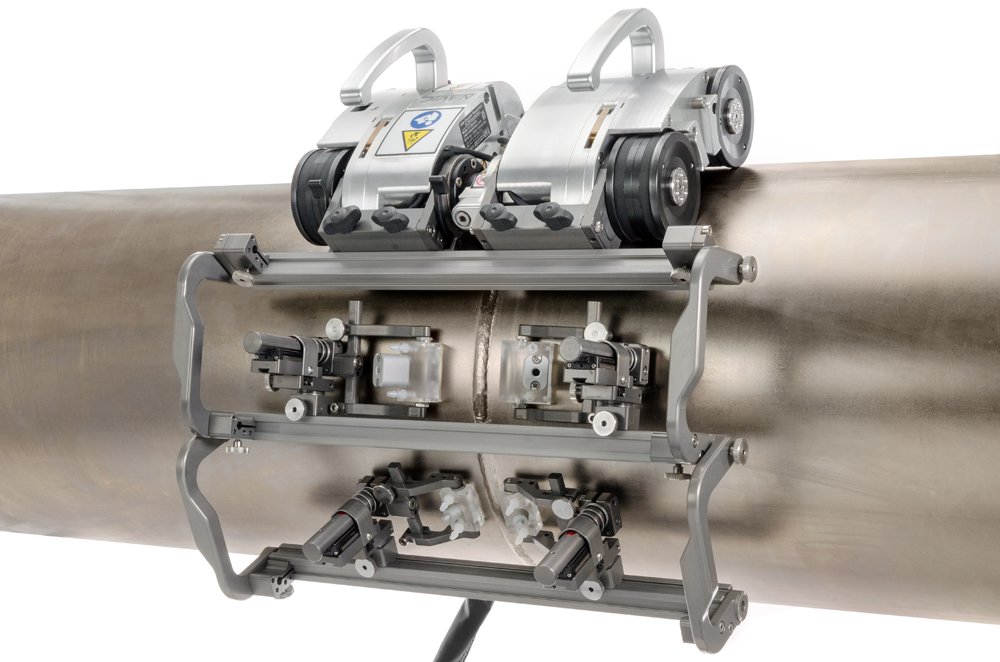

Various probe holder frame configurations allow for carrying between 2 and 6 probes during weld inspection.
MODULAR

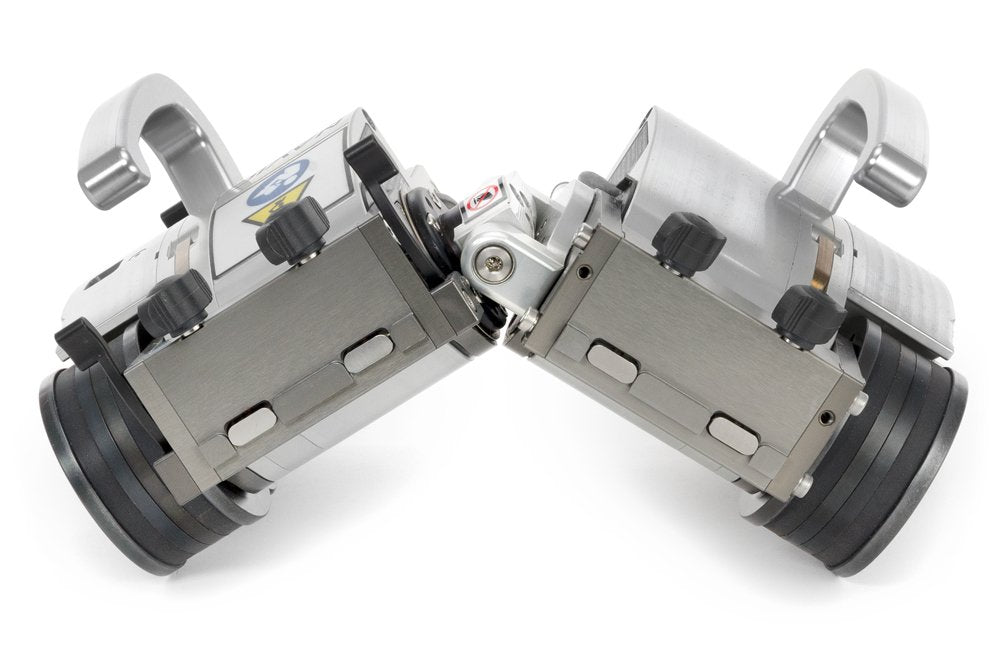

Increased capability with pod separation, multiple encoders, accessory mounts and a handheld controller.
MANY ACCESSORIES

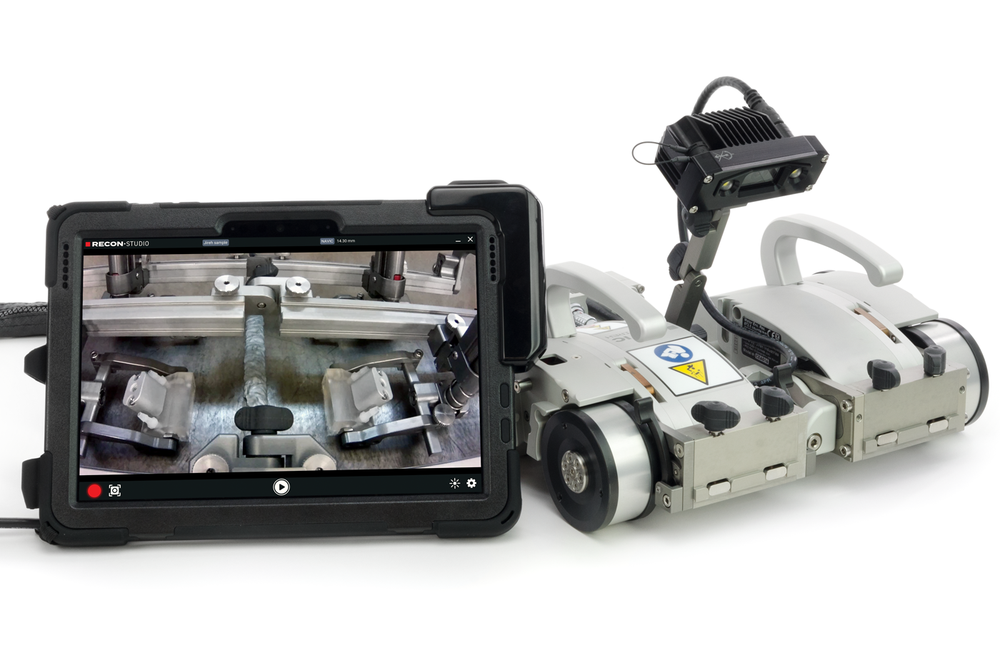

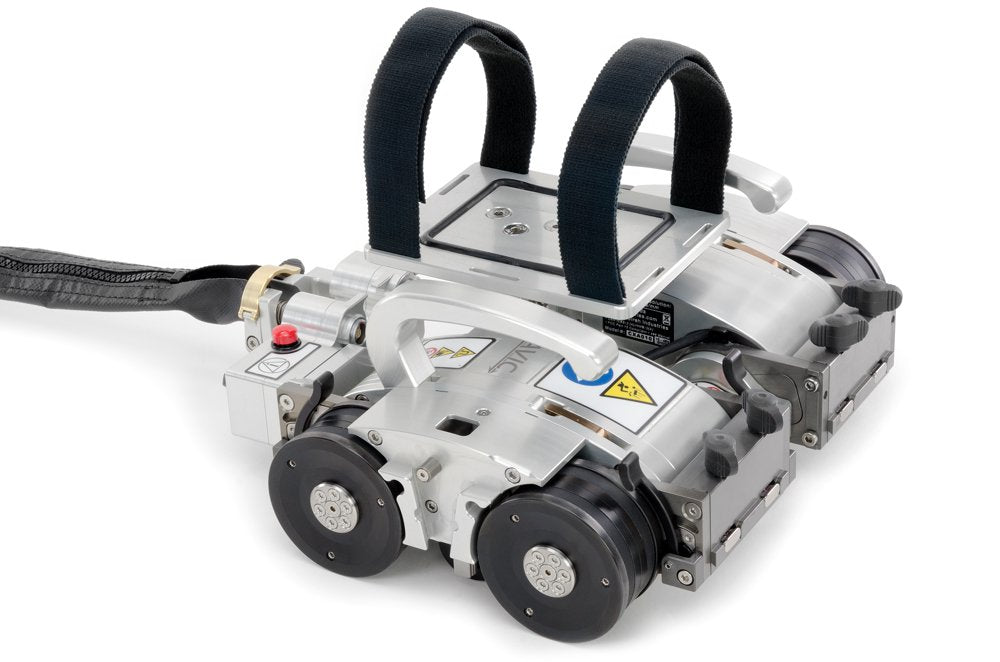

Enhance the NAVIC's capability with optional accessories: battery-powered optical guide, onboard camera, backpack, cable management, preamp and motorized couplant pump.
MAGNETIC WHEELS
Magnetic wheels provide the foundation for scan operations on ferrous surfaces.
LOW PROFILE DESIGN

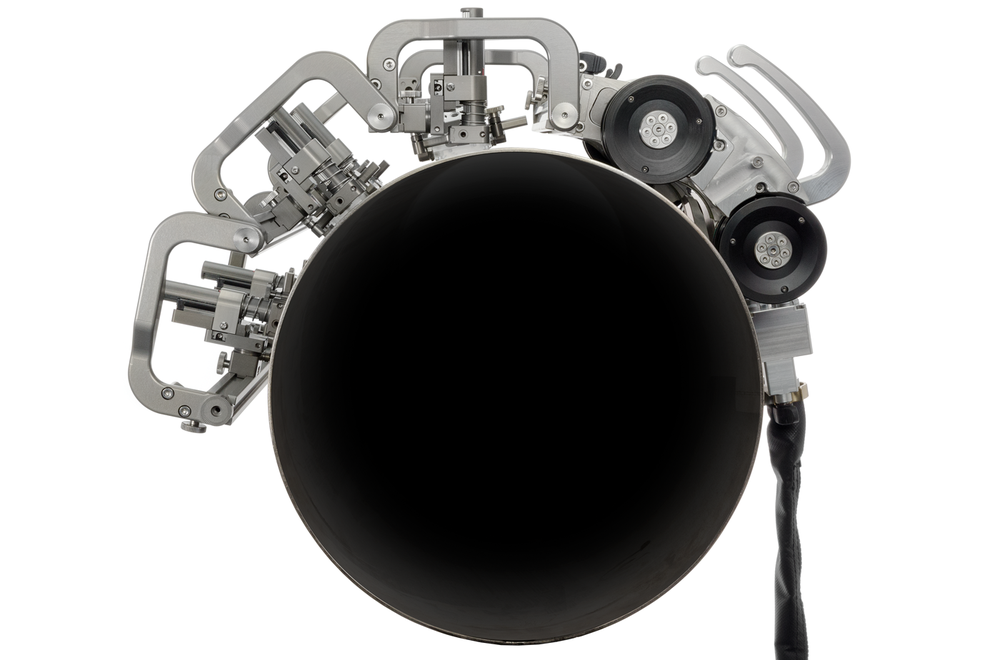

The NAVIC can circumnavigate pipes as small as 7 cm (2.75 in) OD while only requiring 7 cm (2.75 in) of radial clearance when low-profile scanning is needed.
REMOTE CONTROL
Program scan and raster paths from up to 30 m (100 ft) away using the intuitive handheld remote control. The ergonomic handheld controller includes drive paths, variable speed control, and system diagnostics.
BATTERY POWER
Order the NAVIC with the battery kit and avoid using heavy, cumbersome generators. These rechargeable batteries can power the NAVIC system and accessories for hours at a time.
WARRANTY
JIREH backs the NAVIC system with a limited 3-year warranty.
KIT CONTENTS
SCANNER
NAVIC base crawler
PARTS & ACCESSORIES
Power controller
Power supply (North American, European or UK plugs available)
Umbilical, 5 m (15 ft), 10 m (30 ft), 15 m (50 ft) or 30 m (100 ft) lengths available
Handheld controller
Auxiliary cable, 6 m (20 ft)
Cable management, threaded mount (length dependent on umbilical length)
J300 encoder cable, 5 m (15 ft)
Installation/Removal mat
6 mm ID irrigation kit (7/16 in quick connect)
Lifting sling (safety tether)
User manual
Cap: NAVIC hinge cover
Plug
Rugged carrying cases (various types based on chosen accessories) x2 – x3
TOOLS
3 mm hex driver
3 mm flat driver
Wrench for pivot button adjustment
COMPONENT IDENTIFICATION

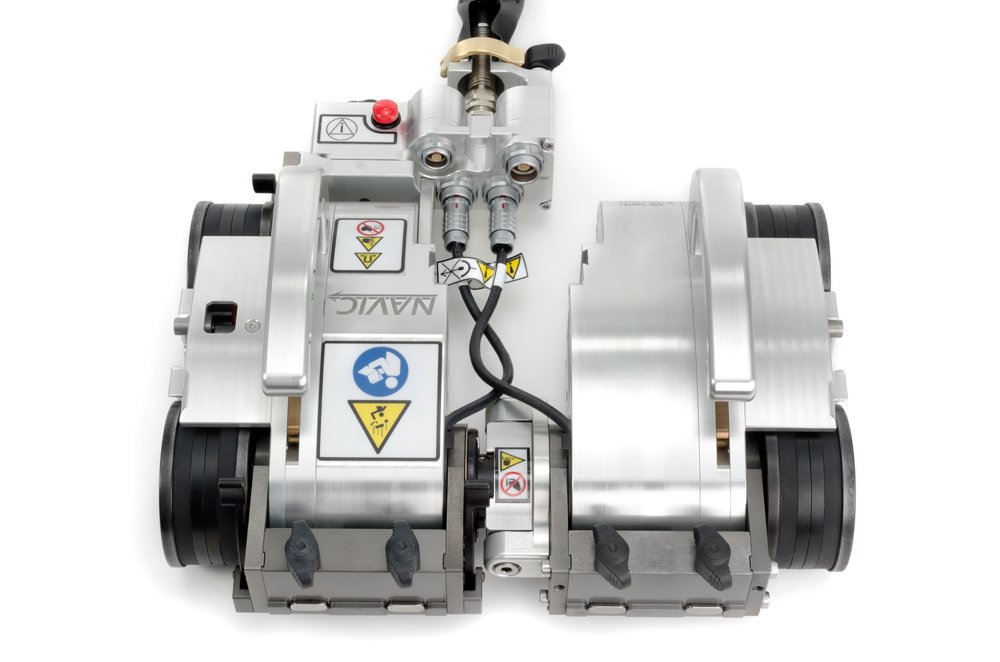

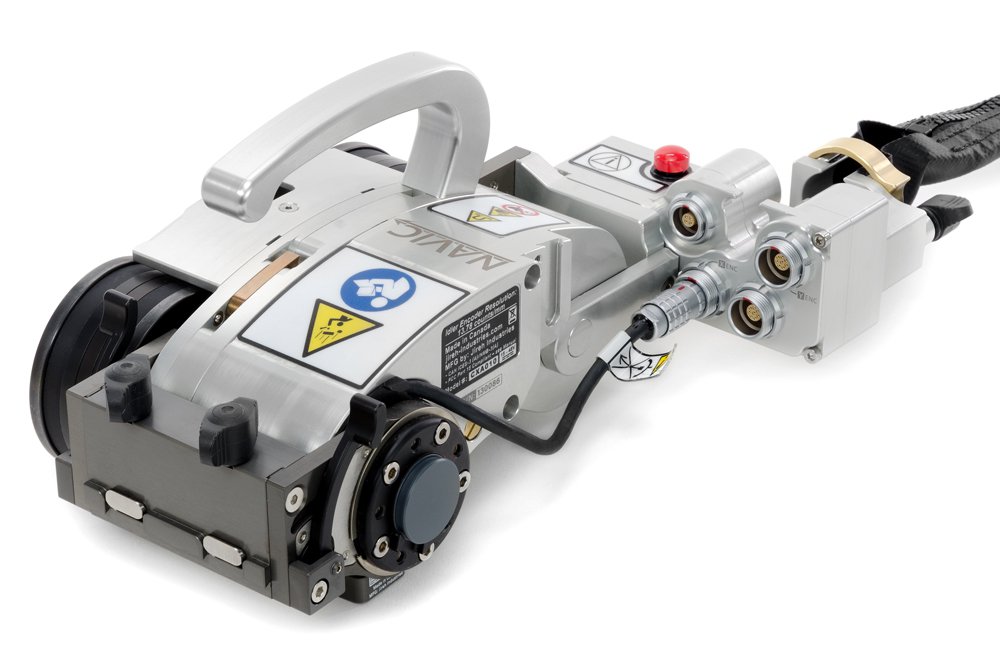

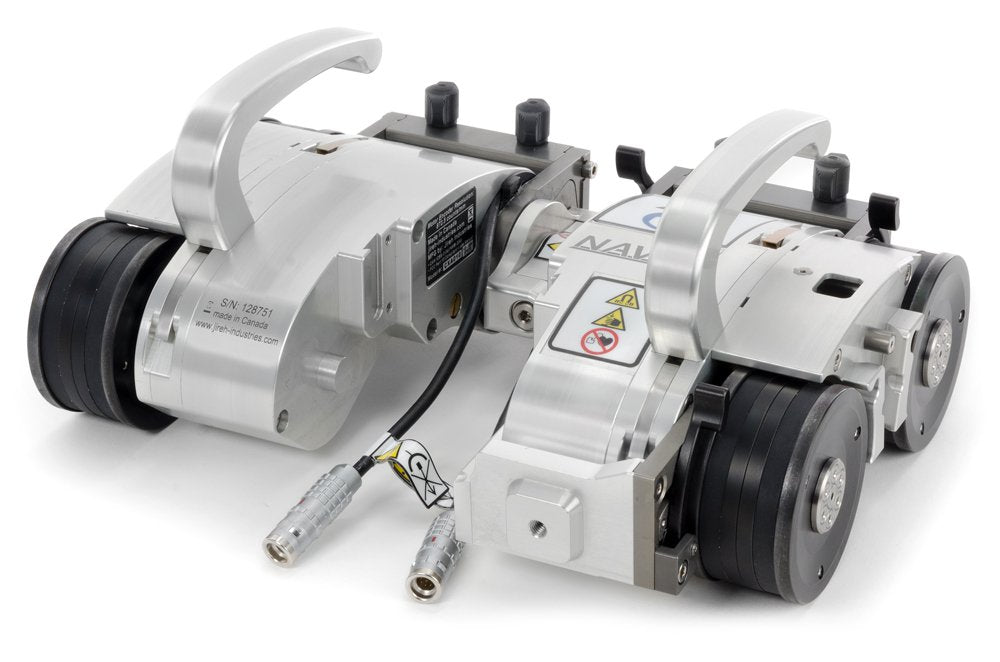

BASE CRAWLER
The powerful base crawler carries probe holder frames, raster arms and many accessories for weld and corrosion inspection.

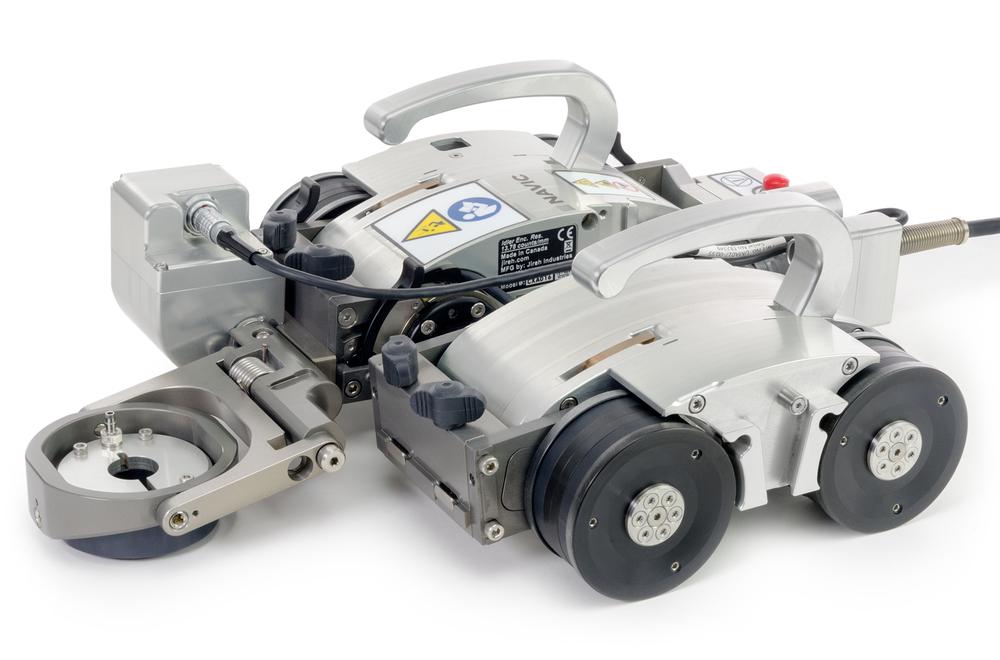

INTEGRATED ENCODER
A spring-loaded encoder maintains surface contact on all various scan surface diameters.
MAGNETIC WHEELS
Robust magnetic wheels ensure the crawler remains fixed to any ferrous surface.
POWER CONTROLLER
Compatible with North American, European and UK power sources, the power controller connects the user instrument and handheld controller to the base crawler.
UMBILICAL
The backbone of communication between the power controller and the base crawler.

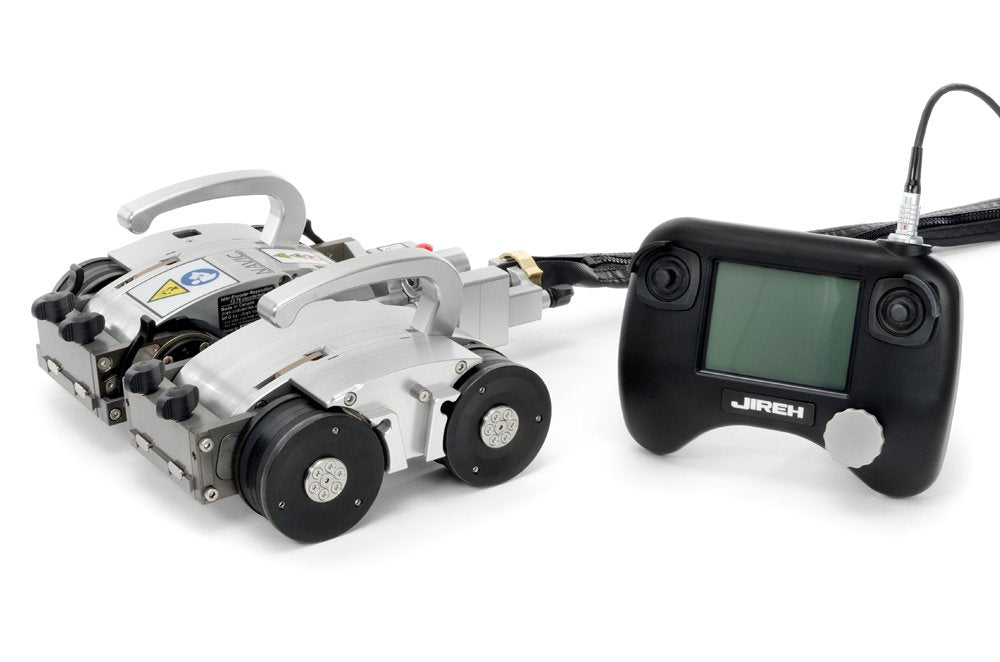

HANDHELD CONTROLLER
Containing the NAVIC operating system, the handheld controller joysticks control speed and steering of the base crawler while the intuitive touchscreen allows for more intricate raster path and drive programming.
SPECIFICATIONS
GENERAL
Idler Encoder (Right Module): 13.78 counts/mm (349.9 counts/inch)
Motor Encoder (Left Module): 872.5 counts/mm (22162.8 counts/inch)
Crawler’s Vertical Payload: 10 kg (22 lb)1
Driving Speed: Variable 0 – 25 cm/sec (0 – 10 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 3.5 Amps
Umbilical Lengths: 5 m (15 ft), 10 m (30 ft), 15 m (50 ft) to 30 m (100 ft)2
Inspection Surface: Ferrous
Maximum Backpack payload: 1.36 kg (3 lb)3
PIPE RANGE
Circumferential: 7 cm (2.75 in) to flat pipe
Internal Circumferential: 61 cm (24 in) to flat
Longitudinal: 30.5 cm (12 in) to flat
RADIAL CLEARANCE
Pipes under 20 cm (8 in): 7 cm (2.75 in)4
Pipes over 20 cm (8 in): 8.15 cm (3.2 in)4
REGULATIONS
CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.5
FCC: Compliance with Part 15 of FCC rules.5
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.5
UKCA: United Kingdom Conformity Assessed – Compliance with relevant UK statutory requirements and legislation.5
SIZE & WEIGHT
Base Crawler Height (including handles): 12.5 cm (4.9 in)
Base Crawler Height (handles removed): 8.1 cm (3.2 in)
Base Crawler Width (Dual Pod): 28.2 cm (11.1 in)
Base Crawler Length: 30.8 cm (12.1 in)6
Base Crawler Width (Single Pod): 16.1 cm (6.3 in)
Base Crawler Weight: 7.7 kg (17 lb)7
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
Maximum Inspection Surface Temperature: 150°C (302°F)8
POWER CORDS
POWER REQUIREMENTS
100-240VAC, 50/60Hz, 3.5 Amps
PLUG DESIGNATION
North America
NEMA 5-15P
Europe
CEE7/7
UK
BS1363A
