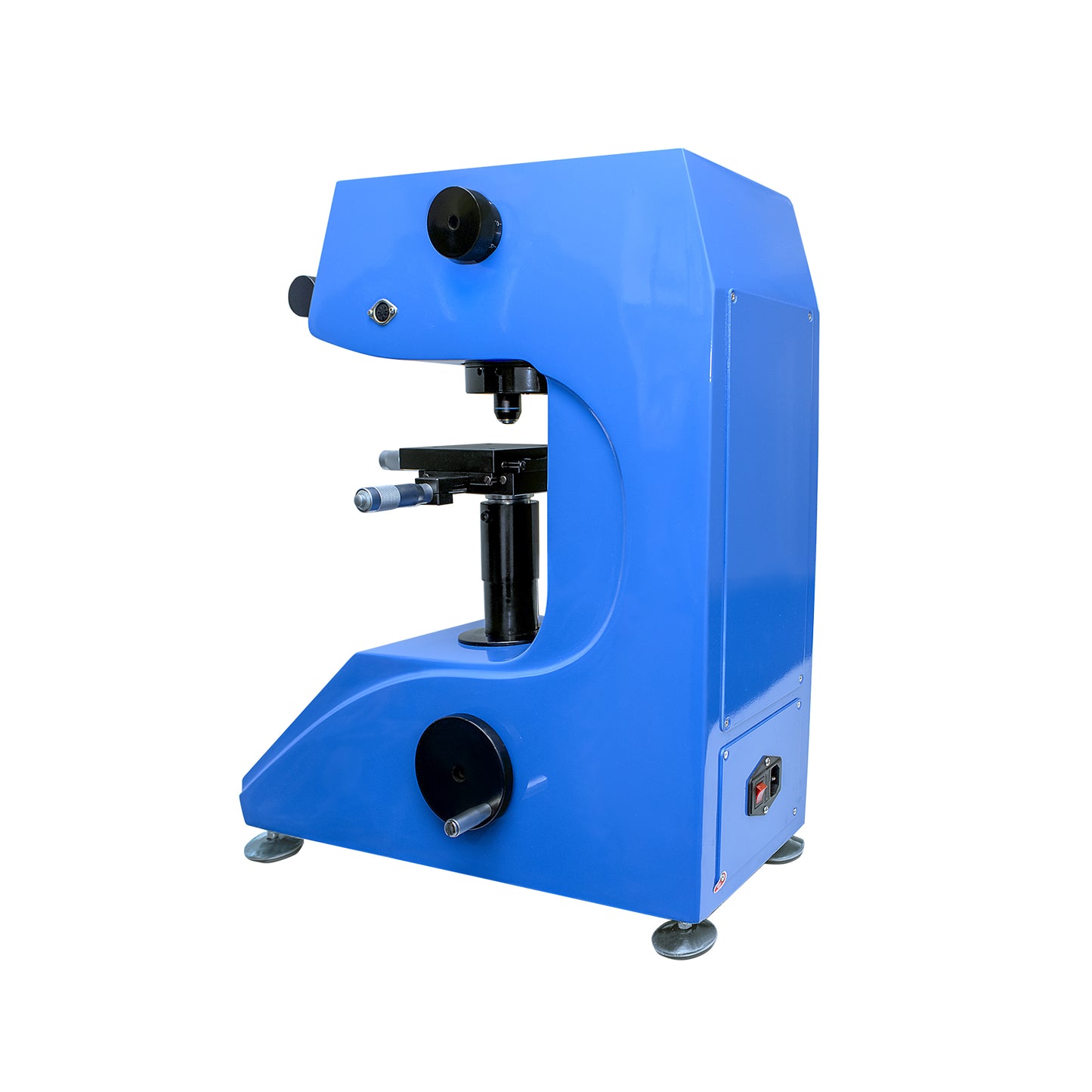

Micro-Vickers Hardness Tester NOVOTEST TS-MCV

Digital Micro-Vickers Hardness Tester NOVOTEST TS-MCV implements direct Vickers method of hardness testing in accordance with ISO 6507-2 and ASTM E384.

Application

Micro Vickers hardness tester is used for high precision testing of:

• carburized layer, ceramic, steel, non-ferrous metals;
• sheet, metal foil, plating, fine specimen, surface hardened layers;
• coatings, nitride layer;
• carburized layer and hardened layer;
• parallel surfaces;
• thin and small objects, when use of other hardness testers is impossible.

Description

Hardness tester has a large contrast display. The device is handy and easy to set up and operate.

Hardness tester has a large LCD screen with easy operating menu. The device is equipped with built-in printer.

NOVOTEST TS-MCV has optical microscope for measuring the obtained diagonals of the imprints.  Hardness values are calculated fully automatically, no manual tables are used. Operator sees ready hardness value on LCD screen.

Hardness tester has such function as: automatic hardness calculation, storage, display, printing of results and conversion of hardness value to different scales.

This machine can be used as metallographic microscope tissue, when it can match with computer, install the CCD camera and PC software. The hardness tester can become micro hardness meter using image processing. Its function is very powerful, which is the ideal test instrument nowadays.
