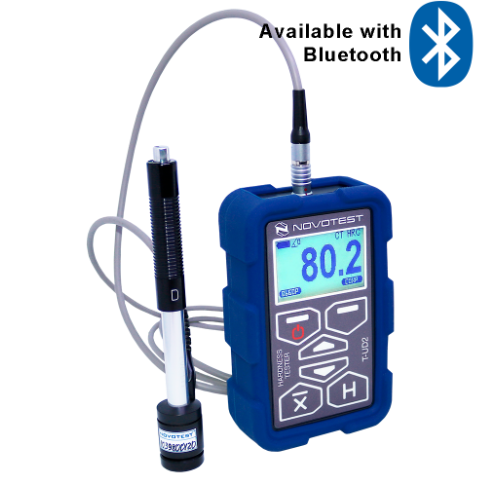

Leeb Hardness Tester NOVOTEST T-D2

The Leeb Hardness Tester NOVOTEST T-D2 correspond to to ASTM A956 is the most popular metal hardness testing method in the world, because of very easy to use and does not require special skills from the operator. The probe is mounted on the sample, and by pressing the release button, measurement is performed, and the hardness value is displayed on the device’s screen. The method works well with low alloy steels, stainless steels, as well as non-ferrous metals.

It is usually used for bulk products, without thorough surface preparation and is less sensitive to inhomogeneous or coarse-grained materials.

The main advantages of the Leeb Hardness Tester NOVOTEST T-D2:

HARDNESS TESTER IS CALIBRATED FOR DIFFERENT MATERIALS AND SCALES

The Leeb Hardness Tester NOVOTEST T-D2 is calibrated to measure the hardness of steels, cast iron, stainless steels, aluminum on all major scales – Rockwell, Brinell and Vickers. And also the hardness tester allows user to evaluate the tensile strength. If necessary, the user can create additional calibration for any scale and material.

DYNAMIC METHOD IS NOT MUCH REQUIRED FOR THE SURFACE OF THE PRODUCT AND THE HOMOGENEITY OF THE MATERIALS

The Leeb method allows user to measure the hardness of products with a poorly prepared surface (roughness up to 3,2 Ra), as well as coarse-grained materials such as cast iron, etc. However, it must be noted that the dynamic method without additional measures allows to test the hardness of only sufficiently massive products (weight over 5 kg, wall thickness at the measurement site more than 10 mm).

DEVICE MAY BE USED IN EXTREME CONDITIONS OF OPERATION

Shock-resistant, rugged housing with a silicone protective bumper cover allows the hardness tester to be made shockproof. The indicator of the device is clearly visible in the sun, when used in the dark – it has a display backlight with adjustable backlight. The hardness tester can be used both in the cold (up to -25 ‎°C), and in conditions of high temperatures. Thus, user can measure hardness in the most severe conditions without worrying that the device can let him down.

DIFFERENT PROBE’S TYPES

If necessary, the device can be equipped with a probes of various types to solve various tasks of hardness measuring.

The Leeb Hardness Tester NOVOTEST T-D2 has special software for operate with saved measurements.
