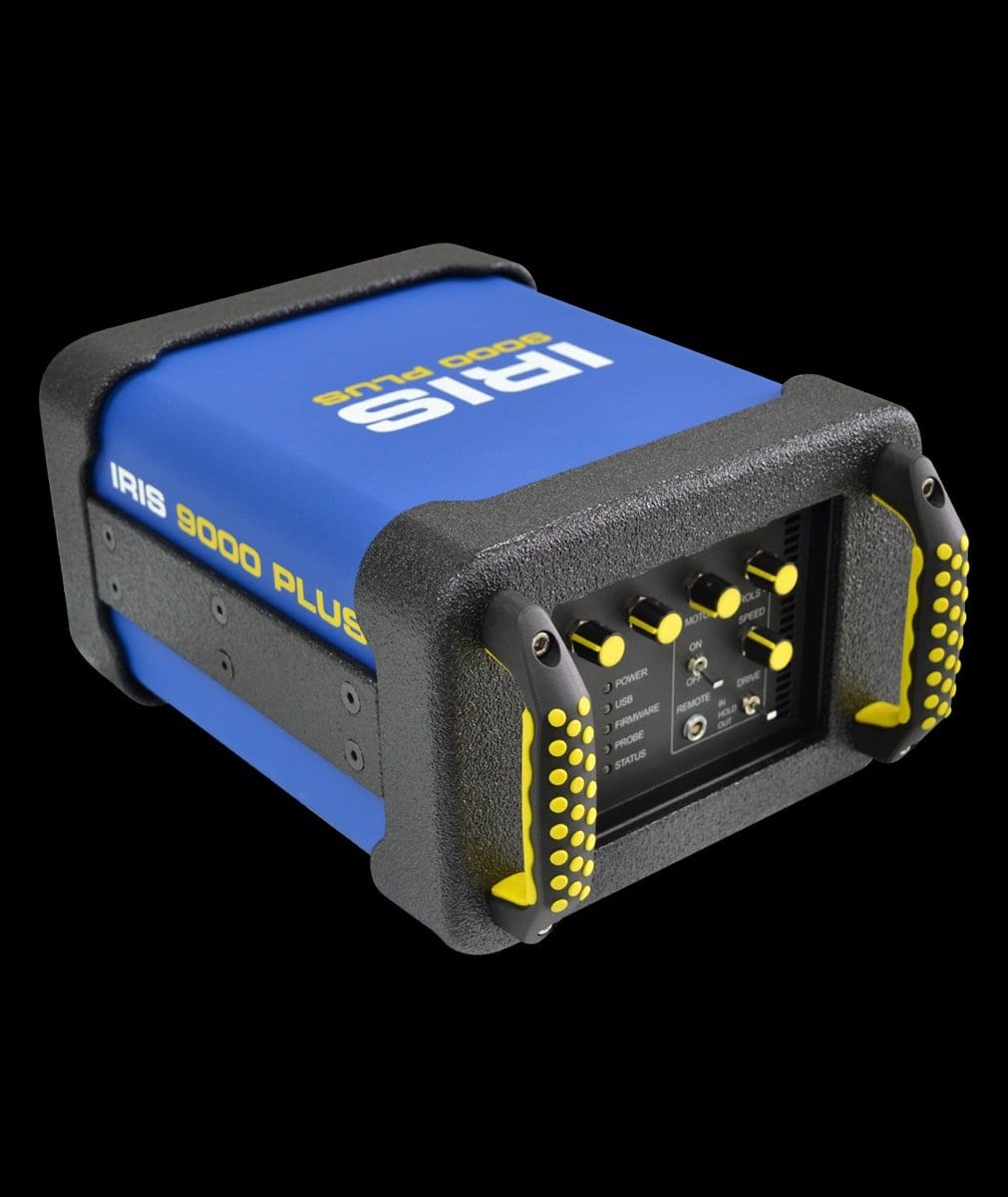

Introducing the next generation of heat exchanger inspection. Representing the seventh generation of the IRIS system, the IRIS 9000 Plus has nearly 200 years of combined field inspection experience incorporated in its design. This experience combined with a strong commitment to quality and a history of innovation has made Iris Inspection Services® the undisputed leader in IRIS technology.
Specifications
Channels
1 pulse echo
Pulse voltage
200-300 V
Bandwidth
48 MHz
Transducer frequency
15 MHz
Maximum pulsing rate
Up to 13 kHz
A-Scan length
Scalable 255 points
Views
Real-time B and C-scans
Turbine speed
Up to 200 rps
Min wall thickness
.229mm (0.009”)
Max wall thickness
35mm (1.38”)
Probe recognition
Auto
Hardware monitoring
Continual calibration, improved fault, and probe monitoring
Syncing
Improved synching and auto adjust to turbine speed
