Heavy Duty Vertical Probe Holder
Heavy Duty Vertical Probe Holder

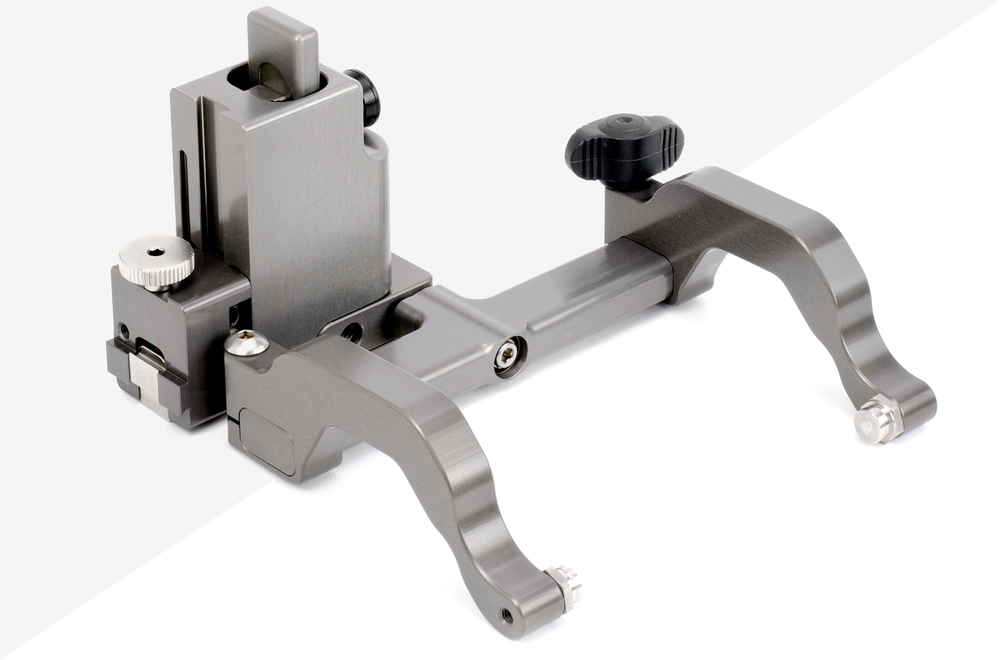

The PHS043 - Heavy Duty Vertical Probe Holder is designed to carry larger probes, such as the Olympus HydroFORM. It can also be used with a variety of probe/wedge combinations with a larger footprint (i.e. corrosion inspection probes), which may require more downforce applied during an inspection.

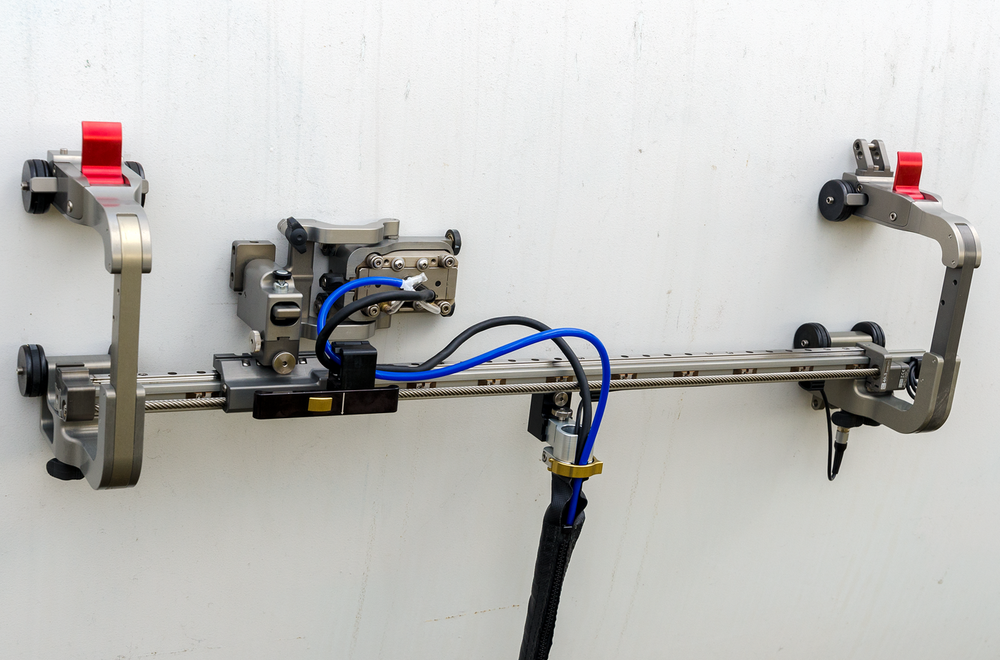

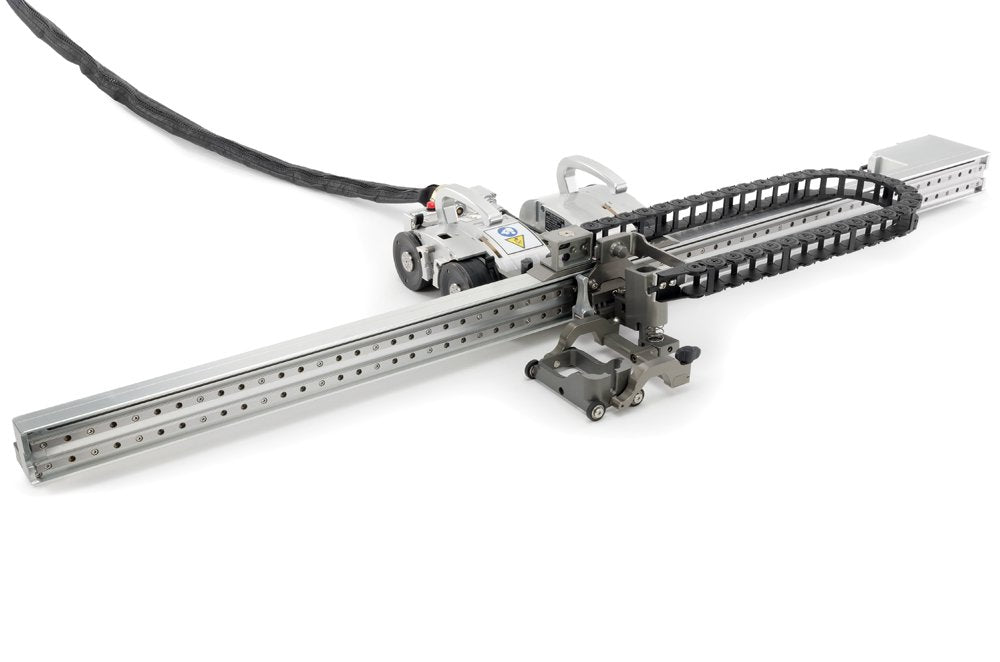

The heavy duty vertical probe holder is compatible with the raster arm and the ROTIX/STIX corrosion scanners and can be ordered with either a standard 8.28 cm (3.26 in) yoke or a wide 12.16 cm (4.79 in) yoke.

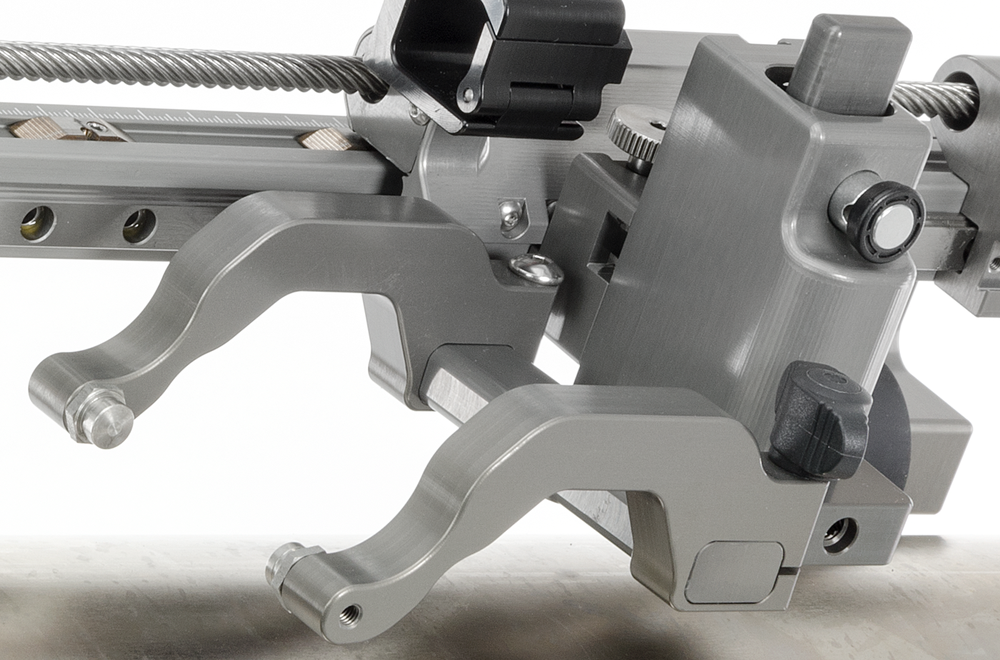

Carry larger, special purpose probes with the Heavy Duty Vertical Probe Holder.
HEAVY DUTY VERTICAL PROBE HOLDER SPECIFICATIONS
STANDARD YOKE
Minimum Wedge Width: 17.4 mm (0.69 in)
Maximum Wedge Width: 55 mm (2.17 in)
Standard Length: 63.5 mm (2.5 in)
WIDE YOKE
Minimum Wedge Width: 17.4 mm (0.69 in)
Maximum Wedge Width: 93.8 mm (3.69 in)
Wide Length: 63.5 mm (2.5 in)
