Gammatec’s Push/Pull Winding Mechanism Is Designed For Winding Out Radioactive Sources From All Recognised Industrial Gamma Projectors Used In Gamma Radiography Inspection.
OVERVIEW
The units are available in Reel or Pistol Grip versions.
These are of lightweight construction and standard accessories include drive cable, drive hoses, gearbox
and connector fittings.
To ensure a smooth push/pull operation, the robust and lightweight aluminium gearbox housing
incorporates two low maintenance, dust-proof ball races as well as a large diameter steel gear.
These items, in conjunction with a spring steel liner, provide maximum contact between gear and cable at all times, ensuring fast exposure and retraction.
The winding mechanisms conform to all relevant international standards.
FEATURES
Stainless Steel Fittings
Durable Drive hoses
2700
Cable Wrap Optimising Gear Contact
Large Diameter Gear For Fast Exposure And Retraction
Smooth Push/Pull Operation
Compatible With All Recognised Industrial Gamma Projectors

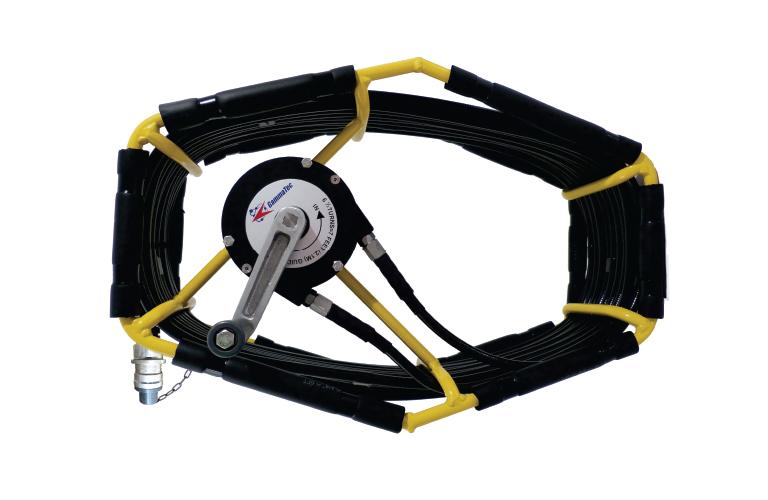

REEL TYPE
| Item No. |
Item Description – REEL |
| Exertus Series
|
| WINDER-NCW0003 |
Gammatec Reel Type 7.62m- Exertus (Yellow) |
| WINDER-NCW0001 |
Gammatec Reel Type 10m- Exertus (Yellow) |
| Sentinel 880
|
| WINDER-NCW0002 |
Gammatec Reel Type 7.62m – Sent (Yellow) |
| WINDER-NCW0004 |
Gammatec Reel Type 10m – Sent (Yellow) |
| Industrial Nuclear IR100
|
| WINDER-NCW0018 |
Gammatec Reel Type 7.62m – Spec 2T/Ind Nuclear Proj (Yellow) |
| WINDER-NCW0025 |
Gammatec Reel Type 10m – Spec 2T/Ind Nuclear Proj (Yellow) |
| Teletron / Gammavolt Series
|
| WINDER-NCW0005 |
Gammatec Reel Type 7.62m – Teletron / Gammavolt (Yellow) |
| WINDER-NCW0006 |
Gammatec Reel Type 10m – Teletron / Gammavolt (Yellow) |
PISTOL GRIP
| Item No. |
Item Description – PISTOL GRIP |
| Exertus Series
|
| WINDER-NCW0225 |
Gammatec Pstl Grip 5m – Exertus (Yellow) |
| WINDER-NCW0011 |
Gammatec Pstl Grip 7.62m – Exertus (Yellow) |
| WINDER-NCW0012 |
Gammatec Pstl Grip 10m – Exertus (Yellow) |
| Sentinel 880
|
| WINDER-NCW0009 |
Gammatec Pstl Grip 7.62m – Sent (Yellow) |
| WINDER-NCW0010 |
Gammatec Pstl Grip 10m – Sent (Yellow) |
| Teletron / Gammavolt Series
|
| WINDER-NCW0013 |
Gammatec Pstl Grip 7.62m – Teletron / Gammavolt (Yellow) |
| WINDER-NCW0014 |
Gammatec Pstl Grip 10m – Teletron / Gammavolt (Yellow) |
RESOURCES
DATASHEET
ACCESSORIES
Reel Or Pistol Grip
Customised Lengths Of Drive Hose
Customised Lengths Of Drive Cable
Fittings For All Recognised Industrial Gamma Projectors
