EXTERNAL POWER SUPPLY FOR CPBATTERY
EXTERNAL POWER SUPPLY FOR CPBATTERY
CPBATTERY
EXTERNAL POWER SUPPLY
POWER SUPPLY

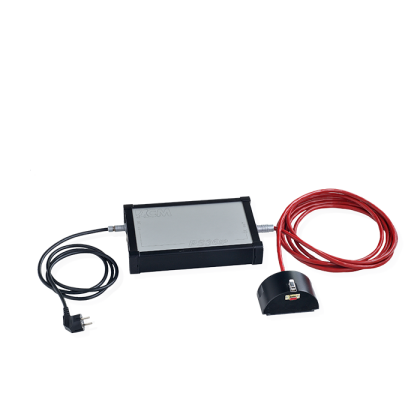

When a power outlet is available near the CP120B or CP160B generators, a specific mains power supply can be used to directly power the generators without having to use the battery packs. This equipment consists of an adaptor in the shape of a battery pack that enables both an easy and solid connection to the CP generator.
A green LED on the side of the main power cable indicates that the PS36 is switched on and that a supply voltage is available.
PRODUCT INFORMATIONS
| UNIT | VALUE | |
|---|---|---|
| Input voltage | Vac | 85 - 265 |
| Input frequency | Hz | 50 - 60 |
| Consumption current | A | 2.5 max (internal 6A fuse) |
| Output voltage | Vdc | 42.5 |
| Output current | A | 5.6 |
| Nominal output power | W | 30 |
| Operating temperature | °C | -20 to +60 |
| Storage temperature | °C | -40 to +85 |
