EXERTUS FORTES

EXERTUS FORTES

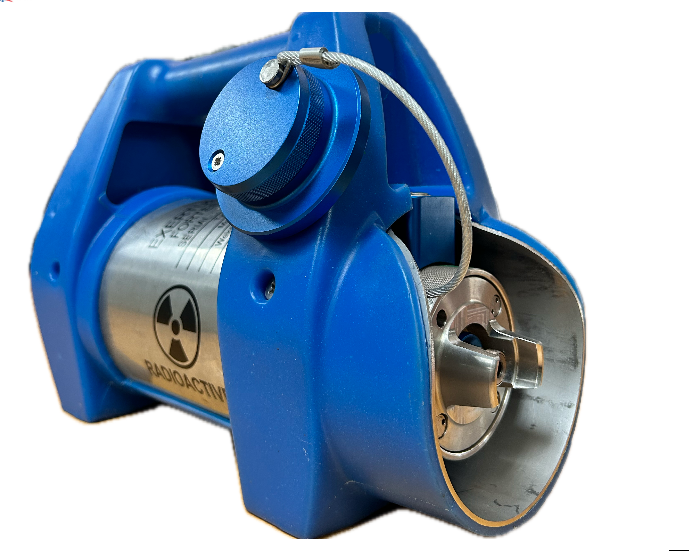

The Exertus Fortes Projector has the ability to accept Iridium 192 sources or Selenium 75 sources.

This projector incorporates design and safety features that make it flexible, compact & lightweight. The Projector is lighter than most of its competitors. It incorporates an improved source channel, based on a new helicoidal design, which makes maintenance easier.

The helicoidal design also allows smoother movement of the source assembly inside the device, making it easier for the operator and improving safety.

The Exertus Fortes is ISO3999:2004 compliant.



KEY FEATURES OF FORTES

Accepts Ir-192 Or Se-75
Tungsten Source Channel And Helicoidal Labyrinth
Just 23kg With Jacket
Compact Design
User Friendly Operation
2 Colour Signal Safety Indicator
Automatic Source Assembly Locking Mechanism
Projector Can Be Disconnected And Locked Only With Source In Safe Position

RESOURCES

TECHNICAL SPECIFICATIONS

Basic Construction Standards: ISO 3999: 2004 Compliant
Isotopes: Ir-192 or Se-75 under special form
  Ir-192 half-life: 73.8 days
  Se-75 half-life: 119.8 days
Activity: Ir-192: 4.44TBq (120Ci)
  SE-75: 4.44TBq (120Ci)
Surface Dose Rate: Max 2mSv/h
Total Weight: 23kg (50.7 lb)
DU Weight: 14kg (30.9 lb)
DU Activity: 7.4mCi (273MBq)
Dimensions with Jacket: Length: 310mm (12.2”) ;
  Width: 155mm (6.1”) ;
  Height: 230mm (9.1”)
Materials Used: Outer Shell: Stainless 304
  Shielding: Depleted Uranium
  Labyrinth: Tungsten Heavy Alloy
  Jacket: Polyurethane
Temperature Range: -45°C up to +70°C
Relative Ambient Air Humidity: 93% at +35°



FEATURES

  • Accepts Ir-192 or Se-75
  • Tungsten source channel and helicoidal labyrinth
  • Just 23kg with Jacket
  • Compact design
  • User friendly operation
  • 2 Colour signal safety indicator
  • Automatic source assembly
  • locking mechanism
  • Projector can be disconnected and locked only with source in safe position

OPTIONAL ACCESSORIES

  • Reel type or pistol grip remote controls – lengths: 7.62m, 10m, 15m
  • Guide tubes – lengths: 2.1m, 3m
  • Source terminals
  • Collimators – Various Directional and Panoramic
  • Standard and Industrial packages available
  • GammaSpoor GPS Tracking System ready
