Encoded Skew Vertical Probe Holder

Encoded Skew Vertical Probe Holder

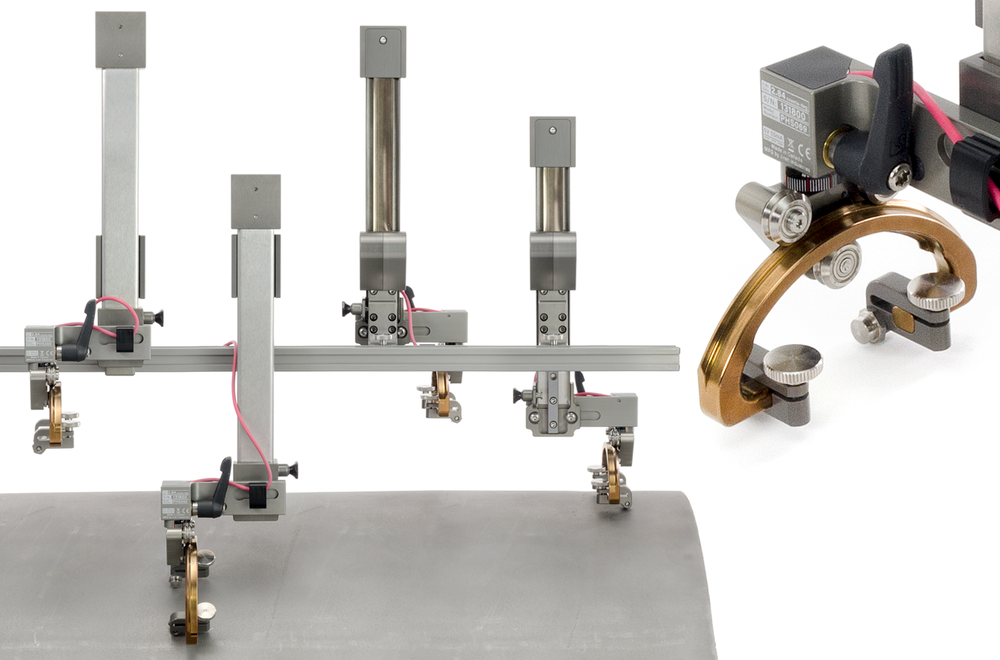

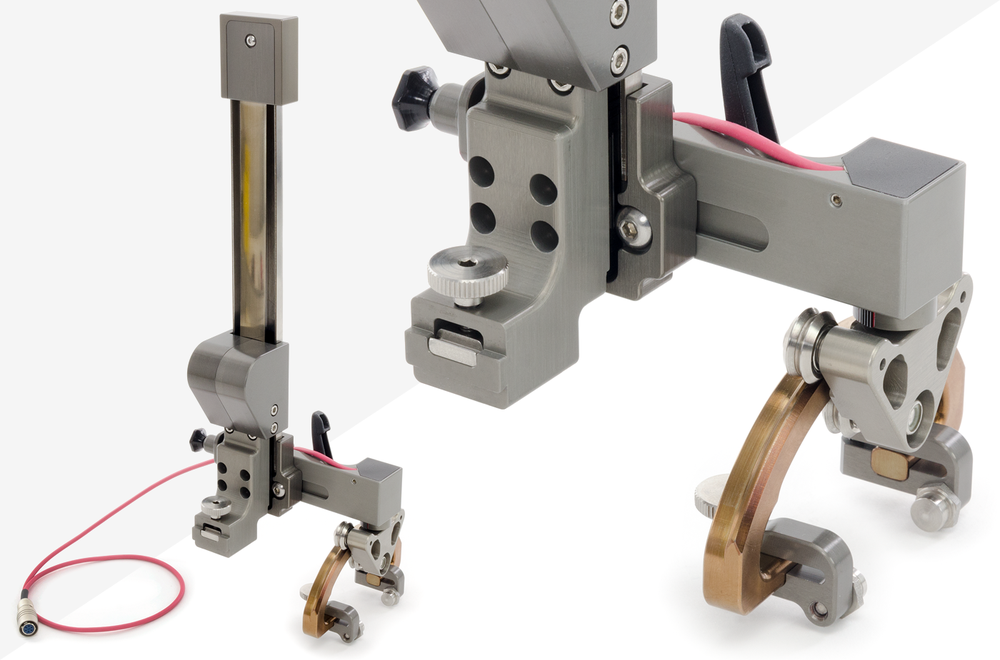

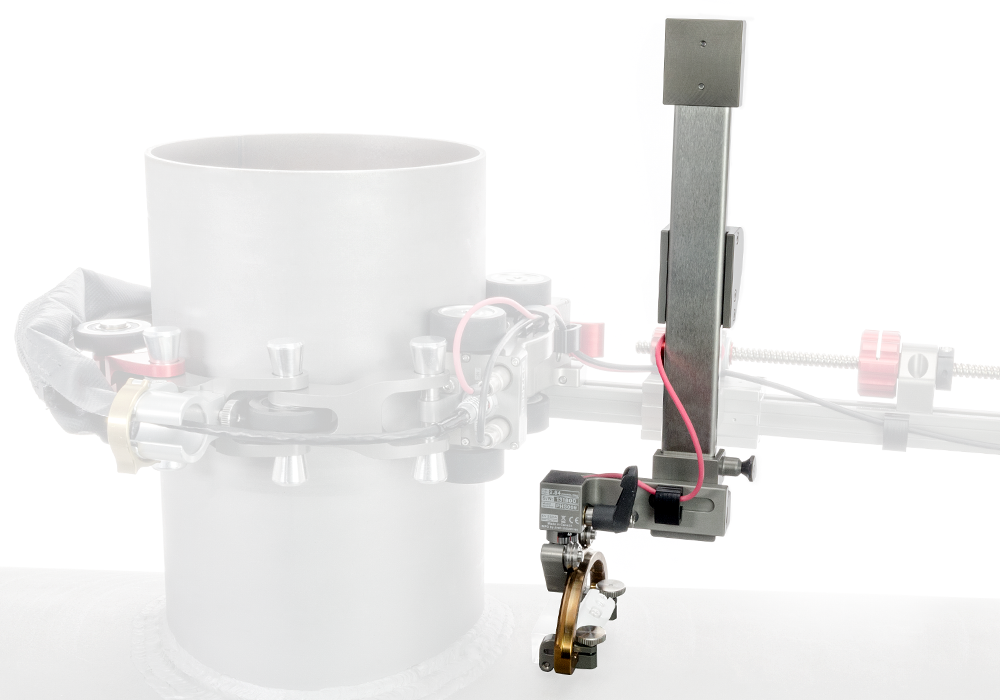

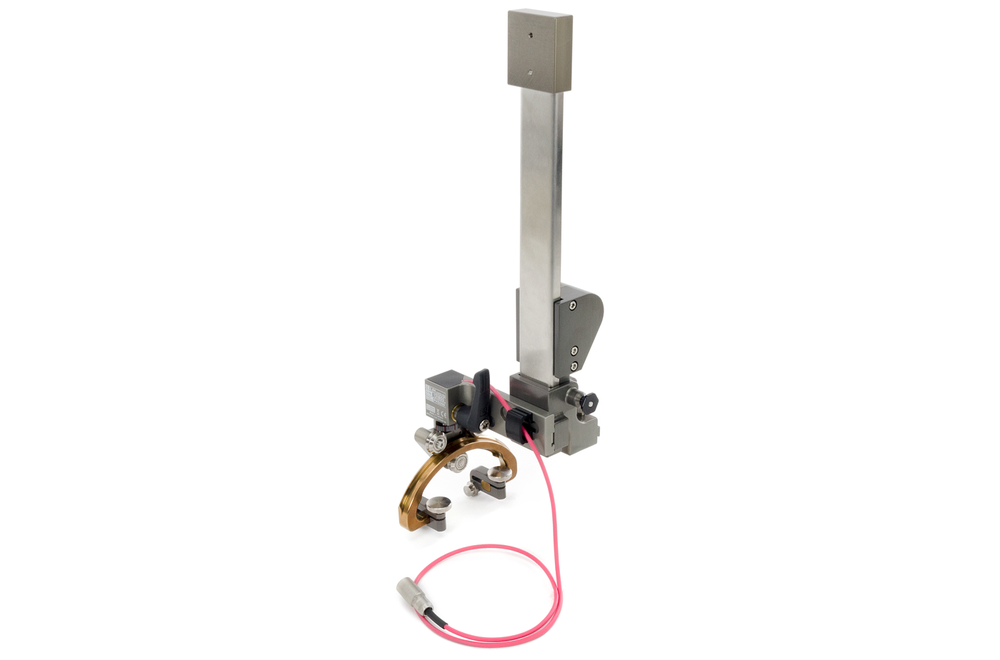

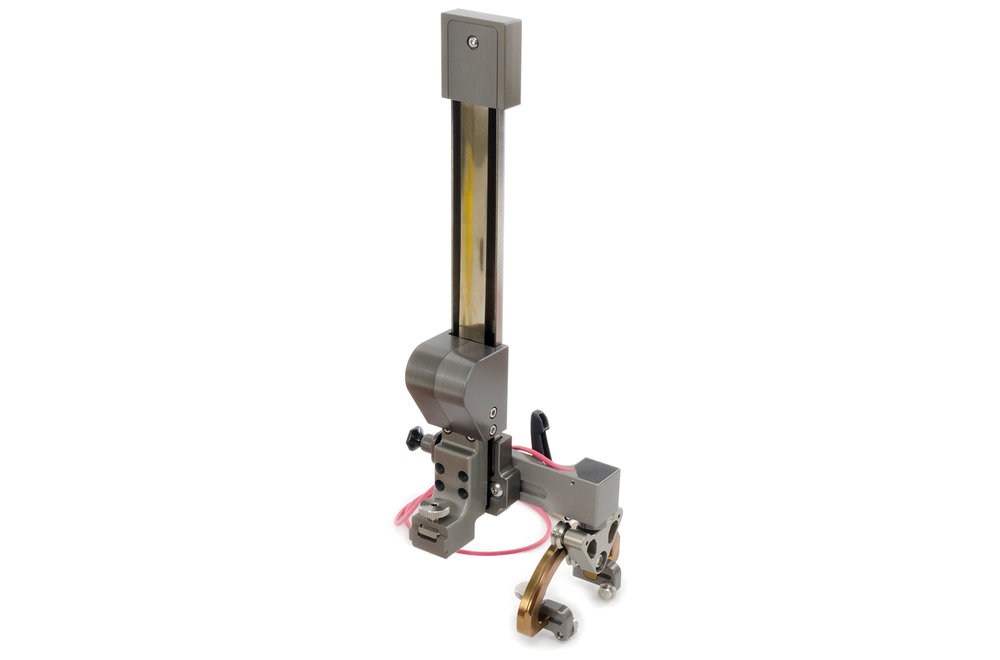

The Encoded Skew Vertical Probe Holder offers 12.2 cm (4.8 in) of vertical travel over undulating surfaces. In addition, this probe holder features encoded skew measurement as well. Used primarily for nozzle inspection, this probe holder pairs with the low profile link, slider pps and chain scanning components to offer a powerful nozzle scanning package.

SPECIFICATIONS





SIZE & WEIGHT

Encoded Skew Vertical Probe Holder Height: 32.2 cm (12.7 in)
Encoded Skew Vertical Probe Holder Width: 11.6 cm (4.6 in)
Encoded Skew Vertical Probe Holder Length: 10.4 cm (4.1 in)

Encoded Skew Vertical Probe Holder Weight: 0.75 kg (1.7 lb)

ENCODED SKEW PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 36 mm (1.4 in)1
Maximum Wedge Width: 44 mm (1.7 in)1

PROBE HOLDER PIVOT BUTTONS


01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
