So, the technology is similar to the most common piezo-ultrasonic method, however, the EMAT Thickness Gauge NOVOTEST UT-3M-EMA thickness gauge has several advantages:
So, the technology is similar to the most common piezo-ultrasonic method, however, the EMAT Thickness Gauge NOVOTEST UT-3M-EMA thickness gauge has several advantages:
CONTACTLESS MEASUREMENT
The electromagnetic-acoustic thickness gauge allows user to measure the thickness of metal products with one-way access without using couplant through a substantial gap (up to 6 mm). This significantly reduces the material- and laboriousness of the measurement process.
MEASUREMENT THROUGH PAINTED, OXIDIZED OR OILY SURFACES
EMA technology generates waves directly in the material (ferromagnetic and paramagnetic), thus allowing measurements to be carried out under a coating or with a poorly prepared surface, which may not be feasible with traditional methods.
HIGH TEMPERATURE PROBES
EMAT Thickness Gauge NOVOTEST UT-3M-EMA can be equipped with probes for operation on surfaces heated to a temperature of 600 °C, which makes this device the best, and in some cases, the only possible solution.
MEASUREMENT RANGE
A significant advantage over competitors is the range of measured thicknesses. The EMAT Thickness Gauge NOVOTEST UT-3M-EMA allows measuring walls from 0.6 mm to more than 300 mm, depending on the probe used.
THICKNESS GAUGE EXECUTION

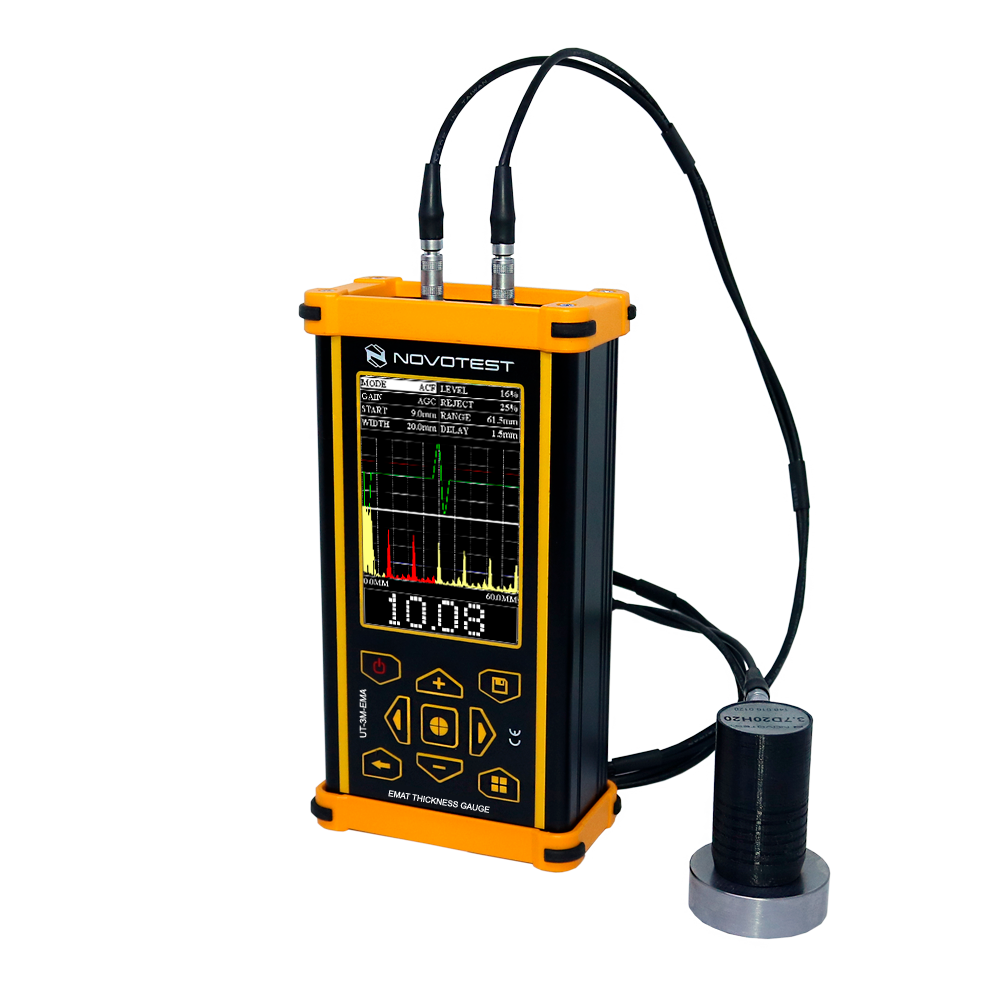

EMAT Thickness Gauge NOVOTEST UT-3M-EMA is made in a durable and lightweight metal case. By special order, the thickness gauge can be made in dust and waterproof design (IP65). The thickness gauge is equipped with lithium-ion high-capacity batteries, which allowed for a long battery life. By special order, the battery capacity can be further increased, which will allow user to operate up to 30 hours from a single battery charge.
AUTOMATIC OPERATION MODE AND VARIOUS TYPES OF SIGNAL DISPLAYING
The EMAT Thickness Gauge NOVOTEST UT-3M-EMA implements a unique operating mode – the device automatically analyzes the measured signals, selects the required measurement method, adjusts the parameters of the receiving path and displays the measured thickness on the device’s screen. Even an unskilled user with this mode will be able to accurately and rapidly measure the thickness of various metal structures and products.
By default, the signal in the device is displayed like an A-scan, and the available operating modes allow the operator to evaluate the signals using different methods (PEAK-PEAK, FRONT, ECHO, ECHO-ECHO). Also the B-scan mode is implemented in this thickness gauge, which allows user to get the product profile like a graphical, convenient for perception. Using a specialized carriage for the probes, it becomes possible to scan extended objects and obtain a thickness profile.
Also, EMAT Thickness Gauge NOVOTEST UT-3M-EMA comes with special software for operate with the archive of the device, and the subsequent transfer of data for processing in convenient formats.
Advantages
- The thickness gauge boasts a unique automatic mode that sets it apart from competitors. The mode that makes it easy for anyone to measure metal thickness quickly and accurately. The instrument automatically analyzes the signal, selects the correct measurement method, and adjusts the settings. Users see the thickness result displayed in large numbers.
- The gage also features a B-scan mode. This mode gives users a visual profile of the product, like a picture, making it easy to read. Using a special probe cart, users can scan larger objects and obtain a detailed thickness profile.
- To sort products based on set thickness limits, the gauge offers a special control mode. Simply set the minimum and maximum thickness values and get a graphical display of the results. An alarm sounds if the measured thickness falls outside of these limits. This mode also helps evaluate corrosion damage as a percentage of the product’s original thickness.
- For expert testing, operators can manually measure thickness using a variety of methods, such as the autocorrelation function (ACF), measuring between two peaks in a gate, zero-crossing, and echo methods.
Specifications
| Measuring thicknesses range for steel, mm | 0.6…300.0 (depending on the probe type and object characteristics) |
| Coating thickness or air gap range, mm | up to 6 (depending on the object characteristics) |
| Probes temperature measurement ranges, ° C:
|
|
| Measurement units |
|
| Resolution, mm | 0,01 |
| Type of ultrasonic wave | transverse |
| Manual gain range, dB | 30-100 |
| Ultrasound velocity adjustment range, m/s | 1000-9999 |
| Frequency averaging signal | 1-128 |
| Operating modes |
|
| Measurement methods |
|
| Display | 3.5 inch 320 * 480 |
| Menu Language |
*additional languages available by request |
| Standard |
|
| Weight of the electronic unit, not more, kg | 0.5 |
| Dimensions (L x W x H) | 165x90x50mm |
| Power Supply | Built-in Li-ion Battery |
| Time of continuous work, not less than, h | 8 |
| Operating temperature range for the electronic unit, ° C | -20 to +50 |
Available options
- EMAT TG model with IP65 – EMAT thickness gauge NOVOTEST UT-3M-EMA-IP
- EMAT TG model with Data streaming in real time – EMAT thickness gauge NOVOTEST UT-3M-EMA-DS
- Protective Pouch With Straps For UT-3M-EMA(-IP/-DS)
- EMAT probe EMAT-ST20
- Scanning-trolley for EMAT-ST20 probe UCK-1
- High-temperature probe EMAT-HT20 (up to 600° C)
- Cable 2Lemo00-2Lemo00 heat resistant 1,8 m
- Handle for EMAT Probe (High-temperature) ЕМАТ-ТН300-НТ20 (300 mm length)
- Handle for EMAT Probe (High-temperature) EMAT-TH450-HT20 (450 mm length)
- Handle for EMAT Probe (High-temperature) EMAT-TH600-HT20 (600 mm length)
- Calibration certificate issued by the third-party metrology laboratory (ILAC)
- Certificate of origin issued by the Chamber of Commerce and Industry
- Certificate of Origin and Quality from NOVOTEST
- CE certificate
- Extended warranty period up to 3 years
- Individual modification (electronic unit and probes) to customer requirements
-
Thickness nominals Material 1-3-5-7-10-15 mm Steel, SS, Aluminum 1-2-3-4-5-6-7-8-9-10-11-12-13-14-15 mm Steel, SS, Aluminum 2,5-5-7,5-10-12,5 mm Steel, SS, Aluminum 2,5-5-7,5-10-12,5-15-17,5-20 mm Steel, SS, Aluminum 2,5-5-7,5-10-12,5-15-20 mm Steel, SS, Aluminum 2.5-5-10-20 mm Steel, SS, Aluminum 2-3-4-5-6-7-8-9-10 mm Steel, SS, Aluminum 2-3-4-5-6-7-8-9-10-11 mm Steel, SS, Aluminum 2-4-6-8-10 mm Steel, SS, Aluminum 2-4-6-8-10-12 mm Steel, SS, Aluminum 2-5-10-15-20-25 mm Steel, SS, Aluminum 2-5-10-20-30-40 mm Steel, SS, Aluminum 3-4-5-6-7-8-9 mm Steel, SS, Aluminum 4-6-8-10-12-15 mm Steel, SS, Aluminum 5-10-15-20-25-30 mm Steel, SS, Aluminum 5-10-15-20-25 mm Steel, SS, Aluminum 5-10-15-20-30-40 mm Steel, SS, Aluminum 5-10-15 mm Steel, SS, Aluminum 5-10-20 mm, step 0.1 Steel, SS, Aluminum 5-10-20-30-40-50 mm Steel, SS, Aluminum 10-11-12-13-14-15 mm Steel, SS, Aluminum 10-20-30-40-50 mm Steel, SS, Aluminum 10-20-40-60-80-100 mm Steel, SS, Aluminum *Other step wedge blocks can be produced by request.
- Reference Thickness Blocks
Thickness nominals Material 0,2 mm Steel, SS, Aluminum 0,3 mm Steel, SS, Aluminum 0,4 mm Steel, SS, Aluminum 0,5 mm Steel, SS, Aluminum 0,8 mm Steel, SS, Aluminum 1 mm Steel, SS, Aluminum 1,5 mm Steel, SS, Aluminum 2 mm Steel, SS, Aluminum 3 mm Steel, SS, Aluminum 4 mm Steel, SS, Aluminum 6 mm Steel, SS, Aluminum 10 mm Steel, SS, Aluminum 15 mm Steel, SS, Aluminum 20 mm Steel, SS, Aluminum 25 mm Steel, SS, Aluminum 30 mm Steel, SS, Aluminum 40 mm Steel, SS, Aluminum 50 mm Steel, SS, Aluminum 75 mm Steel, SS, Aluminum 90 mm Steel, SS, Aluminum 100 mm Steel, SS, Aluminum 125 mm Steel, SS, Aluminum 150 mm Steel, SS, Aluminum 175 mm Steel, SS, Aluminum 200 mm Steel, SS, Aluminum 300 mm Steel, SS, Aluminum *Other reference thickness blocks can be produced by request.
Standard package
“Basic” kit:
- Electronic unit EMAT Thickness Gauge UT-3M-EMA
- EMAT-ST probe (for normal temperatures)
- Accessory package:
– Cable (2 Lemo 00 – 2 Lemo 00)
– Calibration block 12 mm
– USB charger
– USB cable for PC/charger
– PC software:
— Online – NOVOTEST.INFO/USB-connect
— Offline – NOVOTEST USB-Connect
– Operating manual/Quick guide
– Transportation plastic case
“Advanced” kit:
- Electronic unit EMAT Thickness Gauge UT-3M-EMA
- Pouch With Straps for electronic unit
- EMAT-ST probe (for normal temperatures)
- Scanning-trolley for EMAT-ST probe
- Step wedge calibration block 5-10-20-30-40-50 mm (or another)
- Accessory package:
“Heat-resistance” kit:
- Electronic unit EMAT Thickness Gauge UT-3M-EMA
- Pouch With Straps for electronic unit
- EMAT-HT probe (High-temperature probe (up to 600° C))
- Handle for EMAT high-temperature probe (600 mm length)
- 2 Lemo 00 – 2 Lemo 00, 1.8 m, High-temperature resistance cable
- Step wedge calibration block 5-10-20-30-40-50 mm (or another)
- Accessory package:
“Expert” kit:
- Electronic unit EMAT Thickness Gauge UT-3M-EMA
- Pouch With Straps for electronic unit
- EMAT-ST probe (for normal temperatures)
- Scanning-trolley for EMAT-ST probe
- EMAT-HT probe (High-temperature probe (up to 600° C))
- Handle for EMAT high-temperature probe (600 mm length)
- 2 Lemo 00 – 2 Lemo 00, 1.8 m, High-temperature resistance cable
- Step wedge calibration block 5-10-20-30-40-50 mm (or another)
- Accessory package:
Other configurations of the packages are available as well.
