CPRCU REMOTE CONTROL UNIT FOR CPSERIES CRAWLER
CPRCU REMOTE CONTROL UNIT FOR CPSERIES CRAWLER
Unique supply voltage From 40 to 60 VDC
Max mean current 9A (160 kV/2 mA)
Weight 0.28 Kg
SITEX CPSERIES

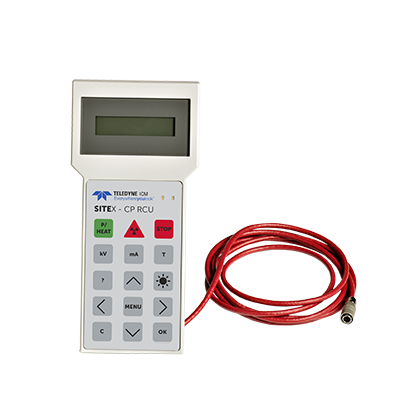

CP Remote Control Unit
LIGHT AND USER-FRIENDLY
ICM crawler generators are equipped with a completely removable control unit, which includes an LCD display and keypad. This pocket size Remote Control Unit – the CPRCU – provides the operator with the most user-friendly interface available for crawler tubes. As soon as the preheating is completed and the kVs and mAs are keyed in, the remote control unit will be disconnected and the crawler will be ‘ready to go’
PRODUCT INFORMATION
| Unit | Value | |
|---|---|---|
| Type of power supply | - | Provided by the crawler |
| Unique supply voltage | VDC | 40 to 60 |
| Max. mean current (160 kV/ 2 mA) | A | 9 |
| Constant power mode | - | Yes |
| Direct kV an mA measurements - control accuracy | % | +0.5 / -0.5 |
| Display of programmed parameter | - | Yes |
| kV, mA programming steps | kV / mA | 1 / 0.1 |
| Useful range of the internal preheating timer | min | 5 to 60 (1 min steps) |
| Battery voltage control accuracy | % | +/- 0.5 |
| LCD display with variable contrast | Line x char. | 2 x 20 |
| Sensory type keypad | Char. | 14 |
| General switch on function | Keys | Provided by the crawler |
| START, STOP and exposure time functions | - | Provided by the crawler |
| Semi-automatic preheating at selected kV | - | Yes |
| Weight | Kg | 0.28 |
| Overall dimensions | mm | 211 x 100 x 26 |
| Working ambient temperature | °C | -20 to +70 |
| Storage ambiant temperature range | °C | -40 to +85 |
