CP300D - CONSTANT POTENTIAL GENERATOR POWER SUPPLY MAINS
CP300D - CONSTANT POTENTIAL GENERATOR POWER SUPPLY MAINS
Output voltage20 to 300 kV
Tube current range1 to 10 mA
Weight23 Kg

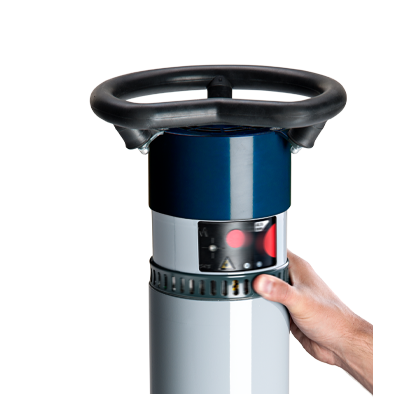

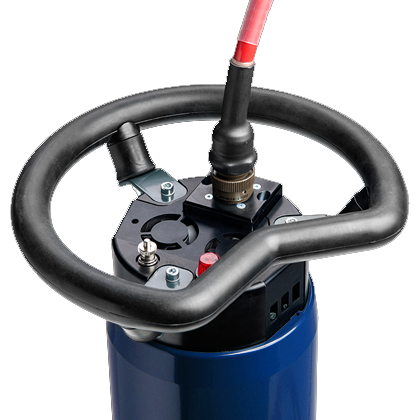

Teledyne ICM’s CPSERIES has been designed with a view to revolutionizing the handling and performances of portable X-Ray sets. Despite having managed to halve the weight of similar portable X-Ray generators available on the market (while continuing to provide the same power output), the SITEX CPSERIES generators feature a shutter, a laser pointer, a beryllium window, an aluminum filter and two integrated diaphragms (customized sizes are available upon request). Without compromising the robustness and reliability for which Teledyne ICM products are renowned, the small size and light weight of the SITEX CPSERIES will radically change the way that you perform your RT inspections. And you will see a positive impact in terms of both quality and return on investment (ROI).
PRODUCT INFORMATION
| Unit | Value | |
|---|---|---|
| Radiation geometry | - | Directional |
| Output voltage range | kV | 20 to 300 |
| Tube current range | mA | 1 to 10 |
| Tube current at full output | mA | 3.0 |
| Max. power at the anode | W | 900 |
| Constant power mode | - | Yes |
| Working cycle at 30°C * | % | 100 |
| Steel penetration | mm | 66 |
| Weight (excluding guard rings) | Kg | 23 |
| Overall dimensions | mm | Ø 180 x 839 |
| Leakage dose at 1 m at full output | mSv/h | < 5.0 |
| Optical focal spot (EN12543) | mm | 3.0 (~1.5 IEC 336) |
| Max. useful angle | ° | 60 x 40 elliptical |
| Inherent filtration | mm Be | 0.8 (Be Window) |
| Waterproof level | - | IP65 |
| Operating temperature | °C | -30 to +60 |
| Storage temperature | °C | -40 to +70 |
| Built-in carrousel featuring 5 outputs | - | Yes |
| Guard rings | - | 2 |
