CP300C CONSTANT POTENTIAL GENERATOR METAL CERAMIC X-RAY TUBE
CP300C CONSTANT POTENTIAL GENERATOR METAL CERAMIC X-RAY TUBE
Output voltage 30 to 300 kV
Tube current range 0.5 to 10 mA
Weight 29.4 Kg
OUR FIRST PANORAMIC
METAL-CERAMIC X-RAY GENERATOR

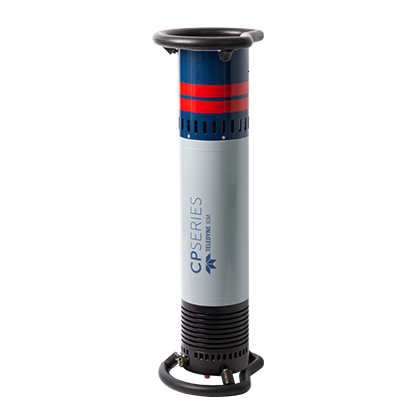

The CP300C is the first panoramic x-ray generator of the CPSeries product range. Equipped with a metal-ceramic tube, the CP300C is a light (less than 30kg) and powerful generator (300 kV), able to penetrate up to 52mm of steel in 10 minutes, making it the best power-to-weight ratio in the world.
The efficiency of the CP300C is also maximum thanks to its real 100% duty cycle that allows longer exposure time (> one hour).
A full range of accessories is available (holding bars, tripod…) and even a 60°x40° lead diaphragm to convert the CP300C into a directional unit.
Like the rest of the CPSeries product range, the CP300C operates with the plug-and-play POWERBOX control unit.
PRODUCT INFORMATION
Unit | Value | |
---|---|---|
Radiation geometry | - | Panoramic |
Output voltage range | kV | 30 to 300 |
Tube current range | mA | 0.5 to 10 |
Tube current at full output | mA | 2.5 |
Max. power at the anode | W | 750 |
Constant power mode | - | Yes |
Working cycle at 30°C | % | 100 |
Steel penetration | mm / in | 52 / 2.05 |
Weight | Kg / lbs | 29.4 / 64.81 |
Overall dimensions | mm/in | Ø 180 x 837 / 7.1 x 33 |
Leakage dose at 1 m at full output | mSv/h | < 5.0 |
Optical focal spot (EN12543) | mm | 0.5 x 5.5 / 0.2 x 0.21 |
Max. useful angle | ° | 360 x 40 |
Inherent filtration | mm | 0.4 Ni / 0.02 + 3.5 / 0.14 Al |
Waterproof level | - | IP65 |
Operating temperature | °C | -30 to +60 |
Storage temperature | °C | -40 to +70 |
Guard rings | - | 2 |
