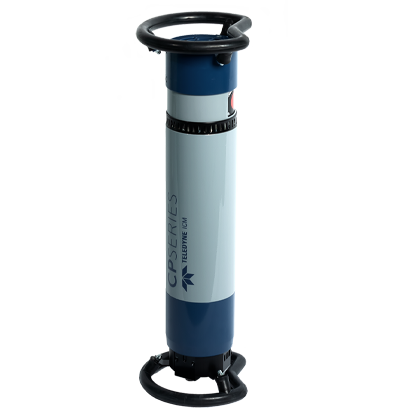

CP225D - CONSTANT POTENTIAL GENERATOR POWER SUPPLY MAINS
CP225D - CONSTANT POTENTIAL GENERATOR POWER SUPPLY MAINS
Output voltage10 to 225 kV
Tube current range1 to 10 mA
Weight14.7 Kg
BEST EVER DESIGN
Supplemental to its outstanding penetration capacity (up to 47 mm for steel in just 10 minutes), the CP225D includes a built-in multiple X-Ray output carrousel that features a Beryllium window for the inspection of lighter alloys such as aluminum and carbon fiber. The CP225D is one of the most versatile generators on the market and will adapt to an extremely wide variety of applications. In fields as diverse as the construction or petrochemical industries, its power and small focal spot, light weight, compactness and high penetration capacity will be much appreciated.
PRODUCT INFORMATION
Unit | Value | |
---|---|---|
Radiation geometry | - | Directional |
Output voltage range | kV | 10 to 225 |
Tube current range | mA | 1 to 10 |
Tube current at full output | mA | 4.0 |
Max. power at the anode | W | 900 |
Constant power mode | - | Yes |
Working cycle at 30°C * | % | 100 |
Steel penetration | mm | 47 |
Weight | Kg | 14.7 |
Overall dimensions | mm | Ø 140 x 725 |
Leakage dose at 1 m at full output | mSv/h | < 2.0 |
Optical focal spot (EN12543) | mm | 3.0 (~1.5 IEC 336) |
Max. useful angle | ° | 60 x 40 elliptical |
Inherent filtration | mm Be | 0.8 (Be Window) |
Waterproof level | - | IP65 |
Operating temperature | °C | -30 to +60 |
Storage temperature | °C | -40 to +70 |

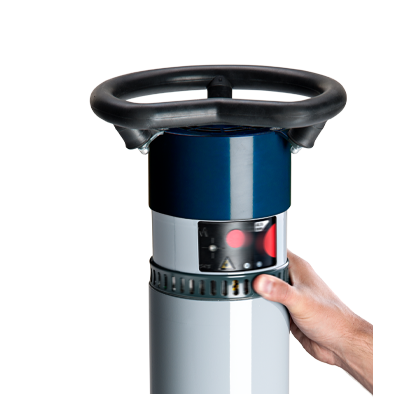

Built-in carrousel featuring 5 outputs | - | Yes |
Guard rings | - | 2 |
