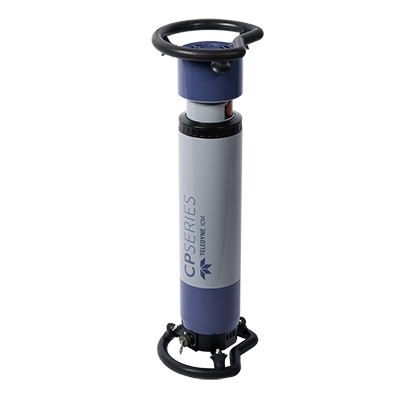

CP200DS - CONSTANT POTENTIAL GENERATOR SMALL FOCAL SPOT

The small focal spot (1 mm) of the CP200DS generator minimizes un-sharpness and gives clearer images, which makes it ideal for digital radiography (DR) when close X-ray shots are possible.

Our CP200DS is a light and powerful generator (200 kV) with a metal-ceramic tube which turns it to be the best power-to-weight ratio in the world.
Its 100% duty cycle combined to its built-in multiple X-Ray outputs carousel make the CP200DS one of the most versatile generators on the market that will adapt to a very wide variety of NDT applications.

The CP200DS, like the rest of the CPSeries product range, operates with the plug-and-play POWERBOX control unit.

PRODUCT INFORMATION

	Unit	Value
Radiation geometry	-	Directional
Output voltage range	kV	10 to 200
Tube current range	mA	0.5 to 10
Tube current at full output	mA	3.7
Max. power at the anode	W	750
Constant power mode	-	Yes
Working cycle at 30°C	%	100
Steel penetration	mm / in	40 / 1.57
Weight	Kg / lbs	15.9 / 35.05
Overall dimensions	mm/in	Ø 140 x 705 / 5.51 x 27.75
Leakage dose at 1 m at full output	mSv/h	< 2.0
Optical focal spot (EN12543)	mm	1

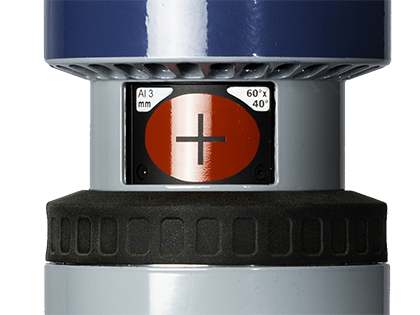

Max. useful angle	°	60 x 40 elliptical
Inherent filtration	mm Be	0.8 (Be Window)
Waterproof level	-	IP65
Operating temperature	°C	-30 to +60
Storage temperature	°C	-40 to +70

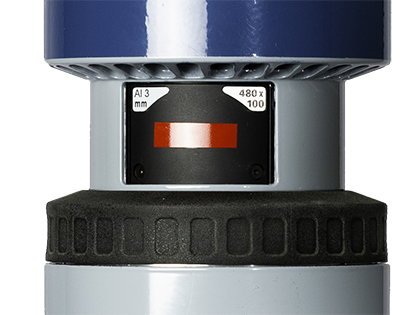

Built-in carrousel featuring 5 outputs	-	Yes
Guard rings	-	2
