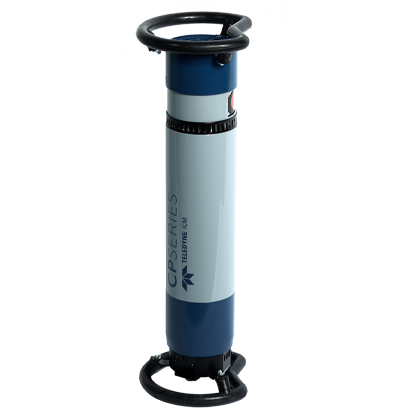

CP200D - CONSTANT POTENTIAL GENERATOR POWER SUPPLY MAINS
CP200D - CONSTANT POTENTIAL GENERATOR POWER SUPPLY MAINS
Output voltage10 to 200 kV
Tube current range1 to 10 mA
Weight12 Kg
BEST EVER DESIGN
Being just 20 mm longer than the CP160D, the CP200D represents the best compromise between high penetration (up to 42 mm for steel) and the capacity of the generator to fit with various NDT applications, such as inspections of more technical materials in the aeronautical or space industries. The CP200D is one of the most versatile generators on the market and thanks to its built-in multiple X-Ray output carrousel it will adapt to a very wide variety of NDT applications, without compromising in any manner its light weight (12 kg) and ease of use.
PRODUCT INFORMATION
| Unit | Value | |
|---|---|---|
| Radiation geometry | - | Directional |
| Output voltage range | kV | 10 to 200 |
| Tube current range | mA | 1 to 10 |
| Tube current at full output | mA | 4.5 |
| Max. power at the anode | W | 900 |
| Constant power mode | - | Yes |
| Working cycle at 30°C * | % | 100 |
| Steel penetration | mm | 42 |
| Weight (excluding guard rings) | Kg | 12 |
| Overall dimensions | mm | Ø 140 x 725 |
| Leakage dose at 1 m at full output | mSv/h | < 2.0 |
| Optical focal spot (EN12543) | mm | 3.0 (~1.5 IEC 336) |
| Max. useful angle | ° | 60 x 40 elliptical |
| Inherent filtration | mm Be | 0.8 (Be Window) |
| Waterproof level | - | IP65 |
| Operating temperature | °C | -30 to +60 |
| Storage temperature | °C | -40 to +70 |

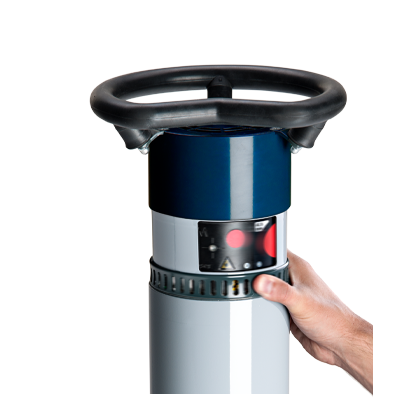

| Built-in carrousel featuring 5 outputs | - | Yes |
| Guard rings | - | 2 |
