CP160D - CONSTANT POTENTIAL GENERATOR POWER SUPPLY MAINS
CP160D - CONSTANT POTENTIAL GENERATOR POWER SUPPLY MAINS
Output voltage10 to 160 kV
Tube current range1 to 10 mA
Weight11.9 Kg
BEST EVER DESIGN

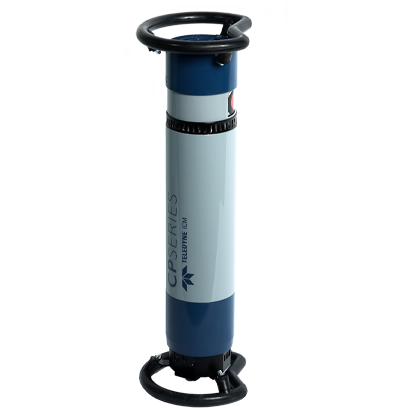

The CP160D is the lightest and most compact generator of the CPSERIES. Featuring a built-in Beryllium window, it is the perfect generator for the inspection of light alloys such as aluminum, magnesium or fiber based materials like glass and carbon, as well as the greater thickness of steel. In fact, with its penetration capacity that is capable of reaching up to 37 mm of steel, the CP160D is able to execute many different types of NDT tasks without the need to ever have to add extra accessories.
PRODUCT INFORMATION
| Unit | Value | |
|---|---|---|
| Radiation geometry | - | Directional |
| Output voltage range | kV | 10 to 160 |
| Tube current range | mA | 1 to 10 |
| Tube current at full output | mA | 5.6 |
| Max. power at the anode | W | 900 |
| Constant power mode | - | Yes |
| Working cycle at 30°C (*) | % | 100 |
| Steel penetration (**) | mm | 29 |
| Weight (excluding guard rings) | Kg | 11.9 |
| Overall dimensions | mm | Ø 140 x 725 |
| Leakage dose at 1 m at full output | mSv/h | < 2.0 |
| Optical focal spot (EN12543) | mm | 3.0 (~1.5 IEC 336) |
| Max. useful angle | ° | 60 x 40 elliptical |
| Inherent filtration | mm Be | 0.8 (Be Window) |
| Waterproof level | - | IP65 |
| Operating temperature | °C | -30 to +60 |
| Storage temperature | °C | -40 to +70 |

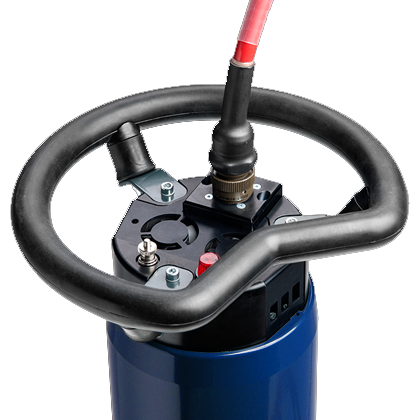

| Built-in carrousel featuring 5 outputs | - | Yes |
| Guard rings | - | 2 |
| (*) Open air - 5m/sec airstream | - | - |
| (**) 700 mm FFD, 10 min, AA400, D=2 | - | - |
