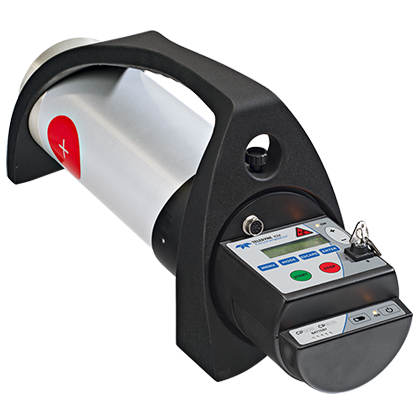

CP160B BEAM DIRECTIONAL POWER SUPPLY BATTERY
CP160B BEAM DIRECTIONAL POWER SUPPLY BATTERY
Output voltage 40 to 160 kV
Tube current range 0.1 to 0.5 mA
Weight 9.2 Kg
CPBATTERY
PORTABLE X-RAY GENERATOR
ADVANCED TECHNOLOGY
Next to the CP120B, the CP160B is the slightly more powerful version of our ultra-light, compact and battery operated constant potential portable X-Ray generators. Allowing penetration reaching up to 30 mm for steel, the CP160B is the perfect tool for specific NDT applications that require repetitive short exposures, as well as security applications.
PRODUCT INFORMATION
| Unit | Value | |
|---|---|---|
| Radiation geometry | - | Directional |
| Output voltage range | kV | 40 to 160 |
| Tube current range | mA | 0.1 to 0.5 |
| Tube current at full output | mA | 0.5 |
| Maximum power at the anode | W | 80 |
| Constant power mode | - | Yes |
| Steel penetration | mm | 21 |
| Weight (exluding hand rings) | Kg | 9.2 |
| Overall dimensions | mm | Ø 124 x 520 |
| Leakage dose at 1 m at full output | mSv/h | < 2.0 |
| Optical focal spot according to EN12543 | mm | 0.8 x 0.7 |
| Maximum useful angle | ° | 60 x 60 |
| Inherent filtration | mm | Equiv. 3.5 (Al) |
| Waterproof level | - | IP54 |
| Operating temperature | °C | -25 to +50 |
| Storage temperature | °C | -40 to +80 |
| Guard rings | - | No |
