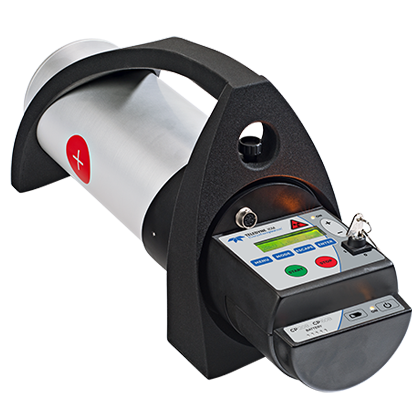

CP120B BEAM DIRECTIONAL POWER SUPPLY BATTERY
CP120B BEAM DIRECTIONAL POWER SUPPLY BATTERY
Output voltage 40 to 120 kV
Tube current range 0.1 to 1.0 mA
Weight 7.5 Kg
CPBATTERY
PORTABLE X-RAY GENERATOR
ADVANCED TECHNOLOGY
This ultra-light, compact and battery operated constant potential portable X-Ray generator is the perfect tool for specific NDT applications that require repetitive short exposures. Its versatility also makes it the ideal piece of equipment for security applications. In fact, in combination with the FLATSCAN15, the FLATSCAN30 and other digital X-Ray detectors, the CP120B will – thanks to its small focal spot and constant potential X-Ray output – enhance image quality and definitely contribute to a reduced exposure time.
PRODUCT INFORMATION
| Unit | Value | |
|---|---|---|
| Radiation geometry | - | Directional |
| Output voltage range | kV | 40 to 120 |
| Tube current range | mA | 0.1 to 1.0 |
| Tube current at full output | mA | 1.0 |
| Maximum power at the anode | W | 120 |
| Constant power mode | - | Yes |
| Steel penetration | mm | 10 |
| Weight (exluding hand rings) | Kg | 7.5 |
| Overall dimensions | mm | Ø 124 x 476 |
| Leakage dose at 1 m at full output | mSv/h | < 2.0 |
| Optical focal spot according to EN12543 | mm | 0.8 x 0.5 |
| Maximum useful angle | ° | 50 x 50 |
| Inherent filtration | mm | Equiv. 3.5 (Al) |
| Waterproof level | - | IP54 |
| Operating temperature | °C | -25 to +50 |
| Storage temperature | °C | -40 to +80 |
| Guard rings | - | No |
