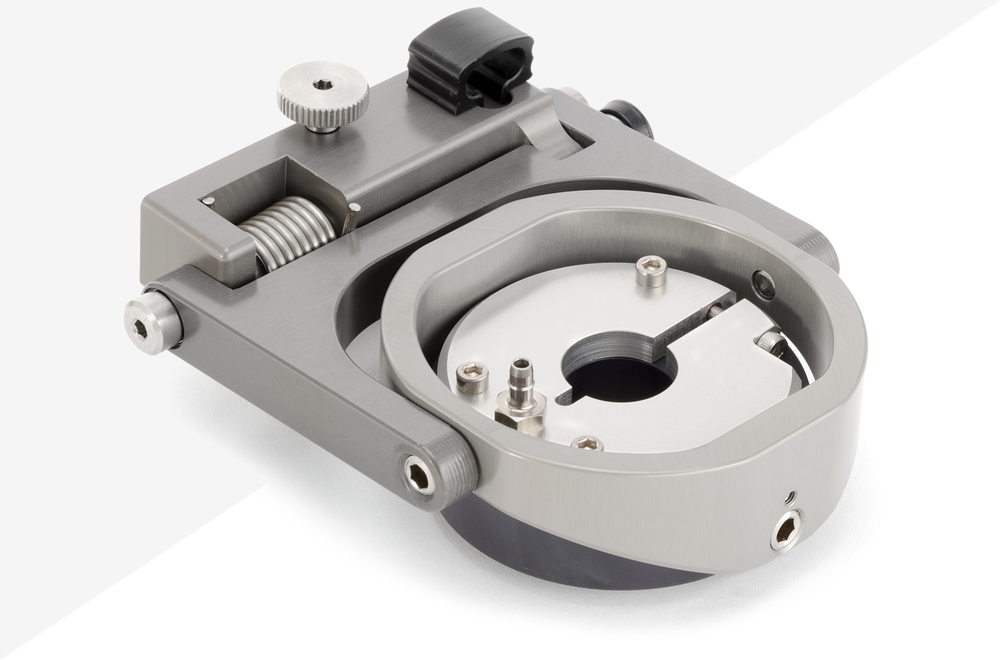

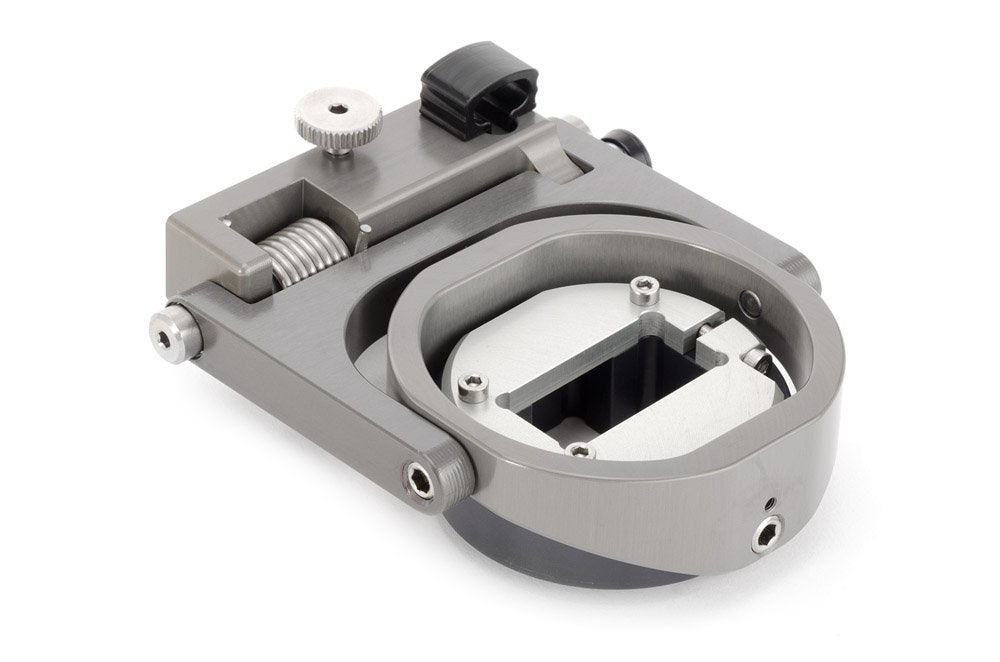

Corrosion Thickness Probe Holder - Curved Wear Plate

Corrosion Thickness Probe Holder - Curved Wear Plate

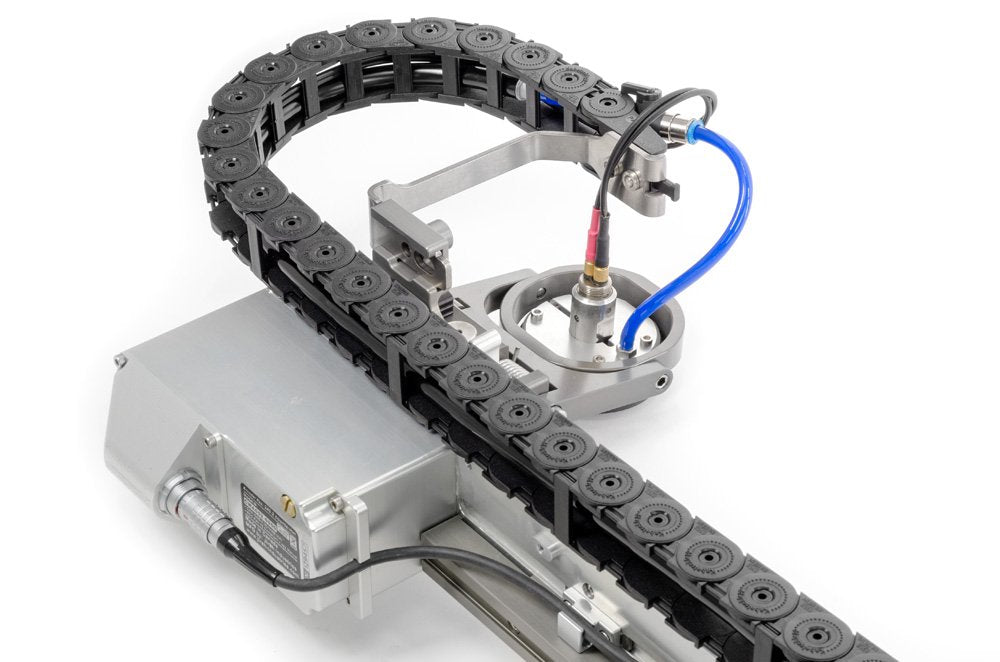

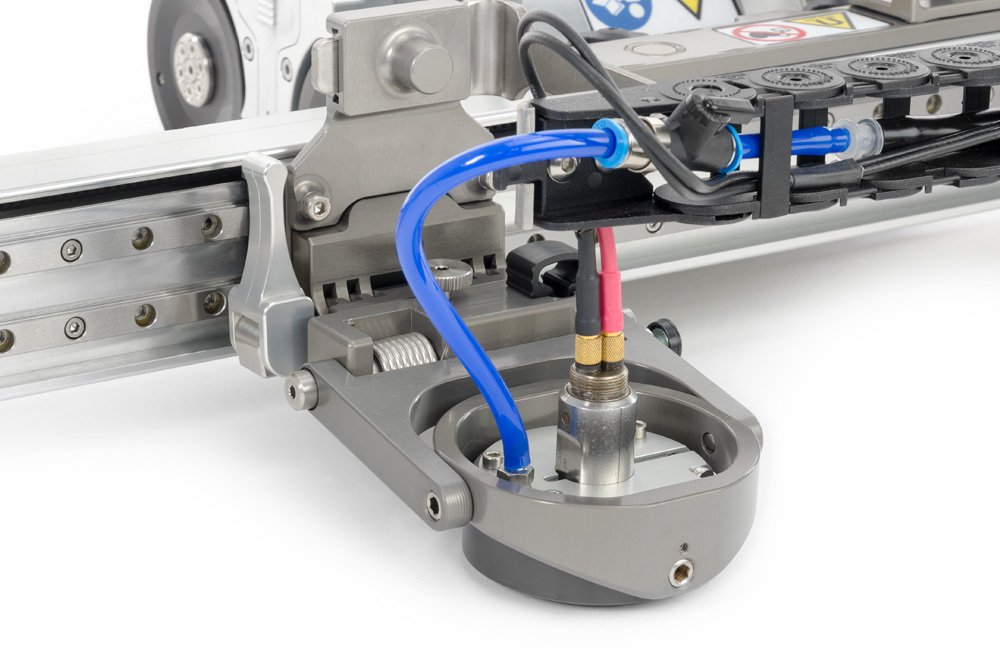

When used with a motorized raster arm connected to the NAVIC, SKOOT or MOTIX, the Corrosion Thickness Probe Holder - Curved Wear Plate may assist with corrosion mapping (C-scans or automated two-axis scans).

Equipped with a curved wear plate receptacle.

The Corrosion Thickness Probe Holder carries various probes/transducers.

ENVIRONMENTAL SPECIFICATIONS


Operating Environment: -20°C (-4°F) to 50°C (122°F)
Maximum Inspection Surface Temperature: 80°C (176°F)

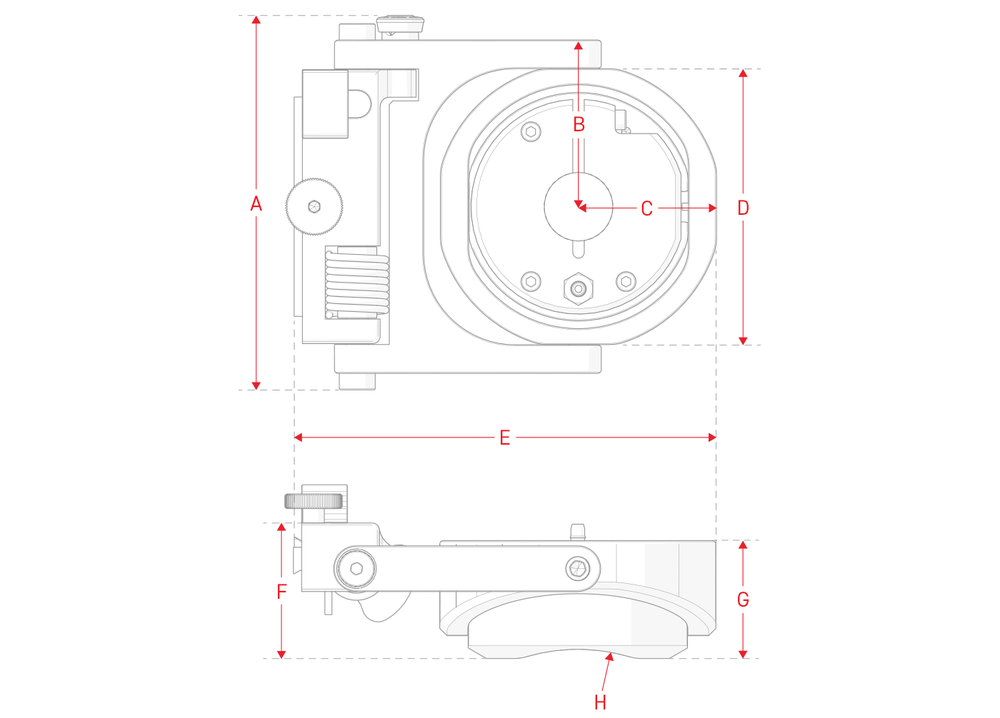

DIMENSIONS


A - 104.08 mm (4.10 in)
B - 46.33 mm (1.82 in)
C - 38.28 mm (1.51 in)
D - 76.66 mm (3.02 in)
E - 117.27 mm (4.62 in)
F - 38.28 mm (1.51 in)
G - 32.77 mm (1.29 in)
H - ∅101.6 mm (∅4 in)

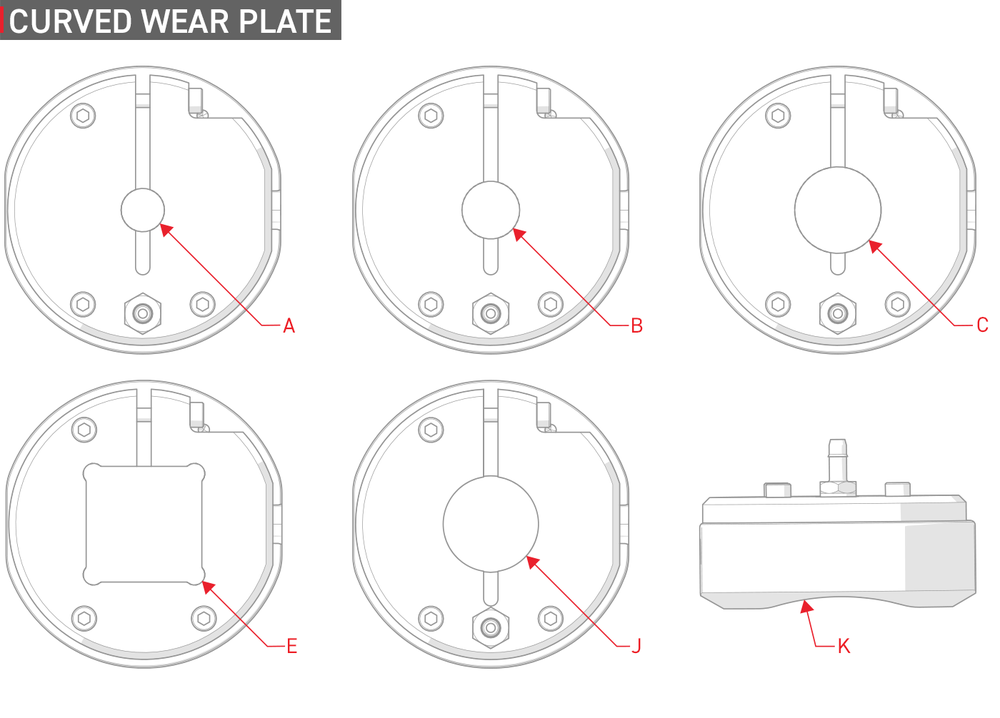

RECEPTACLE SIZES


A - 9.53 mm (0.375 in) dia.
B - 12.7 mm (0.5 in) dia.
C - 19 mm (0.75 in) dia.
E - 25.4 mm (1 in)
