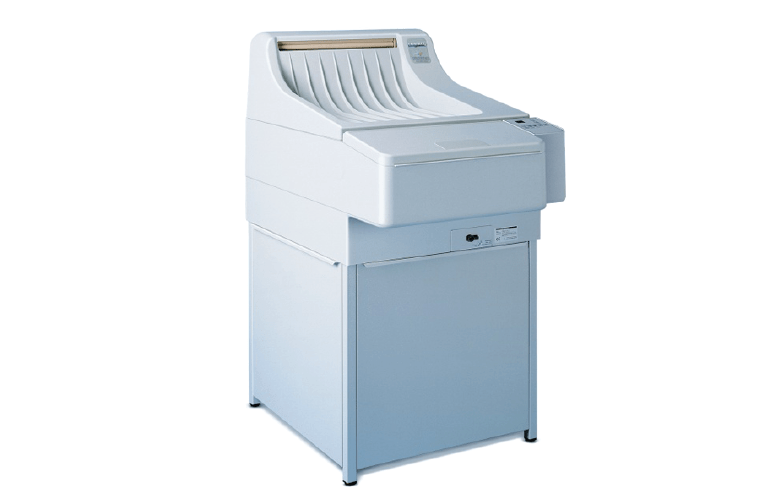

COMPACT 2 NDT FILM PROCESSOR

COMPACT 2 NDT FILM PROCESSOR

STOCK CODE NCP0159

The COMPACT 2 NDT Is An X-Ray Film Processor Especially Optimized For The Development Of Industrial Films. By Applying Appropriate Films And Chemicals Designated For Industrial Applications, It Ensures Size Independent Optimum Image Quality. As The High-End Processor, COMPACT 2 NDT Features Highly Advanced Infrared Film Detection By Using Four Sensors For Exact Conformance Of The Replenishment, Large Tank Capacity And The Individual Controllability Of All Processing Parameters.

FEATURES

  • Extremely high capacity
  • Intermediate film rinse avoids carry over of chemicals
  • Precise film surface detection for calculation of replenishment rate
  • Excellent image quality and consistancy

SPECIFICATIONS

Film format

min. 10 x 10 cm; max. 45 x ∞ cm

Film type

Sheet films rollfilm with adapter (optional)

Process time

2 – 10 min (120 – 600 sec)

Capacity (Film format 24 x 30 cm at 90 sec Pt)

174 films/h

Capacity (Film format 24 x 30 cm at 300 sec Pt)

71 films/h

Dimentions (L/W/H)

97 x 68 x 127 cm

Weight (empty/filled)

91/129 kg

Electrical connection

208 – 240V; 10 –14 A; 50/60 Hz
