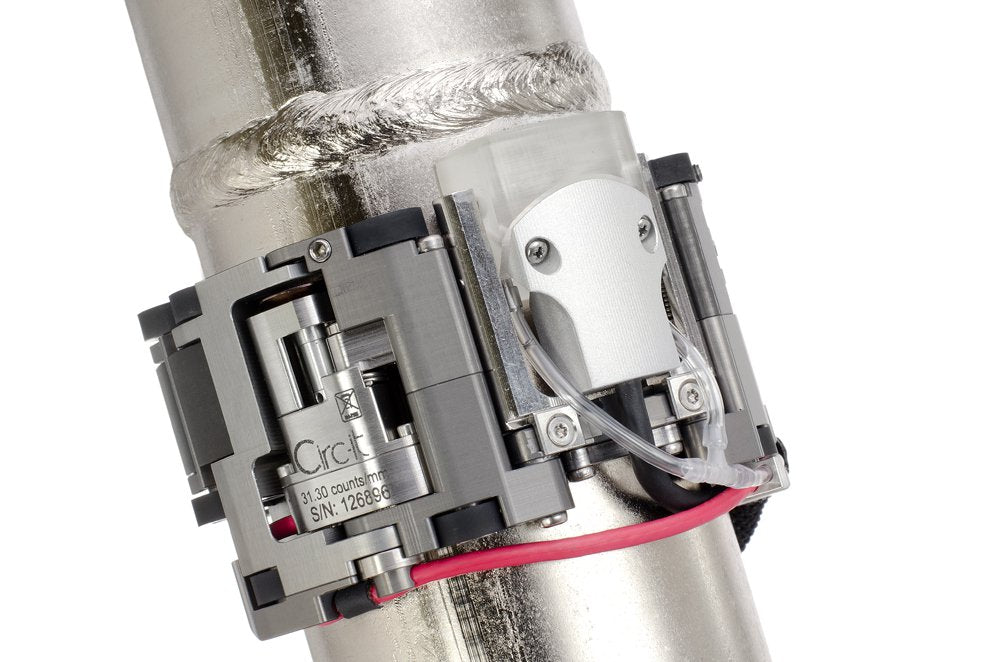

CIRC-IT - Single Probe Weld Scanner

CIRC-IT - Single Probe Weld Scanner

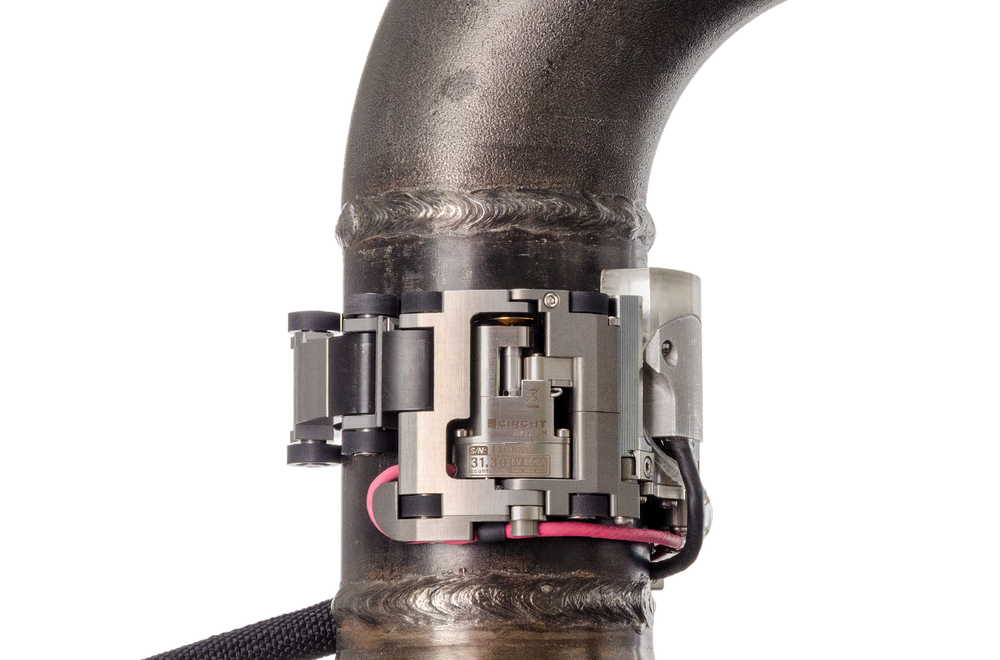

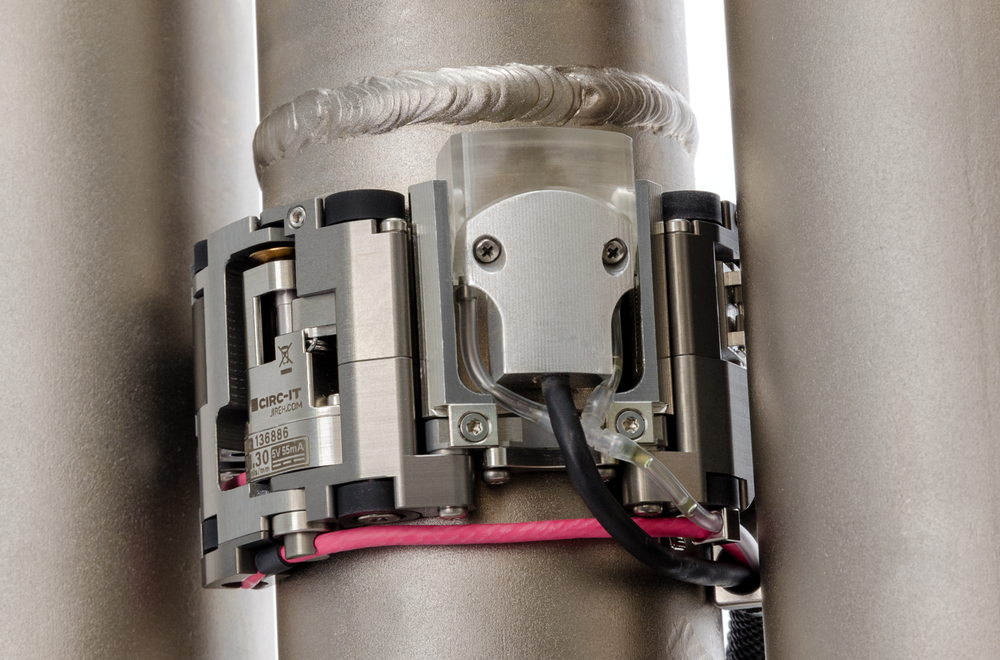

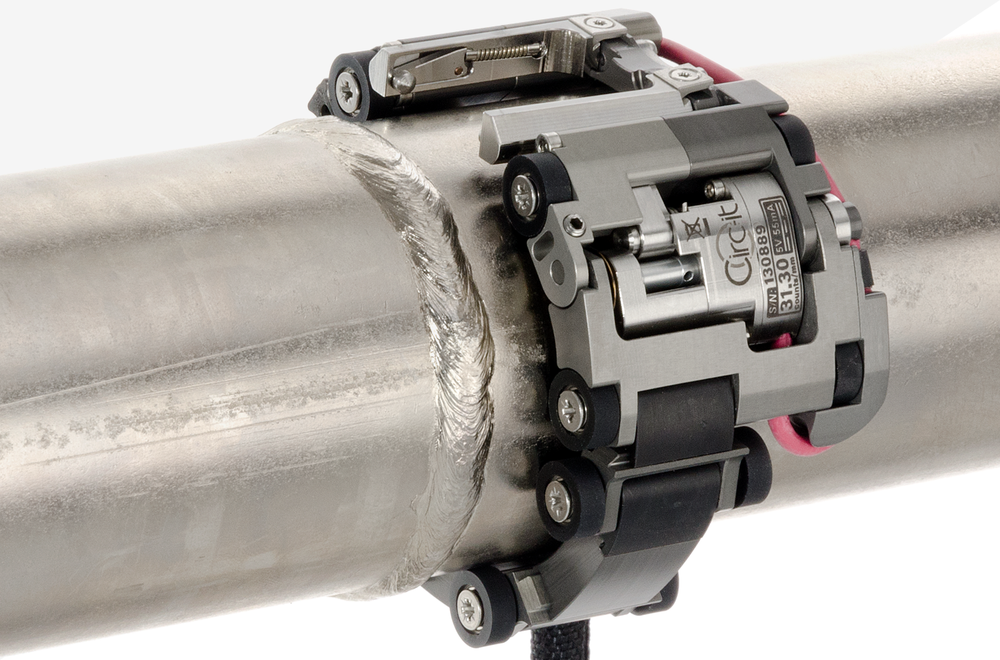

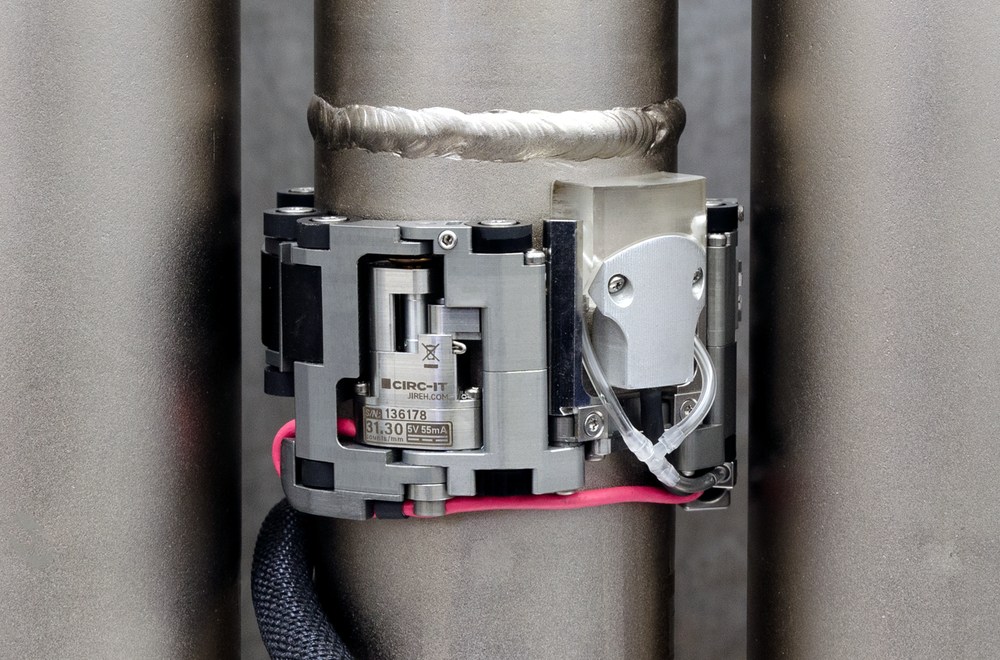

Small diameter, low profile scanning made possible with the CIRC-IT - Single Probe Weld Scanner. Designed to provide encoded probe positioning circumferentially around piping and tubing ranging in size from 21.4 - 114.3 mm (0.84 - 4.5 in), this manually operated scanner can operate in an 11 mm (0.433 in) radial clearance envelope due to the ultra low profile design.

Part ID: DJG007

When scanner access is limited, the CIRC-IT makes single probe scanning possible.

FEATURES

LOW PROFILE DESIGN

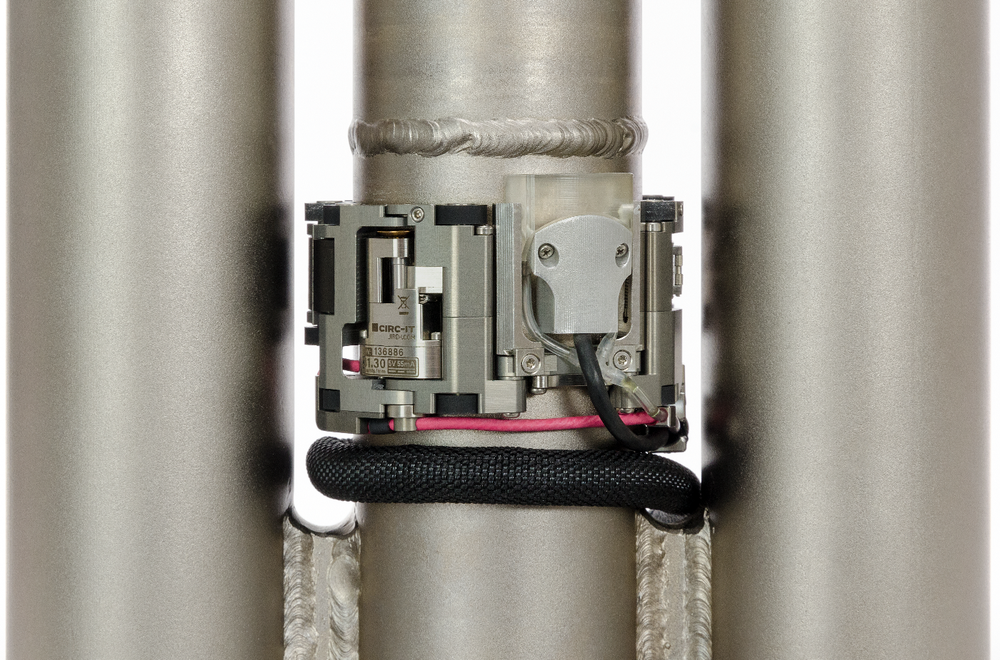

The CIRC-IT maintains a radial clearance of 11 mm (0.433 in) which allows for limited access inspection

SMALL DIAMETER SCANNING

The capability of scanning pipe/tube diameters as small as 21.4 mm (0.84 in) make the Circ-it a valuable tool

URETHANE WHEELS

Durable urethane wheels provide smooth rolling and adequate traction in vertical scanning applications

CABLE MANAGEMENT

The CIRC-IT scanner features a cable management system for irrigation lines and probe cables

QUICK CHANGE LINKS

Links provide infinite adjustment for pipes or tubes to be scanned between 21.4 - 114.3 mm (0.84 - 4.5 in)

PROBE HOLDERS

Carries Olympus A15 small-footprint probes and wedges

TOOLS

Tools for all adjustment and manipulation of the scanner and components are included with the system

WARRANTY

Three-year limited warranty on all products.

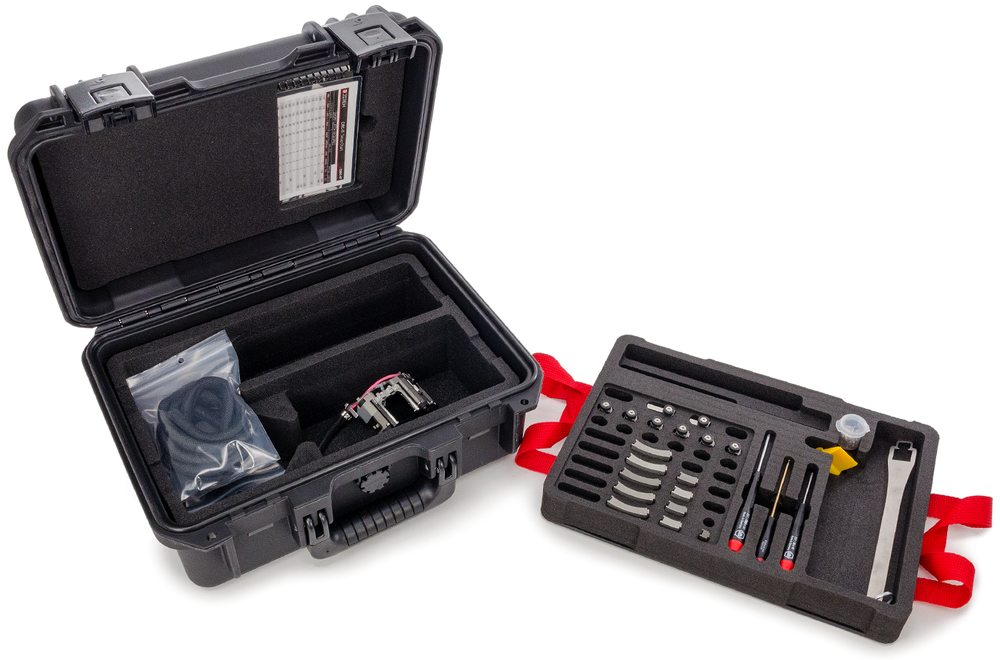

KIT CONTENTS

SCANNER

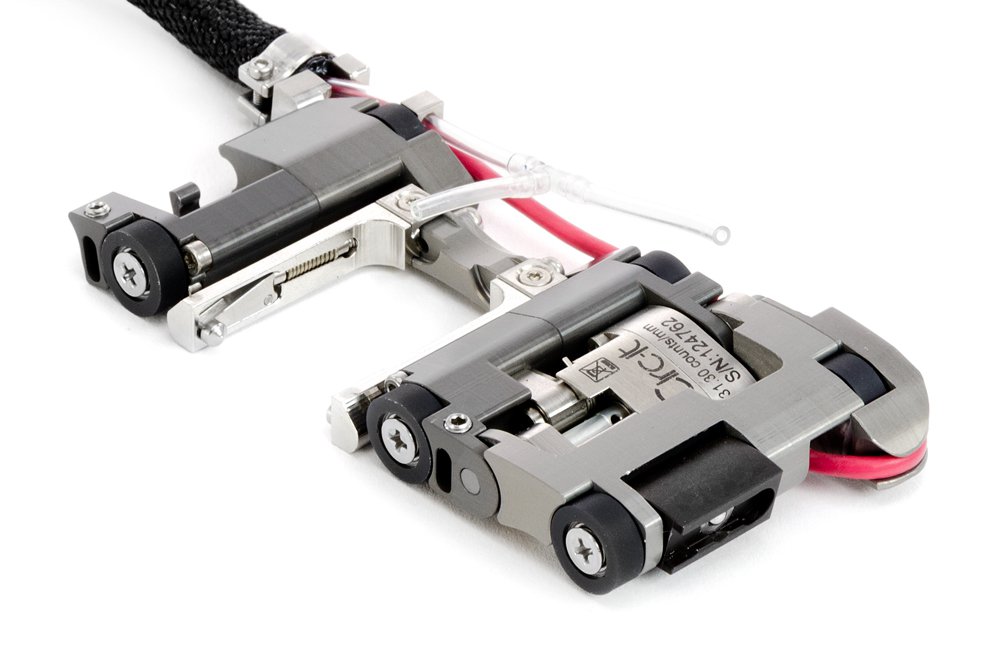

Single-sided CIRC-IT scanner

PARTS & ACCESSORIES

Long latch x1
Short latch x1
Wheel link x6
Short link x1
Medium link x4
Long link x5
Protective sleeving, 1.5 m (4.9 ft)
CIRC-IT spare fasteners kit
Irrigation fittings and tube, 2.5 m (8.2 ft)
User manual
Setup chart
Rugged carrying case

TOOLS

Chain retrieval tool
Loom installation tool
Torx® driver
Phillips driver
2 mm hex driver

COMPONENT IDENTIFICATION


URETHANE WHEELS

Durable urethane wheels provide smooth rolling and adequate traction in vertical scanning applications.

CABLE MANAGEMENT

The CIRC-IT scanner features a cable management system for irrigation lines and probe cables.

QUICK CHANGE LINKS

Links provide infinite adjustment for pipes or tubes to be scanned between 21.4 - 114.3 mm (0.84 - 4.5 in).

PROBE HOLDERS

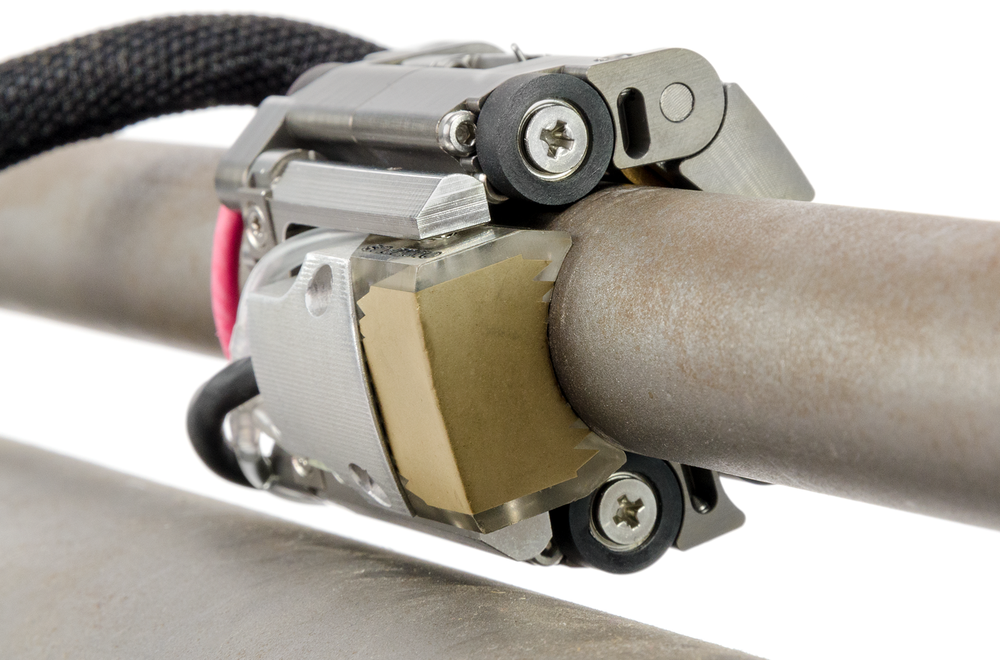

Carries Olympus A15 small-footprint probes and wedges.

IRRIGATION KIT

The included irrigation kit contains the necessary hoses, fittings, tubing, etc, required to connect a couplant pump to the probe(s) being carried by the scanner

ENCODER

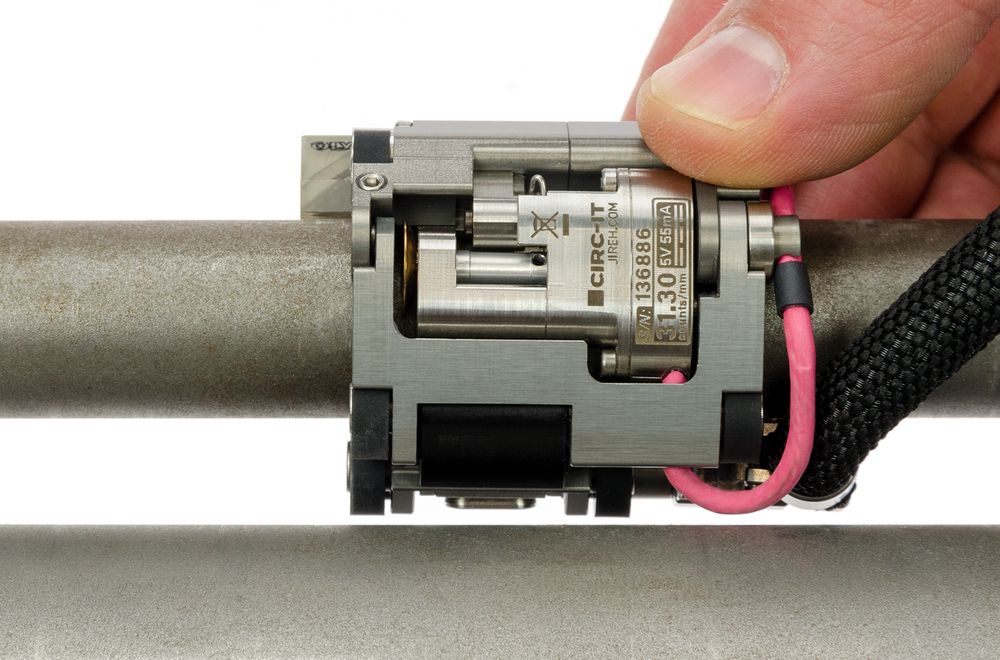

A spring-loaded encoder maintains constant contact with the scan surface for precise encoder measurements.

SPECIFICATIONS





GENERAL

Pipe Diameter Range: 21.4 mm - 114.3 mm (0.84 in - 4.5 in)1
Minimum Radial Clearance: 11 mm (0.433 in)2
Encoder: RS422 line driver, compatible with all standard encoder inputs
Encoder Resolution: 31.30 counts/mm (795.0 counts/inch)
Probe Holding Capacity: 1 phased array wedges
Encoder Cable Length: 3 m (9.8 ft)3
Inspection Surface: Ferrous and non-ferrous

RADIAL CLEARANCE

Radial Scanner Clearance: 11 mm (0.43 in)

SIZE & WEIGHT

Scanner Height: 11 mm (0.43 in)
Scanner Width: 53.5 mm (2.1 in)
Scanner Depth: 105.6 mm (4.2 in)4
Scanner Weight: 0.09 kg (0.2 lb)
Shipping weight: 3.1 kg (6.8 lb)5

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details
