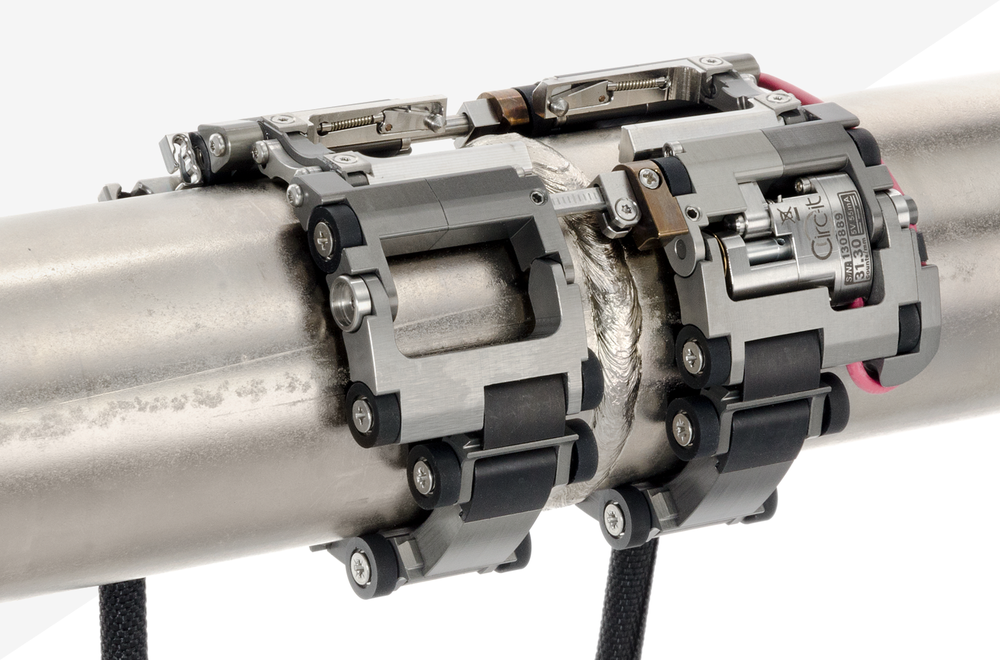

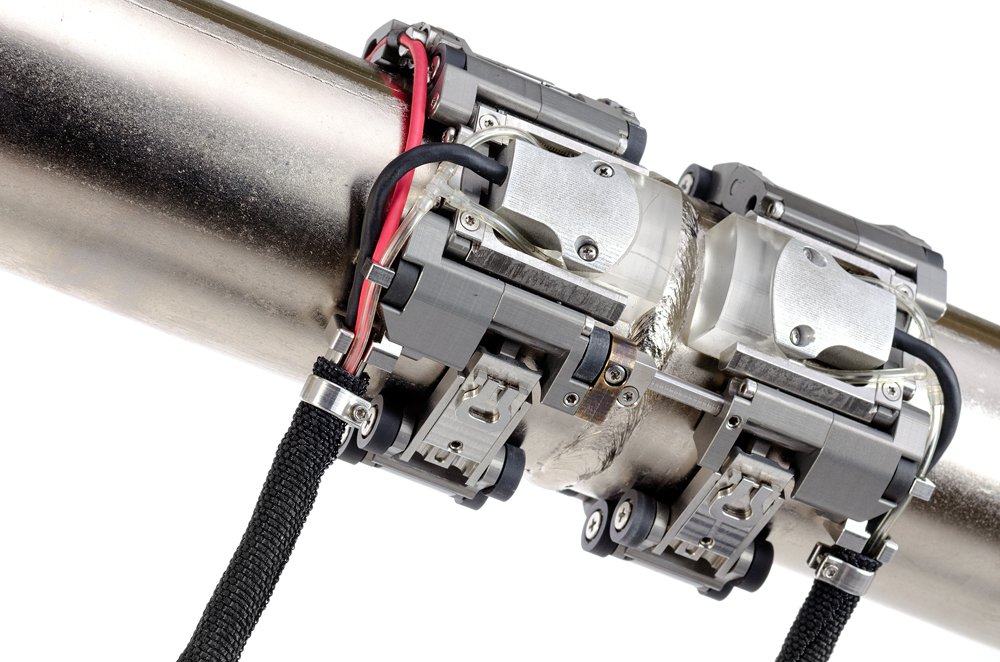

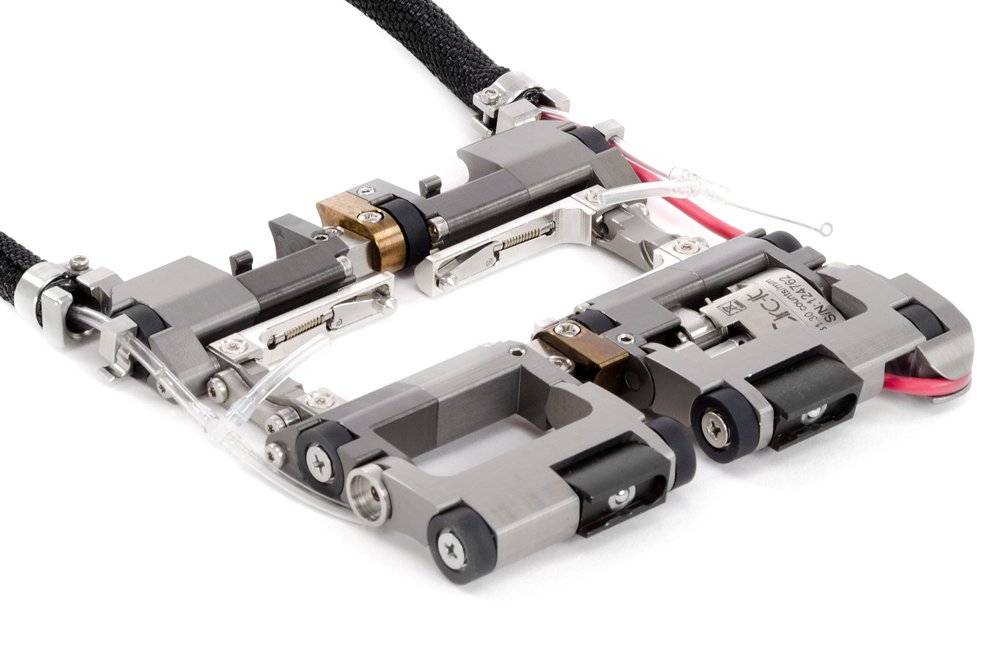

CIRC-IT - Dual Probe Weld Scanner

CIRC-IT - Dual Probe Weld Scanner

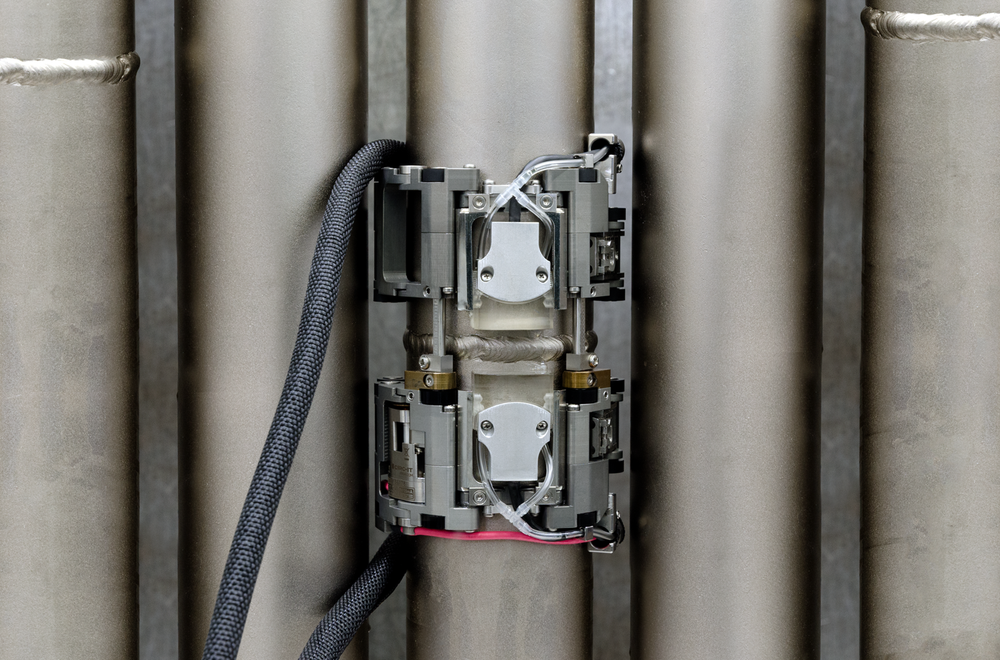

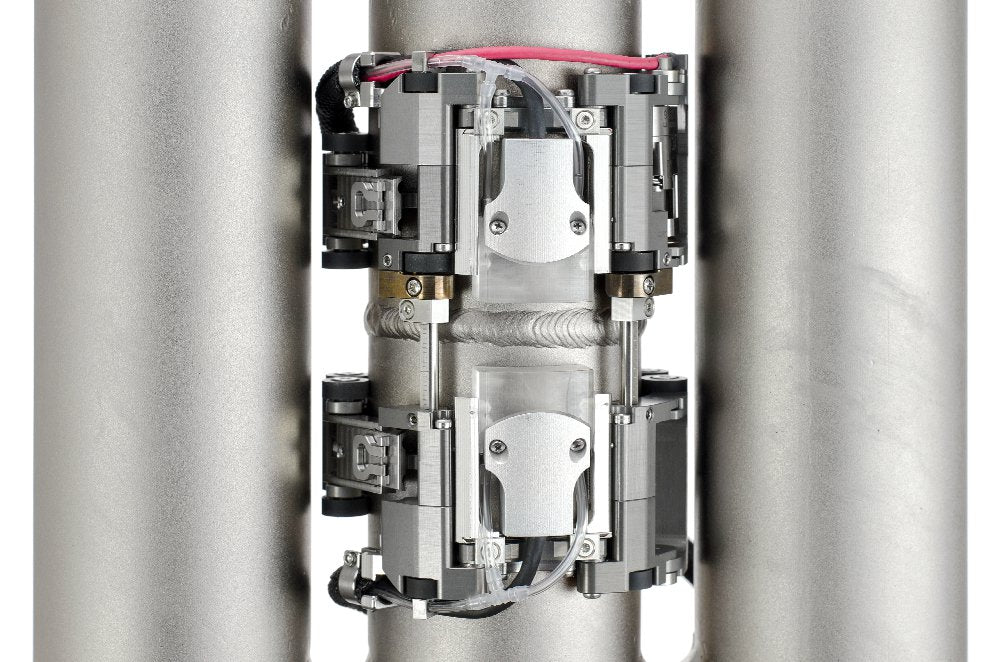

Achieve encoded probe positioning circumferentially around small diameter pipes and tubes with minimal scanner clearance required utilizing the CIRC-IT - Dual Probe Weld Scanner. The ultra-low profile design of the CIRC-IT allows operation in an 11 mm (0.43 in) radial clearance envelope on pipes and tubes as small as 21.4 mm (0.84 in).

Part ID: DJG001

Examine the welds of incredibly small pipe diameters with an industry leading low profile scanner.

FEATURES

LOW PROFILE DESIGN

The CIRC-IT maintains a radial clearance of 11 mm (0.433 in) which allows for limited access inspection

SMALL DIAMETER SCANNING

The capability of scanning pipe/tube diameters as small as 21.4 mm (0.84 in) make the Circ-it a valuable tool

URETHANE WHEELS

Durable urethane wheels provide smooth rolling and adequate traction in vertical scanning applications

CABLE MANAGEMENT

The CIRC-IT scanner features a cable management system for irrigation lines and probe cables

QUICK CHANGE LINKS

Links provide infinite adjustment for pipes or tubes to be scanned between 21.4 - 114.3 mm (0.84 - 4.5 in)

PROBE HOLDERS

Carries Olympus A15 small-footprint probes and wedges

TOOLS

Tools for all adjustment and manipulation of the scanner and components are included with the system

WARRANTY

A three-year limited warranty on all JIREH products.

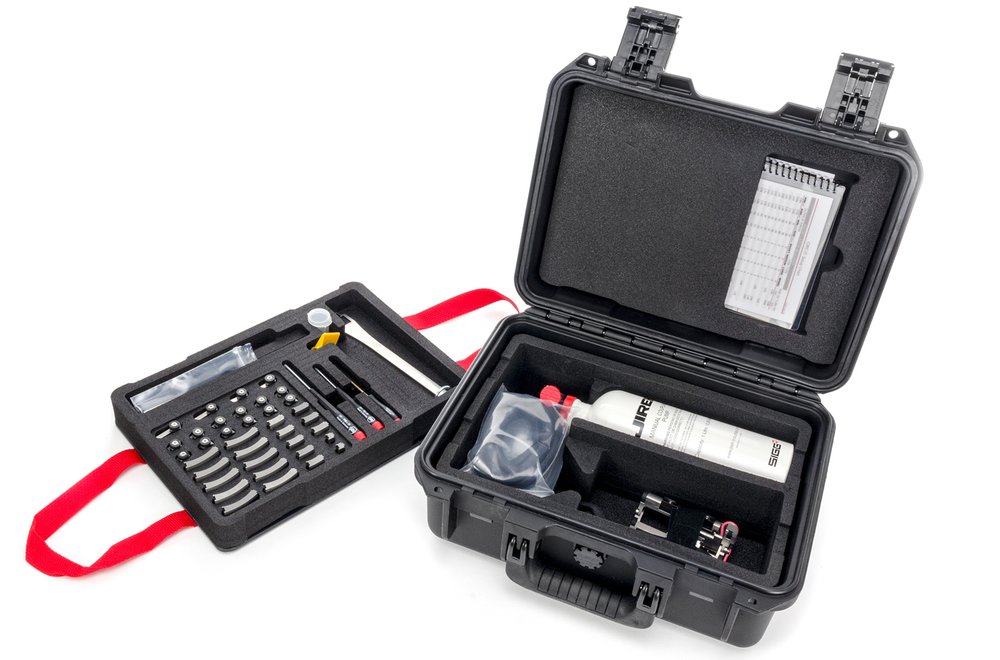

KIT CONTENTS

SCANNER

Double-sided CIRC-IT scanner

PARTS & ACCESSORIES

Long latch x2
Short latch x2
Wheel link x12
Short link x2
Medium link x8
Long link x10
Protective sleeving, 1.5 m (4.9 ft)
Crossbar, 69 mm (2.7 in) x2
Crossbar, 94 mm (3.7 in) x2
CIRC-IT spare fasteners kit
Irrigation fittings and tube, 2.5 m (8.2 ft)
User manual
Setup chart
Rugged carrying case

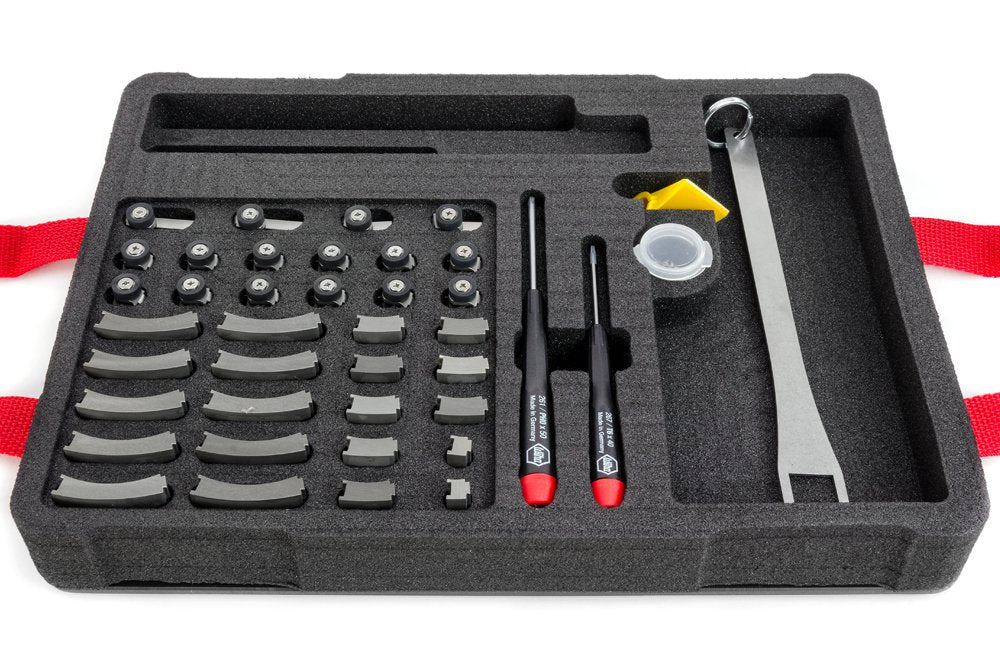

TOOLS

Chain retrieval tool
Loom installation tool
Torx® driver
Phillips driver
2 mm hex driver

COMPONENT IDENTIFICATION

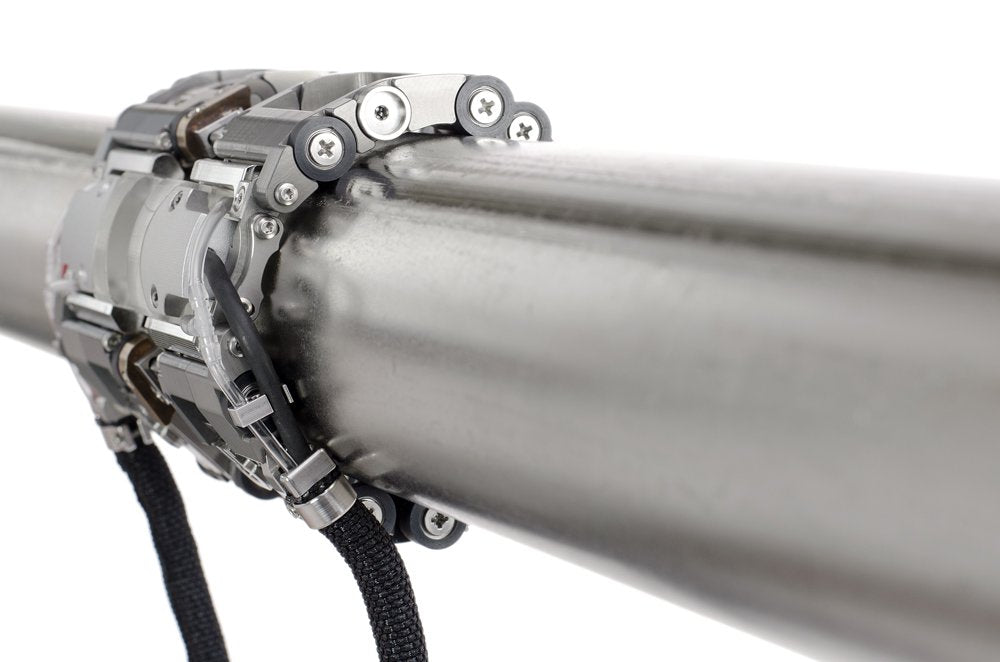

URETHANE WHEELS

Durable urethane wheels provide smooth rolling and adequate traction in vertical scanning applications.

CABLE MANAGEMENT

The CIRC-IT scanner features a cable management system for irrigation lines and probe cables.

QUICK CHANGE LINKS

Links provide infinite adjustment for pipes or tubes to be scanned between 21.4 - 114.3 mm (0.84 - 4.5 in).

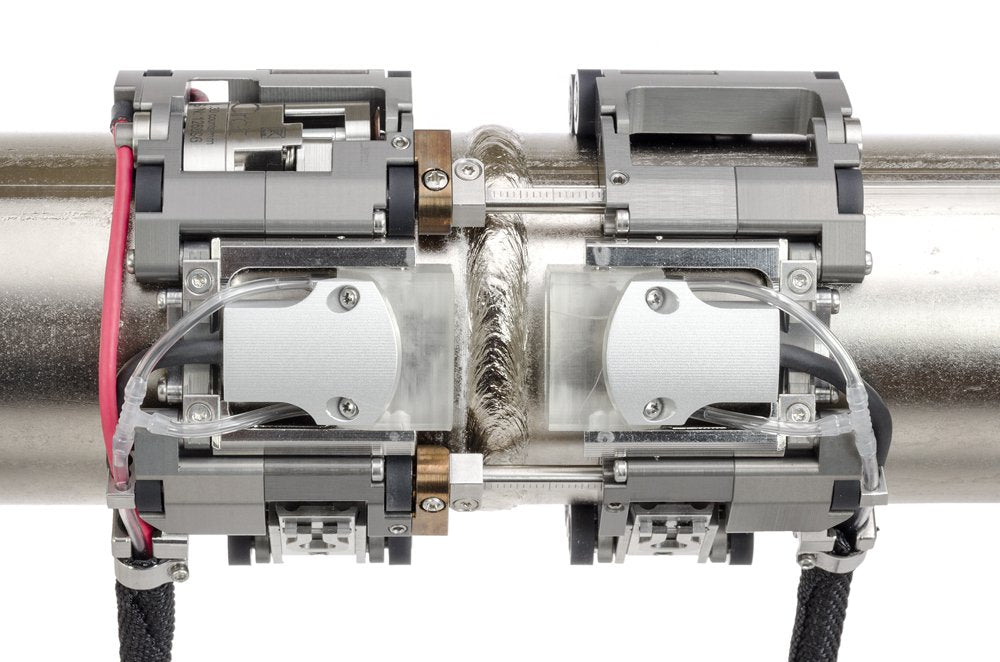

PROBE HOLDERS

Carries Olympus A15 small-footprint probes and wedges.

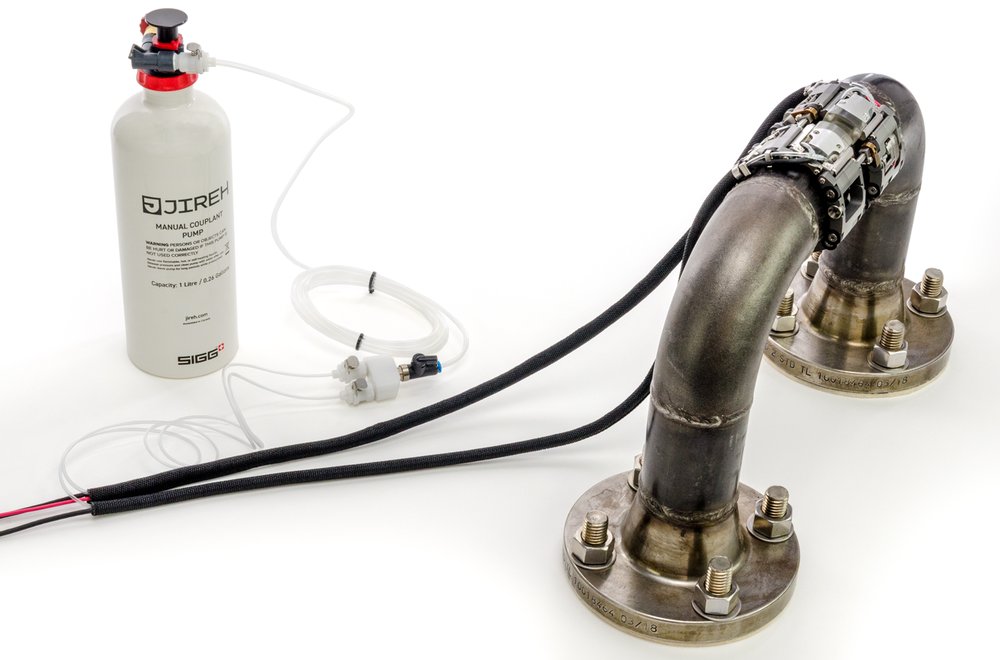

IRRIGATION KIT

The included irrigation kit contains the necessary hoses, fittings, tubing, etc, required to connect a couplant pump to the probe(s) being carried by the scanner

ENCODER

A spring-loaded encoder maintains constant contact with the scan surface for precise encoder measurements.

SPECIFICATIONS





GENERAL

Pipe Diameter Range: 21.4 mm - 114.3 mm (0.84 in - 4.5 in)1
Minimum Radial Clearance: 11 mm (0.433 in)2
Encoder: RS422 line driver, compatible with all standard encoder inputs
Encoder Resolution: 31.30 counts/mm (795.0 counts/inch)
Probe Holding Capacity: 2 phased array wedges
Encoder Cable Length: 3 m (9.8 ft)3
Inspection Surface: Ferrous and non-ferrous

RADIAL CLEARANCE

Radial Scanner Clearance: 11 mm (0.43 in)

SIZE & WEIGHT

Scanner Height: 11 mm (0.43 in)
Scanner Width (single probe): 53.5 mm (2.11 in)
Scanner Width (dual Probe): 115 mm (4.5 in)
Scanner Depth: 105.6 mm (4.2 in)4
Scanner Weight: 0.18 kg ( 0.4 lb)
Shipping weight: 3.5 kg (7.7 lb)5

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details

MINIMUM/MAXIMUM PROBE SPACING








0 MM PROBE SPACING

Scanner Width: 115 mm (4.5 in)
Probe spacing: 0 mm (0.0 in)
Crossbar selection: DJ0034-044
Included with the kit (x2)

20 MM PROBE SPACING

Scanner width: 134.6 mm (5.3 in)
Probe spacing: 20 mm (0.79 in)
Crossbar selection: DJ0034-044
Included with the kit (x2)

45 MM PROBE SPACING

Scanner width: 159.6 mm (6.3 in)
Probe spacing: 45 mm (1.8 in)
Crossbar selection: DJ0034-69
Included with the kit (x2)

70 MM PROBE SPACING

Scanner width: 185 mm (7.3 in)
Probe spacing: 70 mm (2.8 in)
Crossbar selection: DJ0034-094
Included with the kit (x2)

95 MM PROBE SPACING

Scanner width: 209.6 mm (8.3 in)
Probe spacing: 95 mm (3.7 in)
Crossbar selection: DJ0034-119
Purchased separately
