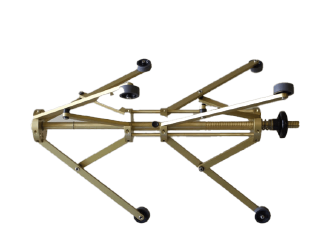

CENTERING DEVICES

CENTERING DEVICES


The Source Centering Device Is Used For Radiography Of
Pipes That Have Internal Access To Centralise The Radioactive Source In The Pipe In Order To Perform A Panoramic Exposure Of The Weld.

OVERVIEW

The Source Centering Device Is Used For Radiography Of Pipes That Have Internal Access To Centralise The Radioactive Source In The Pipe In Order To Perform A Panoramic Exposure Of The Weld.

FEATURES

Can be used with Ir-192 and Se-75

SPECIFICATIONS

Material:

Stainless Steel Center Tube and Fittings
Aluminium Frame

Wheels: Sealed Ballrace Bearings

Pipe Internal Diameter Ranges :
100mm to 750mm         Stock Code:NCC0014
200mm to 900mm         Stock Code:NCC0109
350mm to 1200mm       Stock Code:NCC0102

RESOURCES

Datasheet

ACCESSORIES

  • Guide tubes to attach to Centering Device and all recognised Industrial Radiography Projectors.
  • Adaptors to fitt all recognised Industrial Radiography Projectors
  • GAM836 Collimators – SR17 and Standard Pigtail
  • GAM846 Collimators – SR17 and Standard Pigtail
