BATTERY CONVERTER FOR CPSERIES
BATTERY CONVERTER FOR CPSERIES
SITEX CPSERIES

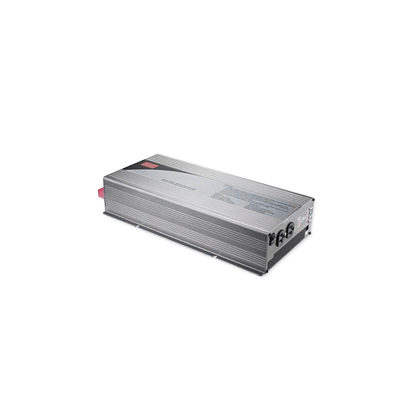

BATTERY CONVERTER FOR CPSERIES
The battery converter allows the powering of one POWERBOX and one CPSERIES from a LED battery such as those that are available in cars.
The converter generates an output voltage of 230 V / 50 Hz from an input voltage of 12 or 24 VDC and is capable of delivering electrical power of up to 1500 W
PRODUCT INFORMATIONS
| Inverter 12 VDC / 230 VAC | Inverter 24 VDC / 230 VAC | |
|---|---|---|
| Rated power | 1500 W | 1500 W |
| Max. output power (typ.) | 1725 W for 180 sec / 1875 W for 10 sec | 1725 W for 180 sec / 1875 W for 10 sec |
| AC voltage | 230 V +/-3% / 50Hz +/-1% | 230 V +/-3% / 50Hz +/-1% |
| Battery voltage | 12 VDC | 24 VDC |
| Voltage range | 10.5 ~ 15 VDC | 10.5 ~ 15 VDC |
| DC current | 150A | 75A |
| Battery type | Open & sealed lead acid | Open & sealed lead acid |
| Dimensions (LxWxh) | 420 x 220 x 88 mm | 420 x 220 x 88 mm |
| Weight | 7 Kg | 7 Kg |
