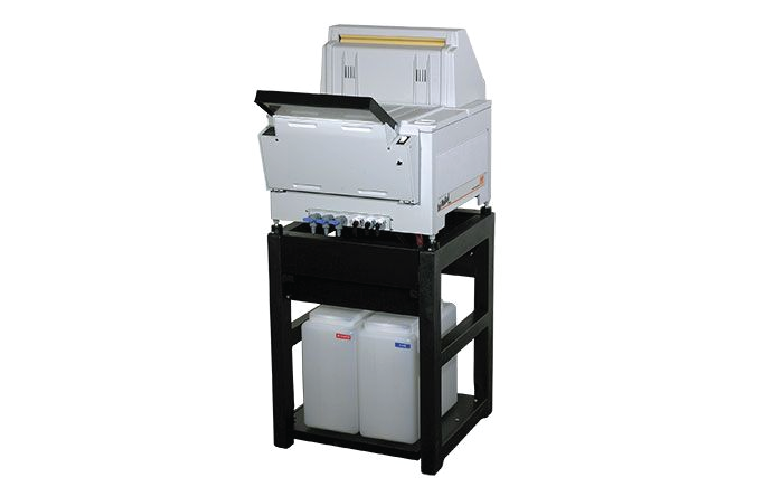

The AFP MINI-NDT Processor Is A Full Featured, Compact Industrial X-Ray Film Processor Which Meets All The Needs Of The Modern NDT Department. The Unit Features A 14 Inch Feed Width, Has The Same Features Found In Higher Priced Models And Can Be Used On A Table Or On Its Sturdy Base Stand (Supplied With All Processors). Because Of Its Cold Water Operation And “No Plumbing” Conversion Kit (*See Reverse Side – Option Section), The MINI-NDT Can Go Anywhere From Darkroom To Job Site; Mobile And Stationary Installations.
OVERVIEW
The MINI-NDT, weighing only 100 pounds, is another example of AFP providing the highest quality products regardless of size. Operation is simple with single switch activation and a built-in automatic replenishment system which controls all processing chemistry. The entire drive system is designed to take advantage of AFP’s technological advances with a powerful motor assuring quiet and reliable operation. The roller racks and film transport system in the energy efficient infrared dryer are specifically designed for processing industrial X-ray films – absolutely essential for faultless results. The worm drive greatly reduces load on the system and allows for easy rack removal for maintenance as well as extending the motor life. Another important advantage of the MINI-NDT is its ease of access, which enables one to carry out maintenance and possible repairs rapidly and easily. Additional features include solid state circuitry with automatic standby, temperature and low level developer indicators, an anti-crystallization “jog” cycle, automatic wash water control and an energy efficient infrared dryer. The compact MINI-NDT requires a minimum of precious darkroom space; it measures only 33” X 22” X 24” with only a 21” footprint. Processed films exit from the top, toward the operator, allowing this downsized unit to fit easily into corners or flush against walls in small darkrooms. The MINI-NDT will render excellent service for many years in all NDT departments where a moderate amount of X-ray films have to be processed in a very short time.
FEATURES
- Space saving design, table top operation
- Top front exit maximizes use of space
- Simplified operation with one switch activation
- Economical operation with cold water hookup
- Built-in automatic replenishment system maintains
optimum chemical activity
- Automatic standby conserves energy and
minimizes mechanical wear and water consumption
- Anti-Crystallization “jog” cycle eliminates buildup of dry chemistry on rollers
- Operator lights and audible tones make dark room
operation foolproof
- Energy efficient and long lasting infrared dryer
pivots back for easy access to wash section
- Interlocking crossovers eliminate daily cleanings,
minimize jams and simplify rack removal
- Backed by the industry’s most comprehensive
warranty
SPECIFICATIONS
| Dimensions |
Length: 33 in. (83.5 cm)
Width: 22 in. (55.9 cm)
Height: 24 in. (60.7 cm)
Footprint: 21 in. |
| Weight |
Net: 100 lbs. (45.5 kg)
W/Solutions: 150 lbs. (68.2 kg) |
| Tank Capacities |
1.9 gal (7.2 liters)
each tank |
| Processing Speed |
(14 in X 17 in film)
Leading Edge to Leading Edge: 8 minutes |
| Materials Accommodated |
Chemistry Types: Chemistry suitable for industrial roller processing
Film Size: Width: 14 in. (35.6 cm) maximum
Length: 4 in. (10 cm) minimum |
| Power Requirements |
Model #9992501600 115V, 60Hz, 1PH, 15 Amp
Model #9992501700 220V, 50Hz, 1PH, 7.5 Amp
Model #9992501900 220V, 60Hz, 1PH, 7.5 Amp |
| Water Consumption |
1/4 gal./min. (.9 liters/min.) – No water consumption during “standby” mode |
