IRIS ACCESSORIES
The following components are necessary to complete an IRIS inspection.

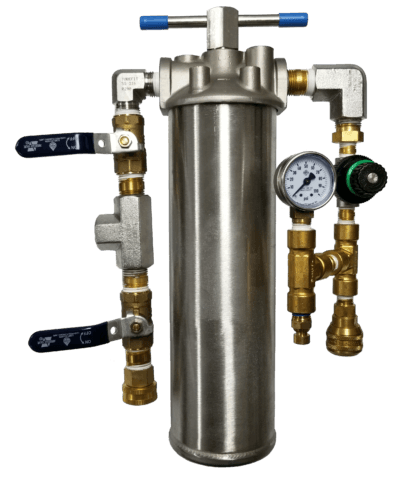

WATER FILTER ASSEMBLY
| Part Number | Description |
| 400000 | Stainless Steel & Brass self-contained water filtering system, filter and pressure regulator for water supply to probe assemblies |
TEST/CALIBRATION TUBES
Custom material and size test/calibration tubes available.
| Part Number | Description |
| 503100 | 15.87mm (.625″) OD test/calibration tube; 90/10 Copper/Nickel tube with known machined defects to verify instrument can meet designed sensitivity |
| 501100 | 19.05mm (.75″) OD test/calibration tube; 90/10 Copper/Nickel tube with known machined defects to verify instrument can meet designed sensitivity |
| 502100 | 25.4mm (1″) OD test/calibration tube; 90/10 Copper/Nickel tube with known machined defects to verify instrument can meet designed sensitivity |
| 504100 | 60.3mm (2.375″) OD test/calibration tube: 90/10 Copper/Nickel tube with known machined defects to verify instrument can meet designed sensitivity |
USEFUL ACCESSORIES
| Part Number | Description | |

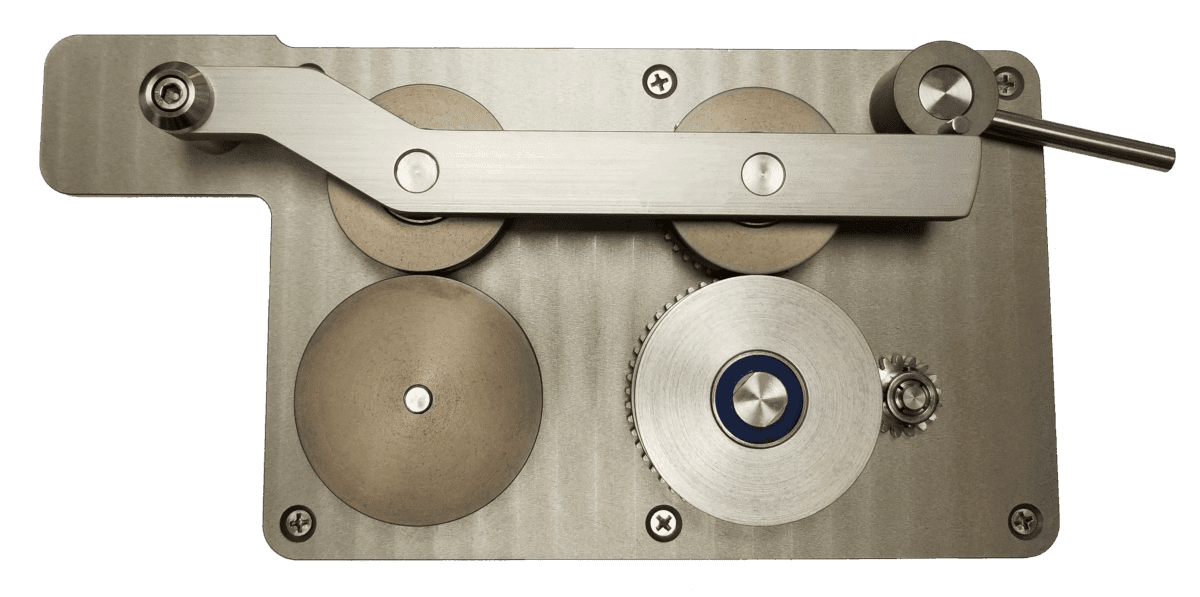

| 300000 | Remote probe motor drive; geared stepping motor and encoder to push/pull probe through tube and record probe’s position, with speeds up to 15.24m (600”) per minute |
 |

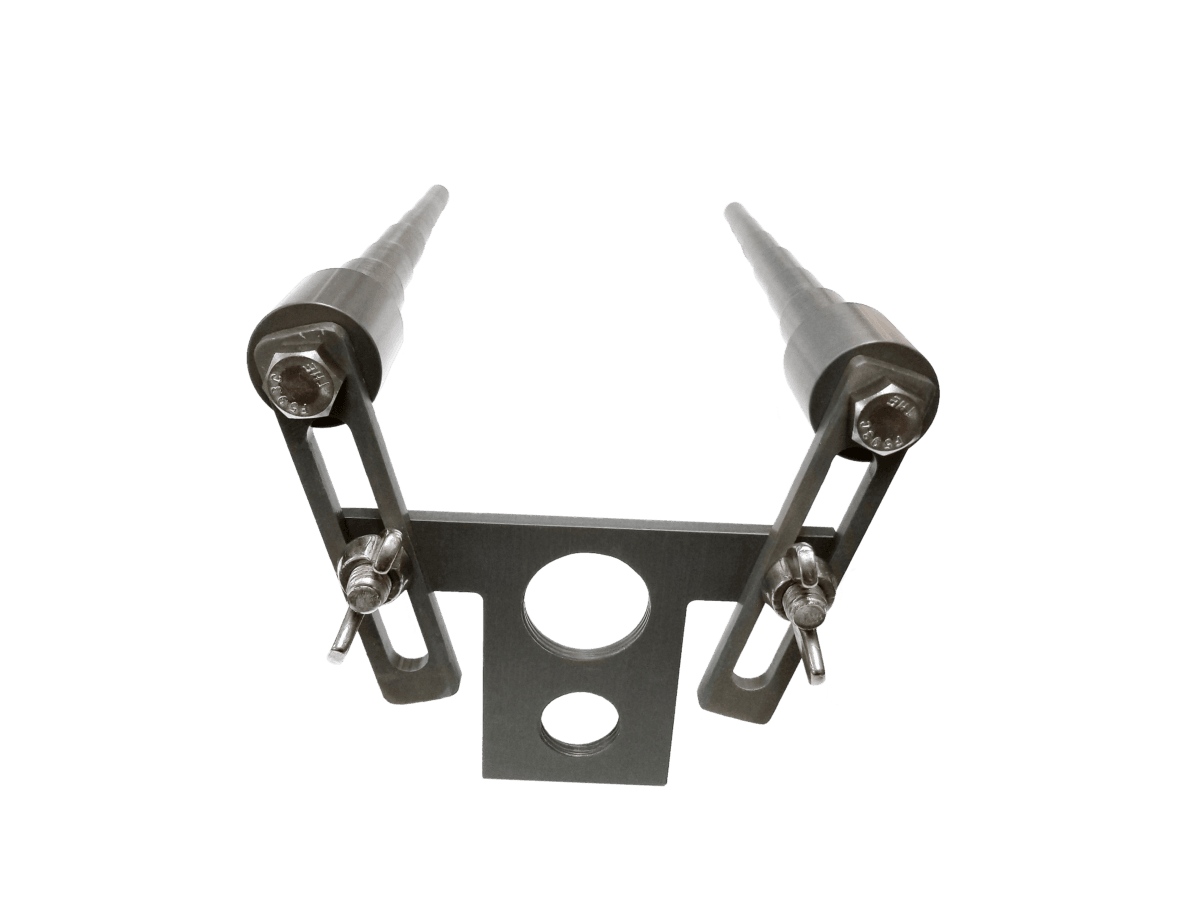

| 303000 | Tubesheet probe attachment bracket; adjustable bracket to hold probe in place on tubesheet face, connecting the probe adapter and ability to connect motor drive on exchanger tubesheet |
 |
| 807025 | 110VAC ground Fault Interrupter | |
| 807026 | 240VAC ground Fault Interrupter | |
| 808100 | Hand tools & small spares kit; assortment of tools to maintain IRIS system and its components (Includes selection of small spares and consumable parts) | |
| 807042 | LPS-2 Lubricant (Gallon) & Two Spray Bottles | |

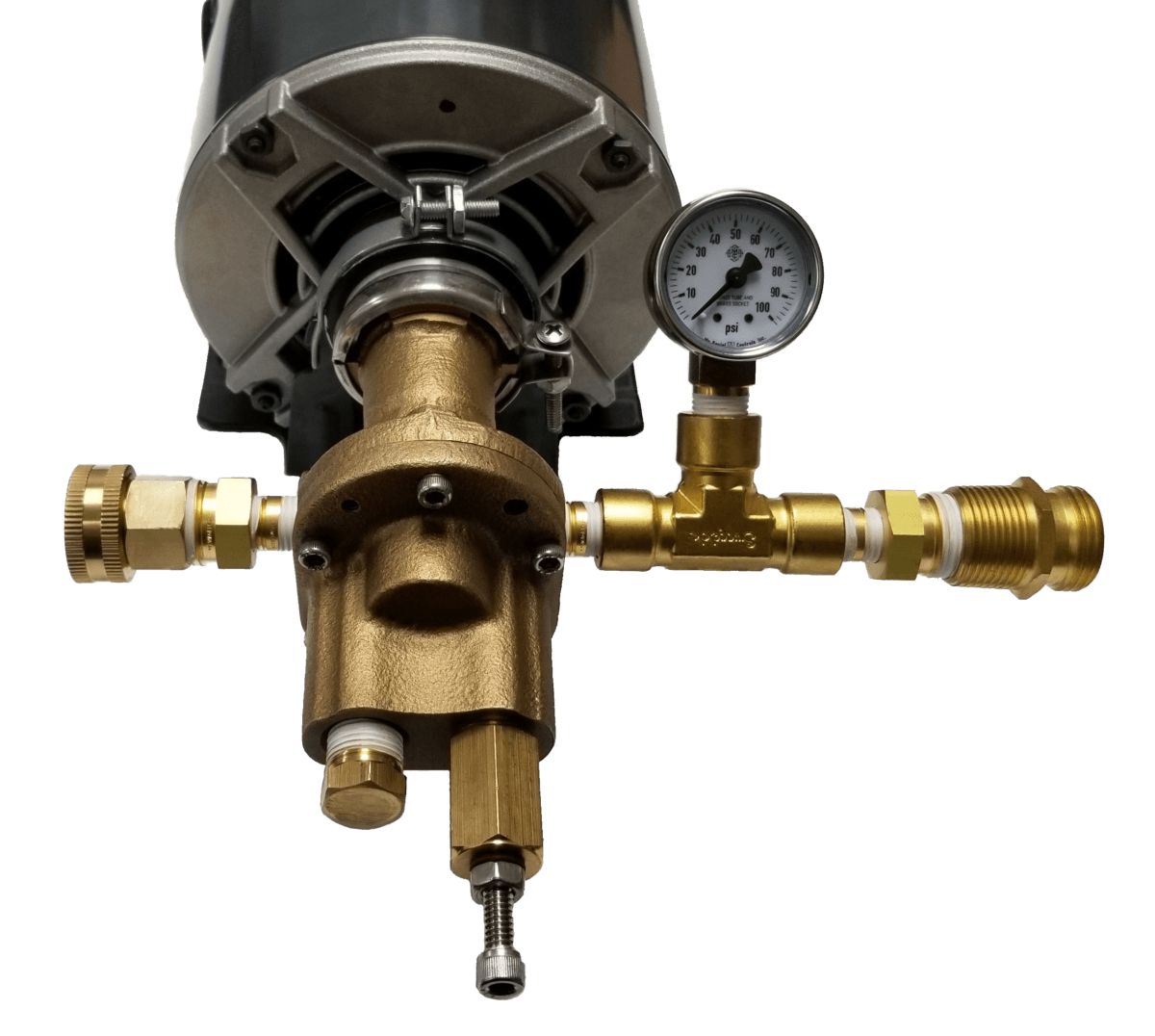

| 907000 | Water pump unit; 90VAC – 120VAC or 200VAC – 240VAC 50/60 Hz with 1 suction hose |
 |
| 602000 | 12VDC – 110VAC DC/AC Inverter; allows use of vehicle battery to operate IRIS system |
