4 mm ID Irrigation Kit (7/16 in Quick Connect)

4 mm ID Irrigation Kit (7/16 in Quick Connect)

The 4 mm Irrigation Kit (7/16 In Quick Connect) contains various hoses, fittings, tubing, etc., allowing for the connection of a couplant pump to the probe(s) affixed to a scanner. This 4 mm (internal diameter) kit includes a 7/16 quick connect, measures 5 m (16.4 ft) in length and is compatible with the 7.9 L (2.1 gallons) Manual Couplant Pump as well as the Motorized Couplant Pump.

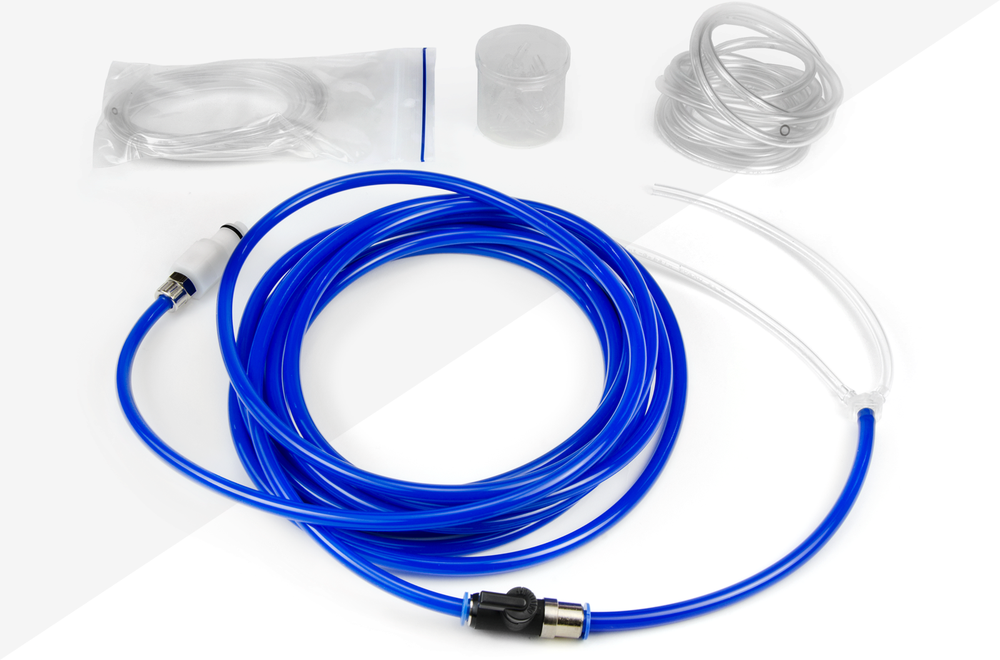

KIT CONTENTS

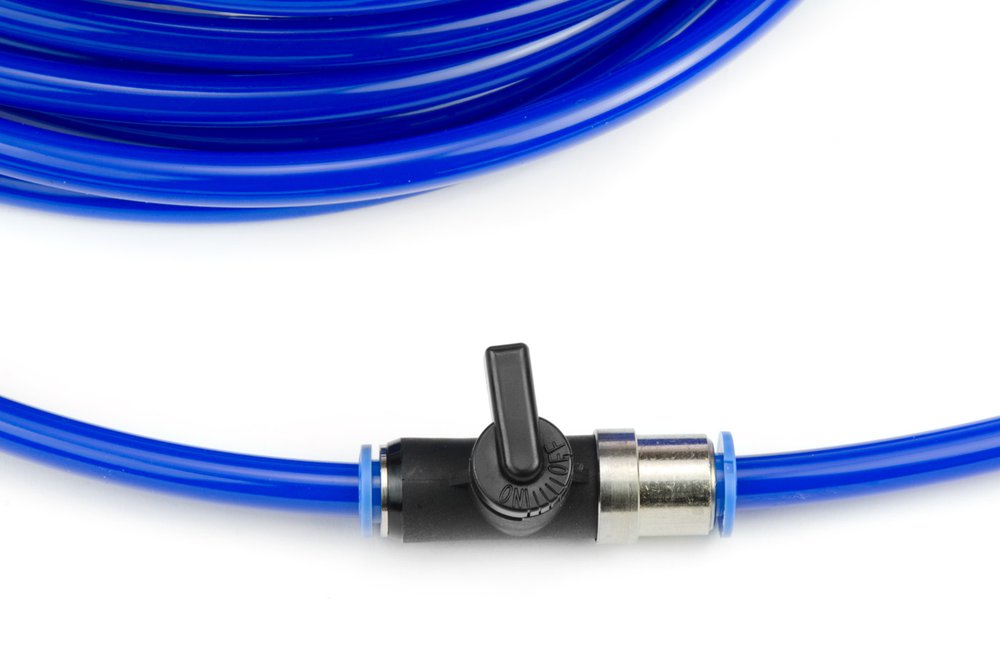

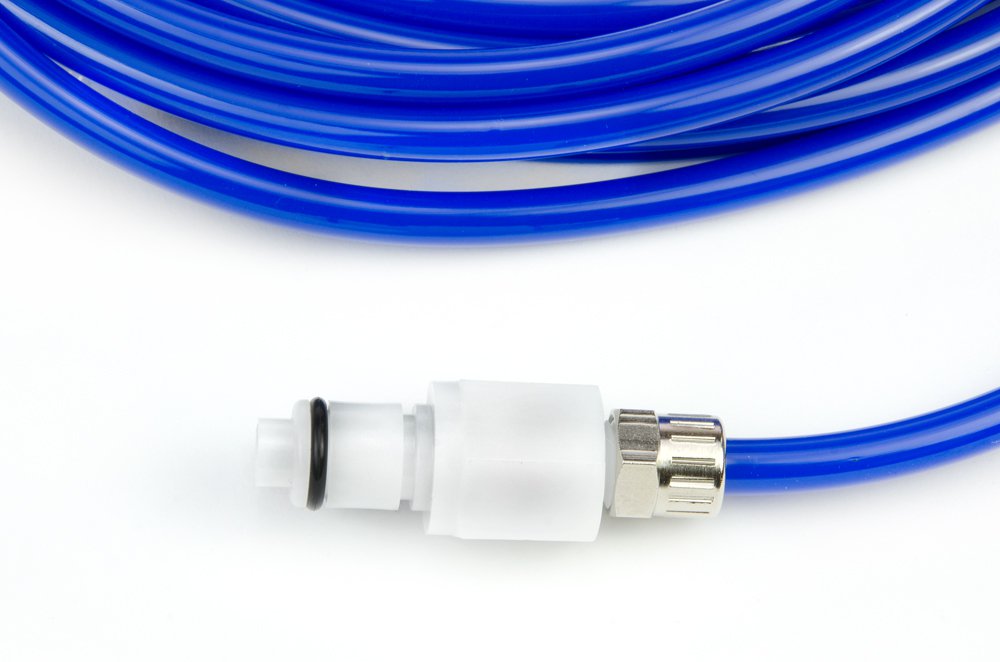

4 mm ID Irrigation Subassembly with 7/16 in Quick Connect and Shutoff Valve, 5 m (16.4 ft)

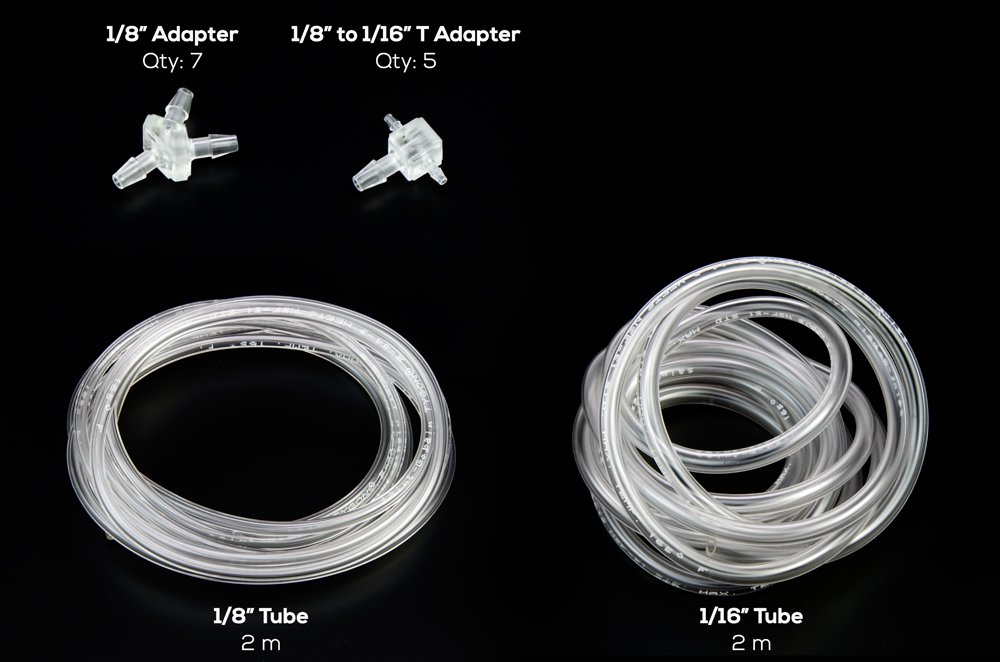

1/8 in Adapter x7
1/8 in To 1/16 in T Adapter x5
1/8 in Tube 2 m (6.5 ft)
1/16 in Tube 2 m (6.5 ft)
Plastic Container

PUMP AND IRRIGATION COMPATIBILITY


IRRIGATION KITS

CMG007 - 4 mm ID Irrigation Kit (7/16 in Quick Connect) - 1/8 in tube

CMG008 - 4 mm ID Irrigation Kit (5/16 in Quick Connect) - 1/8 in tube

CMG009 - 6 mm ID Irrigation Kit (7/16 in Quick Connect) - 1/4 in tube

PUMPS

CMA012 - Manual Couplant Pump - 1 Litre

CMA014 - Manual Couplant Pump - 7.9 L (2.1 gal.)

CMA015 - Motorized Couplant Pump

MANIFOLDS

CMG002 - Manifold - Connect 2, 4 or 6 Probes

CMG010 - Shutoff Manifold - Connect four probes with fluid shutoff
